Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

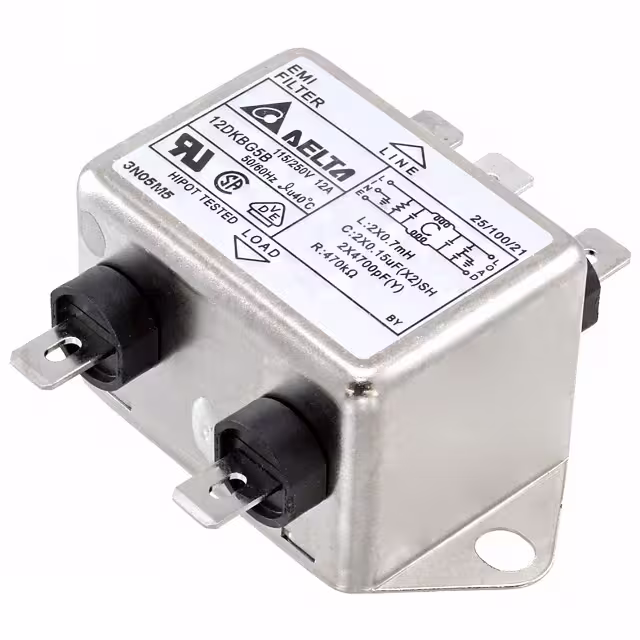

12DKBG5BLINE FILTER 115V/250VAC 12A CHAS |
9,524 |
|
Datasheet |
DK | Box | Active | Single Phase | Single Stage | - | 115V, 250V | - | - | 12 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 100°C | Chassis Mount | Quick Connect | 700µH |
|
10DBAG5LINE FILTER 115V/250VAC 10A CHAS |
8,726 |
|
Datasheet |
DB | Box | Active | Single Phase | Single Stage | - | 115V, 250V | - | - | 10 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 100°C | Chassis Mount | Quick Connect | 1.5mH |
|
AMI-M12A-3-6-BLINE FILTER 250VAC 6A CHASS MNT |
5,056 |
|
Datasheet |
AMI-M12A | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 6 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Wire Leads | 1.56mH |
|
5500.2007LINE FILTER 125V/250VAC 2A TH |
5,108 |
|
Datasheet |
FPP-01 | Bulk | Active | Single Phase | Single Stage | - | 125V, 250V | - | - | 2 A | 50/60Hz | General Purpose | cURus, ENEC, VDE | -25°C ~ 85°C | Through Hole | PC Pins | 6mH |
|
5500.2006LINE FILTER 125V/250VAC 1A TH |
8,374 |
|
Datasheet |
FPP-01 | Bulk | Active | Single Phase | Single Stage | - | 125V, 250V | - | - | 1 A | 50/60Hz | General Purpose | cURus, ENEC, VDE | -25°C ~ 85°C | Through Hole | PC Pins | 20mH |
|
|
AMI-M11N-1-15-BLINE FILTER 250VAC 15A CHASS MNT |
8,546 |
|
Datasheet |
AMI-M11N | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 15 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Quick Connect | 5.04mH |
|
03DSCG5LINE FILTER 115V/250VAC 3A CHASS |
7,608 |
|
Datasheet |
DS | Box | Active | Single Phase | Two Stage | - | 115V, 250V | - | - | 3 A | 50/60Hz | General Purpose | CSA, UR, VDE | - | Chassis Mount | Quick Connect | L1 - 30mH, L2 - 1mH |
|
|
AMI-23A-6-3LINE FILTER 250VAC 6A CHASS MNT |
2,400 |
|
Datasheet |
AMI-23 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 6 A | DC ~ 400Hz | Safety | CE, cURus | -25°C ~ 100°C | Chassis Mount | Quick Connect | 8mH |
|
|
AMI-23B-6-3LINE FILTER 250VAC 6A CHASS MNT |
3,176 |
|
Datasheet |
AMI-23 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 6 A | DC ~ 400Hz | Medical | CE, cURus | -25°C ~ 100°C | Chassis Mount | Quick Connect | 8mH |
|
|
AMI-23A-8-1LINE FILTER 250VAC 8A CHASS MNT |
6,686 |
|
Datasheet |
AMI-23 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 8 A | DC ~ 400Hz | Safety | CE, cURus | -25°C ~ 100°C | Chassis Mount | Quick Connect | 8mH |
|
|
AMI-M11K-7-20-BLINE FILTER 250VAC 20A CHASS MNT |
5,900 |
|
Datasheet |
AMI-M11K | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 20 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | IEC 320-C20, Quick Connect | 440µH |
|
|
AMI-M12AI-3-3-BLINE FILTER 277VAC/VDC 3A CHASS |
7,446 |
|
Datasheet |
AMI-M12AI | Box | Active | Single Phase | Two Stage | 277V | 277V | - | - | 3 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Wire Leads | 420µH |
|
|
AMI-M12S-7-5-B-2LINE FILTER 250VAC 5A CHASS MNT |
9,530 |
|
Datasheet |
AMI-M12S | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 5 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | IEC 320-C14, Quick Connect | 990µH |
|
5003.0421.1LINE FILTER 125VDC 15A PNL MT |
9,496 |
|
Datasheet |
5003 | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AMI-M11P-3-6-B-2LINE FILTER 250VAC 6A CHASS MNT |
7,314 |
|
Datasheet |
AMI-M11P | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 6 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Wire Leads | 8.73mH |
|
06DPCG5CMLINE FILTER 115V/250VAC 6A CHASS |
5,982 |
|
Datasheet |
DP | Box | Active | Single Phase | Two Stage | - | 115V, 250V | - | - | 6 A | 50/60Hz | General Purpose | CSA, UR, VDE | - | Chassis Mount | Quick Connect | - |
|
AGM-01LINE FILTER 250VAC 1A CHASS MNT |
5,970 |
|
Datasheet |
AGM | Box | Obsolete | Single Phase | Single Stage | - | 250V | - | - | 1 A | 50/60Hz | Medical | CE, UR | -25°C ~ 85°C | Chassis Mount | Quick Connect | - |
|
|
AMI-M12A-1-6-BLINE FILTER 250VAC 6A CHASS MNT |
9,900 |
|
Datasheet |
AMI-M12A | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 6 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Quick Connect | 1.56mH |
|
B84771C0012A000LINE FILTER |
5,594 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AMI-M12S-7-5-B-1LINE FILTER 250VAC 5A CHASS MNT |
4,270 |
|
Datasheet |
AMI-M12S | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 5 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | IEC 320-C14, Quick Connect | 1.032mH |
