Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AMI-21B-16-3LINE FILTER 250VAC 16A CHASS MNT |
2,246 |
|
Datasheet |
AMI-21 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 16 A | DC ~ 400Hz | Medical | CE, cURus | -25°C ~ 100°C | Chassis Mount | Quick Connect, Wire Leads | 600µH |
|
AMI-M11D-1-3-B-1LINE FILTER 250VAC 3A CHASS MNT |
5,570 |
|
Datasheet |
AMI-M11D | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 3 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Quick Connect | 1.76mH |
|
|
AMI-M12R-3-1-B-2LINE FILTER 250VAC 1A CHASS MNT |
3,120 |
|
Datasheet |
AMI-M12R | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 1 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Wire Leads | 3.72mH |
|

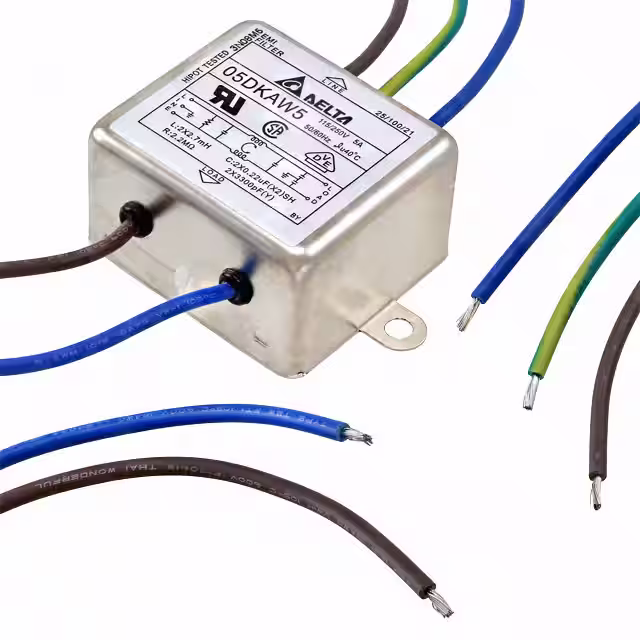

05DKAW5LINE FILTER 115V/250VAC 5A CHASS |
4,890 |
|
Datasheet |
DK | Box | Active | Single Phase | Single Stage | - | 115V, 250V | - | - | 5 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 100°C | Chassis Mount | Wire Leads | 2.7mH |
|
|
AMI-M11O-1-10-BLINE FILTER 250VAC 10A CHASS MNT |
5,086 |
|
Datasheet |
AMI-M11O | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 10 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Quick Connect | 1.1mH |
|
AMI-M11A-3-3-BLINE FILTER 250VAC 3A CHASS MNT |
8,768 |
|
Datasheet |
AMI-M11A | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 3 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Wire Leads | 1.76mH |
|
|
AMI-M12R-3-1-B-1LINE FILTER 250VAC 1A CHASS MNT |
2,576 |
|
Datasheet |
AMI-M12R | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 1 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Wire Leads | 3.72mH |
|
|
AMI-M11D-3-3-B-2LINE FILTER 250VAC 3A CHASS MNT |
8,582 |
|
Datasheet |
AMI-M11D | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 3 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Wire Leads | 1.76mH |
|
|
AMI-M11H-1-6-ALINE FILTER 250VAC 6A CHASS MNT |
9,182 |
|
Datasheet |
AMI-M11H | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 6 A | 50/60Hz | Medical | - | -10°C ~ 40°C | Chassis Mount | Quick Connect | 1.45mH |
|
|
AMI-21B-12-1LINE FILTER 250VAC 12A CHASS MNT |
2,164 |
|
Datasheet |
AMI-21 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 12 A | DC ~ 400Hz | Medical | CE, cURus | -25°C ~ 100°C | Chassis Mount | Quick Connect | 700µH |
|
|
AMI-21A-12-3LINE FILTER 250VAC 12A CHASS MNT |
5,274 |
|
Datasheet |
AMI-21 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 12 A | DC ~ 400Hz | Safety | CE, cURus | -25°C ~ 100°C | Chassis Mount | Quick Connect | 700µH |
|
|
AMI-21A-13-1LINE FILTER 250VAC 13A CHASS MNT |
9,884 |
|
Datasheet |
AMI-21 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 13 A | DC ~ 400Hz | Safety | CE, cURus | -25°C ~ 100°C | Chassis Mount | - | 700µH |
|
|
AMI-21B-13-1LINE FILTER 250VAC 13A CHASS MNT |
7,594 |
|
Datasheet |
AMI-21 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 13 A | DC ~ 400Hz | Medical | CE, cURus | -25°C ~ 100°C | Chassis Mount | - | 700µH |
|
|
AMI-21-13-3LINE FILTER 250VAC 13A CHASS MNT |
6,324 |
|
Datasheet |
AMI-21 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 13 A | DC ~ 400Hz | General Purpose | CE, cURus | -25°C ~ 100°C | Chassis Mount | - | 700µH |
|
|
AMI-M11N-1-10-BLINE FILTER 250VAC 10A CHASS MNT |
6,838 |
|
Datasheet |
AMI-M11N | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 10 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Quick Connect | 4.97mH |
|

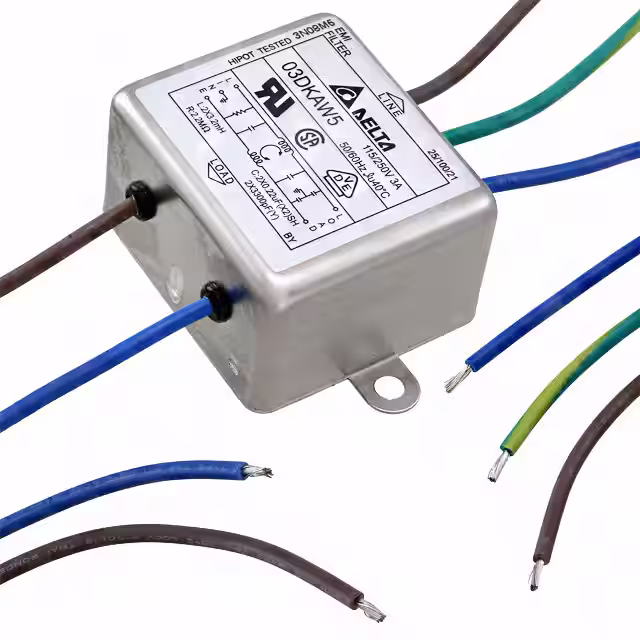

03DKAW5LINE FILTER 115V/250VAC 3A CHASS |
5,218 |
|
Datasheet |
DK | Box | Active | Single Phase | Single Stage | - | 115V, 250V | - | - | 3 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 100°C | Chassis Mount | Wire Leads | 3.2mH |
|
|
10DBAG5ULINE FILTER 100V/250VAC 10A CHAS |
3,578 |
|
Datasheet |
DB | Bulk | Active | Single Phase | Single Stage | - | 100V, 250V | - | - | 10 A | 50/60Hz | General Purpose | cUL, ENEC, UL | -25°C ~ 100°C | Chassis Mount | Quick Connect | 1.6mH |
|
|
02DKAW5LINE FILTER 115V/250VAC 2A CHASS |
8,238 |
|
Datasheet |
DK | Bulk | Active | Single Phase | Single Stage | - | 115V, 250V | - | - | 2 A | 50/60Hz | General Purpose | CSA, UR, VDE | - | Chassis Mount | Wire Leads | 2.1mH |
|
AMI-M11J-1-10-B-1LINE FILTER 250VAC 10A CHASS MNT |
4,458 |
|
Datasheet |
AMI-M11J | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 10 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Quick Connect | 1.76mH |
|

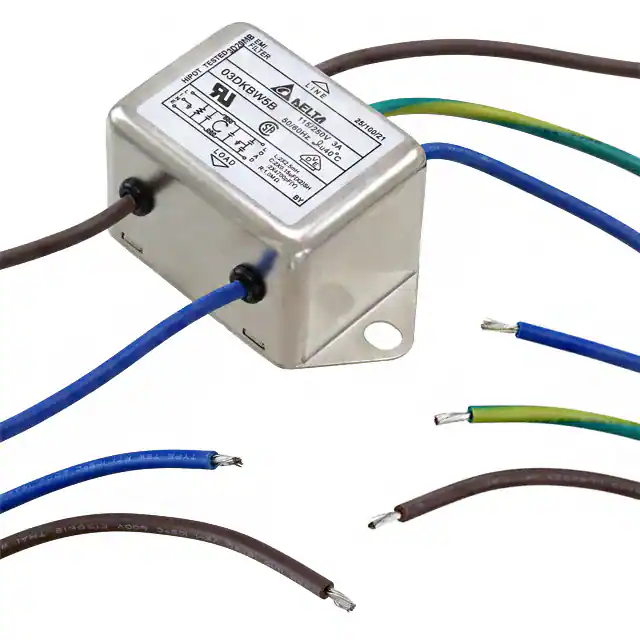

03DKBW5BLINE FILTER 115V/250VAC 3A CHASS |
3,578 |
|
Datasheet |
DK | Box | Active | Single Phase | Single Stage | - | 115V, 250V | - | - | 3 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 100°C | Chassis Mount | Wire Leads | 2.5mH |
