Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

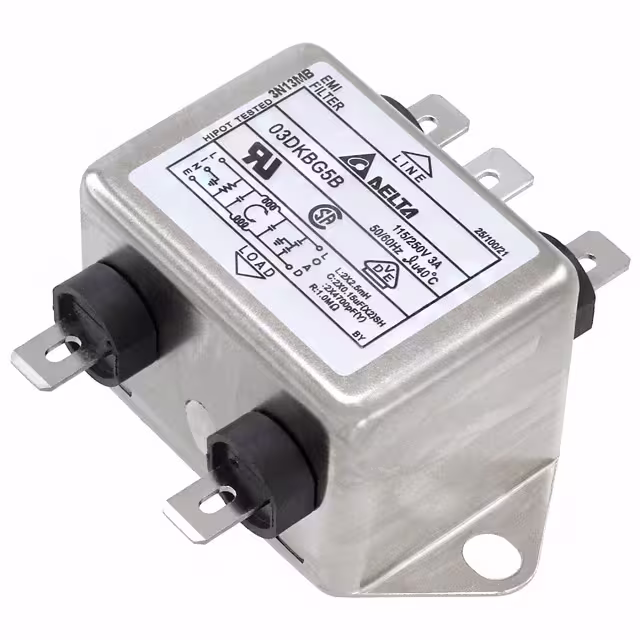

03DKBG5BLINE FILTER 115V/250VAC 3A CHASS |
3,246 |
|
Datasheet |
DK | Box | Active | Single Phase | Single Stage | - | 115V, 250V | - | - | 3 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 100°C | Chassis Mount | Quick Connect | 2.5mH |
|
AMI-M12R-1-3-B-2LINE FILTER 250VAC 3A CHASS MNT |
3,252 |
|
Datasheet |
AMI-M12R | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 3 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Quick Connect | 3.52mH |
|
|
AMI-M12R-3-2-B-1LINE FILTER 250VAC 2A CHASS MNT |
4,522 |
|
Datasheet |
AMI-M12R | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 2 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Wire Leads | 1.078mH |
|
|
AMI-22B-1-3LINE FILTER 250VAC 1A CHASS MNT |
2,854 |
|
Datasheet |
AMI-22 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 1 A | DC ~ 400Hz | Medical | CE, cURus | -25°C ~ 100°C | Chassis Mount | Quick Connect | 12mH |
|
|
AMI-22A-3-1LINE FILTER 250VAC 3A CHASS MNT |
6,708 |
|
Datasheet |
AMI-22 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 3 A | DC ~ 400Hz | Safety | CE, cURus | -25°C ~ 100°C | Chassis Mount | Quick Connect | 2.5mH |
|
|
AMI-M12R-1-3-B-1LINE FILTER 250VAC 3A CHASS MNT |
6,974 |
|
Datasheet |
AMI-M12R | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 3 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Quick Connect | 3.52mH |
|

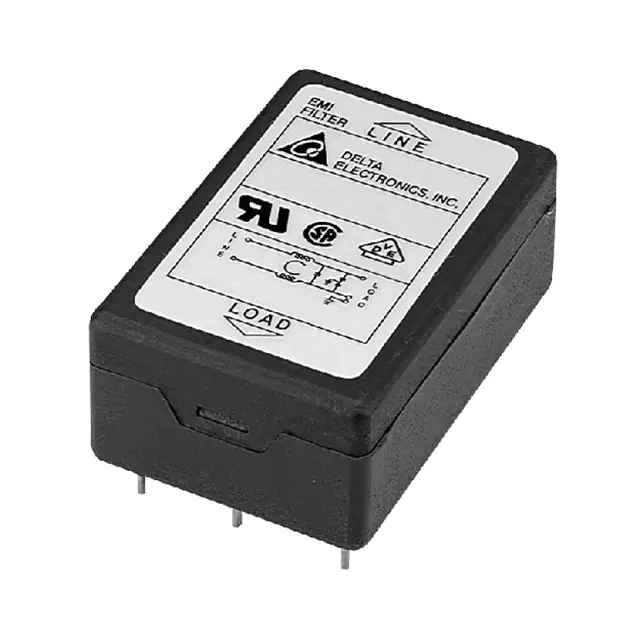

01MK4ELINE FILTER 115V/250VAC 1A TH |
4,754 |
|
Datasheet |
MK | Bulk | Active | Single Phase | Single Stage | - | 115V, 250V | - | - | 1 A | 50 ~ 60Hz | General Purpose | CSA, UR, VDE | - | Through Hole | PC Pins | 10mH |
|
|
01MK4PC BOARD MOUNTING FILTER 1A |
8,846 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AMI-22B-3-1LINE FILTER 250VAC 3A CHASS MNT |
3,970 |
|
Datasheet |
AMI-22 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 3 A | DC ~ 400Hz | Medical | CE, cURus | -25°C ~ 100°C | Chassis Mount | Quick Connect | 670µH |
|
|
AMI-22A-3-3LINE FILTER 250VAC 3A CHASS MNT |
7,312 |
|
Datasheet |
AMI-22 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 3 A | DC ~ 400Hz | Safety | CE, cURus | -25°C ~ 100°C | Chassis Mount | Quick Connect | 2.5mH |
|
|
AMI-22A-6-3LINE FILTER 250VAC 6A CHASS MNT |
6,652 |
|
Datasheet |
AMI-22 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 6 A | DC ~ 400Hz | Safety | CE, cURus | -25°C ~ 100°C | Chassis Mount | Quick Connect | 1mH |
|

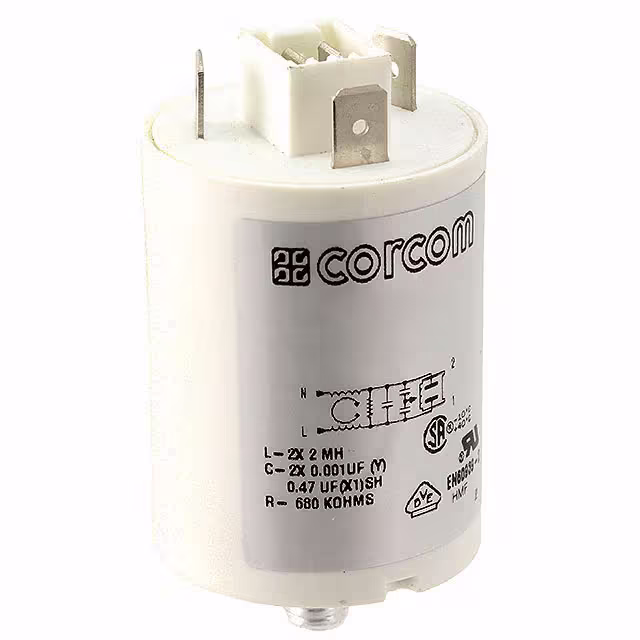

4-1609090-2LINE FILTER 250VAC 16A CHASS MNT |
9,328 |
|
Datasheet |
WG | Bulk | Active | Single Phase | Single Stage | - | 250V | - | - | 16 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect, Threaded Post (M8) | 1.2mH |
|

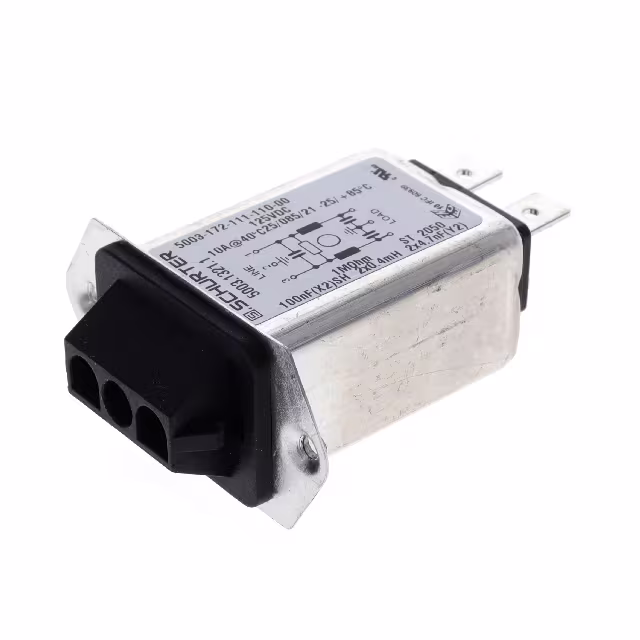

5003.1321.1LINE FILTER 125VDC 10A PANEL MNT |
5,786 |
|
Datasheet |
5003 | Bulk | Obsolete | Single Phase | Single Stage | 125V | - | - | - | 10 A | - | Signal | cURus, ENEC, UL, VDE | -25°C ~ 85°C | Panel Mount | Quick Connect | 400µH |
|
5003.1231.1LINE FILTER 125VDC PANEL MOUNT |
6,662 |
|
Datasheet |
5003 | Bulk | Obsolete | Single Phase | Single Stage | 125V | - | - | - | - | - | Signal | cURus, ENEC, UL, VDE | -25°C ~ 85°C | Panel Mount | - | - |
|
|
AMI-23A-1-3LINE FILTER 250VAC 1A CHASS MNT |
8,682 |
|
Datasheet |
AMI-23 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 1 A | DC ~ 400Hz | Safety | CE, cURus | -25°C ~ 100°C | Chassis Mount | Quick Connect | 20mH |
|
|
AMI-23B-1-3LINE FILTER 250VAC 1A CHASS MNT |
5,430 |
|
Datasheet |
AMI-23 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 1 A | DC ~ 400Hz | Medical | CE, cURus | -25°C ~ 100°C | Chassis Mount | Quick Connect | 20mH |
|
|
AMI-22B-3-3LINE FILTER 250VAC 3A CHASS MNT |
7,102 |
|
Datasheet |
AMI-22 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 3 A | DC ~ 400Hz | Medical | CE, cURus | -25°C ~ 100°C | Chassis Mount | Quick Connect | 670µH |
|
|
AMI-22A-6-1LINE FILTER 250VAC 6A CHASS MNT |
9,218 |
|
Datasheet |
AMI-22 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 6 A | DC ~ 400Hz | Safety | CE, cURus | -25°C ~ 100°C | Chassis Mount | Quick Connect | 1mH |
|
|
AMI-22B-6-3LINE FILTER 250VAC 6A CHASS MNT |
6,790 |
|
Datasheet |
AMI-22 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 6 A | DC ~ 400Hz | Medical | CE, cURus | -25°C ~ 100°C | Chassis Mount | Quick Connect | 1mH |
|
|
AMI-22A-10-3LINE FILTER 250VAC 10A CHASS MNT |
4,292 |
|
Datasheet |
AMI-22 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 10 A | DC ~ 400Hz | Safety | CE, cURus | -25°C ~ 100°C | Chassis Mount | Quick Connect | 800µH |
