Power Driver Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Configuration | Current | Voltage | Voltage - Isolation | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NXV04V120DB13-PHASE INVERTER AUTOMOTI |
9,582 |
|
Datasheet |
- | 19-PowerDIP Module (1.480", 37.60mm) | Tube | Active | MOSFET | 3 Phase Inverter | 160 A | 40 V | 2500Vrms | Automotive | - | Through Hole |
|
BM63575S-VA600V IGBT INTELLIGENT POWER MODU |
8,616 |
|
Datasheet |
- | 25-PowerDIP Module (1.134", 28.80mm) | Tube | Active | IGBT | 3 Phase Inverter | 20 A | 600 V | 1500Vrms | - | - | Through Hole |
|
BM63577S-VC600V IGBT INTELLIGENT POWER MODU |
8,110 |
|
Datasheet |
- | 25-PowerDIP Module (1.327", 33.70mm) | Tube | Active | IGBT | 3 Phase Inverter | 30 A | 600 V | 1500Vrms | - | - | Through Hole |
|
|
BM63377S-VC600V IGBT INTELLIGENT POWER MODU |
8,586 |
|
Datasheet |
- | 25-PowerDIP Module (1.327", 33.70mm) | Tube | Active | IGBT | 3 Phase Inverter | 30 A | 600 V | 1500Vrms | - | - | Through Hole |
|
FSBB20CH120DFSPM3V 1200V V2 20A |
9,938 |
|
Datasheet |
Motion SPM® 3 | 27-PowerDIP Module (1.205", 30.60mm) | Tube | Not For New Designs | IGBT | 3 Phase Inverter | 20 A | 1.2 kV | 2500Vrms | - | - | Through Hole |
|
FPAM30LH60MODULE SPM 600V 30A S32EA |
7,200 |
|
Datasheet |
PFC SPM® 2 | 32-PowerDIP Module (1.370", 34.80mm) | Tube | Active | IGBT | 2 Phase | 30 A | 600 V | 2500Vrms | - | - | Through Hole |
|
|
BM63967S-VCINTELLIGENT POWER MODULE |
7,384 |
|
Datasheet |
- | 25-PowerDIP Module (1.327", 33.70mm) | Tube | Active | IGBT | 3 Phase Inverter | 30 A | 600 V | 1500Vrms | - | - | Through Hole |
|
BM63967S-VAINTELLIGENT POWER MODULE |
7,850 |
|
Datasheet |
- | 25-PowerDIP Module (1.134", 28.80mm) | Tube | Active | IGBT | 3 Phase Inverter | 30 A | 600 V | 1500Vrms | - | - | Through Hole |
|

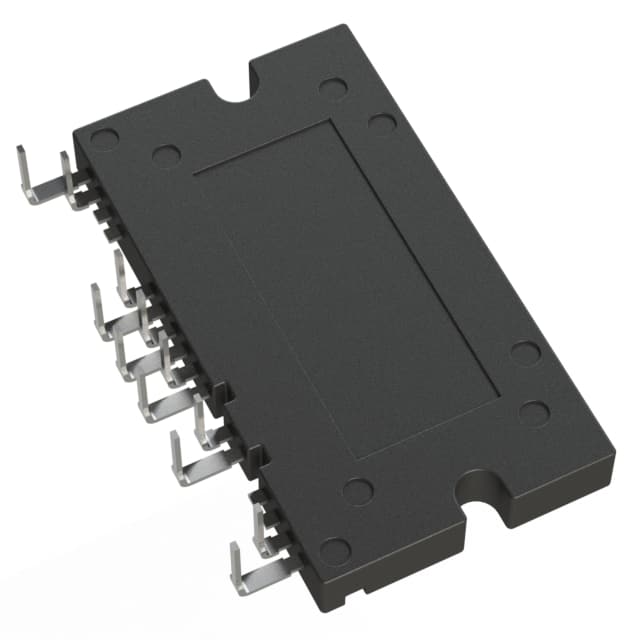

FAM65CR51ADZ2POWER INTEGRATED MODULE (PIM) BO |
5,004 |
|
Datasheet |
- | 12-SSIP Exposed Pad, Formed Leads | Tube | Active | MOSFET | H-Bridge | 41 A | 650 V | 5000Vrms | Automotive | AEC-Q101 | Through Hole |
|
NFAL5065L4BTIPM 650V 50A 31PWRDIP MOD |
9,724 |
|
Datasheet |
SPM® | 31-PowerDIP Module (1.385", 35.17mm) | Tube | Active | IGBT | 3 Phase Inverter | 50 A | 650 V | 2500Vrms | - | - | Through Hole |
|
NFAL5065L4BIPM 650V 50A |
8,224 |
|
Datasheet |
SPM® | 30-PowerDIP Module (1.385", 35.17mm) | Tube | Active | IGBT | 3 Phase Inverter | 50 A | 650 V | 2500Vrms | - | - | Through Hole |
|
NFAL7565L4BIPM 650V 75A |
5,322 |
|
Datasheet |
SPM® | 30-PowerDIP Module (1.385", 35.17mm) | Tube | Active | IGBT | 3 Phase Inverter | 75 A | 650 V | 2500Vrms | - | - | Through Hole |
|
|
NFVA22512NP2TINTELLIGENT POWER MODULE (IPM), |
6,356 |
|
Datasheet |
SPM® | 34-PowerDIP Module (0.997", 39.26mm) | Tube | Active | IGBT | 3 Phase Inverter | 25 A | 1.2 kV | 2500Vrms | Automotive | - | Through Hole |
|
2SP0430T2B0C-FF1500R12IE5SCALE-2 PNP DUAL GATE DRVR 1.2KV |
9,650 |
|
Datasheet |
SCALE™-2 | Module | Tray | Active | IGBT | 3 Phase Inverter | 1500 A | 1.2 kV | 9100Vrms | - | - | - |
|
|
2SP0430T2B0C-FF1500R17IP5SCALE-2 PNP DUAL GATE DRVR 1.7KV |
5,466 |
|
Datasheet |
SCALE™-2 | Module | Tray | Active | IGBT | 3 Phase Inverter | 1500 A | 1.7 kV | 9100Vrms | - | - | - |
|
|
2SP0430T2B0C-FF1800R12IE5SCALE-2 PNP DUAL GATE DRVR 1.2KV |
7,036 |
|
Datasheet |
SCALE™-2 | Module | Tray | Active | IGBT | 3 Phase Inverter | 1800 A | 1.2 kV | 9100Vrms | - | - | - |
|
MSCSM120SKM11CT3AGPM-MOSFET-SIC-SBD~-SP3F |
7,584 |
|
Datasheet |
- | Module | Tube | Active | MOSFET | 1 Phase | 254 A | 1.2 kV | 4000Vrms | - | - | Chassis Mount |
|
|
BSM120C12P2C2011200V, 134A, CHOPPER, SILICON-CA |
3,500 |
|
Datasheet |
- | Module | Bulk | Active | MOSFET | - | 134 A | 1.2 kV | 2500Vrms | - | - | Chassis Mount |
|
FBS-GAM04-P-C100100V 5A DUAL LOW SIDE DRIVER |
4,406 |
|
Datasheet |
- | 18-SMD Module | Bulk | Active | MOSFET | 3 Phase | 10 A | 100 V | - | - | - | Surface Mount |
.jpg)
|
FBS-GAM04-P-C5050V 10A DUAL LOW SIDE DRIVER |
4,964 |
|
Datasheet |
- | 18-SMD Module | Bulk | Active | MOSFET | 3 Phase | 10 A | 50 V | - | - | - | Surface Mount |
