Power Driver Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Configuration | Current | Voltage | Voltage - Isolation | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NFAP1060L3TTINTELLIGENT POWER MODULE 600V 10 |
2,130 |
|
Datasheet |
- | 29-PowerSSIP Module, 21 Leads, Formed Leads | Tube | Not For New Designs | IGBT | 3 Phase Inverter | 10 A | 600 V | 2000Vrms | - | - | Through Hole |
|
FNB41060B2IGBT 3PH 600V 10A MODULE |
9,464 |
|
Datasheet |
Motion SPM® 45 | 26-PowerDIP Module (1.024", 26.00mm) | Tube | Not For New Designs | IGBT | 3 Phase | 10 A | 600 V | 2000Vrms | - | - | Through Hole |
|
|
FNB40560MODULE SPM 600V 5A 26PWRDIP |
7,070 |
|
Datasheet |
Motion SPM® 45 | 26-PowerDIP Module (1.024", 26.00mm) | Tube | Not For New Designs | IGBT | 3 Phase | 5 A | 600 V | 2000Vrms | - | - | Through Hole |
|
FND43060T2IPM SPM45_V2 600V 30A REM |
8,922 |
|
Datasheet |
Motion SPM® 45 | 26-PowerDIP Module (1.024", 26.00mm) | Tube | Active | IGBT | 3 Phase Inverter | 30 A | 600 V | 2000Vrms | - | - | Through Hole |
|

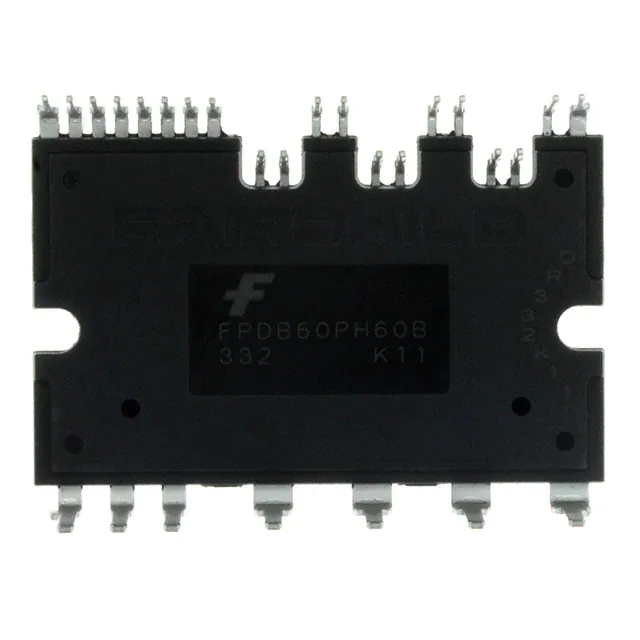

FPDB60PH60BMODULE SPM 600V 60A SPMHC |
9,340 |
|
Datasheet |
PFC SPM® 3 | 27-PowerDIP Module (1.205", 30.60mm) | Tube | Not For New Designs | IGBT | 2 Phase | 60 A | 600 V | 2500Vrms | - | - | Through Hole |
|

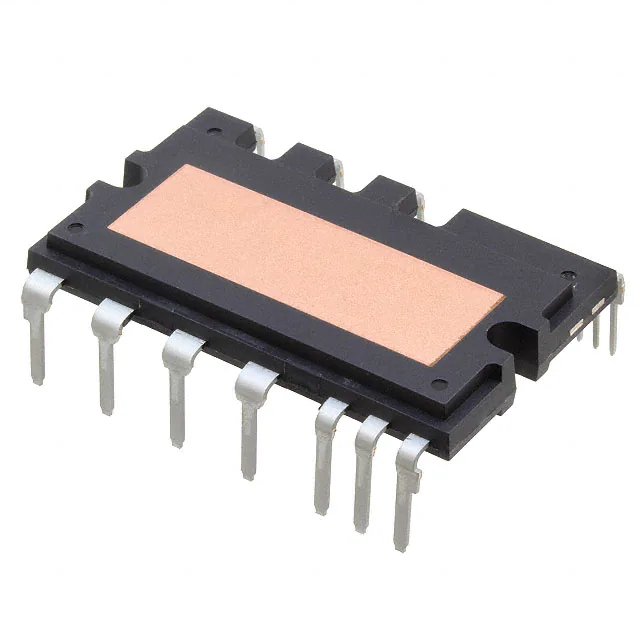

FSBB10CH120DMODULE SPM 1.2V 10A 27PWRDIP |
7,392 |
|
Datasheet |
Motion SPM® 3 | 27-PowerDIP Module (1.205", 30.60mm) | Tube | Not For New Designs | IGBT | 3 Phase | 10 A | 1.2 kV | 2500Vrms | - | - | Through Hole |
|
FSBB10CH120DFMODULE SPM 1.2KV 10A SPMMC |
8,938 |
|
Datasheet |
Motion SPM® 3 | 27-PowerDIP Module (1.205", 30.60mm) | Tube | Active | IGBT | 3 Phase | 10 A | 1.2 kV | 2500Vrms | - | - | Through Hole |
|
NFAM3065L4BTIPM 650V 30A |
5,364 |
|
Datasheet |
- | 39-PowerDIP Module (1.413", 35.90mm), 30 Leads | Tube | Active | IGBT | 3 Phase Inverter | 30 A | 650 V | 2500Vrms | - | - | Through Hole |
|
|
FSBB15CH120DFSPM3V 1200V V2 15A |
3,146 |
|
Datasheet |
Motion SPM® 3 | 27-PowerDIP Module (1.205", 30.60mm) | Tube | Not For New Designs | IGBT | 3 Phase Inverter | 15 A | 1.2 kV | 2500Vrms | - | - | Through Hole |
|
|
FSBB20CH120DIPM 1.2V 20A 27PWRDIP MOD |
5,220 |
|
Datasheet |
Motion SPM® 3 | 27-PowerDIP Module (1.205", 30.60mm) | Tube | Not For New Designs | IGBT | 3 Phase Inverter | 20 A | 1.2 kV | 2500Vrms | - | - | Through Hole |
|
NXV08V110DB1IC INVERTER 3-PHASE MOD198 |
3,080 |
|
Datasheet |
- | 19-PowerDIP Module (1.470", 37.34mm) | Tube | Active | MOSFET | 3 Phase Inverter | - | 80 V | 2500Vrms | - | - | Through Hole |
|
|
NFVA33065L32ASPM27 V2 650V/30A |
6,112 |
|
Datasheet |
SPM® 27 | 27-PowerDIP Module (1.205", 30.60mm) | Tube | Active | IGBT | 3 Phase Inverter | 30 A | 650 V | 2500Vrms | Automotive | - | Through Hole |
|
FNA25012AIPM SPM34 1200V 50A |
9,442 |
|
Datasheet |
Motion SPM® 2 | 34-PowerDIP Module (1.480", 37.60mm) | Tube | Not For New Designs | IGBT | 3 Phase Inverter | 50 A | 1.2 kV | 2500Vrms | - | - | Through Hole |
|
|
2SP0430T2A0C-FF1800R12IE5SCALE-2 PNP DUAL GATE DRVR 1.2KV |
6,784 |
|
Datasheet |
SCALE™-2 | Module | Tray | Active | IGBT | 3 Phase Inverter | 1800 A | 1.2 kV | 5000Vrms | - | - | - |
|
|
2SP0430T2A0C-FF1500R12IE5SCALE-2 PNP DUAL GATE DRVR 1.2KV |
8,494 |
|
Datasheet |
SCALE™-2 | Module | Tray | Active | IGBT | 3 Phase Inverter | 1500 A | 1.2 kV | 5000Vrms | - | - | - |
|

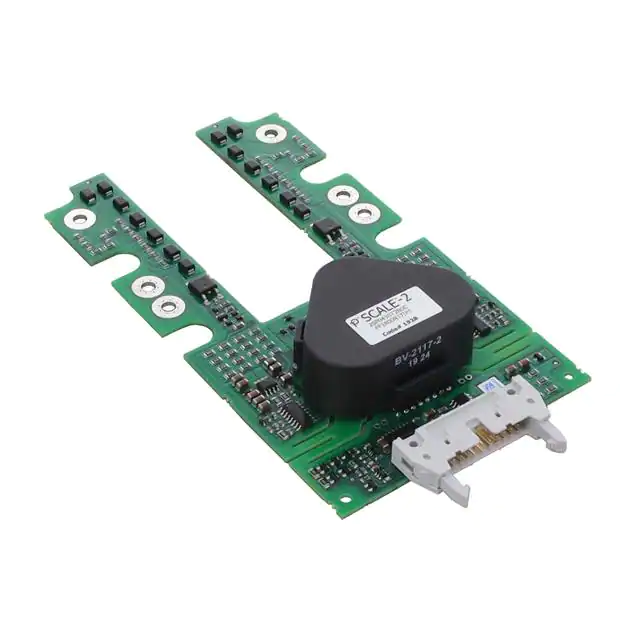

2SP0430T2B0C-FF1800R17IP5SCALE-2 PNP DUAL GATE DRVR 1.7KV |
3,704 |
|
Datasheet |
SCALE™-2 | Module | Tray | Active | IGBT | 3 Phase Inverter | 1800 A | 1.7 kV | 9100Vrms | - | - | - |
|
MSCSM120DAM11CT3AGPM-MOSFET-SIC-SBD~-SP3F |
7,590 |
|
- |
- | Module | Tube | Active | MOSFET | 1 Phase | 254 A | 1.2 kV | 4000Vrms | - | - | Chassis Mount |
|
MSCSM70TAM05TPAGPM-MOSFET-SIC~-SP6P |
9,802 |
|
Datasheet |
- | Module | Tube | Active | MOSFET | 3 Phase Inverter | 273 A | 700 V | - | - | - | Chassis Mount |
|
|
FSB70550MODULE SPM 500V 5.3A 27PWRLQFN |
8,620 |
|
Datasheet |
Motion SPM® 7 | 27-PowerLQFN Module | Tape & Reel (TR) | Active | MOSFET | 3 Phase | 5.3 A | 500 V | 1500Vrms | - | - | Surface Mount |
|
BM63563S-VCINTELLIGENT POWER MODULE |
8,216 |
|
Datasheet |
- | 25-PowerDIP Module (1.327", 33.70mm) | Tube | Active | IGBT | 3 Phase Inverter | 10 A | 600 V | 1500Vrms | - | - | Through Hole |
