Transistor, Photovoltaic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

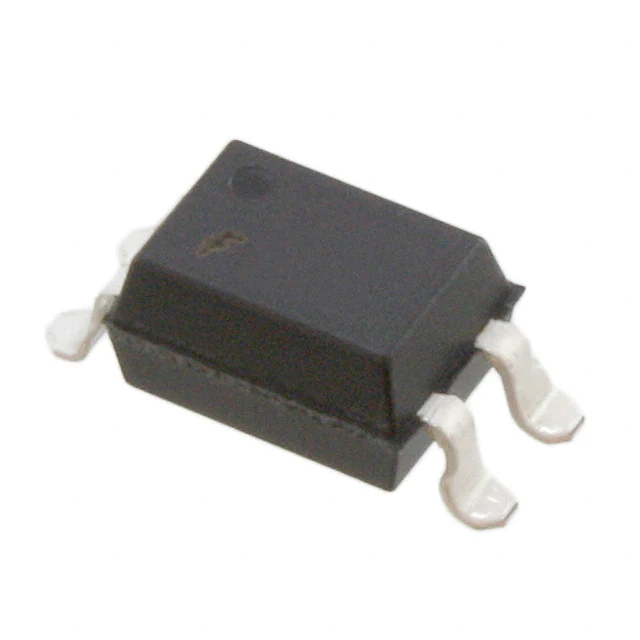

FOD817D3SDOPTOISOLATOR 5KV TRANSISTOR 4SMD |
70,284 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 300% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SMD |
|
VOM617A-4TOPTOISOLATOR 3.75KV TRANS 4-SOP |
34,278 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 160% @ 5mA | 320% @ 5mA | 6µs, 4µs | 3µs, 3µs | DC | Transistor | 80V | 50mA | 1.1V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SOP |
|
FOD817SDOPTOISOLATOR 5KV TRANSISTOR 4SMD |
24,900 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SMD |
|
HCPL-817-00AEOPTOISOLATOR 5KV TRANSISTOR 4DIP |
58,932 |
|
Datasheet |
- | 4-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5000Vrms | 80% @ 5mA | 160% @ 5mA | - | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Through Hole | 4-DIP |
|
|
VOM618A-3TOPTOISOLATOR 3.75KV TRANS 4-SOP |
41,920 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 100% @ 1mA | 200% @ 1mA | 7µs, 6µs | 5µs, 4µs | DC | Transistor | 80V | 50mA | 1.1V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SOP |
|
|
VOM617A-3TOPTOISOLATOR 3.75KV TRANS 4-SOP |
31,346 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 100% @ 5mA | 200% @ 5mA | 6µs, 4µs | 3µs, 3µs | DC | Transistor | 80V | 50mA | 1.1V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SOP |
|
|
VOM617ATOPTOISOLATOR 3.75KV TRANS 4-SOP |
17,076 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | 6µs, 4µs | 3µs, 3µs | DC | Transistor | 80V | 50mA | 1.1V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SOP |
|
|
VOM617A-3X001TOPTOISOLATOR 3.75KV TRANS 4-SOP |
16,560 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 100% @ 5mA | 200% @ 5mA | 6µs, 4µs | 3µs, 3µs | DC | Transistor | 80V | 50mA | 1.1V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SOP |
|
|
VOM617A-9TOPTOISOLATOR 3.75KV TRANS 4-SOP |
12,902 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 200% @ 5mA | 400% @ 5mA | 6µs, 4µs | 3µs, 3µs | DC | Transistor | 80V | 50mA | 1.1V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SOP |
|
VOM617A-6TOPTOCOUPLER, PHOTOTRANSISTOR OUT |
11,826 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | 6µs, 4µs | 3µs, 3µs | DC | Transistor | 80V | 50mA | 1.1V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SOP |
-G.jpg)
|
EL8171S1(TU)-GOPTOISOLTR |
10,696 |
|
Datasheet |
EL817-G | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | - | 6µs, 8µs | DC | Transistor | 80V | 50mA | 1.2V | 60 mA | 200mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SMD |
|
|
VOM617A-4X001TOPTOISOLATOR 3.75KV TRANS 4-SOP |
7,216 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 160% @ 5mA | 320% @ 5mA | 6µs, 4µs | 3µs, 3µs | DC | Transistor | 80V | 50mA | 1.1V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SOP |
|
ISP817XSMOPTOISO 5.3KV TRANS 4SMD |
4,300 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tube | Active | 1 | 5300Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -55°C ~ 110°C | Surface Mount | - |
|
|
PS2501-1XSMOPTOISO 5.3KV TRANS 4SMD |
2,706 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tube | Active | 1 | 5300Vrms | 80% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | - | 1.2V | 50 mA | 300mV | - | - | -30°C ~ 100°C | Surface Mount | - |
|
PC3H712NIP1HOPTOISOLATOR TRANSISTOR SMD |
43,898 |
|
Datasheet |
PC3H71 | 4-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 1 | 2500Vrms | 100% @ 500µA | 700% @ 500µA | - | 4µs, 3µs | DC | Transistor | 80V | 500µA | 1.2V | 10 mA | 200mV | - | - | -30°C ~ 100°C | Surface Mount | 4-Mini-Flat |
|
CNY17F-3OPTOISOLTR 5KV TRANSISTOR 6-DIP |
36,718 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.39V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Through Hole | 6-DIP |
|
FOD817ASDOPTOISOLATOR 5KV TRANSISTOR 4SMD |
27,990 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 80% @ 5mA | 160% @ 5mA | - | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SMD |
|
FOD817B3SDOPTOISOLATOR 5KV TRANSISTOR 4SMD |
106,798 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 130% @ 5mA | 260% @ 5mA | - | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SMD |
|
TLP183(BLL-TPL,EOPTOISO 3.75KV TRANS 6-SO 4 LEAD |
49,610 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | 1 | 3750Vrms | 200% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 6-SOP |
|
|
TLP183(GR-TPL,EOPTOISO 3.75KV TRANS 6-SO 4 LEAD |
49,512 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | 1 | 3750Vrms | 100% @ 5mA | 300% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 6-SOP |
