Transistor, Photovoltaic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PS2501-1-M-AOPTOISOLATOR 5KV TRANS 4DIP |
12,966 |
|
Datasheet |
NEPOC | 4-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5000Vrms | 80% @ 5mA | 240% @ 5mA | - | 3µs, 5µs | DC | Transistor | 80V | 50mA | 1.17V | 80 mA | 300mV | - | - | -55°C ~ 100°C | Through Hole | 4-DIP |
|
4N37S-TA1OPTOISO 1.5KV TRANS W/BASE 6SMD |
6,286 |
|
Datasheet |
4N3X | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1500Vrms | 100% @ 10mA | - | - | 3µs, 3µs | DC | Transistor with Base | 30V | 100mA | 1.2V | 60 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 6-SMD |
|
VO618A-2OPTOISOLATOR 5.3KV TRANS 4-DIP |
6,228 |
|
Datasheet |
- | 4-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5300Vrms | 63% @ 1mA | 125% @ 1mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 80V | 50mA | 1.1V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Through Hole | 4-DIP |
|
|
4N25S-TA1OPTOISO 2.5KV TRANS W/BASE 6SMD |
4,656 |
|
Datasheet |
4N2X | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 2500Vrms | 20% @ 10mA | - | - | 3µs, 3µs | DC | Transistor with Base | 30V | 100mA | 1.2V | 80 mA | 500mV | - | - | -55°C ~ 100°C | Surface Mount | 6-SMD |
|

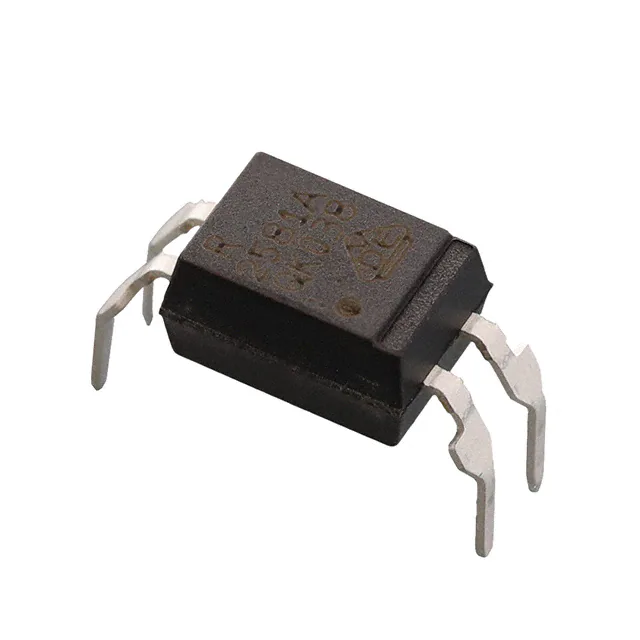

PS2581AL1-AOPTOISOLATOR 5KV TRANS 4DIP |
13,948 |
|
Datasheet |
NEPOC | 4-DIP (0.400", 10.16mm) | Tube | Not For New Designs | 1 | 5000Vrms | 50% @ 5mA | 400% @ 5mA | - | 3µs, 5µs | DC | Transistor | 70V | 30mA | 1.2V | 30 mA | 300mV | - | - | -55°C ~ 100°C | Through Hole | 4-DIP |
|
FOD817ASOPTOISOLATOR 5KV TRANSISTOR 4SMD |
2,772 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tube | Active | 1 | 5000Vrms | 80% @ 5mA | 160% @ 5mA | - | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SMD |
|
IS181BOPTOISO 3.75KV TRANS MINI-FLAT |
64,186 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 130% @ 5mA | 260% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -55°C ~ 100°C | Surface Mount | - |
|
|
IS181DOPTOISO 3.75KV TRANS MINI-FLAT |
44,552 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 300% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -55°C ~ 100°C | Surface Mount | - |
|
VO615A-9X017TOPTOISOLATR 5KV TRANSISTOR 4-SMD |
19,482 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 200% @ 5mA | 400% @ 5mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | 50mA | 1.43V | 60 mA | 300mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SMD |
|
ISP281DOPTOCOUPLER |
19,396 |
|
Datasheet |
- | 4-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 300% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.4V (Max) | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SOP |
|
|
IS357OPTOISO 3.75KV TRANS MINI-FLAT |
11,488 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SMD |
|
TLP621XOPTOISO 5.3KV TRANS 4DIP |
10,296 |
|
Datasheet |
- | 4-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5300Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 55V | - | 1.15V | 50 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | - |
|
|
IS181GBOPTOISO 3.75KV TRANS MINI-FLAT |
10,152 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 100% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -55°C ~ 100°C | Surface Mount | - |
|
ISP281BOPTOCOUPLER |
9,484 |
|
Datasheet |
- | 4-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 130% @ 5mA | 260% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.4V (Max) | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SOP |
|
FOD817BSOPTOISOLATOR 5KV TRANSISTOR 4SMD |
6,842 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tube | Active | 1 | 5000Vrms | 130% @ 5mA | 260% @ 5mA | - | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SMD |
|
|
VO615A-8X017TOPTOISOLATR 5KV TRANSISTOR 4-SMD |
6,776 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 130% @ 5mA | 260% @ 5mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | 50mA | 1.43V | 60 mA | 300mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SMD |
|
PS2501-1XOPTOISO 5.3KV TRANS 4DIP |
4,962 |
|
Datasheet |
- | 4-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5300Vrms | 80% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | - | 1.2V | 50 mA | 300mV | - | - | -30°C ~ 100°C | Through Hole | 4-DIP |
|
|
TLP621XGBOPTOISO 5.3KV 1CH TRANS 4DIP |
3,952 |
|
Datasheet |
- | 4-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5300Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 55V | - | 1.15V | 50 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 4-DIP |
|
|
ISP817XOPTOISO 5.3KV TRANS 4DIP |
2,392 |
|
Datasheet |
- | 4-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5300Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -55°C ~ 110°C | Through Hole | - |
|
|
CNY17-3S-TAOPTOISO 5KV TRANS W/BASE 6SMD |
20,696 |
|
Datasheet |
CNY17 | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | - | 5µs, 5µs | DC | Transistor with Base | 70V | 150mA | 1.45V | 60 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 6-SMD |
