Analog Switches - Special Purpose
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Multiplexer/Demultiplexer Circuit | Switch Circuit | Number of Channels | On-State Resistance (Max) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | -3db Bandwidth | Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISL76120ARTZ-TIC MULTIPLEXER DUAL SPDT 10TDFN |
5,236 |
|
Datasheet |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | USB | 2:1 | SPDT | 2 | 30Ohm | 2.7V ~ 5.5V | - | 880MHz | Break-Before-Make, USB 2.0 | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | 10-TDFN (3x3) |
|
FSA642UMXIC SWITCH 3PDT 24UMLP |
2,310 |
|
- |
- | 24-UFQFN | Tape & Reel (TR) | Obsolete | MIPI | - | 3PDT | 1 | 14Ohm | 2.65V ~ 4.3V | - | 1GHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 24-UMLP (3.4x2.5) |
|
FSUSB46L8XIC USB SWITCH DPST 8MICROPAK |
9,846 |
|
Datasheet |
- | 8-UFQFN | Tape & Reel (TR) | Obsolete | USB | 2:1 | DPST | 1 | 6.5Ohm | 3V ~ 4.3V | - | 720MHz | Break-Before-Make, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MicroPak™ |
|
MAX14509AEEVB+IC USB SWITCH DPDT 10UTQFN |
8,296 |
|
Datasheet |
- | 10-UFQFN | Strip | Active | Audio, USB | 2:1 | SPDT | 1 | 5Ohm | 2.7V ~ 5V | - | 950MHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UTQFN (1.4x1.8) |
|
|
MAX14508EEVB+IC USB SWITCH DPDT 10UTQFN |
9,942 |
|
Datasheet |
- | 10-UFQFN | Strip | Active | Audio, USB | 2:1, 2:2 | - | 2 | 5Ohm | 2.7V ~ 5V | - | 950MHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UTQFN (1.4x1.8) |
|
MAX7357EUG+TIC MULTIPLEXER 8X1 24TSSOP |
6,824 |
|
Datasheet |
- | 24-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | I2C | 8:1 | - | 1 | 24Ohm | 2.3V ~ 5.5V | - | - | Bi-Directional | -40°C ~ 85°C (TA) | - | - | Surface Mount | 24-TSSOP |
|
MAX4984EELB+TIC SW USB 2.0 HS 10-UDFN |
2,292 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | USB | - | DPDT | 1 | 10Ohm | 2.8V ~ 5.5V | - | 950MHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | - |
|
|
MAX4984EEVB+IC USB SWITCH DPDT 10UTQFN |
4,994 |
|
- |
- | 10-UFQFN | Strip | Active | USB | - | DPDT | 1 | 10Ohm | 2.8V ~ 5.5V | - | 950MHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UTQFN (1.4x1.8) |
|

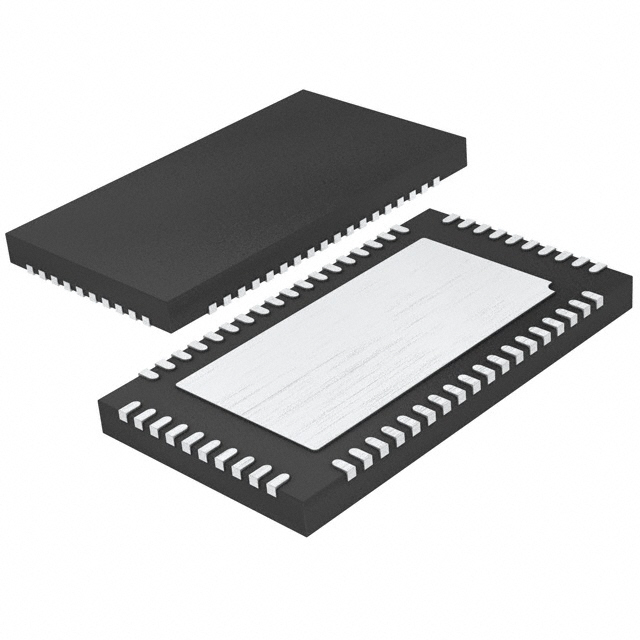

MAX4927ETN+TIC ETHERNET SWITCH QUAD 56TQFN |
8,092 |
|
- |
- | 56-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Networking | - | DPDT | 4 | 5.5Ohm | 3V ~ 3.6V | - | 650MHz | 1000 Base-T, Bi-Directional, Differential Switching, LAN | -40°C ~ 85°C (TA) | - | - | Surface Mount | 56-TQFN (11x5) |
|
FHP3392IMTC24IC MULTIPLEXER TRPL 2X1 24TSSOP |
7,478 |
|
Datasheet |
- | 24-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | Video | 2:1 | SPDT | 3 | - | - | ±2.5V ~ 6V | 750MHz | RGB | -40°C ~ 85°C (TA) | - | - | Surface Mount | 24-TSSOP |
|
FSA223L10XIC SWITCH DPDT 10MICROPAK |
3,114 |
|
- |
- | 10-UFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Audio, USB | - | DPDT | 1 | 6Ohm (USB), 6Ohm (Audio) | 2.7V ~ 5.5V | - | 720MHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-MicroPak™ |
|
FSA223MUXIC SWITCH DPDT 10MSOP |
7,140 |
|
- |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Audio, USB | - | DPDT | 1 | 6Ohm (USB), 6Ohm (Audio) | 2.7V ~ 5.5V | - | 720MHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-MSOP |
|
FSA2367MTCIC SWITCH 3 X SPDT 14TSSOP |
8,356 |
|
- |
- | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Audio | 2:1 | SPDT | 3 | 2Ohm | 2.7V ~ 4.3V | - | 150MHz | Break-Before-Make | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
FSA2380MTCIC MUX 2 X 3:1 2 OHM 14TSSOP |
2,364 |
|
- |
- | 14-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | Audio | - | DP3T | 2 | 2Ohm | 2.7V ~ 5V | - | 120MHz | Break-Before-Make | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
FSUSB30BQXIC USB SWITCH 2X2 14DQFN |
8,750 |
|
Datasheet |
- | 14-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | USB | - | DPDT | 1 | 10Ohm | 3V ~ 4.3V | - | 720MHz | Break-Before-Make, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-DQFN (3x2.5) |
|
|
FSUSB46UMXIC USB SWITCH DPST 8UMLP |
2,660 |
|
Datasheet |
- | 8-UFQFN | Tape & Reel (TR) | Obsolete | USB | 2:1 | DPST | 1 | 6.5Ohm | 3V ~ 4.3V | - | 720MHz | Break-Before-Make, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-UMLP (1.2x1.4) |
|
CBTL06122BHF,518IC MULTIPLEXER HEX 1X2 56HWQFN |
9,052 |
|
Datasheet |
- | 56-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | DisplayPort, PCIe | 2:1 | - | 6 | - | 3V ~ 3.6V | - | 2.5GHz | Bi-Directional | -40°C ~ 85°C (TA) | - | - | Surface Mount | 56-HWQFN (5x11) |
|
CBTL06141EE/G,118IC MULTIPLEXER 4X1 48TFBGA |
3,282 |
|
Datasheet |
- | 48-TFBGA | Tape & Reel (TR) | Obsolete | DisplayPort, PCIe | 2:1, 4:1 | - | 6 | - | 3V ~ 3.6V | - | - | Bi-Directional | -10°C ~ 85°C (TA) | - | - | Surface Mount | 48-TFBGA (5x5) |
.jpg)
|
HA456CMZIC SWITCH CROSS VIDEO 8X8 44PLCC |
3,256 |
|
Datasheet |
- | 44-LCC (J-Lead) | Tube | Obsolete | Video | 8:8 | - | 1 | - | - | ±4.5V ~ 5.5V | 120MHz | Buffered | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-PLCC (16.58x16.58) |
|
HA4314BCPZIC VIDEO CROSSPOINT SWITCH 14DIP |
4,432 |
|
Datasheet |
- | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | Video | 4:1 | - | 1 | - | - | ±4.5V ~ 5.5V | 400MHz | - | 0°C ~ 70°C (TA) | - | - | Through Hole | 14-PDIP |
