Analog Switches - Special Purpose
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Multiplexer/Demultiplexer Circuit | Switch Circuit | Number of Channels | On-State Resistance (Max) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | -3db Bandwidth | Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

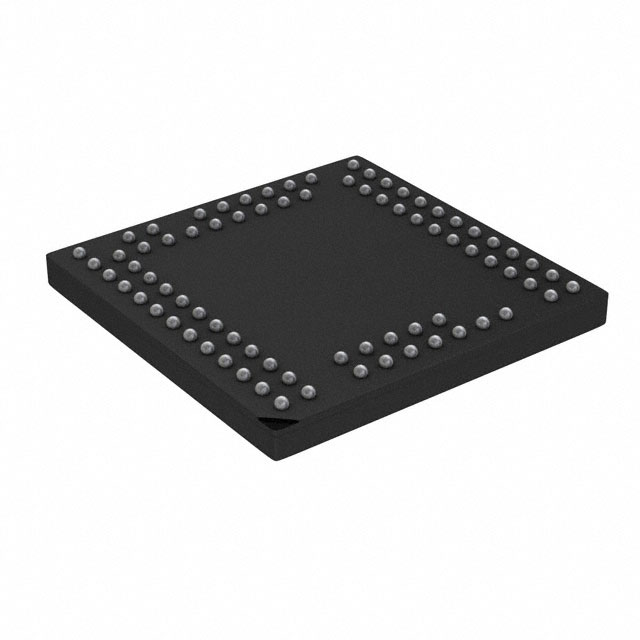

HV2902GA-GIC SWITCH 32 X SPST 78VFBGA |
1,588 |
|
Datasheet |
- | 78-VFBGA | Tray | Active | Ultrasound | 1:1 | SPST | 32 | 38Ohm | 40V ~ 200V | ±40V ~ 160V | - | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 78-VFBGA (9x9) |
|

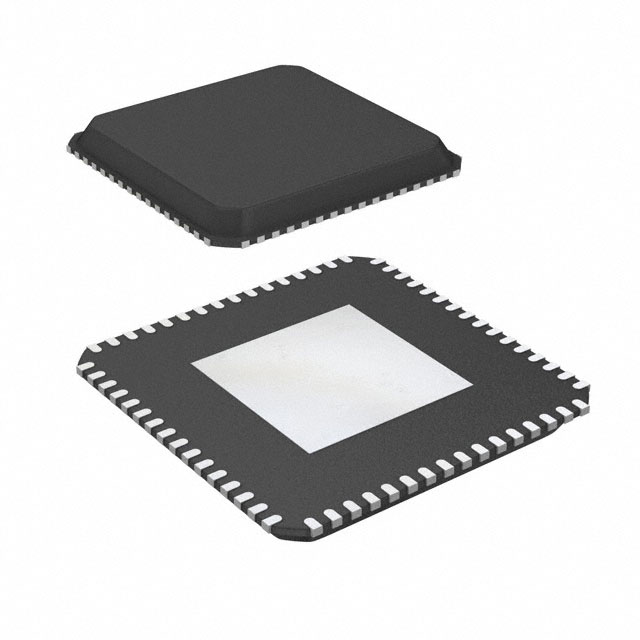

HV2801K6-GIC SWITCH 2:1 50MHZ 64QFN |
300 |
|
Datasheet |
- | 64-VFQFN Exposed Pad | Tray | Active | Ultrasound | 2:1 | - | 32 | 38Ohm | 40V ~ 200V | ±40V ~ 160V | 50MHz | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 64-QFN (9x9) |
|

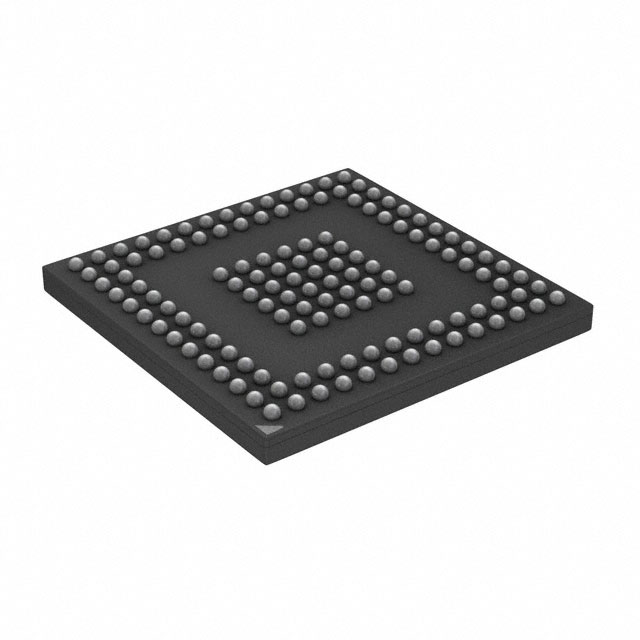

HV2904/AHAHV MUX (SPST) |
372 |
|
Datasheet |
- | 132-TFBGA | Tray | Active | Ultrasound | 1:1 | SPST | 32 | 15Ohm | - | ±4.5V ~ 6.3V | 50MHz | - | 0°C ~ 70°C | - | - | Surface Mount | 132-TFBGA (12x12) |
|

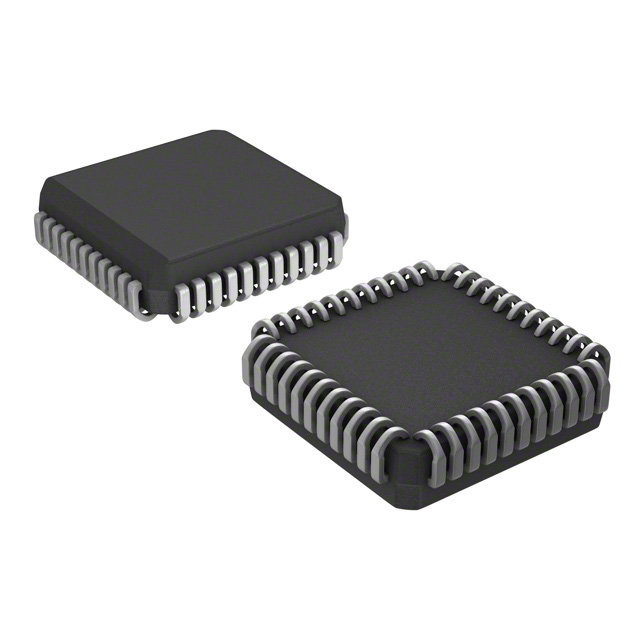

AD75019JPZ-REELIC CROSSPOINT SWIT 16X16 44PLCC |
2,136 |
|
Datasheet |
- | 44-LCC (J-Lead) | Tape & Reel (TR) | Active | Analog | 16:16 | - | 1 | 300Ohm | 9V ~ 25.2V | ±12V | 20MHz | Serial Interface | -25°C ~ 85°C (TA) | - | - | Surface Mount | 44-PLCC (16.59x16.59) |
|
PEX8714-AB80BI GPEX8714-AB80BI G |
4,684 |
|
Datasheet |
ExpressLane™ | 324-BBGA | Tray | Active | PCI Express® | - | - | - | - | - | - | - | Configurable | - | - | - | Surface Mount | 324-FCBGA (19x19) |
|
|
PEX8718-AB80BI GPCI SWITCH 5 PORT 324FCBGA |
5,322 |
|
Datasheet |
ExpressLane™ | - | Tray | Active | PCI Express® | - | - | - | - | - | - | - | Configurable | - | - | - | Surface Mount | 324-FCBGA (19x19) |
|
|
PEX8713-CA80BC GIC PCI EXPRESS SWITCH 324FCBGA |
1,078 |
|
Datasheet |
ExpressLane™ | - | Tray | Active | PCI Express® | - | - | - | - | - | - | - | Configurable | - | - | - | Surface Mount | 324-FCBGA (19x19) |
|
|
PEX8724-CA80BC GIC PCI EXPRESS SWITCH 324FCBGA |
1,752 |
|
Datasheet |
ExpressLane™ | - | Tray | Active | PCI Express® | - | - | - | - | - | - | - | Configurable | - | - | - | Surface Mount | 324-FCBGA (19x19) |
|
AD8114ASTZIC VIDEO CROSSPOINT SWIT 100LQFP |
6,988 |
|
Datasheet |
- | 100-LQFP | Tray | Active | Video | 16:16 | - | 1 | - | - | ±4.5V ~ 5.5V | 225MHz | Buffered | -40°C ~ 85°C (TA) | - | - | Surface Mount | 100-LQFP (14x14) |
|
PEX8725-CA80BC GPCI INT IC 24 LN 10 PRT GEN 3 SW |
2,344 |
|
- |
ExpressLane™ | - | Tray | Active | PCI Express® | - | - | 2 | - | - | - | - | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 324-FCBGA (19x19) |
|
PEX8734-AB80BI GIC PCIE SWITCH 676FCBGA |
6,582 |
|
Datasheet |
ExpressLane™ | - | Tray | Active | PCI Express® | - | - | 32 | - | - | - | - | Configurable | -40°C ~ 85°C | - | - | Surface Mount | 676-FCBGA (27x27) |
|

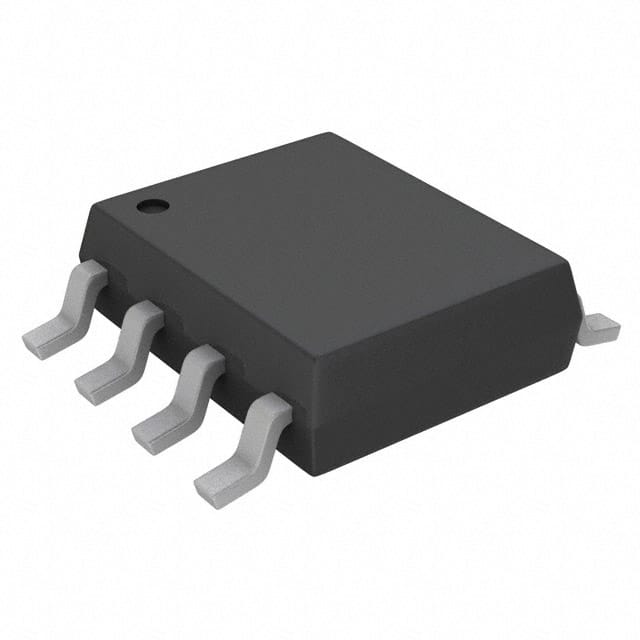

TC7W53FU,LFIC MUX/DEMUX 2:1 100OHM 8SSOP |
28,528 |
|
- |
- | 8-TSSOP, 8-MSOP (0.110", 2.80mm Width) | Tape & Reel (TR) | Active | - | - | - | 2 | 100Ohm | 2V ~ 6V | ±2V ~ 6V | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SSOP |
|
NLHV4157NDFT2GNEGATIVE VOLTAGE SPDT SWITCH |
8,130 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | - | - | SPDT | 1 | 5Ohm | 4.5V ~ 12V | - | 200MHz | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | SC-88/SC70-6/SOT-363 |
|
|
TC4W53FU,LFIC MUX/DEMUX DUAL 1X1 8SOP |
32,852 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.110", 2.80mm Width) | Tape & Reel (TR) | Active | - | - | - | 2 | 160Ohm | 3V ~ 18V | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SSOP |
|
NX3DV42GU10XIC USB 2.0 SWITCH HS 10XQFN |
97,976 |
|
Datasheet |
- | 10-XFQFN | Tape & Reel (TR) | Active | USB | - | DPDT | 1 | 6.5Ohm | 3V ~ 4.3V | - | 950MHz | Break-Before-Make, USB 2.0 | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-XQFN (1.3x1.6) |
|
NX3DV42GU,115IC USB SWITCH DPDT XQFN10 |
43,718 |
|
Datasheet |
- | 10-XFQFN | Tape & Reel (TR) | Active | USB | - | DPDT | 1 | 6.5Ohm | 3V ~ 4.3V | - | 950MHz | Break-Before-Make, USB 2.0 | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-XQFN (1.4x1.8) |
|

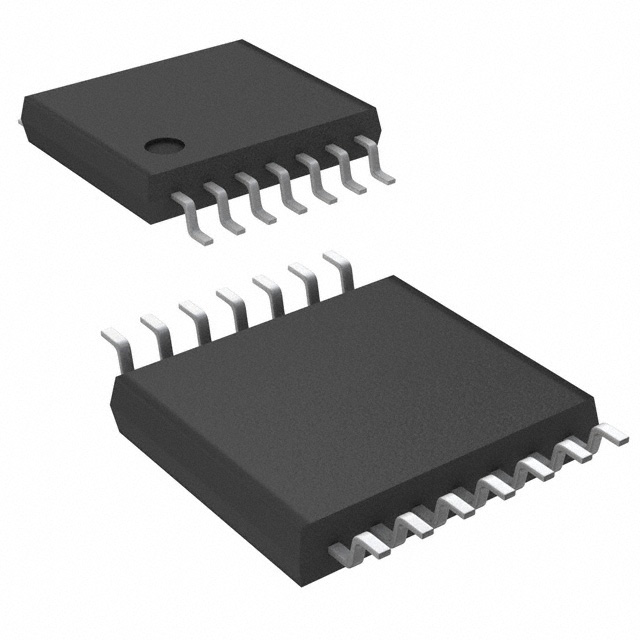

TC7USB40FT(EL)IC SWITCH USB DUAL SPDT 14TSSOP |
11,654 |
|
Datasheet |
- | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | USB | 2:1 | SPDT | 2 | 14Ohm | 2.3V ~ 4.3V | - | 1.5GHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
TS3USB31RSERIC USB SWITCH 1X1 8UQFN |
25,466 |
|
Datasheet |
- | 8-UFQFN | Tape & Reel (TR) | Active | USB | - | DPST | 1 | 10Ohm | 3V ~ 4.3V | - | 1.22GHz | Bi-Directional, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-UQFN (1.5x1.5) |
|
TS5USBA224RSWRIC SW USB/AUDIO DPDT 10UQFN |
22,552 |
|
Datasheet |
- | 10-UFQFN | Tape & Reel (TR) | Active | Audio, USB | - | DPDT | 1 | 5Ohm (Audio), 7Ohm (USB) | 2.7V ~ 5.5V | - | 650MHz | Depop, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (1.8x1.4) |
|
TS3USB3000RSERIC USB SW/MHL DPDT 10UQFN |
21,404 |
|
Datasheet |
- | 10-UFQFN | Tape & Reel (TR) | Active | USB | - | DPDT | 1 | 9Ohm | 2.7V ~ 4.3V | - | 6.1GHz | Bi-Directional, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (2.0x1.5) |
