Analog Switches - Special Purpose
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Multiplexer/Demultiplexer Circuit | Switch Circuit | Number of Channels | On-State Resistance (Max) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | -3db Bandwidth | Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FSUSB31UMXLOW POWER DUAL SPST HI-SPEED USB |
75,488 |
|
Datasheet |
- | 8-UFQFN | Bulk | Active | USB | 2:1 | DPST | 1 | 10Ohm | 3V ~ 4.3V | - | 720MHz | Break-Before-Make, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-UQFN (1.4x1.2) |
|
NX5DV330PW,112IC VIDEO MUX/DEMUX 1X2 16TSSOP |
9,558 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | Video | 2:1 | - | 4 | 10Ohm | 4V ~ 5.5V | - | 300MHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
NX5DV330D,118IC VIDEO MUX/DEMUX 1X2 16SOIC |
9,434 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Video | 2:1 | - | 4 | 10Ohm | 4V ~ 5.5V | - | 300MHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SO |
|
FSAV330QSCAUDIO/VIDEO SWITCH |
18,240 |
|
Datasheet |
- | 16-LSSOP (0.154", 3.90mm Width) | Tube | Obsolete | Video | 2:1 | SPDT | 4 | 10Ohm | 4V ~ 5.5V | - | 300MHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QSOP |
|
NLAS8252MUTAGIC SWITCH DP3T 12UQFN |
8,492 |
|
Datasheet |
- | 12-UFQFN | Tape & Reel (TR) | Obsolete | UART, USB | - | DP3T | 2 | 4.5Ohm | 1.65V ~ 4.5V | - | 200MHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-UQFN (1.7x2) |
|
FSAV331MTCXIC VIDEO SWITCH DUAL 4X1 16TSSOP |
4,160 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Video | 4:1 | - | 2 | 10Ohm | 4.75V ~ 5.25V | - | 300MHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
FSA2367MTCXIC SWITCH AUD TRPL SPDT 14-TSSOP |
9,324 |
|
Datasheet |
- | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Audio | 2:1 | SPDT | 3 | 2Ohm | 2.7V ~ 4.3V | - | 150MHz | Break-Before-Make | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
SN103756NANALOG INTERFACE |
63,528 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SN102205NANALOG INTERFACE |
36,508 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FSUSB46UMXHI-SPEED USB2.0 (480MBPS) DPST S |
103,760 |
|
Datasheet |
- | 8-UFQFN | Bulk | Active | USB | 2:1 | DPST | 1 | 6.5Ohm | 3V ~ 4.3V | - | 720MHz | Break-Before-Make, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-UQFN (1.4x1.2) |
|

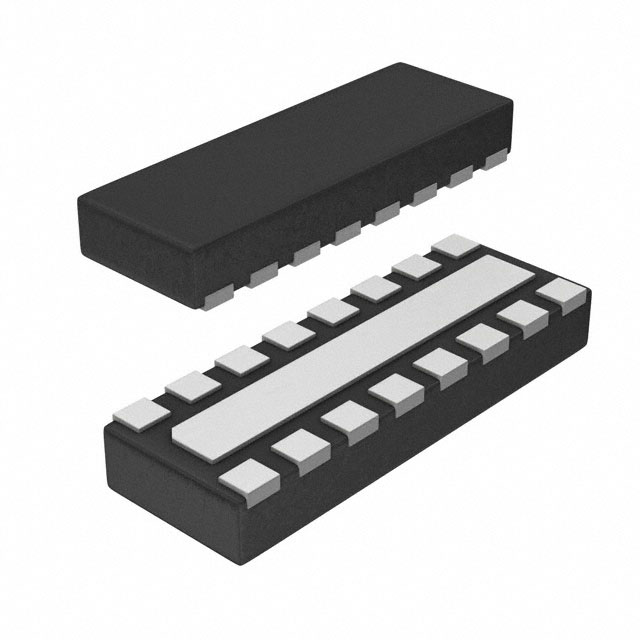

BH6260MWX-E2IC INVERTER SWITCH SPST 16USON |
8,000 |
|
- |
- | 16-UFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | USB, UART | 1:1 | SPST | 2 | 13Ohm | 2.9V ~ 3.7V | - | - | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | USON016X3315 |
|
FSA2271TUMXLOW VOLTAGE DUAL-SPDT (0.4 OHM) |
80,000 |
|
Datasheet |
- | 10-UFQFN | Bulk | Active | Audio | 2:1 | SPDT | 2 | 300mOhm (Typ) | 1.65V ~ 4.3V | - | 50MHz | Break-Before-Make | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UMLP (1.8x1.4) |
|
|
FSA2270TUMX-ONLOW VOLTAGE DUAL-SPDT (0.4 OHM) |
30,000 |
|
Datasheet |
- | 10-UFQFN | Bulk | Active | Audio | 2:1 | SPDT | 2 | 300mOhm (Typ) | 1.65V ~ 4.3V | - | 50MHz | Break-Before-Make | -40°C ~ 85°C | - | - | Surface Mount | 10-UMLP (1.4x1.8) |
|
|
FSA2270TUMXLOW VOLTAGE DUAL-SPDT (0.4 OHM) |
28,464 |
|
Datasheet |
- | 10-UFQFN | Bulk | Active | Audio | 2:1 | SPDT | 2 | 300mOhm (Typ) | 1.65V ~ 4.3V | - | 50MHz | Break-Before-Make | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UMLP (1.8x1.4) |
|
|
FSA2269TSL10XSPDT, 2 FUNC, 1 CHANNEL, CMOS |
14,024 |
|
Datasheet |
- | 10-UFQFN Exposed Pad | Bulk | Obsolete | Audio | 2:1 | SPDT | 2 | 300mOhm (Typ) | 1.65V ~ 4.5V | - | 50MHz | Break-Before-Make | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-MicroPak™ |
|
FSAV330MAUDIO/VIDEO SWITCH |
11,520 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Video | 2:1 | SPDT | 4 | 10Ohm | 4V ~ 5.5V | - | 300MHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
FSAV331MTCX-FSVIDEO MULTIPLEXER, 2 FUNC, 1 CHA |
28,860 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) | Bulk | Active | Video | 4:1 | - | 2 | 10Ohm | 4.75V ~ 5.25V | - | 300MHz | - | -40°C ~ 85°C | - | - | Surface Mount | 16-TSSOP |
|
|
NX5DV330D,112IC VIDEO MUX/DEMUX 1X2 16SOIC |
8,144 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Video | 2:1 | - | 4 | 10Ohm | 4V ~ 5.5V | - | 300MHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SO |
|
|
FSUSB45L10XHI-SPEED USB2.0 (480MBPS) SWITCH |
272,244 |
|
Datasheet |
- | 10-UFQFN Exposed Pad | Bulk | Active | USB | - | DPDT | 1 | 6.5Ohm | 3V ~ 4.3V | - | 720MHz | Break-Before-Make, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-MicroPak™ |
|
FSUSB46K8X-ONHI-SPEED USB2.0 (480MBPS) DPST S |
192,000 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
