Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MM74HC4053MXIC SWITCH SPDT X 3 100OHM 16SOIC |
172,258 |
|
Datasheet |
- | Bulk | Obsolete | SPDT | 2:1 | 3 | 100Ohm | 15Ohm | 2V ~ 6V | ±2V ~ 6V | 41ns, 32ns | 35MHz | - | 5pF, 30pF | 100nA | -50dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
MC14053BDR2GSINGLE-ENDED MULTIPLEXER, 3 FUNC |
37,802 |
|
Datasheet |
- | Bulk | Active | SPDT | 2:1 | 3 | 280Ohm | 10Ohm | 3V ~ 18V | - | - | 17MHz | - | 5pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
CD74HCT4316EIC SWITCH SPST-NOX4 170OHM 16DIP |
17,800 |
|
Datasheet |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 170Ohm | 5Ohm | 4.5V ~ 5.5V | ±1V ~ 5V | 37ns, 37ns | 200MHz | - | 5pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-PDIP |
|
|
MC74LVX8053DSINGLE-ENDED MUX, 2 CHANNEL |
11,616 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FSA2156P6IC SWITCH SPST-NOX1 360MOHM SC88 |
7,000 |
|
Datasheet |
- | Bulk | Obsolete | SPST - NO | 1:1 | 1 | 360mOhm (Typ) | - | 1.65V ~ 4.3V | - | 55ns, 65ns | 80MHz | 6pC | 38pF | 10nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-88 (SC-70-6) |
|
MC74HC4051FANALOG MULTIPLEXER SINGLE 8:1 |
4,352 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
74HC4353N,652IC SWITCH SPDT X 3 120OHM 20DIP |
7,030 |
|
Datasheet |
- | Tube | Obsolete | SPDT | 2:1 | 3 | 120Ohm | 6Ohm | 2V ~ 10V | ±1V ~ 5V | 40ns, 40ns | 170MHz | - | 3.5pF | 100nA | -60dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Through Hole | 20-DIP |
|
M74HCT4851ADTR2GIC MUX 8:1 400OHM 16TSSOP |
8,066 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 400Ohm | - | 4.5V ~ 5.5V | - | - | - | - | 40pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|

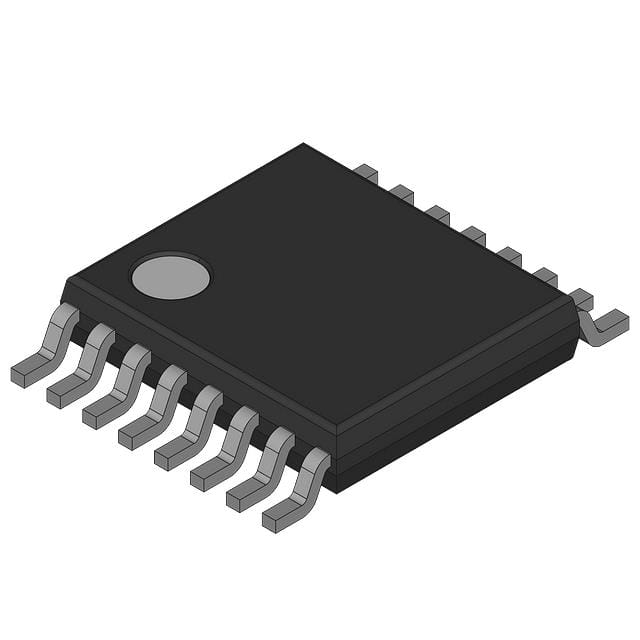

MC74HC4051DTELIC MUX 8:1 100OHM 16TSSOP |
4,000 |
|
Datasheet |
74HC | Bulk | Active | - | 8:1 | 1 | 100Ohm | 10Ohm | 2V ~ 6V, 2V ~ 12V | - | - | 80MHz | - | 10pF | 100nA | -60dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
FSA66M5IC SWITCH SPST-NO X 1 SOT23-5 |
3,654 |
|
Datasheet |
- | Bulk | Obsolete | SPST - NO | 1:1 | 1 | - | - | 1.65V ~ 5.5V | - | - | 250MHz | 0.05pC | 6pF | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
FSA3357L8XIC SWITCH SP3TX1 15OHM 8MICROPAK |
9,238 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SP3T | 3:1 | 1 | 15Ohm | 150mOhm | 1.65V ~ 5.5V | - | 6.5ns, 3.7ns | 200MHz | 3pC | 3.6pF | 100nA | -60dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MicroPak™ |
|
|
TS5A3159AYZTR1-OHM SPDT ANALOG SWITCH |
320,380 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CD4052BCSJXIC SWITCH SP4T X 2 240OHM 16SOP |
102,232 |
|
Datasheet |
- | Bulk | Obsolete | SP4T | 4:1 | 2 | 240Ohm | 5Ohm | 5V ~ 15V | ±2.5V ~ 7.5V | 320ns, 150ns | 40MHz | - | - | 50nA | -40dB @ 3MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOP |
|
|
NLAST4053DR2IC SWITCH SPDT X 3 26OHM 16SOIC |
3,994 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 3 | 26Ohm | 10Ohm | 3V ~ 5V | ±3V | 23ns, 23ns | 180MHz | 12pC | 10pF, 10pF | 100pA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
MC74HC4316AFELGIC SW SPST-NO/NC 90OHM 16SOEIAJ |
6,258 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NO/NC | 1:1 | 4 | 90Ohm | 15Ohm | 2V ~ 6V | ±2V ~ 6V | - | 160MHz | - | 10pF | 100nA | -80dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOEIAJ |
|
|
MC74HC4053AFELGIC SWITCH SPDTX3 100OHM 16SOEIAJ |
9,306 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 3 | 100Ohm | 10Ohm | 2V ~ 6V | ±2V ~ 6V | - | 120MHz | - | 50pF | 100nA | -60dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOEIAJ |
|
CD74HCT4052EIC SWITCH SP4T X 2 130OHM 16DIP |
13,254 |
|
Datasheet |
- | Tube | Obsolete | SP4T | 4:1 | 2 | 130Ohm | 5Ohm | 4.5V ~ 5.5V | ±1V ~ 5V | - | 185MHz | - | 5pF, 12pF | 200nA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-PDIP |
|
HEF4016BP,652IC SWITCH SPST-NOX4 350OHM 14DIP |
9,762 |
|
Datasheet |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 350Ohm | 10Ohm | 4.5V ~ 15.5V | - | - | - | - | - | 200nA | -50dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Through Hole | 14-DIP |
|
NLAST4053QSRIC SWITCH SPDT X 3 26OHM 16QSOP |
2,894 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 3 | 26Ohm | 10Ohm | 3V ~ 5V | ±3V | 23ns, 23ns | 180MHz | 12pC | 10pF, 10pF | 100pA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-QSOP |
|
|
CD4051BCSJXIC MUX 8:1 240OHM 16SOP |
7,742 |
|
Datasheet |
- | Bulk | Obsolete | - | 8:1 | 1 | 240Ohm | 5Ohm | 5V ~ 15V | ±2.5V ~ 7.5V | 320ns, 150ns | 40MHz | - | - | 50nA | -40dB @ 3MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOP |
