Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MC74HC4052FR1LOG CMOS MLTIPLEXER DUAL |
28,000 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MC74HC4053DTSINGLE-ENDED MUX, 3 FUNC |
22,732 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CD4066BCSJXIC QUAD BILATERAL SWITCH 14SOP |
21,656 |
|
Datasheet |
4000B | Bulk | Obsolete | SPST | 1:1 | 4 | 240Ohm | 5Ohm | 3V ~ 18V | - | - | 40MHz | - | 8pF | - | - | -55°C ~ 125°C | - | - | Surface Mount | 14-SOP |
|
74HCT4052D,112NEXPERIA 74HCT4052D - DIFFERENTI |
21,348 |
|
Datasheet |
74HCT | Bulk | Active | SP4T - Open | 4:1 | 2 | 180Ohm | 6Ohm | 2V ~ 5.5V, 4.5V ~ 10V | - | 69ns, 57ns | 180MHz | - | 3.5pF | 2µA | -60dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-SO |
|
MC74HC4066AFELGIC SW SPST-NOX4 70OHM SOEIAJ-14 |
7,186 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 4 | 70Ohm | 15Ohm | 2V ~ 12V | - | - | 160MHz | - | 10pF | 100nA | -80dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | SOEIAJ-14 |
|
MC74HC4053AFL1SINGLE-ENDED MUX, 2 CHANNEL |
16,000 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MC74VHC4051DSINGLE-ENDED MUX, 8 CHANNEL |
14,352 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

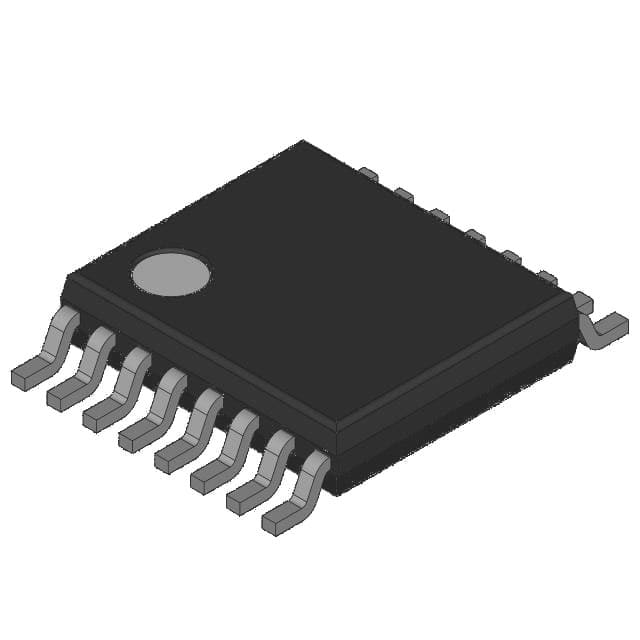

MC74HC4051FR2LOG CMOS MLTIPLEXER 8CHAN |
12,000 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CD4066BCSJIC QUAD BILATERAL SWITCH 14SOP |
11,626 |
|
Datasheet |
4000B | Tube | Obsolete | SPST | 1:1 | 4 | 240Ohm | 5Ohm | 3V ~ 18V | - | - | 40MHz | - | 8pF | - | - | -55°C ~ 125°C | - | - | Surface Mount | 14-SOP |
|
|
MC74HC4051FL1LOG CMOS MLTIPLEXER 8CHAN |
8,000 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
NLAS4051DIC MUX/DEMUX 8X1 16SOIC |
5,374 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SN74LVC2G53DCTRE4IC SWITCH SPDT X 1 13OHM SM8 |
6,000 |
|
Datasheet |
74LVC | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 13Ohm | 2Ohm (Max) | 1.65V ~ 5.5V | - | 4.5ns, 8ns | 300MHz | - | 10pF | 100nA | -58dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SM8 |
|
FSA3051TMXIC SWITCH SPDT X 1 10OHM 6TMLP |
4,714,186 |
|
Datasheet |
- | Bulk | Active | SPDT | 2:1 | 1 | 10Ohm | 350mOhm | 1.6V ~ 5.5V | - | 34ns, 23ns (Typ) | 1GHz | - | 3.3pF | 2µA | -23dB @ 240MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-TMLP (1X1) |
|
FSA1157L6XIC SW SPST-NCX1 900MOHM 6MICROPK |
514,750 |
|
Datasheet |
- | Bulk | Active | SPST - NC | 1:1 | 1 | 900mOhm | - | 1.65V ~ 5.5V | - | 20ns, 30ns | 300MHz | 20pC | 20pF | 2nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-MicroPak |
|
MM74HC4066MXIC SWITCH SPST-NOX4 70OHM 14SOIC |
100,956 |
|
Datasheet |
- | Bulk | Obsolete | SPST - NO | 1:1 | 4 | 70Ohm | 5Ohm | 2V ~ 12V | - | 10ns, 30ns | 100MHz | - | - | 20nA | -50dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-SOIC |
|
SN74LVC2G66YEPRIC SWITCH SPST-NOX2 10OHM 8DSBGA |
8,234 |
|
Datasheet |
74LVC | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 10Ohm | 2Ohm (Max) | 1.65V ~ 5.5V | - | 3.9ns, 6.3ns | 300MHz | - | 6pF | 100nA | -58dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-DSBGA (1.9x0.9) |
|
MC74HC4051DTR2SINGLE-ENDED MULTIPLEXER, 1 FUNC |
48,822 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
CD74HCT4066EIC SWITCH SPST-NOX4 70OHM 14DIP |
27,608 |
|
Datasheet |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 70Ohm | 500mOhm | 4.5V ~ 5.5V | - | - | 200MHz | - | 5pF | 100nA | -72dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 14-PDIP |
|
|
MM74HC4316MIC SWITCH SPST-NOX4 70OHM 16SOIC |
12,262 |
|
Datasheet |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 70Ohm | 5Ohm | 2V ~ 12V | ±2V ~ 6V | 14ns, 20ns | 100MHz | - | - | 100nA | -50dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
SN74LVC1G3157DRY2IC SWITCH SPDT X 1 15OHM 6SON |
7,798 |
|
Datasheet |
74LVC | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 15Ohm | 100mOhm | 1.65V ~ 5.5V | - | 5.7ns, 3.8ns | 340MHz | 7pC | 5.2pF | 1µA | -54dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-SON (1.45x1) |
