Single IGBTs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Current - Collector Pulsed (Icm) | Vce(on) (Max) @ Vge, Ic | Power - Max | Switching Energy | Input Type | Gate Charge | Td (on/off) @ 25°C | Test Condition | Reverse Recovery Time (trr) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IKW50N65EH5XKSA1IGBT TRENCH 650V 80A TO247-3 |
6,518 |
|
Datasheet |
TrenchStop™ | TO-247-3 | Tube | Active | Trench | 650 V | 80 A | 200 A | 2.1V @ 15V, 50A | 275 W | 1.5mJ (on), 500µJ (off) | Standard | 120 nC | 25ns/172ns | 400V, 50A, 12Ohm, 15V | 81 ns | -40°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO247-3 |
|
AIKQ120N75CP2XKSA1IGBT 750V 150A TO247-3 |
5,294 |
|
Datasheet |
- | TO-247-3 | Tube | Active | - | 750 V | 150 A | 360 A | 1.5V @ 15V, 120A | 682 W | 6.82mJ (on), 3.8mJ (off) | Standard | 731 nC | 71ns/244ns | 470V, 120A, 5Ohm, 15V | - | -40°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | PG-TO247-3-46 |
|
NGTB50N65FL2WGIGBT TRENCH FS 650V 100A TO247-3 |
2,288 |
|
Datasheet |
- | TO-247-3 | Tube | Active | Trench Field Stop | 650 V | 100 A | 200 A | 2V @ 15V, 50A | 417 W | 1.5mJ (on), 460µJ (off) | Standard | 220 nC | 100ns/237ns | 400V, 50A, 10Ohm, 15V | 94 ns | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-3 |
|
APT43GA90BD30IGBT PT 900V 78A TO247 |
9,630 |
|
Datasheet |
- | TO-247-3 | Tube | Active | PT | 900 V | 78 A | 129 A | 3.1V @ 15V, 47A | 337 W | 875µJ (on), 425µJ (off) | Standard | 116 nC | 12ns/82ns | 600V, 25A, 4.7Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 [B] |
|
|
APT35GN120BGIGBT NPT FS 1200V 94A TO247 |
2,660 |
|
Datasheet |
- | TO-247-3 | Tube | Active | NPT, Trench Field Stop | 1200 V | 94 A | 105 A | 2.1V @ 15V, 35A | 379 W | 2.315mJ (off) | Standard | 220 nC | 24ns/300ns | 800V, 35A, 2.2Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 [B] |
|
|
IKZA50N120CH7XKSA1IGBT TRENCH FS 1200V 100A TO247 |
7,218 |
|
Datasheet |
TRENCHSTOP™ | TO-247-4 | Tube | Active | Trench Field Stop | 1200 V | 100 A | 200 A | 2.15V @ 15V, 50A | 398 W | 950µJ (on), 1.42mJ (off) | Standard | 372 nC | 39ns/333ns | - | 96 ns | -40°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO247-4-U02 |
|

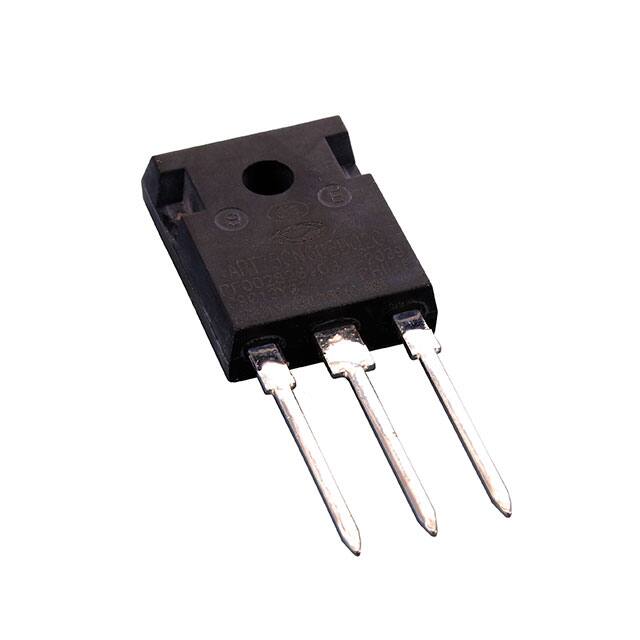

APT75GN60BDQ2GIGBT TRENCH FS 600V 155A TO247-3 |
4,772 |
|
Datasheet |
- | TO-247-3 | Tube | Active | Trench Field Stop | 600 V | 155 A | 225 A | 1.85V @ 15V, 75A | 536 W | 2.5mJ (on), 2.14mJ (off) | Standard | 485 nC | 47ns/385ns | 400V, 75A, 1Ohm, 15V | 25 ns | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-3 |
|
IKFW75N65EH5XKSA1IGBT TRENCH FS 650V 80A HSIP247 |
2,348 |
|
Datasheet |
Trenchstop™ 5 | TO-247-3 | Tube | Active | Trench Field Stop | 650 V | 80 A | 240 A | 2.1V @ 15V, 60A | 148 W | 1.8mJ (on), 600µJ (off) | Standard | 144 nC | 30ns/206ns | 400V, 60A, 12Ohm, 15V | 75 ns | -40°C ~ 175°C (TJ) | - | - | Through Hole | PG-HSIP247-3-2 |
|
APT35GN120L2DQ2GIGBT NPT FIELD STOP 1200V 94A |
7,008 |
|
Datasheet |
- | TO-264-3, TO-264AA | Tube | Active | NPT, Trench Field Stop | 1200 V | 94 A | 105 A | 2.1V @ 15V, 35A | 379 W | 2.315mJ (off) | Standard | 220 nC | 24ns/300ns | 800V, 35A, 2.2Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | - |
|
|
APT80GA90BIGBT PT 900V 145A TO247 |
7,298 |
|
Datasheet |
- | TO-247-3 | Tube | Active | PT | 900 V | 145 A | 239 A | 3.1V @ 15V, 47A | 625 W | 1652µJ (on), 1389µJ (off) | Standard | 200 nC | 18ns/149ns | 600V, 47A, 4.7Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 [B] |
|
IXGT6N170AIGBT NPT 1700V 6A TO268AA |
9,428 |
|
Datasheet |
- | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | NPT | 1700 V | 6 A | 14 A | 7V @ 15V, 3A | 75 W | 590µJ (on), 180µJ (off) | Standard | 18.5 nC | 46ns/220ns | 850V, 6A, 33Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-268AA |
|
IXA37IF1200HJIGBT 1200V 58A 195W TO247 |
5,462 |
|
Datasheet |
- | TO-247-3 | Tube | Active | PT | 1200 V | 58 A | - | 2.1V @ 15V, 35A | 195 W | 3.8mJ (on), 4.1mJ (off) | Standard | 106 nC | - | 600V, 35A, 27Ohm, 15V | 350 ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS247™ |
|
APT45GP120B2DQ2GIGBT PT 1200V 113A |
8,006 |
|
- |
POWER MOS 7® | TO-247-3 Variant | Tube | Active | PT | 1200 V | 113 A | 170 A | 3.9V @ 15V, 45A | 625 W | 900µJ (on), 905µJ (off) | Standard | 185 nC | 18ns/100ns | 600V, 45A, 5Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | - |
|
IXYH25N250CHVIGBT 2500V 235A TO-247HV |
4,930 |
|
Datasheet |
XPT™ | TO-247-3 | Tube | Active | - | 2500 V | 95 A | 235 A | 4V @ 15V, 25A | 937 W | 8.3mJ (on), 7.3mJ (off) | Standard | 147 nC | 15ns/230ns | 1250V, 25A, 5Ohm, 15V | 34 ns | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
|
APT75GP120B2GIGBT PT 1200V 100A |
5,058 |
|
Datasheet |
POWER MOS 7® | TO-247-3 Variant | Tube | Active | PT | 1200 V | 100 A | 300 A | 3.9V @ 15V, 75A | 1042 W | 1620µJ (on), 2500µJ (off) | Standard | 320 nC | 20ns/163ns | 600V, 75A, 5Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | - |
|
IXYK100N120C3IGBT 1200V 188A 1150W TO264 |
8,526 |
|
Datasheet |
GenX3™, XPT™ | TO-264-3, TO-264AA | Tube | Active | - | 1200 V | 188 A | 490 A | 3.5V @ 15V, 100A | 1150 W | 6.5mJ (on), 2.9mJ (off) | Standard | 270 nC | 32ns/123ns | 600V, 100A, 1Ohm, 15V | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-264 (IXYK) |
|
RGPR30NS40HRTLIGBT 430V 30A IGNITION LPDS |
2,078 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | - | 430 V | 30 A | - | 2.0V @ 5V, 10A | 125 W | - | Standard | 22 nC | 500ns/4µs | 300V, 8A, 100Ohm, 5V | - | -40°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LPDS |
|
RGCL60TK60GC11IGBT TRNCH FIELD 600V 30A TO3PFM |
6,410 |
|
Datasheet |
- | TO-3PFM, SC-93-3 | Tube | Active | Trench Field Stop | 600 V | 30 A | 120 A | 1.8V @ 15V, 30A | 54 W | 770µJ (on), 1.11mJ (off) | Standard | 68 nC | 44ns/186ns | 400V, 30A, 10Ohm, 15V | - | -40°C ~ 175°C (TJ) | - | - | Through Hole | TO-3PFM |
|
IKA15N65H5XKSA1IGBT 650V 14A TO220-3 |
3,834 |
|
Datasheet |
TrenchStop® | TO-220-3 Full Pack | Tube | Active | - | 650 V | 14 A | 45 A | 2.1V @ 15V, 15A | 33.3 W | 120µJ (on), 50µJ (off) | Standard | 38 nC | 17ns/160ns | 400V, 7.5A, 39Ohm, 15V | 48 ns | -40°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO220-3-111 |
|
|
RGCL60TK60DGC11IGBT TRNCH FIELD 600V 30A TO3PFM |
2,936 |
|
Datasheet |
- | TO-3PFM, SC-93-3 | Tube | Active | Trench Field Stop | 600 V | 30 A | 120 A | 1.8V @ 15V, 30A | 54 W | 770µJ (on), 1.11mJ (off) | Standard | 68 nC | 44ns/186ns | 400V, 30A, 10Ohm, 15V | 58 ns | -40°C ~ 175°C (TJ) | - | - | Through Hole | TO-3PFM |
