Single IGBTs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Current - Collector Pulsed (Icm) | Vce(on) (Max) @ Vge, Ic | Power - Max | Switching Energy | Input Type | Gate Charge | Td (on/off) @ 25°C | Test Condition | Reverse Recovery Time (trr) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
;;2.jpg)
|
STGD3NB60SDT4IGBT 600V 6A DPAK |
7,494 |
|
Datasheet |
PowerMESH™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | - | 600 V | 6 A | 25 A | 1.5V @ 15V, 3A | 48 W | 1.15mJ (off) | Standard | 18 nC | 125µs/- | 480V, 3A, 1kOhm, 15V | 1.7 µs | 175°C (TJ) | - | - | Surface Mount | DPAK |
|
HGTD1N120BNS9AIGBT NPT 1200V 5.3A TO252AA |
20,090 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | NPT | 1200 V | 5.3 A | 6 A | 2.9V @ 15V, 1A | 60 W | 70µJ (on), 90µJ (off) | Standard | 14 nC | 15ns/67ns | 960V, 1A, 82Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|
STGF7NB60SLIGBT 600V 15A 25W TO220FP |
528 |
|
Datasheet |
PowerMESH™ | TO-220-3 Full Pack | Tube | Active | - | 600 V | 15 A | 20 A | 1.6V @ 4.5V, 7A | 25 W | 4.1mJ (off) | Standard | 16 nC | 1.1µs/5.2µs | 480V, 7A, 1kOhm, 5V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FP |
|

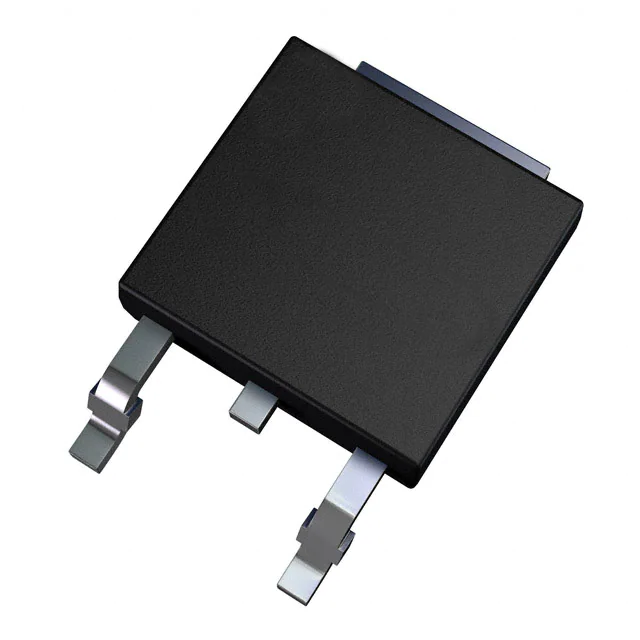

FGD5T120SHIGBT 1200V 5A FS3 DPAK |
10,296 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Trench Field Stop | 1200 V | 10 A | 12.5 A | 3.6V @ 15V, 5A | 69 W | 247µJ (on), 94µJ (off) | Standard | 6.7 nC | 4.8ns/24.8ns | 600V, 5A, 30Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|
STGB3NC120HDT4IGBT 1200V 14A 75W D2PAK |
3,754 |
|
Datasheet |
PowerMESH™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | - | 1200 V | 14 A | 20 A | 2.8V @ 15V, 3A | 75 W | 236µJ (on), 290µJ (off) | Standard | 24 nC | 15ns/118ns | 800V, 3A, 10Ohm, 15V | 51 ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
IKP20N60TXKSA1IGBT TRENCH FS 600V 40A TO220-3 |
3,080 |
|
Datasheet |
TrenchStop® | TO-220-3 | Tube | Active | Trench Field Stop | 600 V | 40 A | 60 A | 2.05V @ 15V, 20A | 166 W | 770µJ | Standard | 120 nC | 18ns/199ns | 400V, 20A, 12Ohm, 15V | 41 ns | -40°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO220-3-1 |
|
STGW30H60DFBIGBT TRENCH FS 600V 60A TO247 |
2,268 |
|
Datasheet |
- | TO-247-3 | Tube | Active | Trench Field Stop | 600 V | 60 A | 120 A | 2V @ 15V, 30A | 260 W | 383µJ (on), 293µJ (off) | Standard | 149 nC | 37ns/146ns | 400V, 30A, 10Ohm, 15V | 53 ns | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247 |
|
|
STGB30M65DF2IGBT TRENCH FS 650V 60A TO263 |
1,248 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | Trench Field Stop | 650 V | 60 A | 120 A | 2V @ 15V, 30A | 258 W | 300µJ (on), 960µJ (off) | Standard | 80 nC | 31.6ns/115ns | 400V, 30A, 10Ohm, 15V | 140 ns | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
IKB20N60TATMA1IGBT TRENCH FS 600V 40A TO263-3 |
16,178 |
|
Datasheet |
TrenchStop® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | Trench Field Stop | 600 V | 40 A | 60 A | 2.05V @ 15V, 20A | 166 W | 770µJ | Standard | 120 nC | 18ns/199ns | 400V, 20A, 12Ohm, 15V | 41 ns | -40°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-3-2 |
|
STGB30V60DFIGBT TRENCH FS 600V 60A D2PAK |
4,472 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | Trench Field Stop | 600 V | 60 A | 120 A | 2.3V @ 15V, 30A | 258 W | 383µJ (on), 233µJ (off) | Standard | 163 nC | 45ns/189ns | 400V, 30A, 10Ohm, 15V | 53 ns | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
IKW30N60DTPXKSA1IGBT TRENCH FS 600V 53A TO247-3 |
4,950 |
|
Datasheet |
TrenchStop™ | TO-247-3 | Tube | Not For New Designs | Trench Field Stop | 600 V | 53 A | 90 A | 1.8V @ 15V, 30A | 200 W | 710µJ (on), 420µJ (off) | Standard | 130 nC | 15ns/179ns | 400V, 30A, 10.5Ohm, 15V | 76 ns | -40°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO247-3 |
|
|
ISL9V3040P3IGBT 430V 21A TO220-3 |
1,954 |
|
Datasheet |
EcoSPARK® | TO-220-3 | Tube | Active | - | 430 V | 21 A | - | 1.6V @ 4V, 6A | 150 W | - | Logic | 17 nC | -/4.8µs | 300V, 1kOhm, 5V | - | -40°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
|
ISL9V5045S3ST-F085CECOSPARK1 IGN-IGBT TO263 |
2,170 |
|
Datasheet |
EcoSPARK® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | - | 480 V | 51 A | - | 1.6V @ 4V, 10A | 300 W | - | Logic | 32 nC | -/10.8µs | - | - | -40°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
IHW40N120R5XKSA1IGBT TRENCH FS 1200V 80A TO247-3 |
1,120 |
|
Datasheet |
TrenchStop™ | TO-247-3 | Tube | Active | Trench Field Stop | 1200 V | 80 A | 120 A | 1.85V @ 15V, 40A | 394 W | 1.6mJ (off) | Standard | 310 nC | -/420ns | 600V, 40A, 10Ohm, 15V | - | -40°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO247-3 |
|
|
ISL9V5036P3-F085IGBT 390V 46A TO220-3 |
7,276 |
|
Datasheet |
EcoSPARK® | TO-220-3 | Tube | Active | - | 390 V | 46 A | - | 1.6V @ 4V, 10A | 250 W | - | Logic | 32 nC | -/10.8µs | 300V, 1kOhm, 5V | - | -40°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-220-3 |
|
FGH40N60SMDIGBT FIELD STOP 600V 80A TO247-3 |
2,120 |
|
Datasheet |
- | TO-247-3 | Tube | Active | Field Stop | 600 V | 80 A | 120 A | 2.5V @ 15V, 40A | 349 W | 870µJ (on), 260µJ (off) | Standard | 119 nC | 12ns/92ns | 400V, 40A, 6Ohm, 15V | 36 ns | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-3 |
|
|
IHW30N160R5XKSA1IGBT 1600V 60A TO247-3 |
11,718 |
|
Datasheet |
- | TO-247-3 | Tube | Active | - | 1600 V | 60 A | 90 A | 2.15V @ 15V, 30A | 263 W | -, 350µJ (off) | Standard | 205 nC | -/290ns | 600V, 30A, 10Ohm, 15V | - | -40°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO247-3 |
|
ISL9V5036S3STIGBT 390V 46A 250W TO263AB |
5,938 |
|
Datasheet |
EcoSPARK® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | - | 390 V | 46 A | - | 1.6V @ 4V, 10A | 250 W | - | Logic | 32 nC | -/10.8µs | 300V, 1kOhm, 5V | - | -40°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
ISL9V5045S3ST-F085IGBT 480V 51A 300W D2PAK |
6,346 |
|
Datasheet |
EcoSPARK® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | - | 480 V | 51 A | - | 1.6V @ 4V, 10A | 300 W | - | Logic | 32 nC | -/10.8µs | 300V, 1kOhm, 5V | - | -40°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-263 (D2PAK) |
|
IXGA48N60A3-TRLIXGA48N60A3 TRL |
3,498 |
|
Datasheet |
GenX3™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | PT | 600 V | 120 A | 300 A | 1.35V @ 15V, 32A | 300 W | 950µJ (on), 2.9mJ (off) | Standard | 110 nC | 25ns/334ns | 480V, 32A, 5Ohm, 15V | 30 ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
