Single IGBTs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Current - Collector Pulsed (Icm) | Vce(on) (Max) @ Vge, Ic | Power - Max | Switching Energy | Input Type | Gate Charge | Td (on/off) @ 25°C | Test Condition | Reverse Recovery Time (trr) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NGTB20N120IHTGIGBT 1200V 20A TO247 |
11,916 |
|
- |
- | - | Tube | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IXYA30N120A3HVIGBT DISCRETE TO-263HV |
10,502 |
|
- |
- | - | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IXYA20N120C4HV-TRLDISC. IGBT XPT-GENX4 TO-263HV |
12,764 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
APT11GP60BDQBGIGBT 600V 41A 187W TO247 |
12,316 |
|
Datasheet |
POWER MOS 7® | TO-247-3 | Tube | Obsolete | PT | 600 V | 41 A | 45 A | 2.7V @ 15V, 11A | 187 W | 46µJ (on), 90µJ (off) | Standard | 40 nC | 7ns/29ns | 400V, 11A, 5Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
.jpg)
|
IXXH50N60C3IGBT 600V 100A 600W TO247AD |
19,288 |
|
Datasheet |
GenX3™, XPT™ | TO-247-3 | Tube | Active | PT | 600 V | 100 A | 200 A | 2.3V @ 15V, 36A | 600 W | 720µJ (on), 330µJ (off) | Standard | 64 nC | 24ns/62ns | 360V, 36A, 5Ohm, 15V | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247AD (IXXH) |
|
STGWA80H65DFBIGBT BIPO 650V 80A TO247-3 |
7,490 |
|
Datasheet |
- | TO-247-3 | Tube | Obsolete | Trench Field Stop | 650 V | 120 A | 240 A | 2V @ 15V, 80A | 469 W | 2.1mJ (on), 1.5mJ (off) | Standard | 414 nC | 84ns/280ns | 400V, 80A, 10Ohm, 15V | 85 ns | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247 Long Leads |
|
IXGA20N120B3IGBT 1200V 36A 180W TO263 |
7,586 |
|
Datasheet |
GenX3™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | PT | 1200 V | 36 A | 80 A | 3.1V @ 15V, 16A | 180 W | 920µJ (on), 560µJ (off) | Standard | 51 nC | 16ns/150ns | 600V, 16A, 15Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263AA |
|
|
IXGH15N120CIGBT 1200V 30A 150W TO247AD |
11,460 |
|
- |
Lightspeed™ | TO-247-3 | Tube | Obsolete | - | 1200 V | 30 A | 60 A | 3.8V @ 15V, 15A | 150 W | 1.05mJ (off) | Standard | 69 nC | 25ns/150ns | 960V, 15A, 10Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD |
|
|
IXGH56N60A3IGBT 600V 150A 330W TO247 |
14,548 |
|
Datasheet |
GenX3™ | TO-247-3 | Tube | Obsolete | PT | 600 V | 150 A | 370 A | 1.35V @ 15V, 44A | 330 W | 1mJ (on), 3.75mJ (off) | Standard | 140 nC | 26ns/310ns | 480V, 44A, 5Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD |
|
AOK40B120M1IGBT 1200V 40A TO-247 |
18,362 |
|
Datasheet |
Alpha IGBT™ | TO-247-3 | Tube | Obsolete | - | 1200 V | 80 A | 120 A | 2.45V @ 15V, 40A | 600 W | 3.87mJ (on), 1.25mJ (off) | Standard | 140 nC | 90ns/226ns | 600V, 40A, 7.5Ohm, 15V | 340 ns | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247 |
|
|
IXGH72N60B3IGBT 600V 75A 540W TO247 |
12,160 |
|
Datasheet |
GenX3™ | TO-247-3 | Tube | Obsolete | PT | 600 V | 75 A | 400 A | 1.8V @ 15V, 60A | 540 W | 1.38mJ (on), 1.05mJ (off) | Standard | 230 nC | 31ns/150ns | 480V, 50A, 3Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD |
|

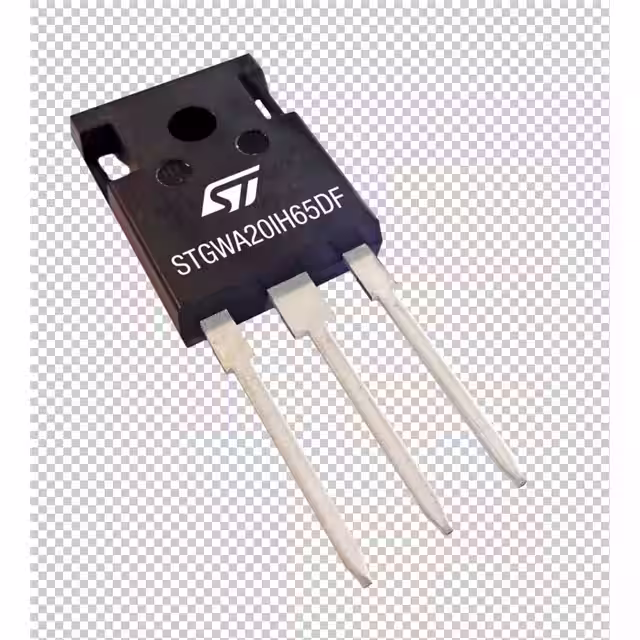

STGWA20IH65DFTRENCH GATE FIELD-STOP 650 V, 20 |
3,780 |
|
Datasheet |
IH | TO-247-3 | Tube | Last Time Buy | Trench Field Stop | 650 V | 40 A | 60 A | 2.05V @ 15V, 20A | 159 W | 110µJ (off) | Standard | 56 nC | -/120ns | 400V, 20A, 22Ohm, 15V | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247 Long Leads |
|
FGA50N60LSIGBT 600V 100A 240W TO3P |
17,722 |
|
Datasheet |
- | TO-3P-3, SC-65-3 | Tube | Obsolete | - | 600 V | 100 A | 150 A | 1.8V @ 15V, 50A | 240 W | 1.1mJ (on), 3.2mJ (off) | Standard | 167 nC | 54ns/146ns | 300V, 50A, 5.9Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3P |
|
|
APT15GP60BGIGBT PT 600V 56A TO247 |
16,130 |
|
Datasheet |
POWER MOS 7® | TO-247-3 | Tube | Active | PT | 600 V | 56 A | 65 A | 2.7V @ 15V, 15A | 250 W | 130µJ (on), 121µJ (off) | Standard | 55 nC | 8ns/29ns | 400V, 15A, 5Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 [B] |
|
RJP60V0DPM-00#T1IGBT TRENCH 600V 45A TO3PFM |
3,958 |
|
Datasheet |
- | TO-220-3 Full Pack | Tube | Active | Trench | 600 V | 45 A | - | 2.1V @ 15V, 22A | 40 W | - | Standard | 75 nC | 45ns/100ns | 300V, 22A, 5Ohm, 15V | - | 150°C (TJ) | - | - | Through Hole | TO-3PFM |
|
IRG4IBC10UDIGBT 600V 6.8A 25W TO220FP |
7,486 |
|
Datasheet |
- | TO-220-3 Full Pack | Tube | Obsolete | - | 600 V | 6.8 A | 27 A | 2.6V @ 15V, 5A | 25 W | 140µJ (on), 120µJ (off) | Standard | 15 nC | 40ns/87ns | 480V, 5A, 100Ohm, 15V | 28 ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-FP |
|
|
IXYA50N65C3IGBT 650V 130A 600W TO263 |
17,040 |
|
Datasheet |
GenX3™, XPT™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | PT | 650 V | 130 A | 250 A | 2.1V @ 15V, 36A | 600 W | 1.3mJ (on), 370µJ (off) | Standard | 80 nC | 22ns/80ns | 400V, 36A, 5Ohm, 15V | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263AA |
|
IRGP4065DPBFIGBT 300V 70A 160W TO247AC |
10,746 |
|
Datasheet |
- | TO-247-3 | Bag | Obsolete | Trench | 300 V | 70 A | - | 2.1V @ 15V, 70A | 160 W | - | Standard | 62 nC | 30ns/170ns | 180V, 25A, 10Ohm, 15V | - | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AC |
|
|
AOK40B120N1IGBT 1200V 40A TO-247 |
14,606 |
|
Datasheet |
Alpha IGBT™ | TO-247-3 | Tube | Active | - | 1200 V | 80 A | 160 A | 2.5V @ 15V, 40A | 600 W | 3.4mJ (on), 1.4mJ (off) | Standard | 100 nC | 57ns/146ns | 600V, 40A, 7.5Ohm, 15V | 300 ns | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247 |
|
IXDH20N120IGBT 1200V 38A 200W TO247AD |
4,790 |
|
Datasheet |
- | TO-247-3 | Tube | Obsolete | NPT | 1200 V | 38 A | 50 A | 3V @ 15V, 20A | 200 W | 3.1mJ (on), 2.4mJ (off) | Standard | 70 nC | - | 600V, 20A, 82Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD |
