IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FB50R07W2E3C36BPSA1LOW POWER EASY |
9,634 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FS50R12W2T4B11BOMA1IGBT MOD 1200V 83A 335W |
2,118 |
|
- |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 83 A | 335 W | 2.15V @ 15V, 50A | 1 mA | 2.8 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
PCHMB50W6IGBT MODULE, 1IN1, CHOPPER CIRCU |
3,818 |
|
- |
- | Module | Bulk | Active | - | Single | 650 V | 50 A | 181 W | 1.95V @ 15V, 50A | 1 mA | 4500 pF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
PRHMB50W12IGBT MODULE, 1IN1, BRAKE CHOPPER |
2,780 |
|
- |
- | Module | Bulk | Active | - | Single | 1200 V | 50 A | 231 W | 2V @ 15V, 50A | 1 mA | 5300 pF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
PCFMB50W6IGBT MODULE, 1IN1, CHOPPER CIRCU |
8,444 |
|
- |
- | Module | Bulk | Active | - | Single | 650 V | 50 A | 181 W | 1.95V @ 15V, 50A | 1 mA | 4500 pF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
PRFMB50W6IGBT MODULE, 1IN1, BRAKE CHOPPER |
7,882 |
|
- |
- | Module | Bulk | Active | - | Single | 650 V | 50 A | 181 W | 1.95V @ 15V, 50A | 1 mA | 4500 pF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
PRHMB100W6IGBT MODULE, 1IN1, BRAKE CHOPPER |
5,206 |
|
- |
- | Module | Bulk | Active | - | Single | 650 V | 100 A | 320 W | 1.95V @ 15V, 100A | 1 mA | 8500 pF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
PRFMB50W12IGBT MODULE, 1IN1, BRAKE CHOPPER |
4,082 |
|
- |
- | Module | Bulk | Active | - | Single | 1200 V | 50 A | 230 W | 2V @ 15V, 50A | 1 mA | 5300 pF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
PRFMB75W6IGBT MODULE, 1IN1, BRAKE CHOPPER |
2,766 |
|
- |
- | Module | Bulk | Active | - | Single | 650 V | 75 A | 255 W | 1.95V @ 15V, 75A | 1 mA | 6600 pF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
FB50R07W2E3B23BOMA1LOW POWER EASY AG-EASY2B-2 |
2,260 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FS50R12W2T7PBPSA1LOW POWER EASY |
2,824 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PRFMB75W12IGBT MODULE, 1IN1, BRAKE CHOPPER |
7,580 |
|
- |
- | Module | Bulk | Active | - | Single | 1200 V | 75 A | 290 W | 2V @ 15V, 75A | 1 mA | 8000 pF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
PRHMB100W12IGBT MODULE, 1IN1, BRAKE CHOPPER |
3,608 |
|
- |
- | Module | Bulk | Active | - | Single | 1200 V | 100 A | 403 W | 2V @ 15V, 100A | 1 mA | 10000 pF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
FS50R12W2T7PB11BPSA1LOW POWER EASY |
7,162 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FP35R12N2T7BPSA2LOW POWER ECONO |
7,218 |
|
- |
EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 35 A | - | 1.6V @ 15V, 35A | 7 µA | 6.62 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
PDMB50W12IGBT MODULE, 2IN1, 1200V/50A |
4,802 |
|
- |
- | Module | Bulk | Active | - | Dual, Common Source | 1200 V | 50 A | 231 W | 2V @ 15V, 50A | 1 mA | 5300 pF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
PRFMB100W6IGBT MODULE, 1IN1, BRAKE CHOPPER |
9,780 |
|
- |
- | Module | Bulk | Active | - | Single | 650 V | 100 A | 320 W | 1.95V @ 15V, 100A | 1 mA | 8500 pF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
NXH50M65L4Q1SGQ1PACK 50A 650V |
8,316 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Full Bridge | 650 V | 48 A | 86 W | 2.22V @ 15V, 50A | 300 µA | 3.137 nF @ 20 V | Standard | Yes | 175°C (TJ) | Chassis Mount | 56-PIM (93x47) |
|
|
PDMB75W12IGBT MODULE, 2IN1, 1200V/75A |
8,250 |
|
- |
- | Module | Bulk | Active | - | Dual, Common Source | 1200 V | 75 A | 290 W | 2V @ 15V, 75A | 1 mA | 8000 pF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

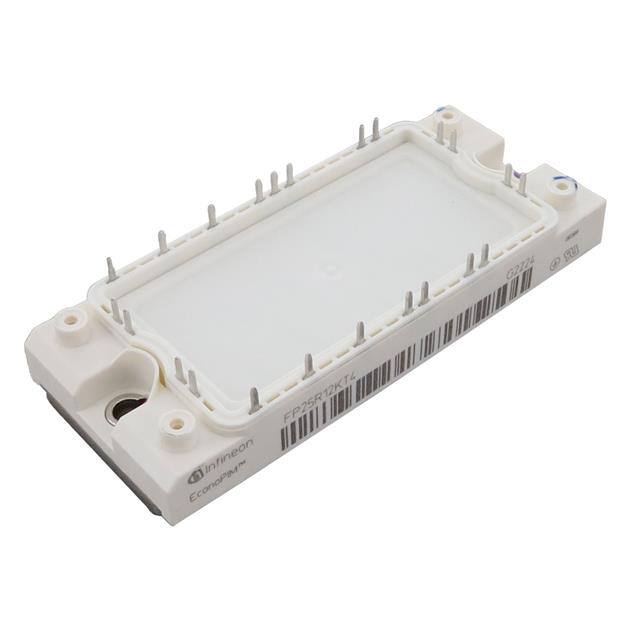

FP25R12KT4BPSA1LOW POWER ECONO AG-ECONO2B-411 |
9,618 |
|
- |
EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | 160 W | 2.15V @ 15V, 25A | 1 mA | 1.45 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
