IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FZ2400R12HE4PB9HPSA1IGBT MODULE 1200V 2400A |
6,458 |
|
- |
IHM-B | Module | Tray | Active | Trench Field Stop | Full Bridge | 1200 V | 2400 A | - | 2.1V @ 15V, 2400A | 5 mA | 150 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
FF1400R17IP4B60BOSA1PP IHM I |
14,534 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Half Bridge Inverter | 1700 V | 1400 A | 9550 W | 2.2V @ 15V, 1.4kA | 5 mA | 110000 pF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | - |
|
|
FZ2400R17HE4PB9HPSA1IGBT MODULE 1700V 2400A |
17,298 |
|
- |
IHM-B | Module | Tray | Active | Trench Field Stop | Single Switch | 1700 V | 2400 A | - | 2.3V @ 15V, 2400A | 5 mA | 195 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
FF2400RB12IP7BPSA1PP IHM I XHP 1 7KV AG-PRIME3+-7 |
4,340 |
|
- |
PrimePACK™3 | - | Tray | Active | - | 2 Independent | 750 V | 2400 A | - | - | - | - | Standard | No | - | - | - |
|
FF1200R17KE3NOSA1IGBT MODULE VCES 1700V 1200A |
6,890 |
|
- |
- | Module | Tray | Not For New Designs | - | Single Chopper | 1700 V | - | 595000 W | 2.45V @ 15V, 1200A | 5 mA | 110 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
|
CM1400DUC-24NFIGBT MOD 1200V 1400A 8900W |
10,552 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 1400 A | 8900 W | 2.5V @ 15V, 1400A | 1 mA | 220 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | - | Module |
|
FZ3600R12HP4PHPSA1IGBT MOD 1200V 4930A AGIHMB190-2 |
12,098 |
|
- |
IHM-B | Module | Tray | Active | Trench | Single Switch | 1200 V | 4930 A | 19000 W | 2.05V @ 15V, 3.6kA | 5 mA | - | Standard | No | -40°C ~ 150°C | Chassis Mount | AG-IHMB190-2 |
|
|
FD800R17KE3B2NOSA1IGBT MODULE 1700V 800A |
8,834 |
|
- |
IHM-B | Module | Bulk | Not For New Designs | - | Single Chopper | 1700 V | 1200 A | 5200 W | 2.45V @ 15V, 800A | 5 mA | 72 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | Module |
|
FF200R33KF2CNOSA1IGBT MOD 3300V 330A 2200W |
19,878 |
|
- |
- | Module | Bulk | Obsolete | - | 2 Independent | 3300 V | 330 A | 2200 W | 4.25V @ 15V, 200A | 5 mA | 25 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
FF450R33T3E3BPSA1IGBT MOD 3300V 450A AGXHP100-3 |
4,888 |
|
- |
XHP™3 | Module | Tray | Discontinued at Digi-Key | Trench Field Stop | Half Bridge | 3300 V | 450 A | 1000000 W | 2.75V @ 15V, 450A | 5 mA | - | Standard | No | -40°C ~ 150°C | Chassis Mount | AG-XHP100-3 |
|
|
FF450R33T3E3P2BPSA1IGBT MOD 3300V 450A AGXHP100-3 |
8,810 |
|
- |
XHP™3 | Module | Tray | Active | Trench Field Stop | Half Bridge | 3300 V | 450 A | 1000000 W | 2.75V @ 15V, 450A | 5 mA | - | Standard | No | -40°C ~ 150°C | Chassis Mount | AG-XHP100-3 |
|
|
FF450R33T3E3P3BPMA1IGBT MOD 3300V 450A AGXHP100-3 |
9,380 |
|
- |
XHP™3 | Module | Tray | Active | Trench Field Stop | Half Bridge | 3300 V | 450 A | 1000000 W | 2.75V @ 15V, 450A | 5 mA | - | Standard | No | -40°C ~ 150°C | Chassis Mount | AG-XHP100-3 |
|
|
FZ3600R17HE4HOSA2IGBT MODULE 1700V 7200A |
16,478 |
|
- |
IHM-B | Module | Tray | Discontinued at Digi-Key | - | Single Switch | 1700 V | 7200 A | 21000 W | 2.3V @ 15V, 3600A | 5 mA | 295 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FF450R33T3E3P4BPMA1IGBT MOD 3300V 450A AGXHP100-3 |
18,244 |
|
- |
XHP™3 | Module | Tray | Active | Trench Field Stop | Half Bridge | 3300 V | 450 A | 1000000 W | 2.75V @ 15V, 450A | 5 mA | - | Standard | No | -40°C ~ 150°C | Chassis Mount | AG-XHP100-3 |
|
|
MIO1200-25E10IGBT MODULE 2500V 1200A E10 |
5,792 |
|
- |
- | E10 | Box | Obsolete | NPT | Single Switch | 2500 V | 1200 A | - | 2.5V @ 15V, 1200A | 120 mA | 186 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | E10 |
|
|
FF450R33T3E3P6BPMA1IGBT MOD 3300V 450A AGXHP100-3 |
18,232 |
|
- |
XHP™3 | Module | Tray | Active | Trench Field Stop | Half Bridge | 3300 V | 450 A | 1000000 W | 2.75V @ 15V, 450A | 5 mA | - | Standard | No | -40°C ~ 150°C | Chassis Mount | AG-XHP100-3 |
|

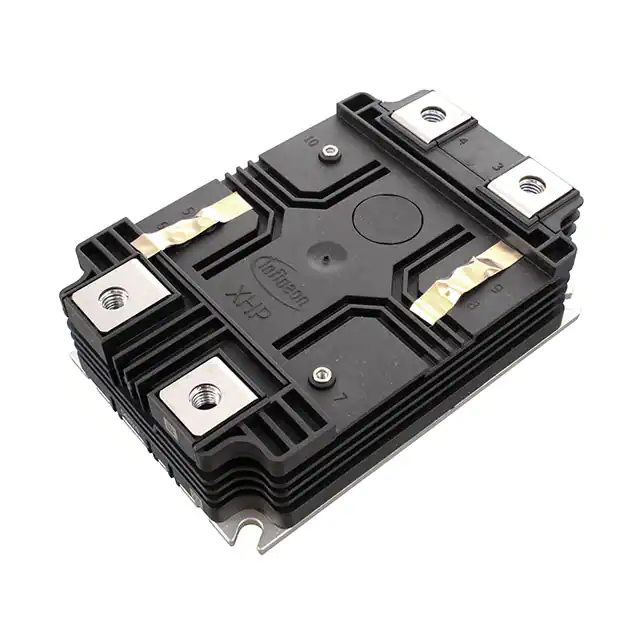

FF450R33T3E3B5BPSA1IGBT MOD 3300V 450A AGXHP100-6 |
4,426 |
|
- |
XHP™3 | Module | Tray | Discontinued at Digi-Key | Trench Field Stop | Half Bridge Inverter | 3300 V | 450 A | 1000000 W | 2.75V @ 15V, 450A | 5 mA | 84 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | AG-XHP100-6 |
|
|
FZ1600R17KF6CB2S1NOSA1IGBT MODULE |
7,114 |
|
- |
- | Module | Bulk | Active | Trench Field Stop | Single Switch | 1700 V | 1600 A | 10500 W | 2.25V @ 15V, 1.6kA | 5 mA | 130 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-IHMB130-2-1 |
|
|
FF450R33T3E3B5P2BPSA1IHV IHM T XHP 3 3-6 5K |
5,778 |
|
- |
XHP™3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 3300 V | 450 A | 1000000 W | 2.75V @ 15V, 450A | 5 mA | 84 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-XHP100-6 |
|
|
FF450R33T3E3B5P3BPMA1IHV IHM T XHP 3 3-6 5K AG-XHP3K3 |
18,198 |
|
- |
XHP™3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 3300 V | 450 A | 1000 W | 2.75V @ 15V, 450A | 5 mA | 84 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-XHP3K33 |
