FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STP9NK90ZMOSFET N-CH 900V 8A TO220AB |
1,960 |
|
Datasheet |
SuperMESH™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 8A (Tc) | 10V | 1.3Ohm @ 3.6A, 10V | 4.5V @ 100µA | 72 nC @ 10 V | ±30V | 2115 pF @ 25 V | - | 160W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
STW28N60DM2MOSFET N-CH 600V 21A TO247 |
1,140 |
|
Datasheet |
MDmesh™ DM2 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 21A (Tc) | 10V | 160mOhm @ 10.5A, 10V | 5V @ 250µA | 34 nC @ 10 V | ±25V | 1500 pF @ 100 V | - | 170W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
IPF010N06NF2SATMA1TRENCH 40<-<100V |
660 |
|
Datasheet |
StrongIRFET™2 | TO-263-7, D2PAK (6 Leads + Tab) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 44A (Ta), 293A (Tc) | 6V, 10V | 1.05mOhm @ 100A, 10V | 3.3V @ 246µA | 305 nC @ 10 V | ±20V | 13800 pF @ 30 V | - | 3.8W (Ta), 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-7-U02 |
|

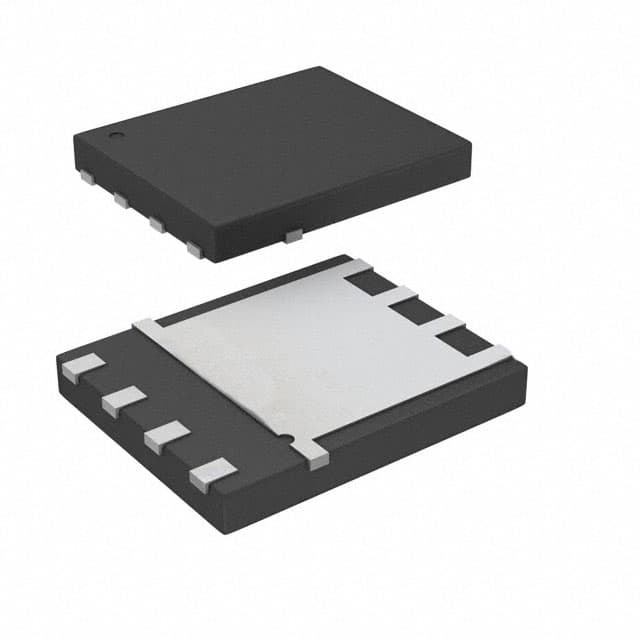

FDMS8050ET30MOSFET N-CH 30V 55A/423A POWER56 |
17,186 |
|
Datasheet |
PowerTrench® | 8-PowerTDFN | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 30 V | 55A (Ta), 423A (Tc) | 4.5V, 10V | 0.65mOhm @ 55A, 10V | 3V @ 750µA | 285 nC @ 10 V | ±20V | 22610 pF @ 15 V | - | 3.3W (Ta), 180W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
|
STF7NM80MOSFET N-CH 800V 6.5A TO220FP |
1,048 |
|
Datasheet |
MDmesh™ | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 6.5A (Tc) | 10V | 1.05Ohm @ 3.25A, 10V | 5V @ 250µA | 18 nC @ 10 V | ±30V | 620 pF @ 25 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
SI7880ADP-T1-E3MOSFET N-CH 30V 40A PPAK SO-8 |
15,742 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 40A (Tc) | 4.5V, 10V | 3mOhm @ 20A, 10V | 3V @ 250µA | 125 nC @ 10 V | ±20V | 5600 pF @ 15 V | - | 5.4W (Ta), 83W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
NP109N04PUK-E1-AYMOSFET N-CH 40V 110A TO263 |
8,812 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 110A (Tc) | 10V | 1.75mOhm @ 55A, 10V | 4V @ 250µA | 189 nC @ 10 V | ±20V | 10800 pF @ 25 V | - | 1.8W (Ta), 250W (Tc) | 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
R8009KNXC7GHIGH-SPEED SWITCHING NCH 800V 9A |
1,998 |
|
Datasheet |
- | TO-220-3 Full Pack | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 9A (Ta) | 10V | 600mOhm @ 4.5A, 10V | 4.5V @ 5mA | 27 nC @ 10 V | ±20V | 900 pF @ 100 V | - | 59W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220FM |
|
IRFB4137PBFMOSFET N-CH 300V 38A TO220 |
1,816 |
|
Datasheet |
HEXFET® | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 38A (Tc) | 10V | 69mOhm @ 24A, 10V | 5V @ 250µA | 125 nC @ 10 V | ±20V | 5168 pF @ 50 V | - | 341W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 |
|
|
IRFIB6N60APBFMOSFET N-CH 600V 5.5A TO220-3 |
1,582 |
|
Datasheet |
- | TO-220-3 Full Pack, Isolated Tab | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 5.5A (Tc) | 10V | 750mOhm @ 3.3A, 10V | 4V @ 250µA | 49 nC @ 10 V | ±30V | 1400 pF @ 25 V | - | 60W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
|
IPB016N08NF2SATMA1TRENCH 40<-<100V PG-TO263-3 |
444 |
|
Datasheet |
StrongIRFET™ 2 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 170A (Tc) | 6V, 10V | 1.65mOhm @ 100A, 10V | 3.8V @ 267µA | 255 nC @ 10 V | ±20V | 12000 pF @ 40 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-3 |
|
FDP020N06B-F102MOSFET N-CH 60V 120A TO220-3 |
3,160 |
|
Datasheet |
PowerTrench® | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 120A (Tc) | 10V | 2mOhm @ 100A, 10V | 4.5V @ 250µA | 268 nC @ 10 V | ±20V | 20930 pF @ 30 V | - | 333W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
FDB0170N607LMOSFET N-CH 60V 300A TO263-7 |
1,452 |
|
Datasheet |
PowerTrench® | TO-263-7, D2PAK (6 Leads + Tab) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 300A (Tc) | 10V | 1.4mOhm @ 39A, 10V | 4V @ 250µA | 243 nC @ 10 V | ±20V | 19250 pF @ 30 V | - | 3.8W (Ta), 250W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263-7 |
|
CSD18535KTTTMOSFET N-CH 60V 200A/279A DDPAK |
1,420 |
|
Datasheet |
NexFET™ | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 200A (Ta), 279A (Tc) | 4.5V, 10V | 2mOhm @ 100A, 10V | 2.4V @ 250µA | 81 nC @ 10 V | ±20V | 6620 pF @ 30 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (DDPAK-3) |
|
|
STW10NK60ZMOSFET N-CH 600V 10A TO247-3 |
836 |
|
Datasheet |
SuperMESH™ | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 10A (Tc) | 10V | 750mOhm @ 4.5A, 10V | 4.5V @ 250µA | 70 nC @ 10 V | ±30V | 1370 pF @ 25 V | - | 156W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
NTPF190N65S3HFMOSFET N-CH 650V 20A TO220FP |
1,824 |
|
Datasheet |
FRFET®, SuperFET® III | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 20A (Tc) | 10V | 190mOhm @ 10A, 10V | 5V @ 430µA | 34 nC @ 10 V | ±30V | 1610 pF @ 400 V | - | 36W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
|
STP14NK50ZFPMOSFET N-CH 500V 14A TO220FP |
1,568 |
|
Datasheet |
SuperMESH™ | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 14A (Tc) | 10V | 380mOhm @ 6A, 10V | 4.5V @ 100µA | 92 nC @ 10 V | ±30V | 2000 pF @ 25 V | - | 35W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
|
STP11NM60MOSFET N-CH 650V 11A TO220AB |
532 |
|
Datasheet |
MDmesh™ | TO-220-3 | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 650 V | 11A (Tc) | 10V | 450mOhm @ 5.5A, 10V | 5V @ 250µA | 30 nC @ 10 V | ±25V | 1000 pF @ 25 V | - | 160W (Tc) | -65°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
|
STB30N65M2AGMOSFET N-CH 650V 20A D2PAK |
402 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 20A (Tc) | 10V | 180mOhm @ 10A, 10V | 4V @ 250µA | 30.8 nC @ 10 V | ±25V | 1440 pF @ 100 V | - | 190W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-263 (D2PAK) |
|
|
R6030KNXC7MOSFET N-CH 600V 30A TO220FM |
1,980 |
|
Datasheet |
- | TO-220-3 Full Pack | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Tc) | 10V | 130mOhm @ 14.5A, 10V | 5V @ 1mA | 56 nC @ 10 V | ±20V | 2350 pF @ 25 V | - | 86W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FM |
