FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSMNR90-40YLHXMOSFET N-CH 40V 300A LFPAK56 |
10,068 |
|
Datasheet |
- | SOT-1023, 4-LFPAK | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 300A (Tc) | 4.5V, 10V | 0.94mOhm @ 25A, 10V | 2.05V @ 1mA | 168 nC @ 10 V | ±20V | 12673 pF @ 20 V | Schottky Diode (Body) | 333W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK56; Power-SO8 |
|
SQM35N30-97_GE3MOSFET N-CH 300V 35A TO263 |
2,934 |
|
Datasheet |
TrenchFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 35A (Tc) | 10V | 97mOhm @ 10A, 10V | 3.5V @ 250µA | 130 nC @ 10 V | ±20V | 5650 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-263 (D2PAK) |
|
IPDD60R125G7XTMA1MOSFET N-CH 600V 20A HDSOP-10 |
2,174 |
|
Datasheet |
CoolMOS™ G7 | 10-PowerSOP Module | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 20A (Tc) | 10V | 125mOhm @ 6.4A, 10V | 4V @ 320µA | 27 nC @ 10 V | ±20V | 1080 pF @ 400 V | - | 120W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-HDSOP-10-1 |
|
STF14NM50NMOSFET N-CH 500V 12A TO220FP |
1,850 |
|
Datasheet |
MDmesh™ II | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 12A (Tc) | 10V | 320mOhm @ 6A, 10V | 4V @ 100µA | 27 nC @ 10 V | ±25V | 816 pF @ 50 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
BUK962R5-60E,118MOSFET N-CH 60V 120A D2PAK |
5,884 |
|
Datasheet |
TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 120A (Tc) | 5V | 2.5mOhm @ 25A, 5V | 2.1V @ 1mA | 120 nC @ 5 V | ±10V | 17450 pF @ 25 V | - | 357W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK |
|
STB140NF75T4MOSFET N-CH 75V 120A D2PAK |
5,180 |
|
Datasheet |
STripFET™ III | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 120A (Tc) | 10V | 7.5mOhm @ 70A, 10V | 4V @ 250µA | 218 nC @ 10 V | ±20V | 5000 pF @ 25 V | - | 310W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
IXTP16N50PMOSFET N-CH 500V 16A TO220AB |
510 |
|
Datasheet |
Polar | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 16A (Tc) | 10V | 400mOhm @ 8A, 10V | 5.5V @ 250µA | 43 nC @ 10 V | ±30V | 2250 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
ISC010N06NM5ATMA1OPTIMOS5 60 V POWER MOSFET IN SU |
6,858 |
|
Datasheet |
OptiMOS™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 39A (Ta), 330A (Tc) | 6V, 10V | 1.05mOhm @ 50A, 10V | 3.3V @ 147µA | 143 nC @ 10 V | ±20V | 11000 pF @ 30 V | - | 3W (Ta), 214W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TSON-8-3 |
|
IPT60R105CFD7XTMA1MOSFET N-CH 600V 24A 8HSOF |
680 |
|
Datasheet |
CoolMOS™ CFD7 | 8-PowerSFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 24A (Tc) | 10V | 105mOhm @ 7.8A, 10V | 4.5V @ 390µA | 36 nC @ 10 V | ±20V | 1503 pF @ 400 V | - | 140W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-HSOF-8-2 |
|
SPW16N50C3FKSA1MOSFET N-CH 560V 16A TO247-3 |
296 |
|
Datasheet |
CoolMOS™ | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 560 V | 16A (Tc) | 10V | 280mOhm @ 10A, 10V | 3.9V @ 675µA | 66 nC @ 10 V | ±20V | 1600 pF @ 25 V | - | 160W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO247-3-1 |
|
BUK7S1R0-40HJMOSFET N-CH 40V 325A LFPAK88 |
3,956 |
|
Datasheet |
- | SOT-1235 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 325A (Tc) | 10V | 1mOhm @ 25A, 10V | 3.6V @ 1mA | 137 nC @ 10 V | +20V, -10V | 10322 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK88 (SOT1235) |
|
|
SPP15N60C3XKSA1MOSFET N-CH 650V 15A TO220-3 |
826 |
|
Datasheet |
CoolMOS™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 15A (Tc) | 10V | 280mOhm @ 9.4A, 10V | 3.9V @ 675µA | 63 nC @ 10 V | ±20V | 1660 pF @ 25 V | - | 156W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3-1 |
|
STP35N60DM2MOSFET N-CH 600V 28A TO220 |
1,976 |
|
Datasheet |
MDmesh™ DM2 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 28A (Tc) | 10V | 110mOhm @ 14A, 10V | 5V @ 250µA | 54 nC @ 10 V | ±25V | 2400 pF @ 100 V | - | 210W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
IRFP244PBFMOSFET N-CH 250V 15A TO247-3 |
8,038 |
|
- |
- | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 15A (Tc) | 10V | 280mOhm @ 9A, 10V | 4V @ 250µA | 63 nC @ 10 V | ±20V | 1400 pF @ 25 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AC |
|
|
IPP50R140CPXKSA1MOSFET N-CH 550V 23A TO220-3 |
774 |
|
Datasheet |
CoolMOS™ | TO-220-3 | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 550 V | 23A (Tc) | 10V | 140mOhm @ 14A, 10V | 3.5V @ 930µA | 64 nC @ 10 V | ±20V | 2540 pF @ 100 V | - | 192W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3-1 |
|

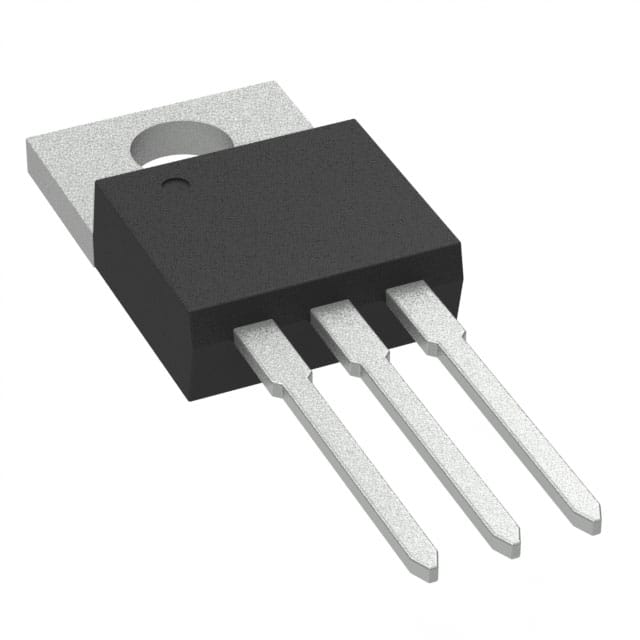

CSD19506KCSMOSFET N-CH 80V 100A TO220-3 |
238 |
|
Datasheet |
NexFET™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 100A (Ta) | 6V, 10V | 2.3mOhm @ 100A, 10V | 3.2V @ 250µA | 156 nC @ 10 V | ±20V | 12200 pF @ 40 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
TK22A65X5,S5XX35 PB-F POWER MOSFET TRANSISTOR |
300 |
|
Datasheet |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 22A (Ta) | 10V | 160mOhm @ 11A, 10V | 4.5V @ 1.1mA | 50 nC @ 10 V | ±30V | 2400 pF @ 300 V | - | 45W (Tc) | 150°C | - | - | Through Hole | TO-220SIS |
|
|
BSC019N08NS5ATMA1MOSFET N-CH 80V 28A/237A TSON-8 |
9,852 |
|
Datasheet |
OptiMOS™ 5 | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 28A (Ta), 237A (Tc) | 6V, 10V | 1.9mOhm @ 50A, 10V | 3.8V @ 146µA | 117 nC @ 10 V | ±20V | 8600 pF @ 40 V | - | 3W (Ta), 214W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TSON-8-3 |
|
|
FCP16N60MOSFET N-CH 600V 16A TO220-3 |
3,676 |
|
Datasheet |
SuperFET™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 16A (Tc) | 10V | 260mOhm @ 8A, 10V | 5V @ 250µA | 70 nC @ 10 V | ±30V | 2250 pF @ 25 V | - | 167W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
AOTF095A60LMOSFET N-CH 600V 38A TO220F |
1,848 |
|
Datasheet |
aMOS5™ | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 38A (Tj) | 10V | 95mOhm @ 19A, 10V | 3V @ 250µA | 78 nC @ 10 V | ±20V | 4010 pF @ 100 V | - | 41W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F |
