FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTC60VDAM24T3GMOSFET 2N-CH 600V 95A SP3 |
6,752 |
|
Datasheet |
CoolMOS™ | SP3 | Tray | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 600V | 95A | 24mOhm @ 47.5A, 10V | 3.9V @ 5mA | 300nC @ 10V | 14400pF @ 25V | 462W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP3 |
|
APTC60BBM24T3GMOSFET 2N-CH 600V 95A SP3 |
18,014 |
|
Datasheet |
CoolMOS™ | SP3 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 600V | 95A | 24mOhm @ 47.5A, 10V | 3.9V @ 5mA | 300nC @ 10V | 14400pF @ 25V | 462W | -40°C ~ 150°C (TJ) | - | - | - | SP3 |
|
|
APTC80A15SCTGMOSFET 2N-CH 800V 28A SP4 |
17,812 |
|
Datasheet |
- | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 800V | 28A | 150mOhm @ 14A, 10V | 3.9V @ 2mA | 180nC @ 10V | 4507pF @ 25V | 277W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
APTM120TDU57PGMOSFET 6N-CH 1200V 17A SP6-P |
15,022 |
|
Datasheet |
- | SP6 | Bulk | Obsolete | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | - | 1200V (1.2kV) | 17A | 684mOhm @ 8.5A, 10V | 5V @ 2.5mA | 187nC @ 10V | 5155pF @ 25V | 390W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6-P |
|
|
VQ2001P-2MOSFET 4P-CH 30V 0.6A 14DIP |
17,674 |
|
- |
- | 14-DIP | Tube | Obsolete | MOSFET (Metal Oxide) | 4 P-Channel | - | 30V | 600mA | 2Ohm @ 1A, 12V | 4.5V @ 1mA | - | 150pF @ 15V | 2W | -55°C ~ 150°C (TJ) | - | - | Through Hole | 14-DIP |
|
|
APTM50DHM35GMOSFET 2N-CH 500V 99A SP6 |
7,300 |
|
Datasheet |
- | SP6 | Bulk | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Asymmetrical | - | 500V | 99A | 39mOhm @ 49.5A, 10V | 5V @ 5mA | 280nC @ 10V | 14000pF @ 25V | 781W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
|
APTC80A10SCTGMOSFET 2N-CH 800V 42A SP4 |
11,486 |
|
Datasheet |
- | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 800V | 42A | 100mOhm @ 21A, 10V | 3.9V @ 3mA | 273nC @ 10V | 6761pF @ 25V | 416W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
MSCC60VRM99CT3AGMOSFET 600V 19A SP3F |
15,528 |
|
Datasheet |
- | Module | Tube | Active | - | - | - | 600V | 19A (Tc) | - | - | - | - | - | - | - | - | Chassis Mount | SP3F |
|
|
APTM20AM10FTGMOSFET 2N-CH 200V 175A SP4 |
7,180 |
|
Datasheet |
- | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 200V | 175A | 12mOhm @ 87.5A, 10V | 5V @ 5mA | 224nC @ 10V | 13700pF @ 25V | 694W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
|
APTM20HM20FTGMOSFET 4N-CH 200V 89A SP4 |
17,318 |
|
Datasheet |
- | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 200V | 89A | 24mOhm @ 44.5A, 10V | 5V @ 2.5mA | 112nC @ 10V | 6850pF @ 25V | 357W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
|
UHB50SC12E1BC3NMOSFET 2P-CH 1200V 69A MODULE |
13,054 |
|
Datasheet |
- | Module | Bulk | Active | SiCFET (Silicon Carbide) | 2 P-Channel (Half Bridge) | Silicon Carbide (SiC) | 1200V (1.2kV) | 69A (Tj) | 24mOhm @ 50A, 12V | 6V @ 20mA | 85nC @ 15V | 2930pF @ 800V | 208W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | Module |
|
|
UFB25SC12E1BC3NMOSFET 4P-CH 1200V 36A MODULE |
9,316 |
|
Datasheet |
- | Module | Bulk | Active | SiCFET (Silicon Carbide) | 4 P-Channel (Full Bridge) | Silicon Carbide (SiC) | 1200V (1.2kV) | 36A (Tj) | 45mOhm @ 25A, 12V | 6V @ 10mA | 42.5nC @ 15V | 1450pF @ 800V | 114W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | Module |
|
|
APTM10HM09FT3GMOSFET 4N-CH 100V 139A SP3 |
19,416 |
|
Datasheet |
- | SP3 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 100V | 139A | 10mOhm @ 69.5A, 10V | 4V @ 2.5mA | 350nC @ 10V | 9875pF @ 25V | 390W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP3 |
|
|
APTM08TAM04PGMOSFET 6N-CH 75V 120A SP6-P |
17,136 |
|
Datasheet |
- | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | - | 75V | 120A | 4.5mOhm @ 60A, 10V | 4V @ 1mA | 153nC @ 10V | 4530pF @ 25V | 138W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6-P |
|
|
APTM100H45FT3GMOSFET 4N-CH 1000V 18A SP3 |
7,430 |
|
Datasheet |
- | SP3 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 1000V (1kV) | 18A | 540mOhm @ 9A, 10V | 5V @ 2.5mA | 154nC @ 10V | 4350pF @ 25V | 357W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP3 |
|
MSCSM70VM19C3AGMOSFET 2N-CH 700V 124A SP3F |
13,744 |
|
Datasheet |
- | Module | Tube | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 700V | 124A (Tc) | 19mOhm @ 40A, 20V | 2.4V @ 4mA | 215nC @ 20V | 4500pF @ 700V | 365W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP3F |
|
|
A1F25M12W2-F1MOSFET 4N-CH 1200V 50A ACEPACK1 |
10,436 |
|
Datasheet |
- | Module | Tray | Not For New Designs | Silicon Carbide (SiC) | 4 N-Channel | - | 1200V (1.2kV) | 50A | 34mOhm @ 50A, 18V | 4.9V @ 5mA | 147nC @ 18V | 3500pF @ 800V | - | 175°C (TJ) | - | - | Chassis Mount | ACEPACK 1 |
|

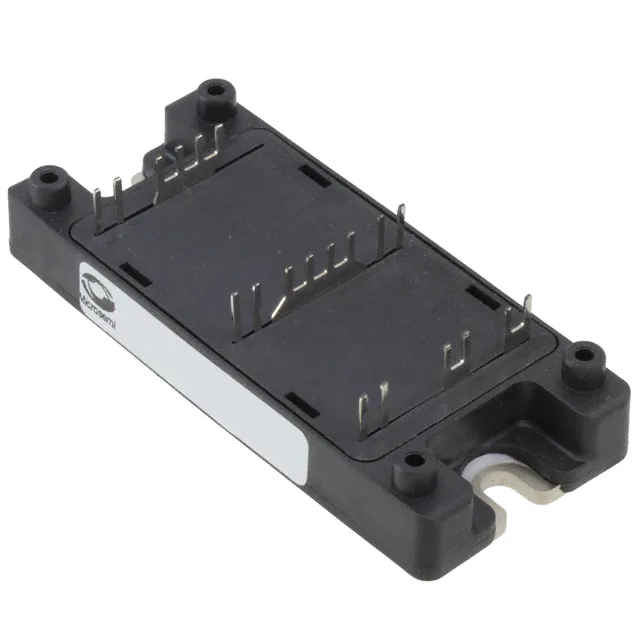

APTM50AM38FTGMOSFET 2N-CH 500V 90A SP4 |
6,942 |
|
Datasheet |
POWER MOS 7® | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 500V | 90A | 45mOhm @ 45A, 10V | 5V @ 5mA | 246nC @ 10V | 11200pF @ 25V | 694W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
|
APTM50HM75FTGMOSFET 4N-CH 500V 46A SP4 |
15,406 |
|
Datasheet |
- | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 500V | 46A | 90mOhm @ 23A, 10V | 5V @ 2.5mA | 123nC @ 10V | 5600pF @ 25V | 357W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
|
APTM20DUM08TGMOSFET 2N-CH 200V 208A SP4 |
4,202 |
|
Datasheet |
- | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 200V | 208A | 10mOhm @ 104A, 10V | 5V @ 5mA | 280nC @ 10V | 14400pF @ 25V | 781W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
