FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTM10DSKM09T3GMOSFET 2N-CH 100V 139A SP3 |
10,608 |
|
- |
- | SP3 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 100V | 139A | 10mOhm @ 69.5A, 10V | 4V @ 2.5mA | 350nC @ 10V | 9875pF @ 25V | 390W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP3 |
|
|
APTM100H46FT3GMOSFET 4N-CH 1000V 19A SP3 |
15,214 |
|
Datasheet |
POWER MOS 8™ | SP3 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 1000V (1kV) | 19A | 552mOhm @ 16A, 10V | 5V @ 2.5mA | 260nC @ 10V | 6800pF @ 25V | 357W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP3 |
|
APTC60HM70RT3GMOSFET 4N-CH 600V 39A SP3 |
8,252 |
|
Datasheet |
CoolMOS™ | SP3 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) + Bridge Rectifier | - | 600V | 39A | 70mOhm @ 39A, 10V | 3.9V @ 2.7mA | 259nC @ 10V | 7000pF @ 25V | 250W | -40°C ~ 150°C (TJ) | - | - | - | SP3 |
|
|
APTC60AM24T1GMOSFET 2N-CH 600V 95A SP1 |
7,620 |
|
Datasheet |
- | SP1 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 600V | 95A | 24mOhm @ 47.5A, 10V | 3.9V @ 5mA | 300nC @ 10V | 14400pF @ 25V | 462W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP1 |
|
|
APTC60HM45T1GMOSFET 4N-CH 600V 49A SP1 |
9,342 |
|
Datasheet |
- | SP1 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 600V | 49A | 45mOhm @ 24.5A, 10V | 3.9V @ 3mA | 150nC @ 10V | 7200pF @ 25V | 250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP1 |
|
DF11MR12W1M1B11BOMA1MOSFET 2N-CH 1200V AG-EASY1BM-2 |
19,856 |
|
Datasheet |
- | Module | Tray | Obsolete | Silicon Carbide (SiC) | 2 N-Channel (Dual) | - | 1200V (1.2kV) | 50A | 23mOhm @ 50A, 15V | 5.5V @ 20mA | 125nC @ 5V | 3950pF @ 800V | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | AG-EASY1BM-2 |
|
APTC60DDAM35T3GMOSFET 2N-CH 600V 72A SP3 |
19,252 |
|
Datasheet |
- | SP3 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 600V | 72A | 35mOhm @ 72A, 10V | 3.9V @ 5.4mA | 518nC @ 10V | 14000pF @ 25V | 416W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP3 |
|
APTM10TDUM19PGMOSFET 6N-CH 100V 70A SP6-P |
16,696 |
|
Datasheet |
- | SP6 | Bulk | Obsolete | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | - | 100V | 70A | 21mOhm @ 35A, 10V | 4V @ 1mA | 200nC @ 10V | 5100pF @ 25V | 208W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6-P |
|
|
APTM50DDAM65T3GMOSFET 2N-CH 500V 51A SP3 |
5,722 |
|
Datasheet |
- | SP3 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 500V | 51A | 78mOhm @ 25.5A, 10V | 5V @ 2.5mA | 140nC @ 10V | 7000pF @ 25V | 390W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP3 |
|

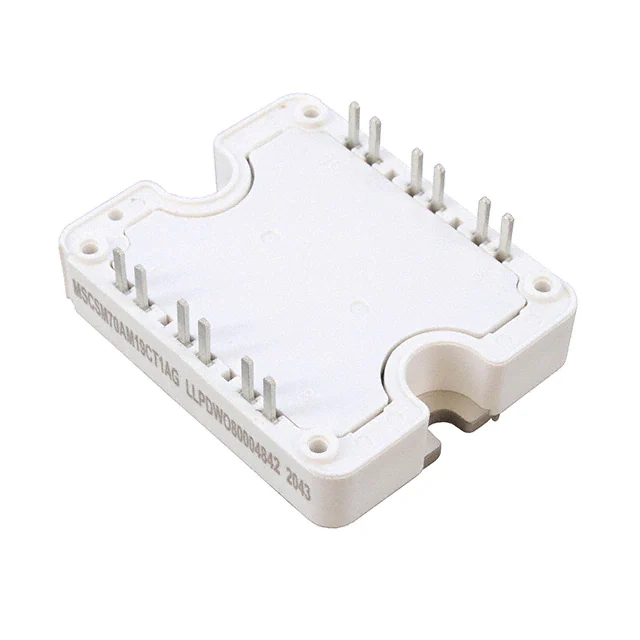

MSCSM70AM19CT1AGMOSFET 2N-CH 700V 124A SP1F |
6,520 |
|
Datasheet |
- | Module | Tube | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 700V | 124A (Tc) | 19mOhm @ 40A, 20V | 2.4V @ 4mA | 215nC @ 20V | 4500pF @ 700V | 365W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP1F |
|
|
APTC60HM70BT3GMOSFET 4N-CH 600V 39A SP3 |
11,434 |
|
Datasheet |
CoolMOS™ | SP3 | Tray | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | Logic Level Gate | 600V | 39A | 70mOhm @ 39A, 10V | 3.9V @ 2.7mA | 259nC @ 10V | 700pF @ 25V | 250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP3 |
|
|
VQ1001P-2MOSFET 4N-CH 30V 0.83A 14DIP |
17,618 |
|
- |
- | - | Tube | Obsolete | MOSFET (Metal Oxide) | 4 N-Channel | Logic Level Gate | 30V | 830mA | 1.75Ohm @ 200mA, 5V | 2.5V @ 1mA | - | 110pF @ 15V | 2W | -55°C ~ 150°C (TJ) | - | - | Through Hole | 14-DIP |
|
|
APTM50H10FT3GMOSFET 4N-CH 500V 37A SP3 |
17,784 |
|
Datasheet |
- | SP3 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 500V | 37A | 120mOhm @ 18.5A, 10V | 5V @ 1mA | 96nC @ 10V | 4367pF @ 25V | 312W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP3 |
|
IXFN130N90SKMOSFET 2N-CH 900V SOT227B |
16,070 |
|
Datasheet |
- | SOT-227-4, miniBLOC | Tube | Active | Silicon Carbide (SiC) | 2 N-Channel (Dual) | - | 900V | - | - | - | - | - | - | - | - | - | Chassis Mount | SOT-227B |
|
|
VWM350-0075PMOSFET 6N-CH 75V 340A V2-PAK |
6,996 |
|
Datasheet |
- | V2-PAK | Box | Obsolete | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | - | 75V | 340A | 3.3mOhm @ 250A, 10V | 4V @ 2mA | 450nC @ 10V | - | - | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | V2-PAK |
|
|
APTC60DHM24T3GMOSFET 2N-CH 600V 95A SP3 |
14,772 |
|
Datasheet |
CoolMOS™ | SP3 | Tray | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Asymmetrical | - | 600V | 95A | 24mOhm @ 47.5A, 10V | 3.9V @ 5mA | 300nC @ 10V | 14400pF @ 25V | 462W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP3 |
|
|
UFB15C12E1BC3NMOSFET 4P-CH 1200V 24A MODULE |
16,872 |
|
Datasheet |
- | Module | Bulk | Active | SiCFET (Silicon Carbide) | 4 P-Channel (Full Bridge) | Silicon Carbide (SiC) | 1200V (1.2kV) | 24A (Tj) | 90mOhm @ 15A, 12V | 6V @ 10mA | 46nC @ 15V | 1445pF @ 800V | 96W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | Module |
|
|
VQ1006P-2MOSFET 4N-CH 90V 0.4A 14DIP |
4,044 |
|
- |
- | - | Tube | Obsolete | MOSFET (Metal Oxide) | 4 N-Channel | Logic Level Gate | 90V | 400mA | 4.5Ohm @ 1A, 10V | 2.5V @ 1mA | - | 60pF @ 25V | 2W | -55°C ~ 150°C (TJ) | - | - | Through Hole | 14-DIP |
|
|
APTM50HM75FT3GMOSFET 4N-CH 500V 46A SP3 |
13,610 |
|
Datasheet |
- | SP3 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 500V | 46A | 90mOhm @ 23A, 10V | 5V @ 2.5mA | 123nC @ 10V | 5600pF @ 25V | 357W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP3 |
|
|
APTC60DDAM24T3GMOSFET 2N-CH 600V 95A SP3 |
19,916 |
|
Datasheet |
CoolMOS™ | SP3 | Tray | Active | MOSFET (Metal Oxide) | 2 N Channel (Dual Buck Chopper) | - | 600V | 95A | 24mOhm @ 47.5A, 10V | 3.9V @ 5mA | 300nC @ 10V | 14400pF @ 25V | 462W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP3 |
