CPLDs (Complex Programmable Logic Devices)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LC4128V-75TN100CIC CPLD 128MC 7.5NS 100TQFP |
930 |
|
Datasheet |
ispMACH® 4000V | 100-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 8 | 128 | - | 64 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
EPM240T100I5NIC CPLD 192MC 4.7NS 100TQFP |
2,020 |
|
Datasheet |
MAX® II | 100-TQFP | Tray | Active | Not Verified | In System Programmable | 4.7 ns | 2.5V, 3.3V | 240 | 192 | - | 80 | -40°C ~ 100°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
EPM240M100I5NIC CPLD 192MC 4.7NS 100MBGA |
876 |
|
Datasheet |
MAX® II | 100-TFBGA | Tray | Active | Not Verified | In System Programmable | 4.7 ns | 2.5V, 3.3V | 240 | 192 | - | 80 | -40°C ~ 100°C (TJ) | - | - | Surface Mount | 100-MBGA (6x6) |
|
EPM240F100I5NIC CPLD 192MC 4.7NS 100FBGA |
1,346 |
|
Datasheet |
MAX® II | 100-LBGA | Tray | Active | Not Verified | In System Programmable | 4.7 ns | 2.5V, 3.3V | 240 | 192 | - | 80 | -40°C ~ 100°C (TJ) | - | - | Surface Mount | 100-FBGA (11x11) |
|
5M1270ZF256I5NIC CPLD 980MC 6.2NS 256FBGA |
288 |
|
- |
MAX® V | 256-LBGA | Tray | Active | Not Verified | In System Programmable | 6.2 ns | 1.71V ~ 1.89V | 1270 | 980 | - | 211 | -40°C ~ 100°C (TJ) | - | - | Surface Mount | 256-FBGA (17x17) |
|
|
EPM240T100A5NIC CPLD 192MC 4.7NS 100TQFP |
1,222 |
|
Datasheet |
MAX® II | 100-TQFP | Tray | Active | Not Verified | In System Programmable | 4.7 ns | 2.5V, 3.3V | 240 | 192 | - | 80 | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
5M2210ZF256C5NIC CPLD 1700MC 7NS 256FBGA |
816 |
|
- |
MAX® V | 256-LBGA | Tray | Active | Not Verified | In System Programmable | 7 ns | 1.71V ~ 1.89V | 2210 | 1700 | - | 203 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 256-FBGA (17x17) |
|
|
LC4256ZE-7TN100IIC CPLD 256MC 7.5NS 100TQFP |
488 |
|
Datasheet |
ispMACH® 4000ZE | 100-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.7V ~ 1.9V | 16 | 256 | - | 64 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
LC4256ZE-7TN144IIC CPLD 256MC 7.5NS 144TQFP |
1,524 |
|
Datasheet |
ispMACH® 4000ZE | 144-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.7V ~ 1.9V | 16 | 256 | - | 96 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
EPM240T100C3NIC CPLD 192MC 4.7NS 100TQFP |
444 |
|
Datasheet |
MAX® II | 100-TQFP | Tray | Active | Not Verified | In System Programmable | 4.7 ns | 2.5V, 3.3V | 240 | 192 | - | 80 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
EPM570F100C5NIC CPLD 440MC 5.4NS 100FBGA |
352 |
|
Datasheet |
MAX® II | 100-LBGA | Tray | Active | Not Verified | In System Programmable | 5.4 ns | 2.5V, 3.3V | 570 | 440 | - | 76 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 100-FBGA (11x11) |
|
|
LC4256V-75TN100CIC CPLD 256MC 7.5NS 100TQFP |
2,170 |
|
Datasheet |
ispMACH® 4000V | 100-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 16 | 256 | - | 64 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|

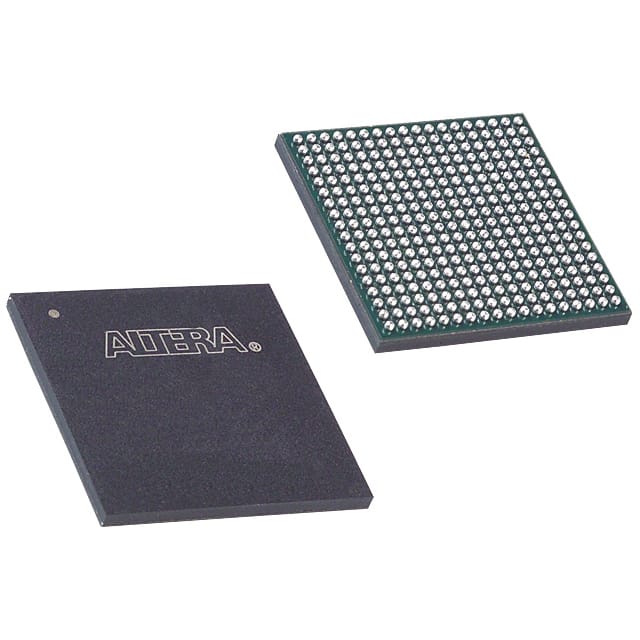

5M2210ZF324I5NIC CPLD 1700MC 7NS 324FBGA |
254 |
|
- |
MAX® V | 324-LBGA | Tray | Active | Not Verified | In System Programmable | 7 ns | 1.71V ~ 1.89V | 2210 | 1700 | - | 271 | -40°C ~ 100°C (TJ) | - | - | Surface Mount | 324-FBGA (19x19) |
|
LC4256V-75TN144CIC CPLD 256MC 7.5NS 144TQFP |
584 |
|
Datasheet |
ispMACH® 4000V | 144-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 16 | 256 | - | 96 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
EPM570T144C5NIC CPLD 440MC 5.4NS 144TQFP |
350 |
|
Datasheet |
MAX® II | 144-LQFP | Tray | Active | Not Verified | In System Programmable | 5.4 ns | 2.5V, 3.3V | 570 | 440 | - | 116 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
EPM570T100I5NIC CPLD 440MC 5.4NS 100TQFP |
522 |
|
Datasheet |
MAX® II | 100-TQFP | Tray | Active | Not Verified | In System Programmable | 5.4 ns | 2.5V, 3.3V | 570 | 440 | - | 76 | -40°C ~ 100°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
EPM570T100C4NIC CPLD 440MC 5.4NS 100TQFP |
418 |
|
Datasheet |
MAX® II | 100-TQFP | Tray | Active | Not Verified | In System Programmable | 5.4 ns | 2.5V, 3.3V | 570 | 440 | - | 76 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
EPM570F100I5NIC CPLD 440MC 5.4NS 100FBGA |
978 |
|
Datasheet |
MAX® II | 100-LBGA | Tray | Active | Not Verified | In System Programmable | 5.4 ns | 2.5V, 3.3V | 570 | 440 | - | 76 | -40°C ~ 100°C (TJ) | - | - | Surface Mount | 100-FBGA (11x11) |
|
|
EPM570F100C4NIC CPLD 440MC 5.4NS 100FBGA |
610 |
|
Datasheet |
MAX® II | 100-LBGA | Tray | Active | Not Verified | In System Programmable | 5.4 ns | 2.5V, 3.3V | 570 | 440 | - | 76 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 100-FBGA (11x11) |
|
|
LC4256V-5TN144CIC CPLD 256MC 5NS 144TQFP |
7,726 |
|
Datasheet |
ispMACH® 4000V | 144-LQFP | Tray | Active | Not Verified | In System Programmable | 5 ns | 3V ~ 3.6V | 16 | 256 | - | 96 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 144-TQFP (20x20) |
