CPLDs (Complex Programmable Logic Devices)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5M160ZT100I5NIC CPLD 128MC 7.5NS 100TQFP |
322 |
|
- |
MAX® V | 100-TQFP | Tray | Active | Verified | In System Programmable | 7.5 ns | 1.71V ~ 1.89V | 160 | 128 | - | 79 | -40°C ~ 100°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
LC4064V-10TN48IIC CPLD 64MC 10NS 48TQFP |
3,024 |
|
Datasheet |
ispMACH® 4000V | 48-LQFP | Tray | Active | Verified | In System Programmable | 10 ns | 3V ~ 3.6V | 4 | 64 | - | 32 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 48-TQFP (7x7) |
|

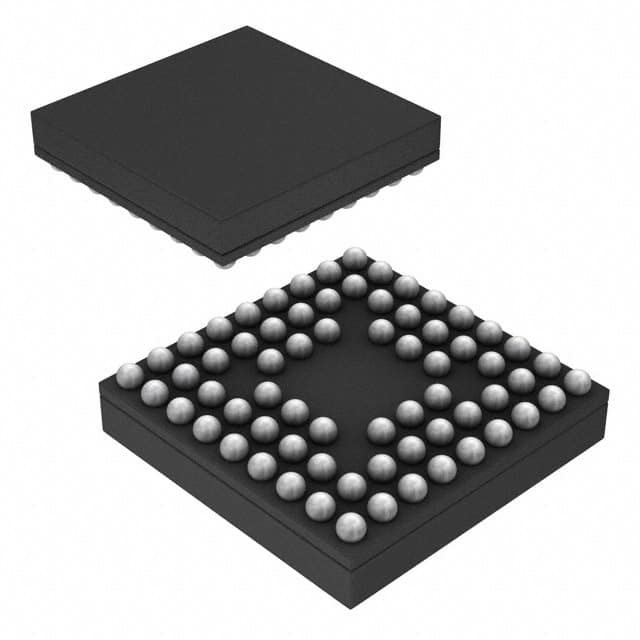

5M240ZM68C5NIC CPLD 192MC 7.5NS 68MBGA |
432 |
|
Datasheet |
MAX® V | 68-TFBGA | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.71V ~ 1.89V | 240 | 192 | - | 52 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 68-MBGA (5x5) |
|
LC4064V-75TN100CIC CPLD 64MC 7.5NS 100TQFP |
3,968 |
|
Datasheet |
ispMACH® 4000V | 100-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 4 | 64 | - | 64 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
LC4064V-10TN100IIC CPLD 64MC 10NS 100TQFP |
1,422 |
|
Datasheet |
ispMACH® 4000V | 100-LQFP | Tray | Active | Not Verified | In System Programmable | 10 ns | 3V ~ 3.6V | 4 | 64 | - | 64 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
5M570ZT100C5NIC CPLD 440MC 9NS 100TQFP |
6,190 |
|
Datasheet |
MAX® V | 100-TQFP | Tray | Active | Verified | In System Programmable | 9 ns | 1.71V ~ 1.89V | 570 | 440 | - | 74 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
5M570ZT144C5NIC CPLD 440MC 9NS 144TQFP |
334 |
|
- |
MAX® V | 144-LQFP | Tray | Active | Not Verified | In System Programmable | 9 ns | 1.71V ~ 1.89V | 570 | 440 | - | 114 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
LAMXO256C-3TN100EIC CPLD 128MC 4.9NS 100TQFP |
1,320 |
|
Datasheet |
LA-MachXO | 100-LQFP | Tray | Active | Not Verified | In System Programmable | 4.9 ns | 1.71V ~ 3.465V | - | 128 | - | 78 | -40°C ~ 125°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
LC4128ZC-75TN100CIC CPLD 128MC 7.5NS 100TQFP |
1,198 |
|
Datasheet |
ispMACH® 4000Z | 100-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.7V ~ 1.9V | 8 | 128 | - | 64 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
ATF1508AS-7AX100IC CPLD 128MC 7.5NS 100TQFP |
646 |
|
Datasheet |
ATF15xx | 100-TQFP | Tray | Active | Not Verified | In System Programmable (min 10K program/erase cycles) | 7.5 ns | 4.75V ~ 5.25V | - | 128 | - | 80 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
LC4064V-75TN100EIC CPLD 64MC 7.5NS 100TQFP |
492 |
|
Datasheet |
ispMACH® 4000V | 100-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 4 | 64 | - | 64 | -40°C ~ 130°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
5M1270ZT144C5NIC CPLD 980MC 6.2NS 144TQFP |
6,856 |
|
- |
MAX® V | 144-LQFP | Tray | Active | Not Verified | In System Programmable | 6.2 ns | 1.71V ~ 1.89V | 1270 | 980 | - | 114 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 144-TQFP (20x20) |
|

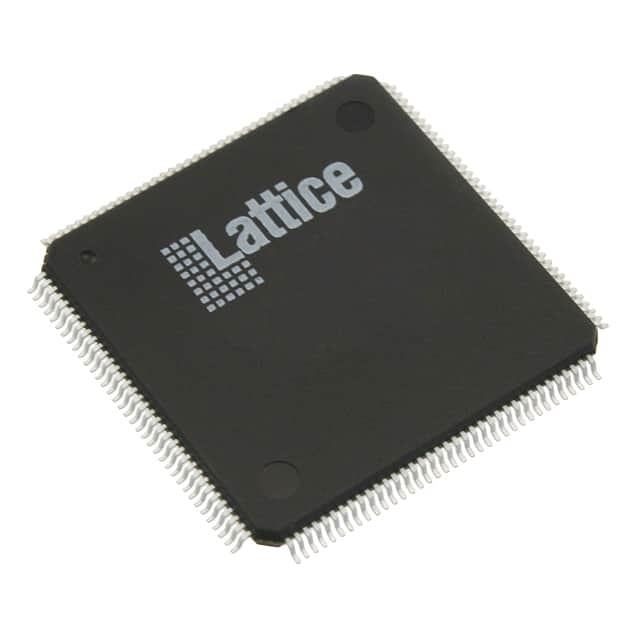

LC4128ZE-7TN144IIC CPLD 128MC 7.5NS 144TQFP |
270 |
|
Datasheet |
ispMACH® 4000ZE | 144-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.7V ~ 1.9V | 8 | 128 | - | 96 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
ATF1508AS-10AU100IC CPLD 128MC 10NS 100TQFP |
1,096 |
|
Datasheet |
ATF15xx | 100-TQFP | Tray | Active | Not Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 4.5V ~ 5.5V | - | 128 | - | 80 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|

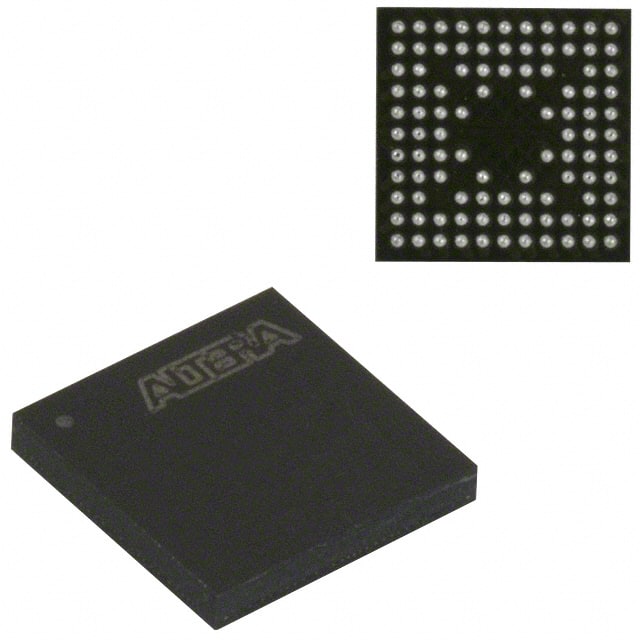

EPM240M100C5NIC CPLD 192MC 4.7NS 100MBGA |
1,738 |
|
Datasheet |
MAX® II | 100-TFBGA | Tray | Active | Not Verified | In System Programmable | 4.7 ns | 2.5V, 3.3V | 240 | 192 | - | 80 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 100-MBGA (6x6) |
|

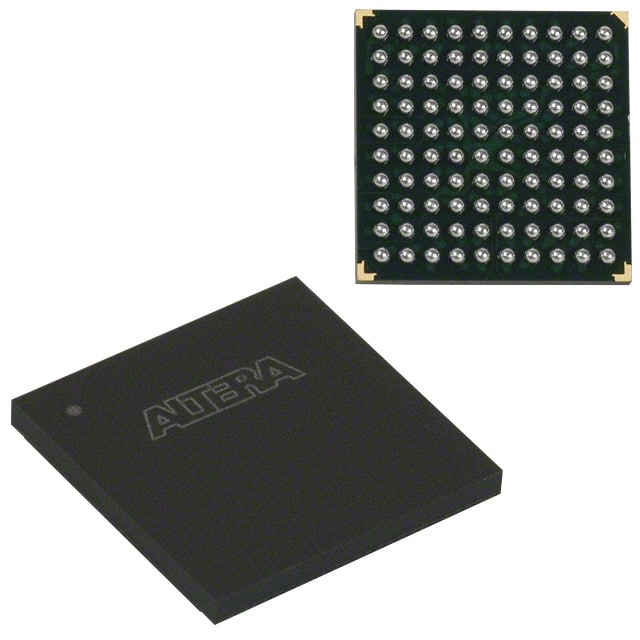

EPM240F100C5NIC CPLD 192MC 4.7NS 100FBGA |
1,632 |
|
Datasheet |
MAX® II | 100-LBGA | Tray | Active | Not Verified | In System Programmable | 4.7 ns | 2.5V, 3.3V | 240 | 192 | - | 80 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 100-FBGA (11x11) |
|
|
5M570ZM100I5NIC CPLD 440MC 9NS 100MBGA |
236 |
|
- |
MAX® V | 100-TFBGA | Tray | Active | Not Verified | In System Programmable | 9 ns | 1.71V ~ 1.89V | 570 | 440 | - | 74 | -40°C ~ 100°C (TJ) | - | - | Surface Mount | 100-MBGA (6x6) |
|
|
LC4064V-5TN48IIC CPLD 64MC 5NS 48TQFP |
3,728 |
|
Datasheet |
ispMACH® 4000V | 48-LQFP | Tray | Active | Not Verified | In System Programmable | 5 ns | 3V ~ 3.6V | 4 | 64 | - | 32 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 48-TQFP (7x7) |
|
|
5M1270ZT144C4NIC CPLD 980MC 6.2NS 144TQFP |
330 |
|
Datasheet |
MAX® V | 144-LQFP | Tray | Active | Not Verified | In System Programmable | 6.2 ns | 1.71V ~ 1.89V | 1270 | 980 | - | 114 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
5M1270ZT144I5NIC CPLD 980MC 6.2NS 144TQFP |
316 |
|
Datasheet |
MAX® V | 144-LQFP | Tray | Active | Not Verified | In System Programmable | 6.2 ns | 1.71V ~ 1.89V | 1270 | 980 | - | 114 | -40°C ~ 100°C (TJ) | - | - | Surface Mount | 144-TQFP (20x20) |
