CPLDs (Complex Programmable Logic Devices)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XC9572XL-10TQG100IIC CPLD 72MC 10NS 100TQFP |
77,844 |
|
Datasheet |
XC9500XL | 100-LQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 3V ~ 3.6V | 4 | 72 | 1600 | 72 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|

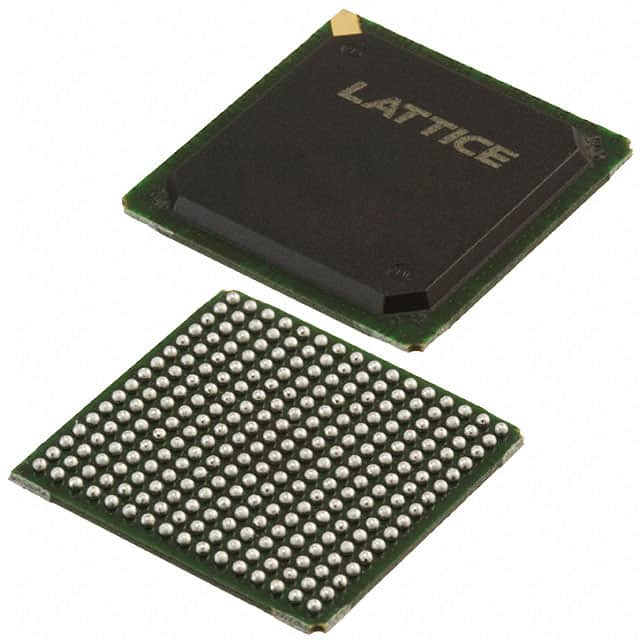

LC5256MV-4FN256CIC CPLD 256MC 4NS 256FPBGA |
450 |
|
Datasheet |
ispXPLD® 5000MV | 256-BGA | Tray | Obsolete | Not Verified | In System Programmable | 4 ns | 3V ~ 3.6V | 8 | 256 | - | 141 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 256-FPBGA (17x17) |
|
XCR3064XL-10VQG44IIC CPLD 64MC 9.1NS 44VQFP |
103,254 |
|
Datasheet |
CoolRunner XPLA3 | 44-TQFP | Tray | Obsolete | Verified | In System Programmable (min 1K program/erase cycles) | 9.1 ns | 2.7V ~ 3.6V | 4 | 64 | 1500 | 36 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-VQFP (10x10) |
|
ISPLSI2032-180LT48IC CPLD 32MC 5NS 48TQFP |
6,476 |
|
Datasheet |
ispLSI® 2000 | 48-TQFP | Bulk | Active | Not Verified | In System Programmable | 5 ns | 4.75V ~ 5.25V | 8 | 32 | 1000 | 32 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 48-TQFP (7x7) |
|
EPM7128ATC144-10IC CPLD 128MC 10NS 144TQFP |
2,584 |
|
Datasheet |
MAX® 7000A | 144-LQFP | Bulk | Active | Not Verified | EE PLD | 10 ns | 3V ~ 3.6V | 8 | 128 | 2500 | 100 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 144-TQFP (20x20) |
|
EPM7128AFC100-10IC CPLD 128MC 10NS 100FBGA |
850 |
|
Datasheet |
MAX® 7000A | 100-LBGA | Bulk | Active | Not Verified | EE PLD | 10 ns | 3V ~ 3.6V | 8 | 128 | 2500 | 84 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-FBGA (11x11) |
|
ISPPAC81-01SIANALOG CIRCUIT, 1 FUNC PDSO16 |
3,772 |
|
Datasheet |
ispPAC81 | 16-SOIC (0.295", 7.50mm Width) | Bulk | Active | Not Verified | In System Programmable | - | 4.75V ~ 5.25V | - | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
ISPLSI2128VL-100LB208IC CPLD 128MC 10NS 208FPBGA |
816 |
|
Datasheet |
ispLSI® 2000 | 208-BGA Exposed Pad | Bulk | Active | Not Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 2.3V ~ 2.7V | 32 | 128 | 6000 | 128 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 208-FPBGA (17x17) |
|
XC9572XL-7VQG64CIC CPLD 72MC 7.5NS 64VQFP |
5,256 |
|
Datasheet |
XC9500XL | 64-TQFP | Tray | Obsolete | Verified | In System Programmable (min 10K program/erase cycles) | 7.5 ns | 3V ~ 3.6V | 4 | 72 | 1600 | 52 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 64-VQFP (10x10) |
|
EPM7032TC44-12IC CPLD 32MC 12NS 44TQFP |
2,768 |
|
Datasheet |
MAX® 7000 | 44-TQFP | Tray | Obsolete | Not Verified | EE PLD | 12 ns | 4.75V ~ 5.25V | 2 | 32 | 600 | 36 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-TQFP (10x10) |
|
|
EPM7032TC44-15IC CPLD 32MC 15NS 44TQFP |
2,028 |
|
Datasheet |
MAX® 7000 | 44-TQFP | Tray | Obsolete | Not Verified | EE PLD | 15 ns | 4.75V ~ 5.25V | 2 | 32 | 600 | 36 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-TQFP (10x10) |
|
LC4064V-75TN44EIC CPLD 64MC 7.5NS 44TQFP |
1,576 |
|
Datasheet |
ispMACH® 4000V | 44-TQFP | Tray | Active | Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 4 | 64 | - | 30 | -40°C ~ 130°C (TJ) | - | - | Surface Mount | 44-TQFP (10x10) |
|
EPM7128ALC84-6IC CPLD 128MC 6NS 84PLCC |
1,678 |
|
Datasheet |
MAX® 7000A | 84-LCC (J-Lead) | Bulk | Active | Not Verified | EE PLD | 6 ns | 3V ~ 3.6V | 8 | 128 | 2500 | 68 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 84-PLCC (29.31x29.31) |
|
|
EPM7064BTC44-5IC CPLD 64MC 5NS 44TQFP |
1,394 |
|
Datasheet |
MAX® 7000B | 44-TQFP | Bulk | Active | Not Verified | In System Programmable | 5 ns | 2.375V ~ 2.625V | 4 | 64 | 1250 | 36 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-TQFP (10x10) |
|
|
XC9572XL-7TQG100CIC CPLD 72MC 7.5NS 100TQFP |
5,644 |
|
Datasheet |
XC9500XL | 100-LQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 7.5 ns | 3V ~ 3.6V | 4 | 72 | 1600 | 72 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|

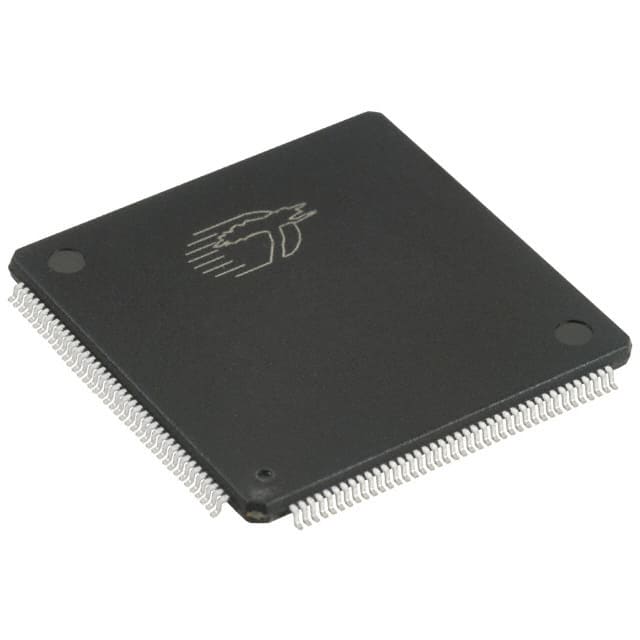

CY37128VP160-83AXCIC CPLD 128MC 15NS 160TQFP |
368 |
|
Datasheet |
Ultra37000™ | 160-LQFP | Tray | Obsolete | Not Verified | In-System Reprogrammable™ (ISR™) CMOS | 15 ns | 3V ~ 3.6V | - | 128 | - | 133 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 160-TQFP (24x24) |
|
ISPLSI2192VL-100LT128IC CPLD 192MC 10NS 128TQFP |
544 |
|
Datasheet |
ispLSI® 2000 | 128-LQFP | Bulk | Active | Not Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 2.3V ~ 2.7V | 48 | 192 | 8000 | 96 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 128-TQFP (14x14) |
|
EPM7128AFC256-10IC CPLD 128MC 10NS 256FBGA |
6,446 |
|
Datasheet |
MAX® 7000A | 256-BGA | Bulk | Active | Not Verified | EE PLD | 10 ns | 3V ~ 3.6V | 8 | 128 | 2500 | 100 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 256-FBGA (17x17) |
|
ISPLSI2128-100LTIC CPLD 128MC 10NS 176TQFP |
5,546 |
|
Datasheet |
ispLSI® 2000 | 176-LQFP | Bulk | Active | Not Verified | In System Programmable | 10 ns | 4.75V ~ 5.25V | 32 | 128 | 6000 | 128 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 176-TQFP (24x24) |
|
|
XC9572XL-7VQ44IIC CPLD 72MC 7.5NS 44VQFP |
1,654 |
|
Datasheet |
XC9500XL | 44-TQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 7.5 ns | 3V ~ 3.6V | 4 | 72 | 1600 | 34 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-VQFP (10x10) |
