CPLDs (Complex Programmable Logic Devices)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XC2C64A-7VQG44CIC CPLD 64MC 6.7NS 44VQFP |
125,288 |
|
Datasheet |
CoolRunner II | 44-TQFP | Tray | Obsolete | Verified | In System Programmable | 6.7 ns | 1.7V ~ 1.9V | 4 | 64 | 1500 | 33 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-VQFP (10x10) |
|
MACH111SP-5JCIC CPLD 32MC 5NS 44PLCC |
676 |
|
Datasheet |
MACH 1 | 44-LCC (J-Lead) | Bulk | Active | Not Verified | EE PLD | 5 ns | 4.75V ~ 5.25V | 2 | 32 | - | 32 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-PLCC (16.58x16.58) |
|

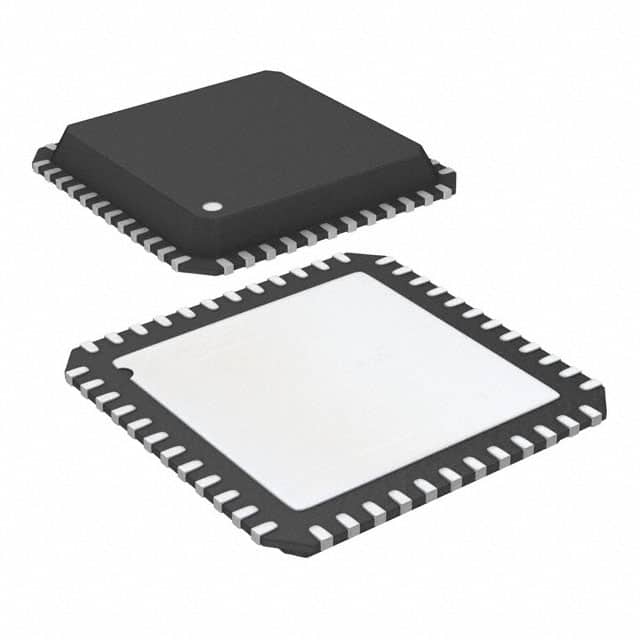

XC2C64A-7QFG48CIC CPLD 64MC 6.7NS 48QFN |
2,958 |
|
Datasheet |
CoolRunner II | 48-VFQFN Exposed Pad | Tray | Obsolete | Not Verified | In System Programmable | 6.7 ns | 1.7V ~ 1.9V | 4 | 64 | 1500 | 37 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 48-QFN (7x7) |
|
MACH131SP-15VCIC CPLD 64MC 15NS 100TQFP |
5,482 |
|
Datasheet |
MACH 1 | 100-LQFP | Bulk | Active | Not Verified | EE PLD | 15 ns | 4.75V ~ 5.25V | 4 | 64 | - | 64 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
EPX740LC44-12IC CPLD 40MC 12NS 44PLCC |
3,624 |
|
Datasheet |
- | 44-LCC (J-Lead) | Bulk | Active | Not Verified | EPLD | 12 ns | 4.75V ~ 5.25V | 16 | 40 | 800 | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-PLCC (16.59x16.59) |
|
XC95288XV-7FG256CIC CPLD 288MC 7.5NS 256FBGA |
6,610 |
|
Datasheet |
XC9500XV | 256-BGA | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 2.37V ~ 2.62V | 16 | 288 | 6400 | 192 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 256-FBGA (17x17) |
|
MACH111-5VCIC CPLD 32MC 5NS 44TQFP |
426 |
|
Datasheet |
MACH 1 | 44-TQFP | Bulk | Active | Not Verified | EE PLD | 5 ns | 4.75V ~ 5.25V | 2 | 32 | - | 32 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-TQFP (10x10) |
|
LC4128C-75T100CIC CPLD 128MC 7.5NS 100TQFP |
8,338 |
|
Datasheet |
ispMACH® 4000C | 100-LQFP | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 1.65V ~ 1.95V | 8 | 128 | - | 64 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
LC4384V-75F256CIC CPLD 384MC 7.5NS 256FPBGA |
1,718 |
|
Datasheet |
ispMACH® 4000 | 256-BGA | Bulk | Active | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 24 | 384 | - | 192 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 256-FPBGA (17x17) |
|
|
MACH210A-10VCIC CPLD 64MC 10NS 44TQFP |
2,118 |
|
Datasheet |
Mach® 2 | 44-TQFP | Bulk | Active | Not Verified | EE PLD | 10 ns | 4.75V ~ 5.25V | 64 | 64 | - | 32 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-TQFP (10x10) |
|
ISPLSI2128VL-100LT100IC CPLD 128MC 10NS 100TQFP |
1,744 |
|
Datasheet |
ispLSI® 2000 | 100-LQFP | Bulk | Active | Not Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 2.3V ~ 2.7V | 32 | 128 | 6000 | 64 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|

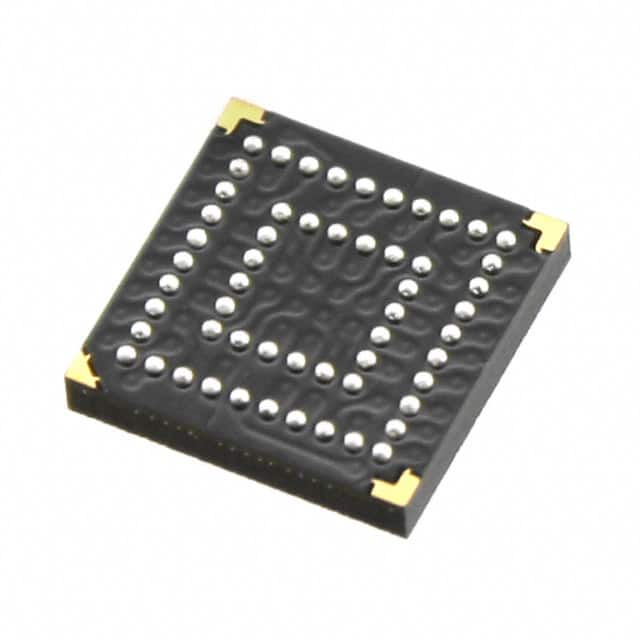

XC2C64A-7CPG56CIC CPLD 64MC 6.7NS 56CSBGA |
1,478 |
|
Datasheet |
CoolRunner II | 56-LFBGA, CSPBGA | Tray | Obsolete | Not Verified | In System Programmable | 6.7 ns | 1.7V ~ 1.9V | 4 | 64 | 1500 | 45 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 56-CSBGA (6x6) |
|
|
ISPLSI2032-150LT44IC CPLD 32MC 5.5NS 44TQFP |
246 |
|
Datasheet |
ispLSI® 2000 | 44-TQFP | Bulk | Active | Not Verified | In System Programmable | 5.5 ns | 4.75V ~ 5.25V | 8 | 32 | 1000 | 32 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-TQFP (10x10) |
|
ISPLSI-2032-150LJIC CPLD 32MC 15NS 44PLCC |
11,144 |
|
Datasheet |
ispLSI® 2000 | 44-LCC (J-Lead) | Bulk | Active | Not Verified | In System Programmable | 15 ns | 4.75V ~ 5.25V | 8 | 32 | 1000 | 32 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-PLCC (16.58x16.58) |
|
ISPLSI2096-100LQEE PLD, 13NS, 96-CELL PQFP128 |
8,774 |
|
Datasheet |
* | - | Bulk | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - |
|
XC9572XL-10VQG64CIC CPLD 72MC 10NS 64VQFP |
264,100 |
|
Datasheet |
XC9500XL | 64-TQFP | Tray | Obsolete | Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 3V ~ 3.6V | 4 | 72 | 1600 | 52 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 64-VQFP (10x10) |
|
ISPLSI2096VL-100LT128IC CPLD 4MC 10NS 128TQFP |
958 |
|
Datasheet |
ispLSI® 2000 | 128-LQFP | Bulk | Active | Not Verified | In System Programmable | 10 ns | 2.3V ~ 2.7V | 24 | 96 | 4000 | 96 | 0°C ~ 75°C (TA) | - | - | Surface Mount | 128-TQFP (14x14) |
|

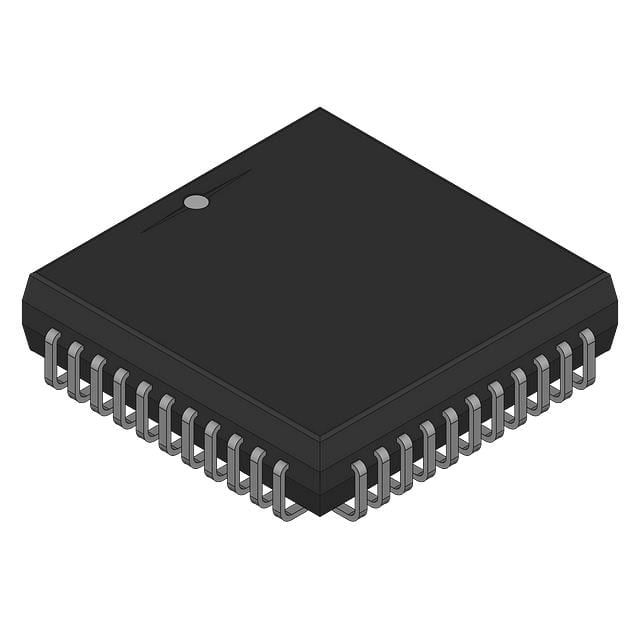

ISPLSI2032-135LJICPLD ISPLSI 2000 FAMILY 1K GATES |
5,138 |
|
Datasheet |
ispLSI® 2000 | 44-LCC (J-Lead) | Bulk | Active | Not Verified | In System Programmable | 7.5 ns | 4.5V ~ 5.5V | 8 | 32 | 1000 | 32 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-PLCC (16.58x16.58) |
|
|
CY37064P44-200JXCIC CPLD 64MC 6NS 44PLCC |
240 |
|
Datasheet |
- | 44-LCC (J-Lead) | Bulk | Active | Not Verified | In-System Reprogrammable™ (ISR™) CMOS | 6 ns | 4.75V ~ 5.25V | - | 64 | - | 37 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-PLCC (16.61x16.61) |
|

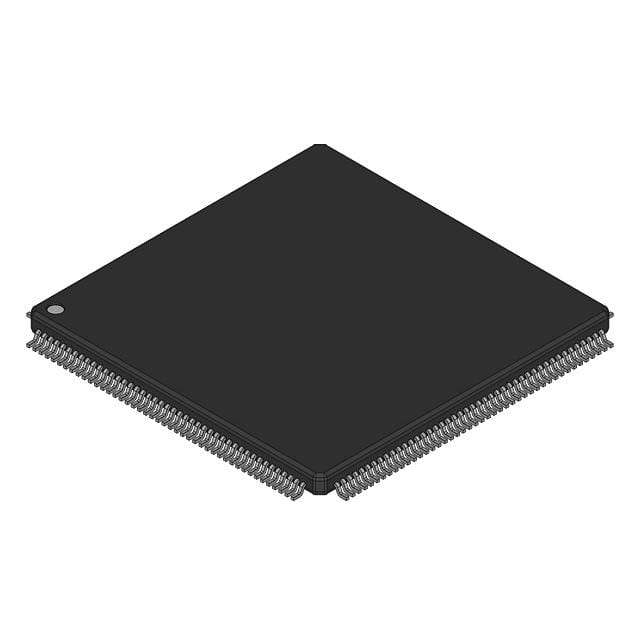

ISPLSI2128VL-100LT176IC CPLD 128MC 10NS 176TQFP |
1,526 |
|
Datasheet |
ispLSI® 2000 | 176-LQFP | Bulk | Active | Not Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 2.3V ~ 2.7V | 32 | 128 | 6000 | 128 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 176-TQFP (24x24) |
