Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRF3216-601YCMC 300MA 2LN 600 OHM SMD |
10,248 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 600 Ohms @ 100 MHz | - | 300mA | 800mOhm | 50V | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
SRF3216-900YCMC 400MA 2LN 90 OHM SMD |
6,586 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 90 Ohms @ 100 MHz | - | 400mA | 300mOhm | 50V | - | -55°C ~ 125°C | - | - | - | - | - |
|
ECMF4-2450A60N10CMC 100MA 4LN SMD |
63,392 |
|
Datasheet |
10-XFDFN | Signal Line | 4 | - | - | 100mA | 5Ohm (Typ) | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
ICM0805ER900MCMC 330MA 2LN 90 OHM SMD |
30,116 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 330mA | 350mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
.jpg)
|
PE-0805CCMC121STSCMC 370MA 2LN 120 OHM SMD |
12,746 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 370mA | 300mOhm | 50V | - | - | - | - | - | - | - |
|
|
MCZ1210DH800CPTA0GCMC 100MA 2LN 80OHM SMD -40~85C |
6,700 |
|
Datasheet |
0504 (1210 Metric), 4 PC Pad | Signal Line | 2 | 80 Ohms @ 100 MHz | - | 100mA | 3Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
SRF3216-261YCMC 300MA 2LN 260 OHM SMD |
4,184 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 260 Ohms @ 100 MHz | - | 300mA | 450mOhm | 50V | - | -55°C ~ 125°C | - | - | - | - | - |
|
MCZ1210DH120CPTA0GCMC 12 OHM SMD |
38,216 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | - | 12 Ohms @ 100 MHz | - | - | - | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
ICM0805ER371MCMC 280MA 2LN 370 OHM SMD |
3,890 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 370 Ohms @ 100 MHz | - | 280mA | 450mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
DLW21SH391XQ2LCMC 300MA 2LN 390OHM SMD AECQ200 |
6,954 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 390 Ohms @ 100 MHz | - | 300mA | 360mOhm | 20V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
SRF3216A-102YCMC 230MA 2LN 1KOHM SMD AEC-Q200 |
9,852 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1 kOhms @ 100 MHz | - | 230mA | 1Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SRF3216A-601YCMC 300MA 2LN 600OHM SMD AECQ200 |
9,754 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 600 Ohms @ 100 MHz | - | 300mA | 800mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
EXC-28CE201UCMC 130MA 4LN 200 OHM SMD |
6,050 |
|
Datasheet |
0804 (2010 Metric), 8 Lead | Signal Line | 4 | 200 Ohms @ 100 MHz | - | 130mA | 2.5Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
ICM1206ER900MCMC 370MA 2LN 90 OHM SMD |
2,830 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 370mA | 300mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
ACMP-Q2012-900-TCMC 400MA 2LN 90OHM SMD AEC-Q200 |
13,826 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 90 Ohms @ 100 MHz | - | 400mA | 300mOhm | 50V | - | -55°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
SRF4532-220YCMC 22UH 200MA 2LN 1KOHM SMD |
35,334 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1 kOhms @ 10 MHz | 22 µH @ 100 kHz | 200mA | 2.65Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ECMF04-4HSM10CMC 100MA 4LN SMD ESD |
12,816 |
|
Datasheet |
10-UFDFN | Signal Line | 4 | - | - | 100mA | 5Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
|
SRF4532-110YCMC 11UH 300MA 2LN 700 OHM SMD |
11,944 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 700 Ohms @ 10 MHz | 11 µH @ 100 kHz | 300mA | 800mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|

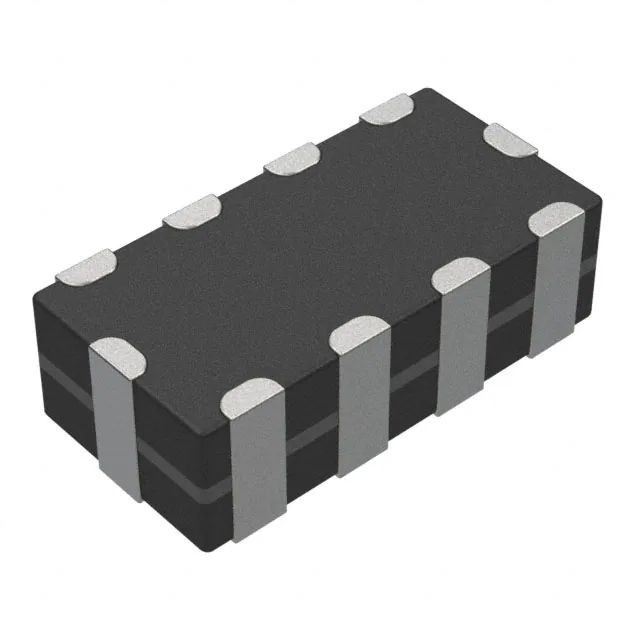

LCFE160804A550TGCMC 100MA 4LN 55 OHM SMD ESD |
5,472 |
|
Datasheet |
0603 (1608 Metric), 10 Lead | Signal Line | 4 | 55 Ohms @ 100 MHz | - | 100mA | 6Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
ACM-0603-900-TCMC 500MA 2LN 90 OHM SMD |
2,314 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 500mA | 145mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
