Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRF2012-901YACMC 100MA 2LN 900 OHM SMD |
6,880 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 900 Ohms @ 100 MHz | - | 100mA | 880mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SRF2012-501YACMC 300MA 2LN 500 OHM SMD |
5,844 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 500 Ohms @ 100 MHz | - | 300mA | 500mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SRF2012-300YACMC 400MA 2LN 30 OHM SMD |
3,036 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 30 Ohms @ 100 MHz | - | 400mA | 200mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
TCM0605G-900-2P-T201CMC 100MA 2LN 90 OHM SMD |
51,732 |
|
Datasheet |
0202 (0505 Metric), 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 3Ohm | 10V | - | -25°C ~ 85°C | - | - | - | - | - |
.jpg)
|
EXC-24CP121UCMC 500MA 2LN 120 OHM SMD |
72,314 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 500mA | 300mOhm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|

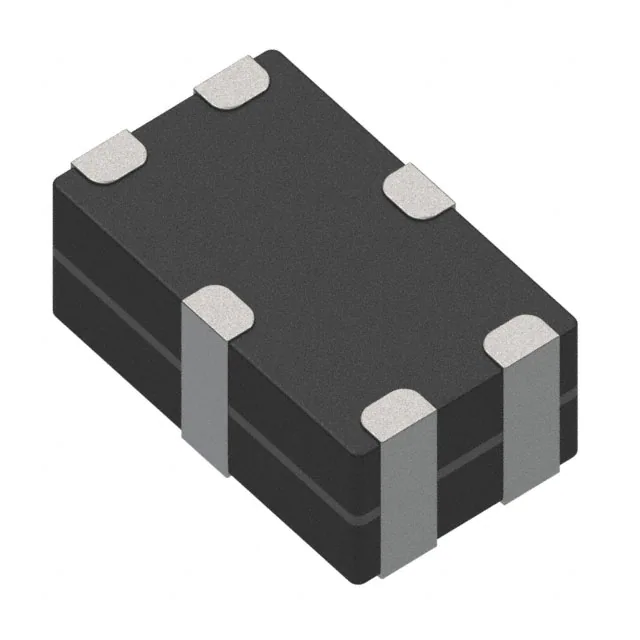

LCFE201202A900TGCMC 100MA 2LN 90 OHM SMD ESD |
13,684 |
|
Datasheet |
0805 (2012 Metric), 6 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 4Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
|
ALC2012-900-2P-T00CMF, FOR ETHERNET LINES, -40~85C |
6,888 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 400mA | 190mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
ALC2012-361-2P-T00CMF, FOR ETHERNET LINES, -40~85C |
5,172 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 360 Ohms @ 100 MHz | - | 220mA | 500mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
LCFE201202A121TGCMC 100MA 2LN 120 OHM SMD ESD |
3,572 |
|
Datasheet |
0805 (2012 Metric), 6 Lead | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 100mA | 4Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
ACM2012-202-2P-T002CMC 150MA 2LN SMD |
173,728 |
|
Datasheet |
0805 (2012 Metric), 4 PC Pad | Signal Line | 2 | - | - | 150mA | - | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
MCZ1210AH360L2TA0GCMC 200MA 2LN 36 OHM SMD |
12,202 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 36 Ohms @ 100 MHz | - | 200mA | 1Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
.jpg)
|
DLW21HN181SQ2LCMC 250MA 2LN 180 OHM SMD |
26,140 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 180 Ohms @ 100 MHz | - | 250mA | 500mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLW21HN121SQ2LCMC 280MA 2LN 120 OHM SMD |
17,920 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 280mA | 450mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
KCZ1210DH120HRTD25CMC 100MA 2LN 12OHM SMD AEC-Q200 |
22,380 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 12 Ohms @ 100 MHz | - | 100mA | 1.5Ohm | 5V | - | -55°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
KCZ1210DH500HRTD25CMC 100MA 2LN 45OHM SMD AEC-Q200 |
12,964 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 45 Ohms @ 100 MHz | - | 100mA | 2.5Ohm | 5V | - | -55°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
KCZ1210DH800HRTD25CMC 100MA 2LN 80OHM SMD AEC-Q200 |
6,636 |
|
Datasheet |
0504 (1210 Metric), 4 PC Pad | Signal Line | 2 | 80 Ohms @ 100 MHz | - | 100mA | 3Ohm | 5V | - | -55°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
EXC-24CE121UCMC 140MA 2LN 120 OHM SMD |
10,894 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 140mA | 2.2Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLW21HN900HQ2LCMC 220MA 2LN 90 OHM SMD |
6,996 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 220mA | 590mOhm | 20V | - | -40°C ~ 85°C | - | - | - | - | - |
|
AWCU00201212361M02CMC 280MA 2LN 360OHM SMD AECQ200 |
4,122 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 360 Ohms @ 100 MHz | - | 280mA | 450mOhm | 50V | - | -50°C ~ 150°C | - | - | - | Automotive | AEC-Q200 |
|
SPDL2012-361-2P-TCMC 300MA 2LN 360OHM SMD AECQ200 |
4,008 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 360 Ohms @ 100 MHz | - | 300mA | 500mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
