    Home > Products  > Connectors, Interconnects > Card Edge Connectors > Edgeboard Connectors

    Edgeboard Connectors

    Photo Mfr. Part # Availability Price Quantity Datasheet Series Packaging Product Status Card Type Gender Number of Positions/Bay/Row Number of Positions Card Thickness Number of Rows Pitch Read Out Features Mounting Type Termination Contact Material Contact Finish Contact Finish Thickness Contact Type Color Flange Feature Operating Temperature
    807-036-431-104

    807-036-431-104

    CONN EDGE SGL FML 36POS 0.156

    EDAC Inc.

    		 7,956
    RFQ
    		807-036-431-104

    Datasheet

         		807 Bulk Active Non Specified - Single Edge Female 36 36 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole Solder Copper Alloy Tin - Semi Bellows Green Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia -40°C ~ 125°C
    857-015-421-102

    857-015-421-102

    CONN EDGE DUAL FMALE 30POS 0.156

    EDAC Inc.

    		 7,644
    RFQ
    		857-015-421-102

    Datasheet

         		857 Bulk Active Non Specified - Dual Edge Female 15 30 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual - Through Hole Solder Copper Alloy Tin - Semi Bellows Black Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    857-015-501-104

    857-015-501-104

    CONN EDGE DUAL FMALE 30POS 0.156

    EDAC Inc.

    		 4,356
    RFQ
    		857-015-501-104

    Datasheet

         		857 Bulk Active Non Specified - Dual Edge Female 15 30 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual - Through Hole Solder Eyelet(s) Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Black Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia -40°C ~ 125°C
    892-098-560-212

    892-098-560-212

    CONN EDGE DUAL FMALE 98POS 0.100

    EDAC Inc.

    		 4,852
    RFQ
    		892-098-560-212

    Datasheet

         		892 Bulk Active Non Specified - Dual Edge Female 49 98 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    857-015-441-101

    857-015-441-101

    CONN EDGE DUAL FMALE 30POS 0.156

    EDAC Inc.

    		 9,190
    RFQ
    		857-015-441-101

    Datasheet

         		857 Bulk Active Non Specified - Dual Edge Female 15 30 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual - Through Hole Wire Wrap Copper Alloy Tin - Semi Bellows Black - -40°C ~ 125°C

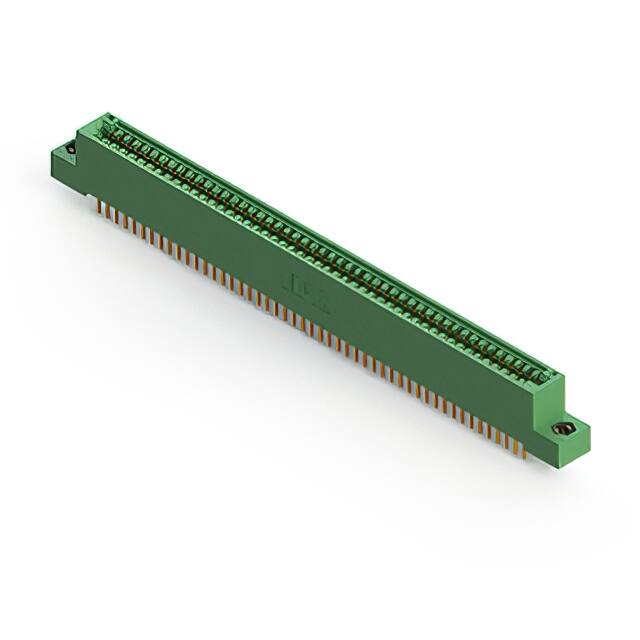

    845-098-541-208

    845-098-541-208

    CONN EDGE DUAL FMALE 98POS 0.100

    EDAC Inc.

    		 5,392
    RFQ
    		845-098-541-208

    Datasheet

         		845 Box Active Non Specified - Dual Edge Female 49 98 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Flush Mount, Top Opening, Threaded Insert, 4-40 -40°C ~ 125°C

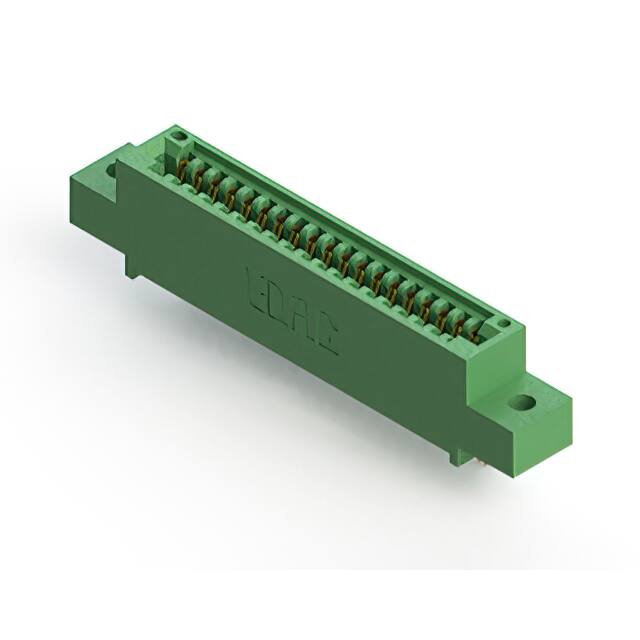

    845-019-500-402

    845-019-500-402

    CONN EDGE SINGLE FML 19POS 0.100

    EDAC Inc.

    		 5,398
    RFQ
    		845-019-500-402

    Datasheet

         		845 Box Active Non Specified - Single Edge Female 19 19 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Solder Eyelet(s) Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    845-046-540-103

    845-046-540-103

    CONN EDGE SINGLE FML 46POS 0.100

    EDAC Inc.

    		 8,808
    RFQ
    		845-046-540-103

    Datasheet

         		845 Box Active Non Specified - Single Edge Female 46 46 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia -40°C ~ 125°C

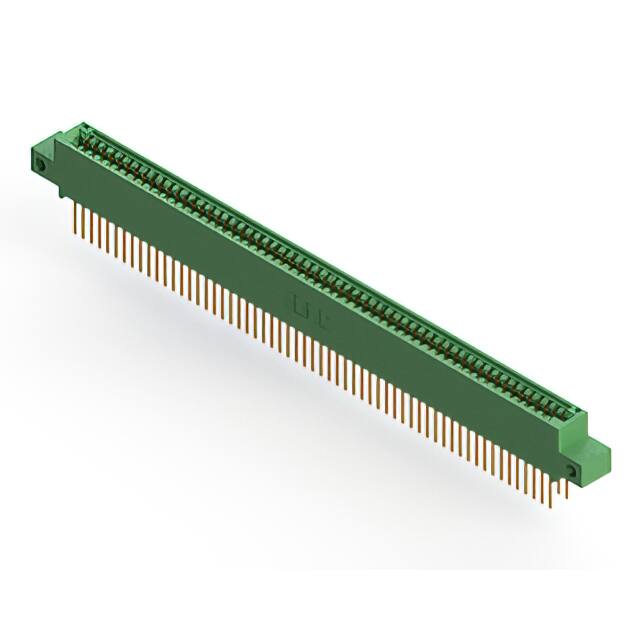

    845-118-523-512

    845-118-523-512

    CONN EDGE DUAL FML 118POS 0.100

    EDAC Inc.

    		 9,850
    RFQ
    		845-118-523-512

    Datasheet

         		845 Box Active Non Specified - Dual Edge Female 59 118 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    845-046-521-403

    845-046-521-403

    CONN EDGE SINGLE FML 46POS 0.100

    EDAC Inc.

    		 4,826
    RFQ
    		845-046-521-403

    Datasheet

         		845 Box Active Non Specified - Single Edge Female 46 46 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia -40°C ~ 125°C

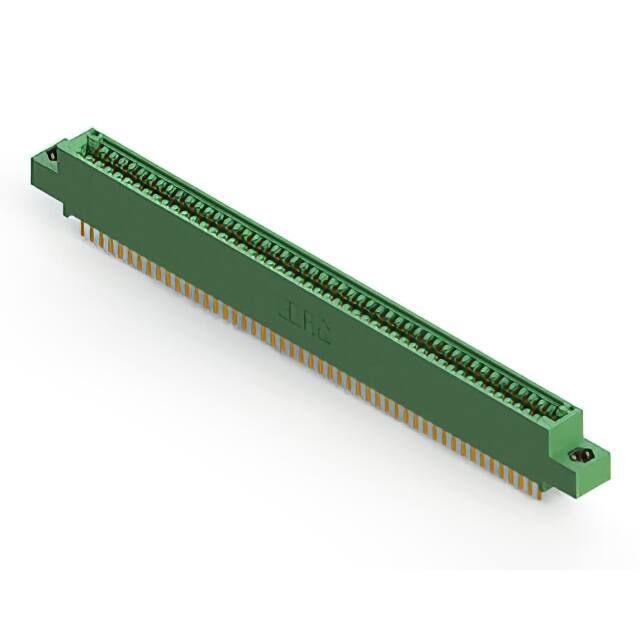

    845-098-520-508

    845-098-520-508

    CONN EDGE DUAL FMALE 98POS 0.100

    EDAC Inc.

    		 8,580
    RFQ
    		845-098-520-508

    Datasheet

         		845 Box Active Non Specified - Dual Edge Female 49 98 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Top Mount Opening, Threaded Insert, 4-40 -40°C ~ 125°C
    845-046-520-603

    845-046-520-603

    CONN EDGE SINGLE FML 46POS 0.100

    EDAC Inc.

    		 2,420
    RFQ
    		845-046-520-603

    Datasheet

         		845 Box Active Non Specified - Single Edge Female 46 46 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia -40°C ~ 125°C
    842-015-558-103

    842-015-558-103

    CONN EDGE SINGLE FML 15POS 0.100

    EDAC Inc.

    		 8,364
    RFQ
    		842-015-558-103

    Datasheet

         		842 Box Active Non Specified - Single Edge Female 15 15 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole, Right Angle Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia -40°C ~ 125°C
    845-046-542-103

    845-046-542-103

    CONN EDGE SINGLE FML 46POS 0.100

    EDAC Inc.

    		 8,560
    RFQ
    		845-046-542-103

    Datasheet

         		845 Box Active Non Specified - Single Edge Female 46 46 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia -40°C ~ 125°C
    845-046-544-103

    845-046-544-103

    CONN EDGE SINGLE FML 46POS 0.100

    EDAC Inc.

    		 7,710
    RFQ
    		845-046-544-103

    Datasheet

         		845 Box Active Non Specified - Single Edge Female 46 46 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia -40°C ~ 125°C

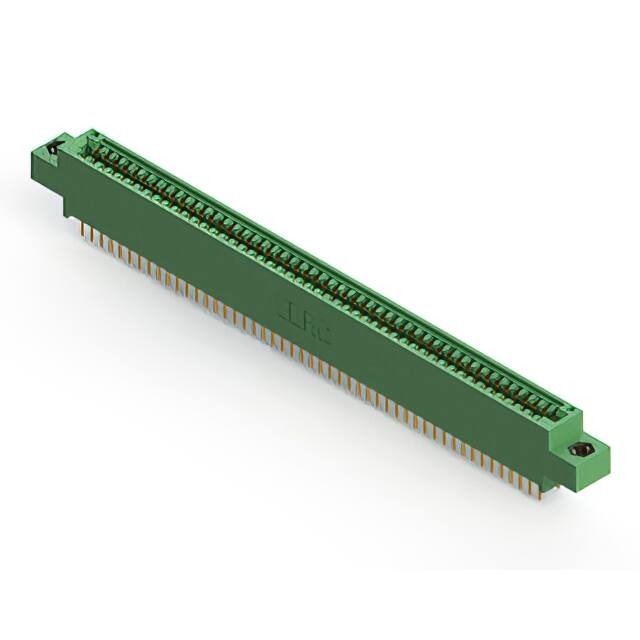

    845-098-524-808

    845-098-524-808

    CONN EDGE DUAL FMALE 98POS 0.100

    EDAC Inc.

    		 2,866
    RFQ
    		845-098-524-808

    Datasheet

         		845 Box Active Non Specified - Dual Edge Female 49 98 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Top Mount Opening, Threaded Insert, 4-40 -40°C ~ 125°C
    845-098-524-503

    845-098-524-503

    CONN EDGE DUAL FMALE 98POS 0.100

    EDAC Inc.

    		 5,206
    RFQ
    		845-098-524-503

    Datasheet

         		845 Box Active Non Specified - Dual Edge Female 49 98 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia -40°C ~ 125°C
    845-046-520-103

    845-046-520-103

    CONN EDGE SINGLE FML 46POS 0.100

    EDAC Inc.

    		 7,436
    RFQ
    		845-046-520-103

    Datasheet

         		845 Box Active Non Specified - Single Edge Female 46 46 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia -40°C ~ 125°C
    845-046-544-603

    845-046-544-603

    CONN EDGE SINGLE FML 46POS 0.100

    EDAC Inc.

    		 3,560
    RFQ
    		845-046-544-603

    Datasheet

         		845 Box Active Non Specified - Single Edge Female 46 46 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia -40°C ~ 125°C
    845-098-541-807

    845-098-541-807

    CONN EDGE DUAL FMALE 98POS 0.100

    EDAC Inc.

    		 9,492
    RFQ
    		845-098-541-807

    Datasheet

         		845 Box Active Non Specified - Dual Edge Female 49 98 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Top Mount Opening, Threaded Insert, M3 -40°C ~ 125°C
    Total 619256 Record«Prev1... 2893028931289322893328934289352893628937...30963Next»
