    Home > Products  > Connectors, Interconnects > Card Edge Connectors > Edgeboard Connectors

    Edgeboard Connectors

    Photo Mfr. Part # Availability Price Quantity Datasheet Series Packaging Product Status Card Type Gender Number of Positions/Bay/Row Number of Positions Card Thickness Number of Rows Pitch Read Out Features Mounting Type Termination Contact Material Contact Finish Contact Finish Thickness Contact Type Color Flange Feature Operating Temperature

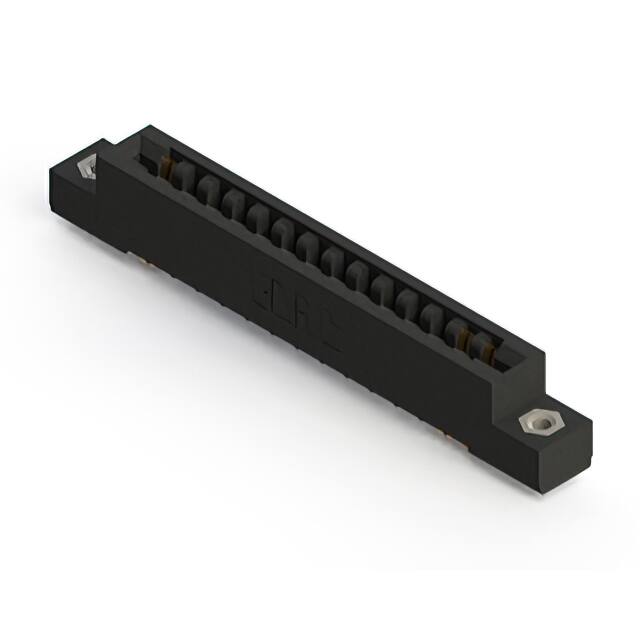

    857-028-555-208

    857-028-555-208

    CONN EDGE DUAL FMALE 28POS 0.156

    EDAC Inc.

    		 7,000
    RFQ
    		857-028-555-208

    Datasheet

         		857 Bulk Active Non Specified - Dual Edge Female 14 28 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Black Flush Mount, Top Opening, Threaded Insert, 4-40 -40°C ~ 125°C
    842-098-560-212

    842-098-560-212

    CONN EDGE DUAL FMALE 98POS 0.100

    EDAC Inc.

    		 2,150
    RFQ
    		842-098-560-212

    Datasheet

         		842 Box Active Non Specified - Dual Edge Female 49 98 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    807-036-505-102

    807-036-505-102

    CONN EDGE SGL FMALE 36POS 0.156

    EDAC Inc.

    		 3,746
    RFQ
    		807-036-505-102

    Datasheet

         		807 Box Active Non Specified - Single Edge Female 36 36 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole Solder Eyelet(s) Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Green Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    807-036-547-101

    807-036-547-101

    CONN EDGE SGL FMALE 36POS 0.156

    EDAC Inc.

    		 2,286
    RFQ
    		807-036-547-101

    Datasheet

         		807 Box Active Non Specified - Single Edge Female 36 36 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Green - -40°C ~ 125°C
    807-036-531-102

    807-036-531-102

    CONN EDGE SGL FMALE 36POS 0.156

    EDAC Inc.

    		 6,194
    RFQ
    		807-036-531-102

    Datasheet

         		807 Box Active Non Specified - Single Edge Female 36 36 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Green Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    845-126-544-502

    845-126-544-502

    CONN EDGE DUAL FML 126POS 0.100

    EDAC Inc.

    		 6,114
    RFQ
    		845-126-544-502

    Datasheet

         		845 Box Active Non Specified - Dual Edge Female 63 126 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    807-036-525-104

    807-036-525-104

    CONN EDGE SGL FMALE 36POS 0.156

    EDAC Inc.

    		 9,986
    RFQ
    		807-036-525-104

    Datasheet

         		807 Box Active Non Specified - Single Edge Female 36 36 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Green Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia -40°C ~ 125°C
    807-036-527-102

    807-036-527-102

    CONN EDGE SGL FMALE 36POS 0.156

    EDAC Inc.

    		 5,586
    RFQ
    		807-036-527-102

    Datasheet

         		807 Box Active Non Specified - Single Edge Female 36 36 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Green Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    845-126-544-504

    845-126-544-504

    CONN EDGE DUAL FMALE 26POS 0.156

    EDAC Inc.

    		 3,974
    RFQ
    		845-126-544-504

    Datasheet

         		845 Box Active Non Specified - Dual Edge Female 63 126 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia -40°C ~ 125°C
    807-036-545-101

    807-036-545-101

    CONN EDGE SGL FMALE 36POS 0.156

    EDAC Inc.

    		 9,114
    RFQ
    		807-036-545-101

    Datasheet

         		807 Box Active Non Specified - Single Edge Female 36 36 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Green - -40°C ~ 125°C
    845-126-544-204

    845-126-544-204

    CONN EDGE DUAL FML 126POS 0.100

    EDAC Inc.

    		 7,652
    RFQ
    		845-126-544-204

    Datasheet

         		845 Box Active Non Specified - Dual Edge Female 63 126 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia -40°C ~ 125°C
    807-036-525-102

    807-036-525-102

    CONN EDGE SGL FMALE 36POS 0.156

    EDAC Inc.

    		 8,914
    RFQ
    		807-036-525-102

    Datasheet

         		807 Box Active Non Specified - Single Edge Female 36 36 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Green Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    807-036-527-104

    807-036-527-104

    CONN EDGE SGL FMALE 36POS 0.156

    EDAC Inc.

    		 3,620
    RFQ
    		807-036-527-104

    Datasheet

         		807 Box Active Non Specified - Single Edge Female 36 36 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Green Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia -40°C ~ 125°C
    807-036-547-104

    807-036-547-104

    CONN EDGE SGL FMALE 36POS 0.156

    EDAC Inc.

    		 5,360
    RFQ
    		807-036-547-104

    Datasheet

         		807 Box Active Non Specified - Single Edge Female 36 36 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Green Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia -40°C ~ 125°C
    807-036-545-102

    807-036-545-102

    CONN EDGE SGL FMALE 36POS 0.156

    EDAC Inc.

    		 5,936
    RFQ
    		807-036-545-102

    Datasheet

         		807 Box Active Non Specified - Single Edge Female 36 36 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Green Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    807-036-547-102

    807-036-547-102

    CONN EDGE SGL FMALE 36POS 0.156

    EDAC Inc.

    		 3,598
    RFQ
    		807-036-547-102

    Datasheet

         		807 Box Active Non Specified - Single Edge Female 36 36 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Green Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    842-098-555-212

    842-098-555-212

    CONN EDGE DUAL FMALE 98POS 0.100

    EDAC Inc.

    		 6,190
    RFQ
    		842-098-555-212

    Datasheet

         		842 Box Active Non Specified - Dual Edge Female 49 98 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    845-126-544-802

    845-126-544-802

    CONN EDGE DUAL FML 126POS 0.100

    EDAC Inc.

    		 2,156
    RFQ
    		845-126-544-802

    Datasheet

         		845 Box Active Non Specified - Dual Edge Female 63 126 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    842-098-556-212

    842-098-556-212

    CONN EDGE DUAL FMALE 98POS 0.100

    EDAC Inc.

    		 6,206
    RFQ
    		842-098-556-212

    Datasheet

         		842 Box Active Non Specified - Dual Edge Female 49 98 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    857-015-401-104

    857-015-401-104

    CONN EDGE DUAL FMALE 30POS 0.156

    EDAC Inc.

    		 6,570
    RFQ
    		857-015-401-104

    Datasheet

         		857 Bulk Active Non Specified - Dual Edge Female 15 30 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual - Through Hole Solder Eyelet(s) Copper Alloy Tin - Semi Bellows Black Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia -40°C ~ 125°C
    Total 619256 Record«Prev1... 2892828929289302893128932289332893428935...30963Next»
