Audio Connectors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Gender | Signal Lines | Industry Recognized Mating Diameter | Actual Diameter | Number of Positions/Contacts | Internal Switch(s) | Mounting Type | Termination | Shielding | Features | Insulation Color | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STX-3081-3CSTEREO JACK, STRAIGHT THREAD W/N |
2,792 |
|
Datasheet |
STX-3081 | Tray | Active | Phone Jack | Female | Stereo (3 Conductor, TRS) | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | 0.142" (3.60mm) | 3 Conductors, 3 Contacts | Does Not Contain Switch | Through Hole, Right Angle | Solder | Unshielded | Thread Lock | - | -40°C ~ 105°C | - | - |
|
35RAPC5CHWNSN3.5MM RAPC JACK, WIDE BODY, TRRS |
2,014 |
|
Datasheet |
35RAPC | Tray | Active | Phone Jack | Female | Stereo (4 Conductor, TRRS) | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | 0.142" (3.60mm) | 4 Conductors, 4 Contacts | Does Not Contain Switch | Through Hole, Right Angle | Solder | Unshielded | Board Guide | - | - | - | - |
|
35RAPC6CHWNSN3.5MM RAPC JACK, WIDE BODY, TRRS |
2,342 |
|
Datasheet |
35RAPC | Tray | Active | Phone Jack | Female | Stereo (4 Conductor, TRRS) | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | 0.142" (3.60mm) | 4 Conductors, 5 Contacts | Single Switch | Through Hole, Right Angle | Solder | Unshielded | Board Guide | - | - | - | - |
|
35RASMT2BHWNTRX3.5MM SURFACE MOUNT JACK, STEREO |
3,178 |
|
Datasheet |
35RASMT | Tape & Reel (TR) | Active | Phone Jack | Female | Stereo (3 Conductor, TRS) | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | 0.142" (3.60mm) | 3 Conductors, 3 Contacts | Does Not Contain Switch | Surface Mount, Right Angle | Solder | Unshielded | Board Guide | Black | - | - | - |
|
35RASMT7CHNTRX3.5MM SMT JACK, NARROW BODY, TRR |
3,980 |
|
Datasheet |
35RASMT | Tape & Reel (TR) | Active | Phone Jack | Female | Stereo (4 Conductor, TRRS) | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | 0.142" (3.60mm) | 4 Conductors, 5 Contacts | Single Switch | Surface Mount, Right Angle | Solder | Unshielded | Board Guide | - | - | - | - |
|
35RASMT3BHWNTRX3.5MM SURFACE MOUNT JACK, STEREO |
3,168 |
|
Datasheet |
35RASMT | Tape & Reel (TR) | Active | Phone Jack | Female | Stereo (3 Conductor, TRS) | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | 0.142" (3.60mm) | 3 Conductors, 4 Contacts | Single Switch | Surface Mount, Right Angle | Solder | Unshielded | Board Guide | Black | - | - | - |
|
SP-25502-OMAUDIO JACK, 2.5 MM, STRAIGHT, 5 |
1,942 |
|
Datasheet |
SP | Bag | Active | Phone Plug | Male | 5 Conductor (TRRRS) | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone | 0.091" (2.30mm) | 5 Conductors, 5 Contacts | Does Not Contain Switch | Free Hanging (In-Line) | Solder | Unshielded | - | Black | -25°C ~ 70°C | - | - |
|

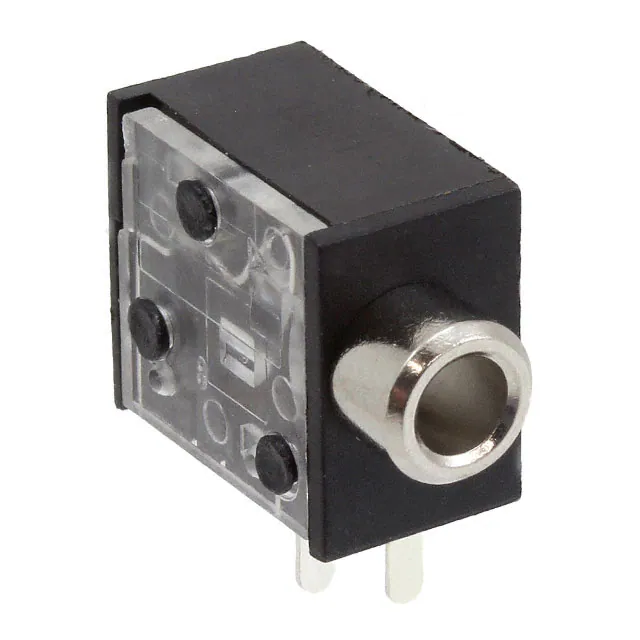

35RAPC2AVN4CONN JACK MONO 3.5MM R/A |
352 |
|
Datasheet |
35 | Bulk | Active | Phone Jack | Female | Mono | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | 0.142" (3.60mm) | 2 Conductors, 3 Contacts | Single Switch | Through Hole, Right Angle | Solder Eyelet(s) | Unshielded | - | - | - | - | - |
|
ACPR-GRNCONN PLUG RCA GREEN |
542 |
|
Datasheet |
MSeries RCA | Bulk | Active | Phono (RCA) Plug | Male | Mono | 6.35mm (0.250", 1/4") - Headphone | - | 2 Conductors, 2 Contacts | Does Not Contain Switch | Free Hanging (In-Line) | Solder | Unshielded | - | - | - | - | - |
|

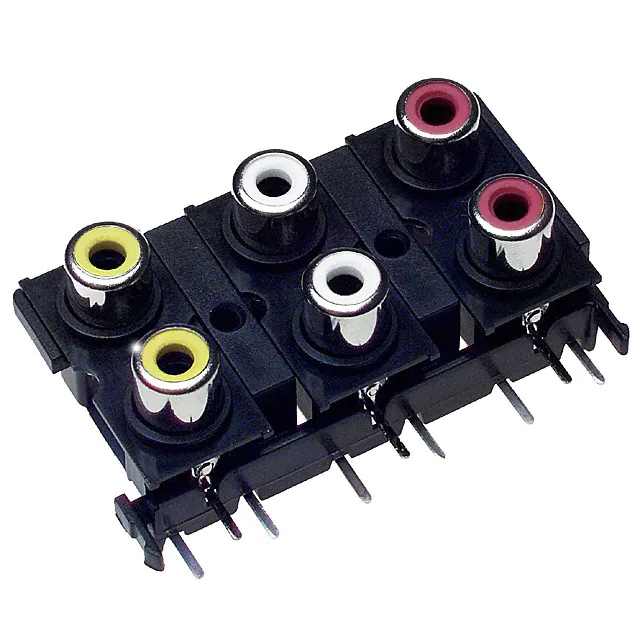

RCJ-61562423CONN RCA JACK MONO 3.2MM R/A |
1,264 |
|
Datasheet |
RCJ | Box | Active | Phono (RCA) Jack | Female | Mono | 3.20mm ID, 9.00mm OD (RCA) | - | 6 Sets of 2 Conductors, 9 Contacts | Does Not Contain Switch | Through Hole, Right Angle | Solder | Unshielded | Board Lock | Blue, Green, Red, Yellow, White | - | - | - |
|
|
RCJ-61223344CONN RCA JACK MONO 3.2MM R/A |
866 |
|
Datasheet |
RCJ | Box | Active | Phono (RCA) Jack | Female | Mono | 3.20mm ID, 9.00mm OD (RCA) | - | 6 Sets of 2 Conductors, 9 Contacts | Does Not Contain Switch | Through Hole, Right Angle | Solder | Unshielded | Board Lock | Red, White, Yellow | - | - | - |
|

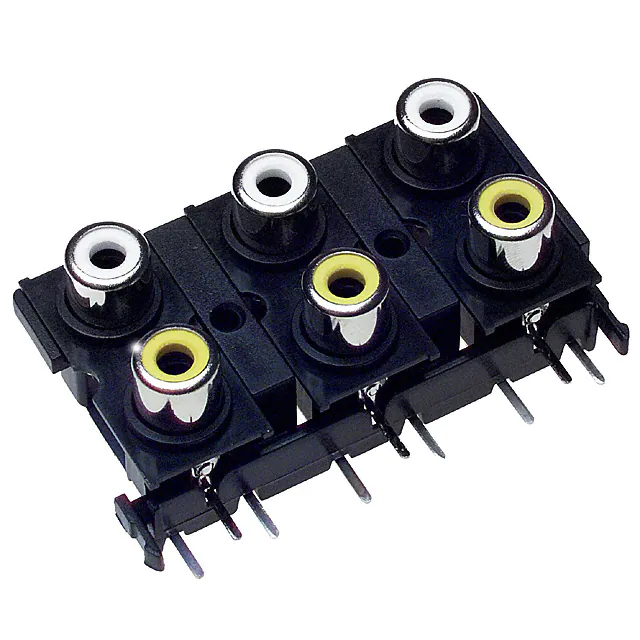

RCJ-61343434CONN RCA JACK MONO 3.2MM R/A |
316 |
|
Datasheet |
RCJ | Box | Active | Phono (RCA) Jack | Female | Mono | 3.20mm ID, 9.00mm OD (RCA) | - | 6 Sets of 2 Conductors, 9 Contacts | Does Not Contain Switch | Through Hole, Right Angle | Solder | Unshielded | Board Lock | White, Yellow | - | - | - |
|
RCJ-61223645CONN RCA JACK 6P 2X3 R/A PCB MNT |
296 |
|
Datasheet |
RCJ | Box | Active | Phono (RCA) Jack | Female | Mono | 3.20mm ID, 9.00mm OD (RCA) | - | 6 Sets of 2 Conductors, 9 Contacts | Does Not Contain Switch | Through Hole, Right Angle | Solder | Unshielded | Board Lock | Blue, Green, Red, Yellow, White | - | - | - |
|
ACPL-CYLRCA SERIES MALE CABLE BLK CHROME |
562 |
|
Datasheet |
MSeries RCA | Bulk | Active | Phono (RCA) Plug | Male | Mono | 6.35mm (0.250", 1/4") - Headphone | - | 2 Conductors, 2 Contacts | Does Not Contain Switch | Free Hanging (In-Line) | Solder | Unshielded | - | - | -25°C ~ 75°C | - | - |
|
ACPL-CGRRCA SERIES MALE CABLE BLK CHROME |
478 |
|
Datasheet |
MSeries RCA | Bulk | Active | Phono (RCA) Plug | Male | Mono | 6.35mm (0.250", 1/4") - Headphone | - | 2 Conductors, 2 Contacts | Does Not Contain Switch | Free Hanging (In-Line) | Solder | Unshielded | - | - | -25°C ~ 75°C | - | - |
|
ACJS-MHDE1/4"PHONE STEREO DUAL SHIELDED S |
2,098 |
|
Datasheet |
XLRSeries™ AC | Bulk | Active | Phone Jack, Dual | Female | Stereo (3 Conductor, TRS) | 6.35mm (0.250", 1/4") - Headphone | - | 3 Conductors, 6 Contacts | Three Switches | Panel Mount, Through Hole, Right Angle | Press-Fit, Solder | Unshielded | Mounting Hardware, Thread Lock | - | -25°C ~ 70°C | - | - |
|
ACJS-MHDM1/4" PHONE STEREO DUAL METAL |
1,052 |
|
Datasheet |
XLRSeries™ AC | Bulk | Active | Phone Jack, Dual | Female | Stereo (3 Conductor, TRS) | 6.35mm (0.250", 1/4") - Headphone | - | 3 Conductors, 6 Contacts | Three Switches | Panel Mount, Through Hole, Right Angle | Press-Fit, Solder | Unshielded | Mounting Hardware, Thread Lock | - | -25°C ~ 70°C | - | - |
|
ACJR-SBLRCA SERIES FEMALE CABLE SAT/BL |
566 |
|
Datasheet |
MSeries RCA | Bulk | Active | Phono (RCA) Jack | Female | Mono | 6.35mm (0.250", 1/4") - Headphone | - | 2 Conductors, 2 Contacts | Does Not Contain Switch | Free Hanging (In-Line) | Solder Cup, Solder | Unshielded | - | White | -25°C ~ 75°C | - | - |
|
ACJR-GRNCONN RCA JACK GREEN |
552 |
|
Datasheet |
MSeries RCA | Bulk | Active | Phone Jack | Female | Mono | - | - | 2 Conductors, 2 Contacts | Does Not Contain Switch | Free Hanging (In-Line) | Solder Cup, Solder | Unshielded | - | - | -25°C ~ 75°C | - | - |
|
ACJR-REDCONN RCA JACK RED |
482 |
|
Datasheet |
MSeries RCA | Bulk | Active | Phone Jack | Female | Mono | - | - | 2 Conductors, 2 Contacts | Does Not Contain Switch | Free Hanging (In-Line) | Solder Cup, Solder | Unshielded | - | - | -25°C ~ 75°C | - | - |
