Audio Connectors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Gender | Signal Lines | Industry Recognized Mating Diameter | Actual Diameter | Number of Positions/Contacts | Internal Switch(s) | Mounting Type | Termination | Shielding | Features | Insulation Color | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4833.2320CONN JACK STEREO 6.35MM PNL MNT |
2,298 |
|
Datasheet |
4833 | Bulk | Active | Phone Jack | Female | Stereo (3 Conductor, TRS) | 6.35mm (0.250", 1/4") - Headphone | 0.256" (6.50mm) | 3 Conductors, 6 Contacts | Three Switches | Panel Mount, Through Hole | Solder | Unshielded | Mounting Hardware, Thread Lock | - | -20°C ~ 70°C | - | - |
|

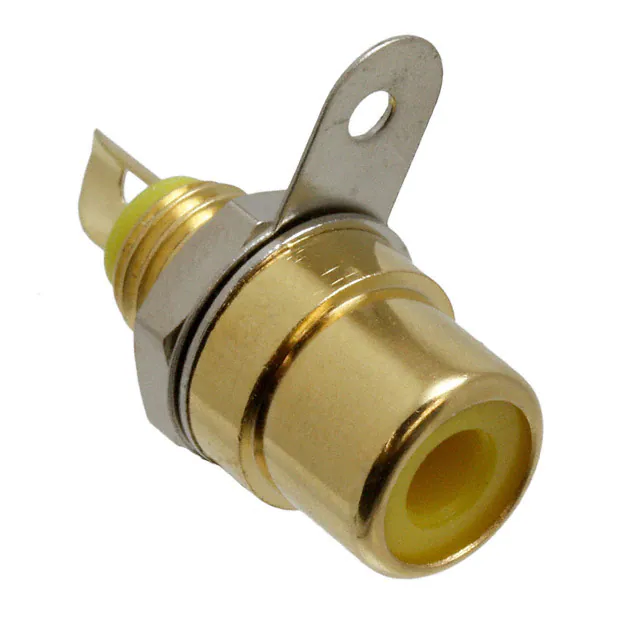

BPJF04AUXCONN RCA JACK MONO 3.2MM PNL MT |
296 |
|
Datasheet |
- | Bulk | Active | Phono (RCA) Jack | Female | Mono | 3.20mm ID, 9.00mm OD (RCA) | 0.134" (3.40mm ID), 0.325" (8.25mm OD) | 2 Conductors, 2 Contacts | Does Not Contain Switch | Panel Mount | Solder Eyelet(s) | Unshielded | Grounding Tab, Mounting Hardware | Yellow | - | - | - |
|
ACJS-MHD985DUAL 3.5MM/1/4" TRS HORZ PCB |
1,652 |
|
Datasheet |
XLRSeries™ AC | Bulk | Active | Phone Jack, Dual | Female | Stereo (3 Conductor, TRS) | 3.50mm (0.141", 1/8", Mini Plug) - Headphone, 6.35mm (0.250", 1/4") - Headphone | - | 3 Conductors, 6 Contacts | Three Switches | Panel Mount, Through Hole, Right Angle | Kinked Pin, Solder | Unshielded | Mounting Hardware, Thread Lock | - | -25°C ~ 70°C | - | - |
|

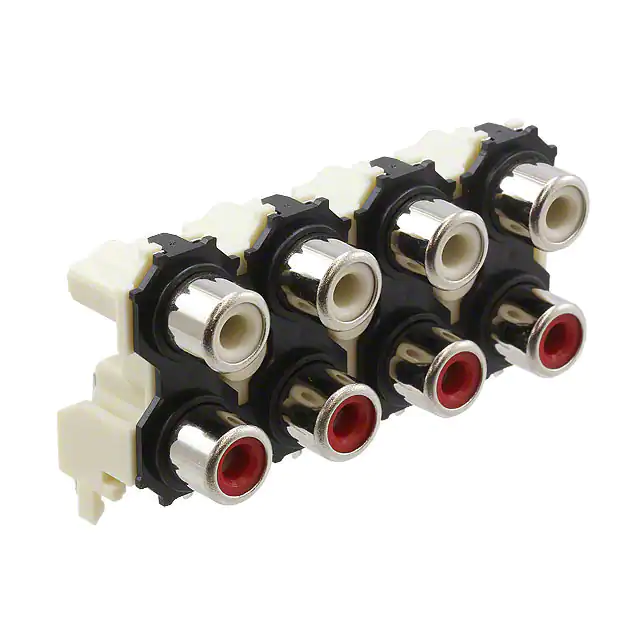

PJRAS4X2U01XCONN RCA JACK MONO 3.2MM R/A |
5,548 |
|
Datasheet |
PJR | Bulk | Active | Phono (RCA) Jack | Female | Mono | 3.20mm ID, 9.00mm OD (RCA) | - | 8 Sets of 2 Conductors, 12 Contacts | Does Not Contain Switch | Through Hole, Right Angle | Solder | Shielded | - | Red, White | -25°C ~ 85°C | - | - |
|
3502LCONN PLUG MONO 2COND |
1,948 |
|
Datasheet |
3502A | Bulk | Active | Phone Plug | Male | Mono | 3.20mm ID, 9.00mm OD (RCA) | 0.125" (3.18mm ID), 0.370" (9.40mm OD) | 2 Conductors, 2 Contacts | Does Not Contain Switch | Free Hanging (In-Line) | Solder | Shielded | - | - | - | - | - |
|

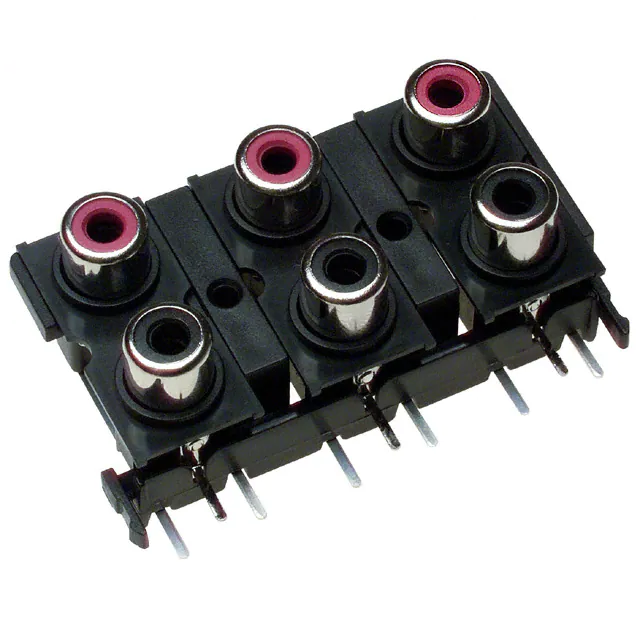

RCJ-61212121CONN RCA JACK MONO 3.2MM R/A |
1,164 |
|
Datasheet |
RCJ | Box | Active | Phono (RCA) Jack | Female | Mono | 3.20mm ID, 9.00mm OD (RCA) | - | 6 Sets of 2 Conductors, 9 Contacts | Does Not Contain Switch | Through Hole, Right Angle | Solder | Unshielded | Board Lock | Black, Red | - | - | - |
|
ASJ-181-1A-HDW-WPAUDIO JACK, WATERPROOF |
346 |
|
Datasheet |
ASJ | Tape & Reel (TR) | Active | Phone Jack | Female | Stereo (4 Conductor, TRRS) | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | 0.142" (3.60mm) | 4 Conductors, 5 Contacts | - | Surface Mount, Right Angle | Solder | Shielded | Board Guide, IP67 | Black | -25°C ~ 85°C | - | - |
|
ACPL-CBLRCA SERIES MALE CABLE BLK CHROME |
390 |
|
Datasheet |
MSeries RCA | Bulk | Active | Phono (RCA) Plug | Male | Mono | 6.35mm (0.250", 1/4") - Headphone | - | 2 Conductors, 2 Contacts | Does Not Contain Switch | Free Hanging (In-Line) | Solder | Unshielded | - | - | -25°C ~ 75°C | - | - |
|

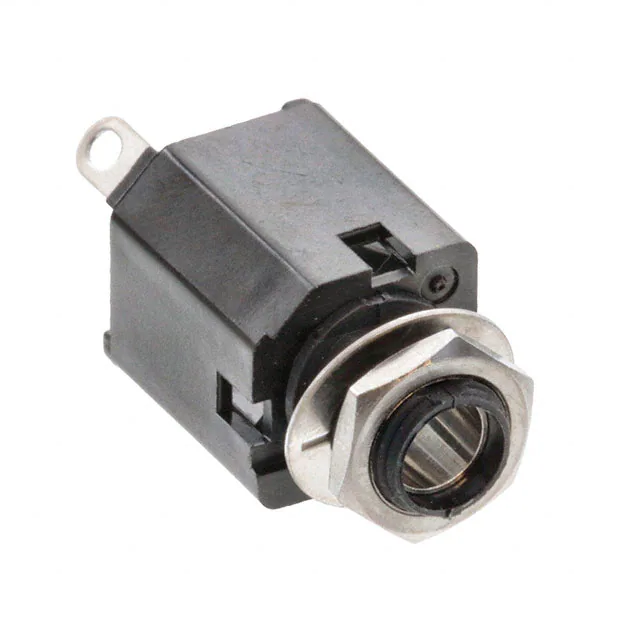

NL111XCONN JACK MONO 6.35MM PNL MNT |
762 |
|
Datasheet |
Hi-D® NL11 | Bulk | Active | Phone Jack | Female | Mono | 6.35mm (0.250", 1/4") - Headphone | 0.250" (6.35mm) | 2 Conductors, 2 Contacts | Does Not Contain Switch | Panel Mount, Through Hole | Solder Eyelet(s) | Unshielded | Mounting Hardware, Thread Lock | - | -20°C ~ 65°C | - | - |
|
ACJR-YELCONN RCA JACK YELLOW |
1,324 |
|
Datasheet |
MSeries RCA | Bulk | Active | Phone Jack | Female | Mono | - | - | 2 Conductors, 2 Contacts | Does Not Contain Switch | Free Hanging (In-Line) | Solder Cup, Solder | Unshielded | - | - | -25°C ~ 75°C | - | - |
|
ACJR-SGRRCA SERIES FEMALE CABLE SAT/GR |
584 |
|
Datasheet |
MSeries RCA | Bulk | Active | Phono (RCA) Jack | Female | Mono | 6.35mm (0.250", 1/4") - Headphone | - | 2 Conductors, 2 Contacts | Does Not Contain Switch | Free Hanging (In-Line) | Solder Cup, Solder | Unshielded | - | White | -25°C ~ 75°C | - | - |
|
ACJR-SWHRCA SERIES FEMALE CABLE SAT/WH |
520 |
|
Datasheet |
MSeries RCA | Bulk | Active | Phono (RCA) Jack | Female | Mono | 6.35mm (0.250", 1/4") - Headphone | - | 2 Conductors, 2 Contacts | Does Not Contain Switch | Free Hanging (In-Line) | Solder Cup, Solder | Unshielded | - | White | -25°C ~ 75°C | - | - |
|
ACJR-SBKRCA SERIES FEMALE CABLE SAT/BK |
416 |
|
Datasheet |
MSeries RCA | Bulk | Active | Phono (RCA) Jack | Female | Mono | 6.35mm (0.250", 1/4") - Headphone | - | 2 Conductors, 2 Contacts | Does Not Contain Switch | Free Hanging (In-Line) | Solder Cup, Solder | Unshielded | - | White | -25°C ~ 75°C | - | - |
|
ACJR-SYLRCA SERIES FEMALE CABLE SAT/YL |
362 |
|
Datasheet |
MSeries RCA | Bulk | Active | Phono (RCA) Jack | Female | Mono | 6.35mm (0.250", 1/4") - Headphone | - | 2 Conductors, 2 Contacts | Does Not Contain Switch | Free Hanging (In-Line) | Solder Cup, Solder | Unshielded | - | White | -25°C ~ 75°C | - | - |
|
ACJR-BLKCONN RCA JACK BLACK |
268 |
|
Datasheet |
MSeries RCA | Bulk | Active | Phone Jack | Female | Mono | - | - | 2 Conductors, 2 Contacts | Does Not Contain Switch | Free Hanging (In-Line) | Solder Cup, Solder | Unshielded | - | - | -25°C ~ 75°C | - | - |
|
4831.1310CONN PLUG STEREO 2.5MM 3COND |
494 |
|
Datasheet |
4831 | Bulk | Active | Phone Plug | Male | Stereo (3 Conductor, TRS) | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone | 0.098" (2.50mm) | 3 Conductors, 3 Contacts | Does Not Contain Switch | Free Hanging (In-Line) | Solder | Unshielded | Strain Relief | - | -20°C ~ 70°C | - | - |
|
RA49B14BCONN JACK STEREO 6.35MM R/A |
1,614 |
|
Datasheet |
RA Jax® | Bulk | Active | Phone Jack | Female | Stereo (3 Conductor, TRS) | 6.35mm (0.250", 1/4") - Headphone | 0.253" (6.43mm) | 3 Conductors, 5 Contacts | Two Switches | Through Hole, Right Angle | Solder | Unshielded | Board Guide | - | - | - | - |
|
IO-M3MBLCONN SHARK BLUE STEREO |
244 |
|
Datasheet |
M | Bulk | Active | Phone Plug | Male | Stereo (3 Conductor, TRS) | 6.35mm (0.250", 1/4") - Headphone | 0.250" (6.35mm) | 3 Conductors, 3 Contacts | - | Free Hanging (In-Line) | Solder | Shielded | - | - | - | - | - |
|
ACJS-MHDEM1/4"PHONE STEREO DUAL SHIELDED S |
522 |
|
Datasheet |
XLRSeries™ AC | Bulk | Active | Phone Jack, Dual | Female | Stereo (3 Conductor, TRS) | 6.35mm (0.250", 1/4") - Headphone | - | 3 Conductors, 6 Contacts | Three Switches | Panel Mount, Through Hole, Right Angle | Press-Fit, Solder | Unshielded | Mounting Hardware, Thread Lock | - | -25°C ~ 70°C | - | - |
|
ACPR-SWHRCA SERIES MALE CABLE SATIN/WH |
496 |
|
Datasheet |
MSeries RCA | Bulk | Active | Phono (RCA) Plug | Male | Mono | 6.35mm (0.250", 1/4") - Headphone | - | 2 Conductors, 2 Contacts | Does Not Contain Switch | Free Hanging (In-Line) | Solder | Unshielded | - | - | -25°C ~ 75°C | - | - |
