| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Connector Usage | Connector Type | Connector Style | Number of Positions | Number of Positions Loaded | Pitch | Number of Rows | Number of Columns | Mounting Type | Termination | Contact Layout, Typical | Features | Contact Finish | Contact Finish Thickness | Color | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1645498-2CONN PLUG BLADE PWR 4POS PCB |
362 |
|
Datasheet |
UPM (Universal Power Modules) | Bulk | Active | - | Plug, Male Blades | Blade Power | 4 | All | 0.118" (3.00mm) | - | - | Through Hole | Press-Fit | 4 Power | - | Gold | 50.0µin (1.27µm) | Natural |
|
89006-126LFCONN HEADER 30POS PCB |
644 |
|
Datasheet |
Metral® | Tube | Active | - | Header, Male Pins | - | 30 | All | 0.079" (2.00mm) | 5 | - | Through Hole | Press-Fit | - | - | Gold | 30.0µin (0.76µm) | Natural, White |
|
6450850-3CONN RCPT MULTI-BEAM 26POS PCB |
5,256 |
|
Datasheet |
MULTI-BEAM XLE | Bulk | Active | - | Receptacle, Female Sockets and Blade Sockets | Multi-Beam | 26 | All | 0.100" (2.54mm) | 4 | - | Through Hole | Solder | 24 Signal, 2 Power | Guide Pin | Gold | 30.0µin (0.76µm) | Black |
|

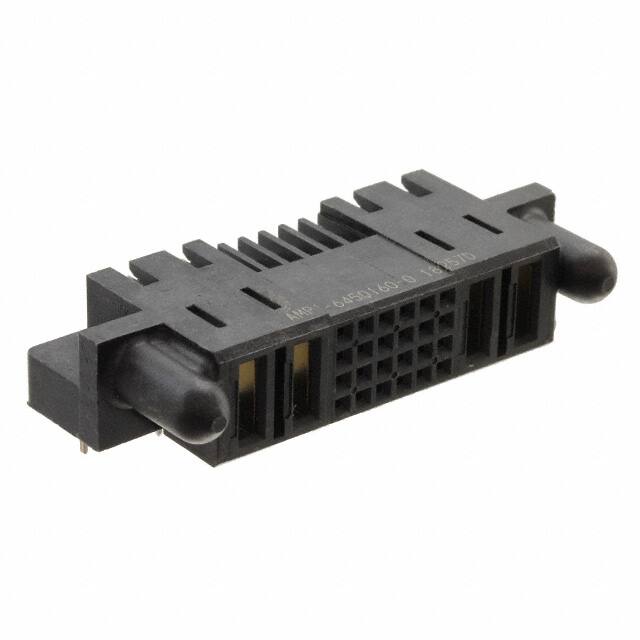

1-6450160-0CONN RCPT MULTI-BEAM 28POS PCB |
1,330 |
|
Datasheet |
MULTI-BEAM XL | Tray | Active | - | Receptacle, Female Sockets and Blade Sockets | Multi-Beam | 28 | All | 0.100" (2.54mm) | 4 | - | Through Hole, Right Angle | Solder | 24 Signal, 4 Power | Board Lock, Guide Pin | Gold | 30.0µin (0.76µm) | Black |
|

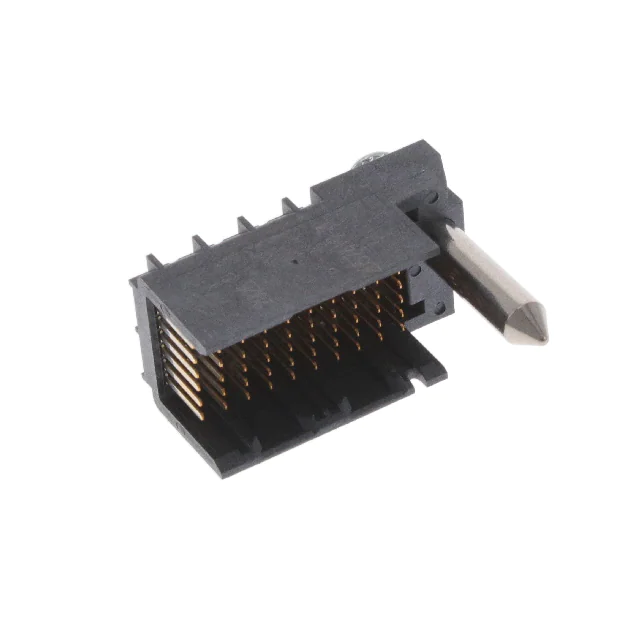

2057419-3CONN HEADER IMPACT 60POS PCB |
1,118 |
|
Datasheet |
Impact | Bulk | Active | - | Header, Male Pins | Impact, Guide Left | 60 | All | 0.075" (1.91mm) | 6 | 10 | Through Hole | Press-Fit | - | - | Gold | 30.0µin (0.76µm) | Black |
|

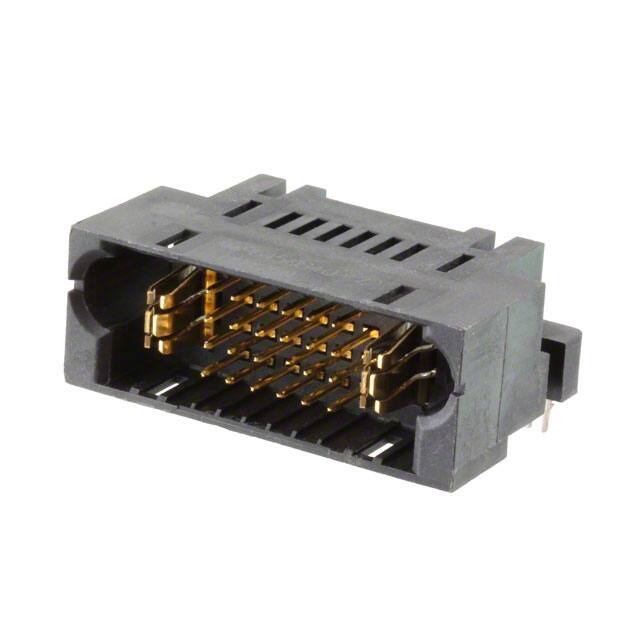

6450840-7CONN HEADER MULTI-BEAM 26POS PCB |
2,100 |
|
Datasheet |
MULTI-BEAM XLE | Tray | Active | - | Header, Male Pins and Blades | Multi-Beam | 26 | All | 0.100" (2.54mm) | 4 | - | Through Hole, Right Angle | Press-Fit | 24 Signal, 2 Power | Board Lock, Mating Guide | Gold | 30.0µin (0.76µm) | Black |
|
292178-1CONN BLNDMATE MIN-DRAWER 22P PNL |
504 |
|
Datasheet |
Mini CT | Bulk | Active | - | Blindmate, Fixed, Non-Gendered | Mini-Drawer | 22 | All | 0.079" (2.00mm) | 2 | - | Panel Mount | Solder | - | Board Guide | Gold | - | Black |
|
2173132-2CONN HEADER 4POS PCB |
790 |
|
Datasheet |
Elcon Mini | Tray | Active | - | Header, Male Blades | - | 4 | All | - | 2 | - | Through Hole | Solder | 4 Power | Board Lock | Silver | 118.1µin (3.00µm) | Black |
|
1645498-1CONN PLUG BLADE PWR 3POS PCB |
9,460 |
|
Datasheet |
UPM (Universal Power Modules) | Bulk | Active | - | Plug, Male Blades | Blade Power | 3 | All | 0.118" (3.00mm) | - | - | Through Hole | Press-Fit | 3 Power | - | Gold | 50.0µin (1.27µm) | Natural |
|
1645498-5CONN PLUG BLADE PWR 7POS PCB |
2,306 |
|
Datasheet |
UPM (Universal Power Modules) | Tray | Active | - | Plug, Male Blades | Blade Power | 7 | All | 0.118" (3.00mm) | - | - | Through Hole | Press-Fit | 7 Power | - | Gold | 50.0µin (1.27µm) | Natural |
|
5223961-1CONN HEADER BLADE PWR 3P EDGE MT |
12,582 |
|
Datasheet |
UPM (Universal Power Modules) | Tube | Active | Backplane | Header, Male Blades | Blade Power | 3 | All | - | 1 | - | Board Edge, Through Hole, Right Angle | Press-Fit | 3 Power | Board Guide | Gold or Gold-Palladium | - | Gray |
|
10122769-101LFCONN HEADER HIGH SPEED 54POS PCB |
558 |
|
Datasheet |
Airmax VS2™ | Tray | Active | Daughtercard | Header, Male Pins | High Speed | 54 | All | - | 9 | 6 | Through Hole | Press-Fit | - | - | Gold | - | Black |
|
0461120801CONN RCPT LPHPOWER 8POS PCB |
2,070 |
|
Datasheet |
EXTreme LPHPower 46112 | Tray | Active | - | Receptacle, Outer Shroud Contacts | LPHPower | 8 | All | 0.472" (12.00mm) | 2 | - | Through Hole | Press-Fit | 8 Power | - | Gold | 30.0µin (0.76µm) | Black |
|

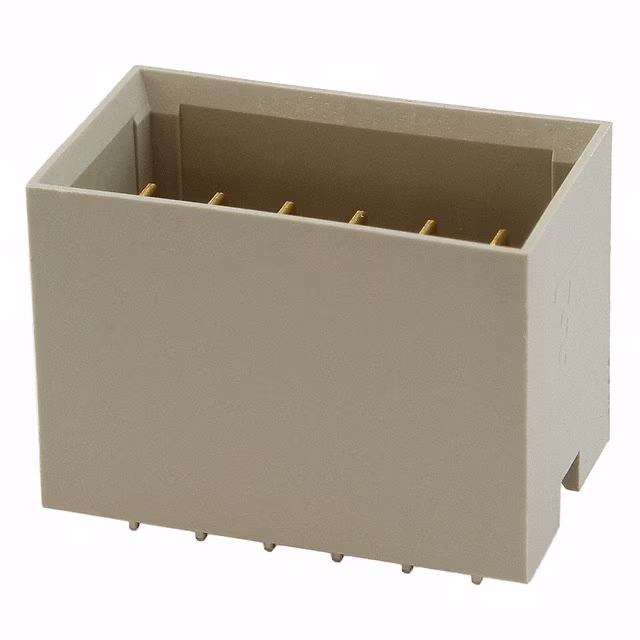

1645498-4CONN PLUG BLADE PWR 6POS PCB |
1,956 |
|
Datasheet |
UPM (Universal Power Modules) | Tray | Active | - | Plug, Male Blades | Blade Power | 6 | All | 0.118" (3.00mm) | - | - | Through Hole | Press-Fit | 6 Power | - | Gold | 50.0µin (1.27µm) | Natural |
|

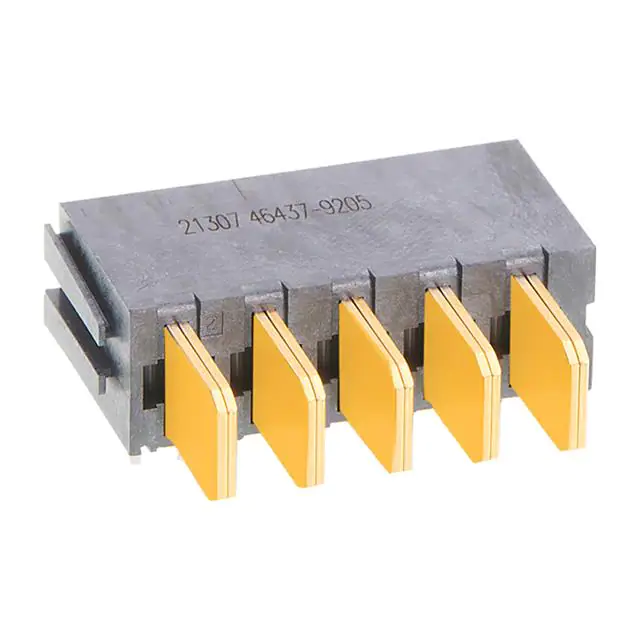

0464379205RA REC TEN60 5CKT DC ASSY |
1,064 |
|
Datasheet |
EXTreme Ten60Power 46437 | Tray | Active | - | Plug, Male Blades | EXTreme Ten60Power | 5 | All | 0.217" (5.50mm) | 1 | - | Through Hole, Right Angle | Press-Fit | 5 Power | - | Gold | 30.0µin (0.76µm) | Black |
|
6643274-1CONN RCPT POWER 1POS PCB |
2,948 |
|
Datasheet |
ICCON, Elcon | Tray | Active | - | Receptacle, Female Sockets | Power | 1 | All | - | - | - | Through Hole | Press-Fit | 1 Power | - | Silver | 200.0µin (5.08µm) | Black |
|
0465629204VERT REC TEN60 4CKT DC AS |
1,008 |
|
Datasheet |
EXTreme Ten60Power 46562 | Tray | Active | - | Receptacle, Female Blade Sockets | EXTreme Ten60Power | 4 | All | 0.217" (5.50mm) | 1 | - | Through Hole | Press-Fit | 4 Power | - | Gold | 30.0µin (0.76µm) | Black |
|
0459854343CONN PLUG LPHPOWER 28POS PCB |
1,954 |
|
Datasheet |
EXTreme LPHPower 45985 | Tray | Active | - | Plug, Center Strip Contacts | LPHPower | 28 | All | 0.050" (1.27mm) | 2 | - | Through Hole, Right Angle | Solder | 24 Signal, 4 Power | Board Guide | Gold | 30.0µin (0.76µm) | Black |
|

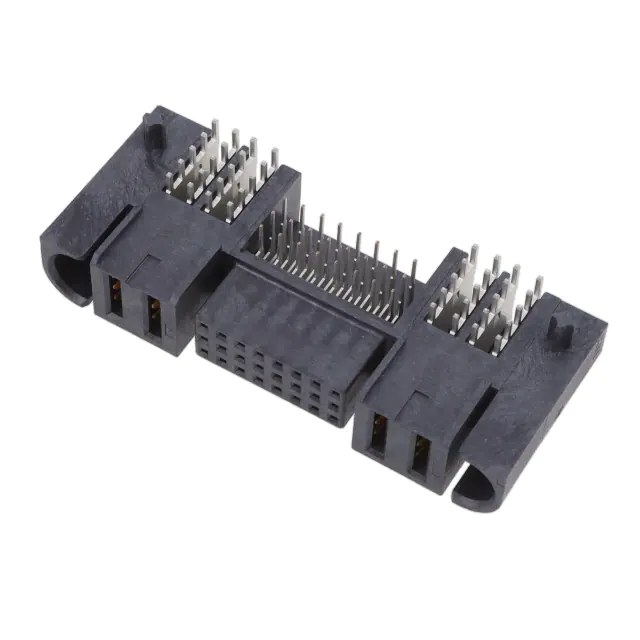

0464363003CONN RCPT TEN60 28POS PCB |
2,296 |
|
Datasheet |
EXTreme Ten60Power 46436 | Tray | Active | - | Receptacle, Female Sockets and Blade Sockets | EXTreme Ten60Power | 28 | All | - | - | - | Through Hole, Right Angle | Solder | 24 Signal, 4 Power | Board Guide, Mating Guide | Gold | 30.0µin (0.76µm) | Black |
|
0464369206TEN60 R/A PLUG ASSY 6-CKT |
2,356 |
|
Datasheet |
EXTreme Ten60Power 46436 | Tray | Active | - | Receptacle, Female Blade Sockets | EXTreme Ten60Power | 6 | All | 0.217" (5.50mm) | 1 | - | Through Hole, Right Angle | Press-Fit | 6 Power | - | Gold | 30.0µin (0.76µm) | Black |
