| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Connector Usage | Connector Type | Connector Style | Number of Positions | Number of Positions Loaded | Pitch | Number of Rows | Number of Columns | Mounting Type | Termination | Contact Layout, Typical | Features | Contact Finish | Contact Finish Thickness | Color | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1-5532446-9CONN HEADER HD 200POS PCB |
490 |
|
Datasheet |
HDI (High Density Interconnect) | Tube | Active | - | Header, Male Pins | High Density (HDC, HDI, HPC) | 200 | All | 0.100" (2.54mm) | 2 | - | Through Hole | Press-Fit | - | Mating Guide | Gold | 30.0µin (0.76µm) | Natural |
|
1-532446-9CONN HEADER HD 200POS PCB |
6,552 |
|
Datasheet |
HDI (High Density Interconnect) | Tube | Active | - | Header, Male Pins | High Density (HDC, HDI, HPC) | 200 | All | 0.100" (2.54mm) | 2 | - | Through Hole | Press-Fit | - | Mating Guide | Gold | 30.0µin (0.76µm) | Natural |
|
532436-6CONN HEADER HD 180POS PCB |
554 |
|
Datasheet |
HDI (High Density Interconnect) | Tube | Active | - | Header, Male Pins | High Density (HDC, HDI, HPC) | 180 | All | 0.100" (2.54mm) | 4 | - | Through Hole | Solder | - | Mating Guide | Gold | 30.0µin (0.76µm) | Black |
|

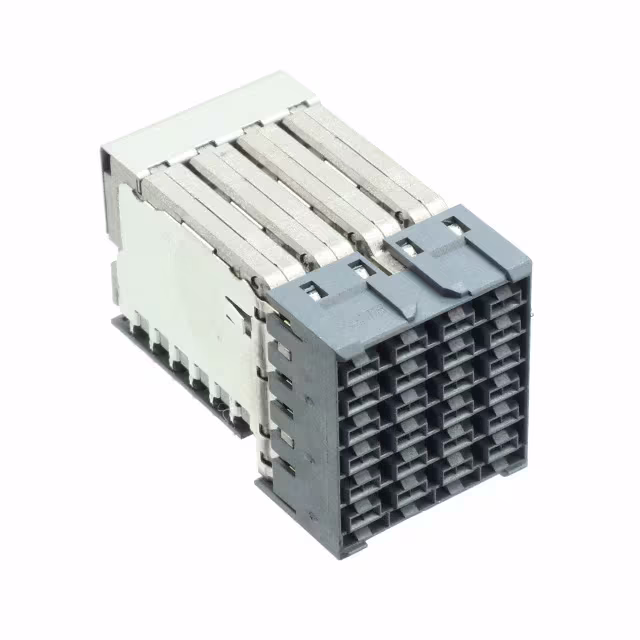

2187687-1CONN RECEPT RT AGL 6 PIAR 4 COL |
1,964 |
|
Datasheet |
STRADA Whisper | Tube | Active | Daughtercard | Receptacle, Female Sockets | Dual Beam, Center | 48 | All | 0.098" (2.50mm) | 6 | 4 | Board Edge, Through Hole, Right Angle | Press-Fit | 24 Differential Pairs | - | Gold | 49.3µin (1.25µm) | Black |
|
PCIH47M400C1/AABACKPLANE |
3,046 |
|
Datasheet |
PCIH | Tray | Active | - | Header, Male Pins | CompactPCI® | 47 | All | - | - | - | Through Hole, Right Angle | Solder | 24 Signal, 23 Power | - | Gold | 30.0µin (0.76µm) | Blue |
|
WTA30PCJTRECTANGULAR PCB CONNECTORS (0.10 |
4,794 |
|
Datasheet |
W | Bag | Active | - | Plug, Male Pins | - | 30 | All | 0.100" (2.54mm) | 2 | 15 | Free Hanging (In-Line) | Solder Cup | - | Mating Guide | Gold | - | - |
|

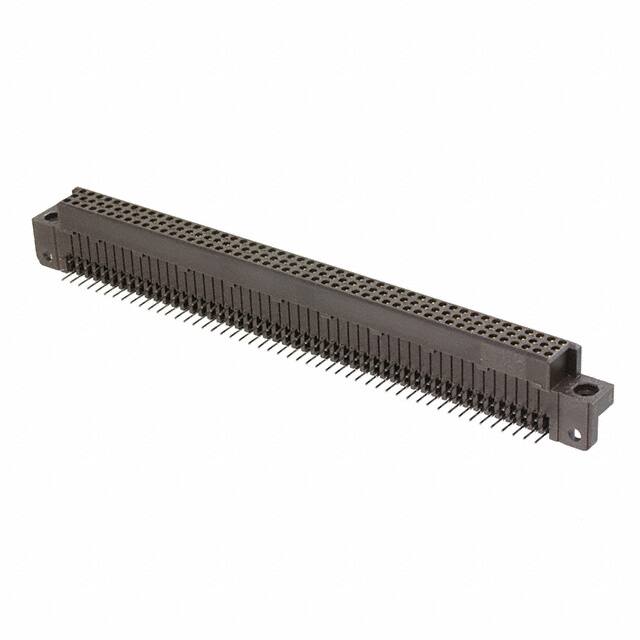

533268-7CONN RCPT HD 150POS PCB |
682 |
|
Datasheet |
HDI (High Density Interconnect) | Tube | Active | - | Receptacle, Female Sockets | High Density (HDC, HDI, HPC) | 150 | All | 0.100" (2.54mm) | 3 | - | Through Hole, Right Angle | Solder | - | Mating Guide | Gold | 30.0µin (0.76µm) | Natural |
|
2000891-1CONN HEADER 90POS EDGE MNT |
340 |
|
Datasheet |
Fortis Zd | Tray | Active | Daughtercard | Header, Male Pins | - | 90 | All | - | 9 | 10 | Board Edge, Through Hole, Right Angle | Press-Fit | 30 Differential Pairs, 30 Ground | Shielded | Gold | 50.0µin (1.27µm) | Black |
|

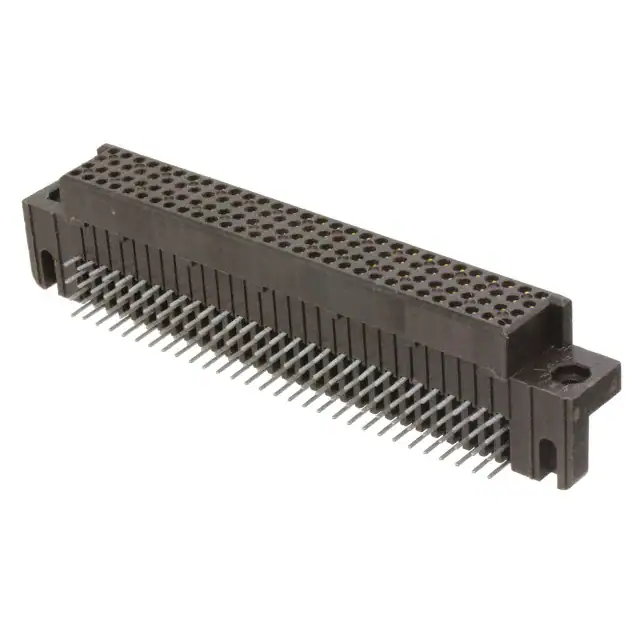

1-5532903-2CONN RCPT HD 120POS PCB |
516 |
|
Datasheet |
HDI (High Density Interconnect) | Tube | Active | - | Receptacle, Female Sockets | High Density (HDC, HDI, HPC) | 120 | All | 0.100" (2.54mm) | 4 | - | Through Hole, Right Angle | Solder | - | Mating Guide | Gold | 30.0µin (0.76µm) | Brown |
|
5533268-5CONN RCPT HD 120POS PCB |
436 |
|
Datasheet |
HDI (High Density Interconnect) | Tube | Active | - | Receptacle, Female Sockets | High Density (HDC, HDI, HPC) | 120 | All | 0.100" (2.54mm) | 3 | - | Through Hole, Right Angle | Solder | - | Mating Guide | Gold | 30.0µin (0.76µm) | Natural |
|
RVPX-RP116DM1VITA 46 CONNECTORS |
3,566 |
|
Datasheet |
R-VPX Evolution | Tray | Active | Daughtercard | Plug, Male Blades | VITA 46, Center | 112 | All | 0.071" (1.80mm) | 7 | 16 | Through Hole, Right Angle | Press-Fit | - | Board Guide | Gold | 50.0µin (1.27µm) | - |
|
532903-6CONN RCPT HD 180POS PCB |
688 |
|
Datasheet |
HDI (High Density Interconnect) | Tube | Active | - | Receptacle, Female Sockets | High Density (HDC, HDI, HPC) | 180 | All | 0.100" (2.54mm) | 4 | - | Through Hole, Right Angle | Solder | - | Mating Guide | Gold | 30.0µin (0.76µm) | Brown |
|

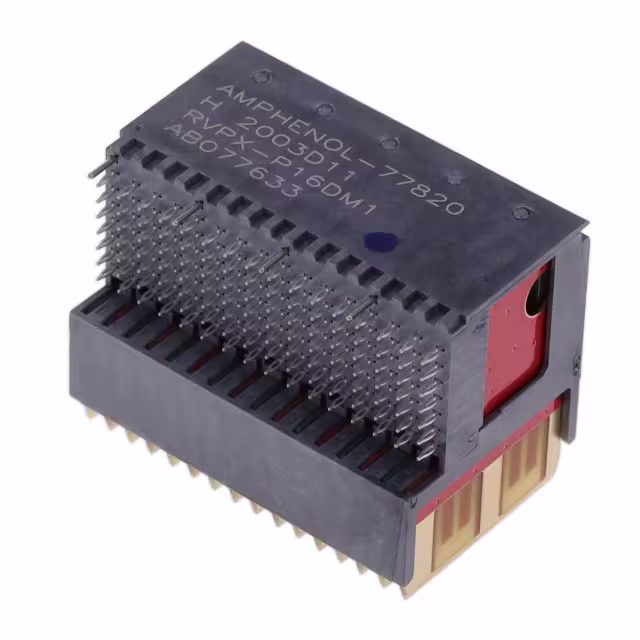

RVPX-P16DM1DAUGHTERCARD, 16 POSITION DIFFER |
9,852 |
|
Datasheet |
R-VPX Evolution | Tray | Active | Daughtercard | Plug, Male Blades | VITA 46, Center | 112 | All | 0.071" (1.80mm) | 7 | 16 | Through Hole, Right Angle | Press-Fit | - | Board Guide | Gold | 50.0µin (1.27µm) | - |
|
5532903-7CONN RCPT HD 200POS PCB |
930 |
|
Datasheet |
HDI (High Density Interconnect) | Tube | Active | - | Receptacle, Female Sockets | High Density (HDC, HDI, HPC) | 200 | All | 0.100" (2.54mm) | 4 | - | Through Hole, Right Angle | Solder | - | Mating Guide | Gold | 30.0µin (0.76µm) | Brown |
|
WG160PR9SYRECTANGULAR PCB CONNECTORS (0.10 |
8,500 |
|
Datasheet |
W | Bag | Active | - | Plug, Male Pins | - | 160 | All | 0.100" (2.54mm) | 3 | - | Through Hole, Right Angle | Solder | - | Mating Guide, Mounting Flange | Gold | - | - |
|

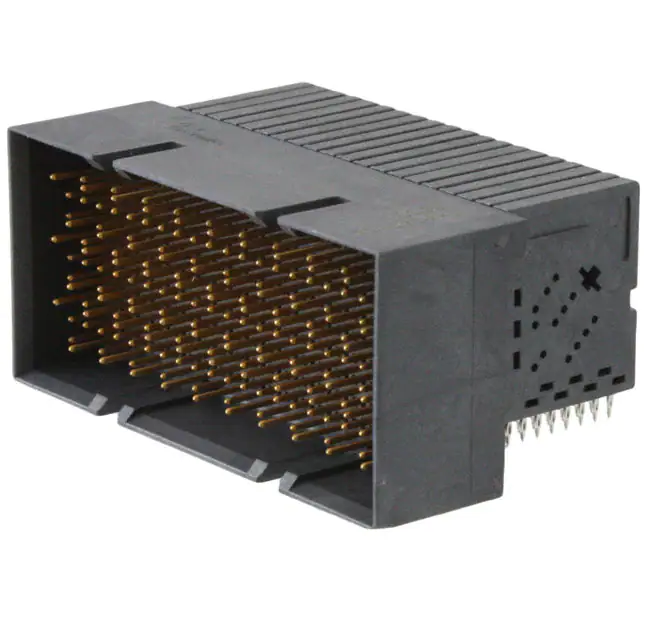

2102319-1CONN HEADER 180POS EDGE MNT |
2,790 |
|
Datasheet |
Fortis Zd | Tube | Active | Daughtercard | Header, Male Pins | - | 180 | All | - | 9 | 20 | Board Edge, Through Hole, Right Angle | Press-Fit | - | Shielded | Gold | 50.0µin (1.27µm) | Black |
|
74741-101LFCONN HEADER 30POS PCB |
4,392 |
|
Datasheet |
Metral® | Tube | Active | - | Header, Male Pins | - | 30 | All | 0.079" (2.00mm) | 5 | - | Through Hole | Solder | - | Board Guide | Gold | 30.0µin (0.76µm) | Natural, White |
|
89036-102LFCONN RCPT 48POS EDGE MNT |
2,780 |
|
Datasheet |
Metral® | Bulk | Active | - | Receptacle, Female Sockets | - | 48 | All | 0.079" (2.00mm) | 4 | - | Board Edge, Through Hole, Right Angle | Solder | - | Board Guide, Spacer | Gold | 30.0µin (0.76µm) | Natural |
|
85863-102LFCONN RCPT 30POS EDGE MNT |
1,588 |
|
Datasheet |
Metral® | Tube | Active | - | Receptacle, Female Sockets | - | 30 | All | 0.079" (2.00mm) | 5 | - | Board Edge, Through Hole, Right Angle | Solder | - | Board Guide, Spacer | Gold | 30.0µin (0.76µm) | Natural |
|

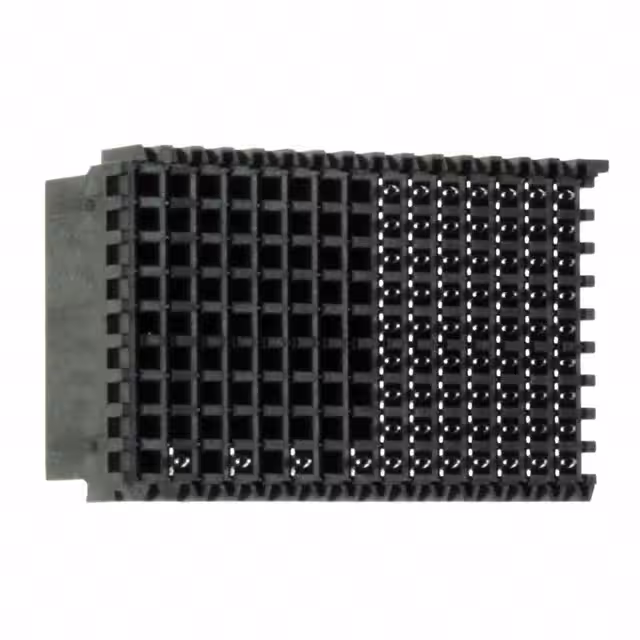

1410965-1CONN RCPT VITA46 144POS PCB |
932 |
|
Datasheet |
MULTIGIG RT2 | Tube | Active | Backplane | Receptacle, Female Blade Sockets | VITA 46, Center | 144 | All | 0.071" (1.80mm) | 9 | 16 | Through Hole | Press-Fit | - | - | Gold | 50.0µin (1.27µm) | Black |
