Specialized
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Connector Usage | Connector Type | Connector Style | Number of Positions | Number of Positions Loaded | Pitch | Number of Rows | Number of Columns | Mounting Type | Termination | Contact Layout, Typical | Features | Contact Finish | Contact Finish Thickness | Color | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
10123359-101LFCONN HDR HIGH SPEED 120POS PCB |
1,832 |
|
Datasheet |
Airmax VS2™ | Tube | Active | Daughtercard | Header, Male Pins | High Speed | 120 | All | - | 12 | 10 | Through Hole | Press-Fit | - | Protective Cover | Gold | - | Black |
|
WTB10PR7JRECTANGULAR PCB CONNECTORS (0.10 |
210 |
|
Datasheet |
W | Bag | Active | - | Plug, Male Pins | - | 10 | All | 0.100" (2.54mm) | 2 | 5 | Through Hole, Right Angle | Solder | - | Mating Guide, Mounting Flange | Gold | - | - |
|
5223008-4CONN RCPT FUTUREBUS 120P EDGE MT |
2,870 |
|
Datasheet |
Z-PACK | Tube | Active | - | Receptacle, Female Sockets | Futurebus | 120 | All | 0.079" (2.00mm) | 5 | - | Board Edge, Through Hole, Right Angle | Press-Fit | - | Spacer | Gold | - | Natural |
|
10116602-101LFCONN HDR HIGH SPEED 150POS PCB |
1,172 |
|
Datasheet |
Airmax VSe® | Tube | Active | Daughtercard | Header, Male Pins | High Speed | 150 | All | 0.055" (1.40mm) | - | 10 | Through Hole | Press-Fit | - | - | Gold | - | Black |
|
RVPX-J08EM1BACKPLANE, 8 POSITION, LEFT END, |
326 |
|
Datasheet |
R-VPX Evolution | Tray | Active | Backplane | Receptacle, Female Blade Sockets | VITA 46, Left End | 72 | All | 0.071" (1.80mm) | 9 | 8 | Through Hole | Press-Fit | - | Board Guide | Gold | 50.0µin (1.27µm) | - |
|
6469083-3CONN HEADER HIGH SPEED 60POS PCB |
534 |
|
Datasheet |
Z-PACK HM-Zd | Tube | Active | Backplane | Header, Male Pins | High Speed | 60 | All | 0.098" (2.50mm) | 6 | 10 | Through Hole | Press-Fit | - | - | Gold | 50.0µin (1.27µm) | - |
|
5536511-4CONN RCPT FUTUREBUS 192P EDGE MT |
240 |
|
Datasheet |
Z-PACK | Tube | Active | - | Receptacle, Female Sockets | Futurebus | 192 | All | 0.079" (2.00mm) | 4 | - | Board Edge, Through Hole, Right Angle | Press-Fit | - | Spacer | Gold | - | Natural |
|
10122655-101LFCONN RCPT HI SPEED 120P EDGE MT |
284 |
|
Datasheet |
Airmax VS2™ | Tube | Active | Daughtercard | Receptacle, Female Sockets | High Speed | 120 | All | 0.079" (2.00mm) | - | 10 | Board Edge, Through Hole, Right Angle | Press-Fit | - | - | Gold | - | Natural |
|

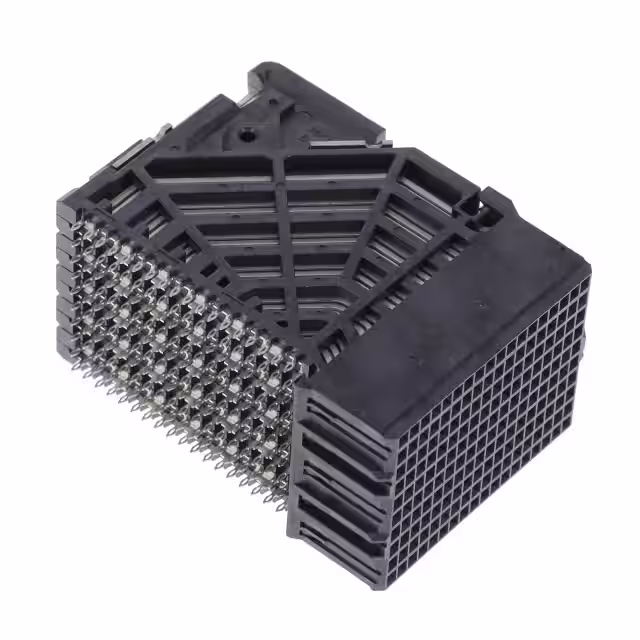

0761501010CONN RCPT IMPACT 180POS EDGE MNT |
500 |
|
Datasheet |
Impact 76150 | Tray | Active | - | Receptacle, Female Sockets | Impact | 180 | All | - | 18 | 10 | Board Edge, Through Hole, Right Angle | Press-Fit | 60 Differential Pairs | - | Gold | 30.0µin (0.76µm) | Black |
|
1375800-1CONN NON-STKTHR PC/104+ 120P PCB |
578 |
|
Datasheet |
AMPMODU | Bulk | Active | - | Non-Stackthrough, Unkeyed (PC/104) | PC/104 Plus | 120 | All | 0.079" (2.00mm) | 4 | - | Through Hole | Press-Fit | - | - | Gold | 15.0µin (0.38µm) | Black |
|
1721860009ENERGETIC VT RCPT ASSY 6P |
382 |
|
Datasheet |
EXTreme Energetic 172186 | Tray | Active | - | Receptacle, Female Blade Sockets | Power | 6 | All | 0.301" (7.65mm) | 1 | 6 | Through Hole, Right Angle | Press-Fit | 6 Power | - | Gold | 30.0µin (0.76µm) | Black |
|

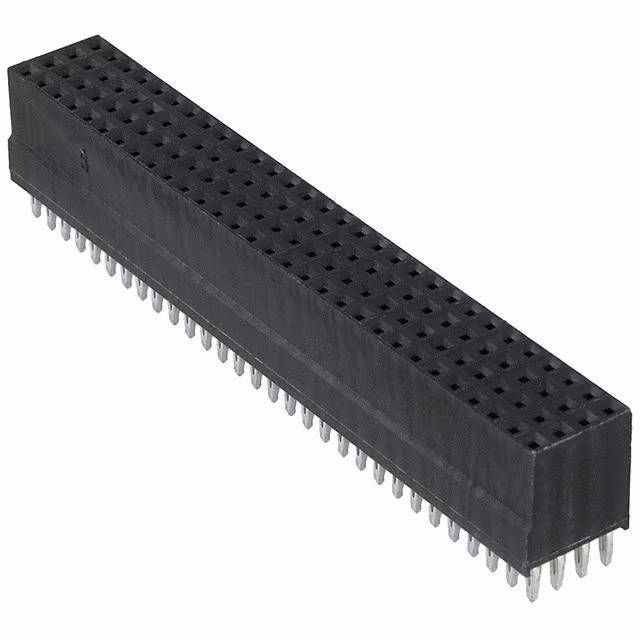

1375800-4CONN NON-STKTHR PC/104+ 120P PCB |
380 |
|
Datasheet |
AMPMODU | Bulk | Active | - | Non-Stackthrough, Unkeyed (PC/104) | PC/104 Plus | 120 | All | 0.079" (2.00mm) | 4 | - | Through Hole | Press-Fit | - | - | Gold | 15.0µin (0.38µm) | Black |
|

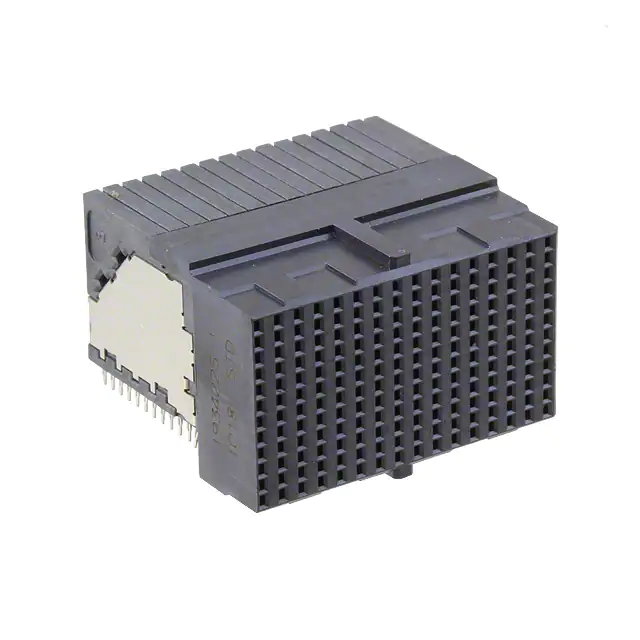

1934225-1CONN RCPT HD 192POS EDGE MNT |
396 |
|
Datasheet |
Z-PACK TinMan | Tube | Active | Coplanar, Daughtercard | Receptacle, Female Sockets | High Speed | 192 | All | 0.075" (1.90mm) | 12 | 16 | Board Edge, Through Hole, Right Angle | Press-Fit | - | - | Gold | 30.0µin (0.76µm) | Black |
|

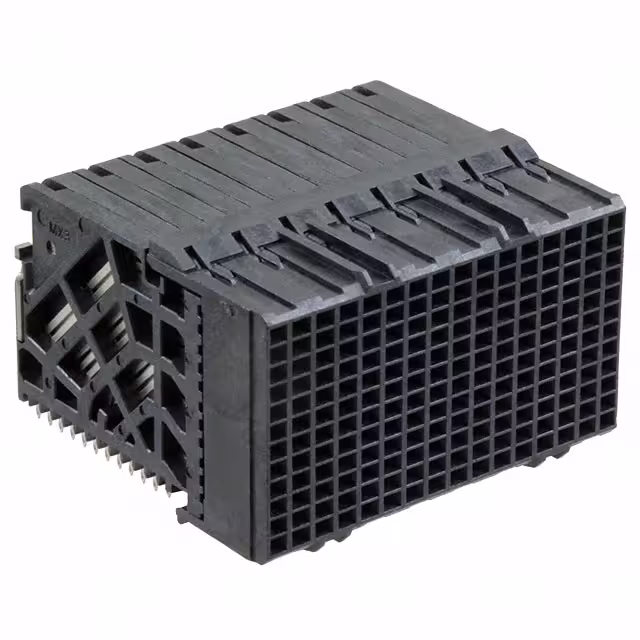

0761601026CONN RCPT IMPACT 192POS EDGE MNT |
268 |
|
Datasheet |
Impact 76160 | Tray | Active | - | Receptacle, Female Sockets | Impact | 192 | All | 0.053" (1.35mm) | 12 | 16 | Board Edge, Through Hole, Right Angle | Press-Fit | 64 Differential Pairs | Board Guide | Gold | 30.0µin (0.76µm) | Black |
|
10115913-101LFCONN RCPT HI SPEED 150P EDGE MT |
634 |
|
Datasheet |
Airmax VSe® | Tube | Active | Daughtercard | Receptacle, Female Sockets | High Speed | 150 | All | 0.055" (1.40mm) | - | 10 | Board Edge, Through Hole, Right Angle | Press-Fit | - | - | Gold | - | Natural |
|
2102442-1CONN RCPT MULTI-BEAM 2POS PCB |
590 |
|
Datasheet |
MULTI-BEAM XL | Tube | Active | - | Receptacle, Female Blade Sockets | Multi-Beam | 2 | All | - | - | - | Through Hole | Press-Fit | 2 Power | - | Gold | 30.0µin (0.76µm) | Black |
|
1934229-1CONN RCPT HD 144POS EDGE MNT |
410 |
|
Datasheet |
Z-PACK TinMan | Tube | Active | Coplanar, Daughtercard | Receptacle, Female Sockets | High Speed | 144 | All | 0.075" (1.90mm) | 9 | 16 | Board Edge, Through Hole, Right Angle | Press-Fit | - | - | Gold | 30.0µin (0.76µm) | Black |
|
516-038-520-302CONN PLUG RACK & PNL 38P PNL MT |
240 |
|
Datasheet |
516 | Bulk | Active | Backplane | Plug, Hermaphroditic Contacts | Rack and Panel | 38 | All | 0.150" (3.81mm) | 9 | 10 | Through Hole | Solder | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Gray |
|
2352497-1BPCONNASSY,CENTER,MULTIGIG BP ST |
3,350 |
|
Datasheet |
- | Tube | Active | Backplane | Receptacle, Female Blade Sockets | VITA 46, Center | 72 | All | 0.071" (1.80mm) | 9 | 8 | Through Hole | Press-Fit | - | - | Tin | 50.0µin (1.27µm) | Black |
|
2332817-1VERT RCPT LEFT END HALF MULTIGIG |
518 |
|
Datasheet |
MULTIGIG RT 3 | Tube | Active | Daughtercard | Receptacle, Female Blade Sockets | VITA 46, Half, Left End | 144 | All | 0.071" (1.80mm) | 9 | 16 | Through Hole | Press-Fit | - | Board Guide | Gold | 50.0µin (1.27µm) | Black |
