| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Connector Usage | Connector Type | Connector Style | Number of Positions | Number of Positions Loaded | Pitch | Number of Rows | Number of Columns | Mounting Type | Termination | Contact Layout, Typical | Features | Contact Finish | Contact Finish Thickness | Color | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1714003020CONN RCPT IMPEL 120POS PCB |
3,662 |
|
Datasheet |
Impel 171400 | Tray | Active | Coplanar, Daughtercard | Receptacle, Female Sockets | Impel, Guide Left | 120 | All | 0.075" (1.90mm) | 12 | 10 | Through Hole, Right Angle | Press-Fit | 60 Differential Pairs | - | Gold | 30.0µin (0.76µm) | Black |
|
MMB25-044CONN PLUG RACK & PANEL 44P PCB |
4,798 |
|
Datasheet |
MM22 | Bulk | Active | - | Plug, Male Pins | Rack and Panel | 44 | All | - | 4 | - | Through Hole | Solder | - | - | Gold | 50.0µin (1.27µm) | Green |
|
519-036-501-416519 SERIES RACK & PANEL CONNECTO |
3,006 |
|
Datasheet |
519 | Bulk | Active | Backplane | Receptacle, Hermaphroditic Contacts | Rack and Panel | 36 | All | 0.150" (3.81mm) | 5 | 9 | Free Hanging (In-Line) | Solder | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Gray |
|
519-036-500-416519 SERIES RACK & PANEL CONNECTO |
6,636 |
|
Datasheet |
519 | Bulk | Active | Backplane | Receptacle, Hermaphroditic Contacts | Rack and Panel | 36 | All | 0.150" (3.81mm) | 5 | 9 | Free Hanging (In-Line) | Solder Eyelet(s) | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Gray |
|
519-036-501-426519 SERIES RACK & PANEL CONNECTO |
6,162 |
|
Datasheet |
519 | Bulk | Active | Backplane | Receptacle, Hermaphroditic Contacts | Rack and Panel | 36 | All | 0.150" (3.81mm) | 5 | 9 | Free Hanging (In-Line) | Solder | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Gray |
|
519-036-520-426519 SERIES RACK & PANEL CONNECTO |
8,908 |
|
Datasheet |
519 | Bulk | Active | Backplane | Receptacle, Hermaphroditic Contacts | Rack and Panel | 36 | All | 0.150" (3.81mm) | 5 | 9 | Free Hanging (In-Line) | Solder | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Gray |
|
516-038-501-416516 SERIES RACK & PANEL CONNECTO |
8,054 |
|
Datasheet |
516 | Bulk | Active | Backplane | Receptacle, Hermaphroditic Contacts | Rack and Panel | 38 | All | 0.150" (3.81mm) | 9 | 10 | Free Hanging (In-Line) | Solder | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Gray |
|
516-038-500-262516 SERIES RACK & PANEL CONNECTO |
3,544 |
|
Datasheet |
516 | Bulk | Active | Backplane | Receptacle, Hermaphroditic Contacts | Rack and Panel | 38 | All | 0.150" (3.81mm) | 9 | 10 | Free Hanging (In-Line) | Solder Eyelet(s) | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Green |
|
516-038-500-252516 SERIES RACK & PANEL CONNECTO |
7,562 |
|
Datasheet |
516 | Bulk | Active | Backplane | Receptacle, Hermaphroditic Contacts | Rack and Panel | 38 | All | 0.150" (3.81mm) | 9 | 10 | Free Hanging (In-Line) | Solder Eyelet(s) | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Green |
|
516-038-501-662516 SERIES RACK & PANEL CONNECTO |
9,178 |
|
Datasheet |
516 | Bulk | Active | Backplane | Receptacle, Hermaphroditic Contacts | Rack and Panel | 38 | All | 0.150" (3.81mm) | 9 | 10 | Free Hanging (In-Line) | Solder | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Green |
|
|
532434-4CONN RCPT HD 140POS PCB |
5,202 |
|
Datasheet |
HDI (High Density Interconnect) | Tube | Active | - | Receptacle, Female Sockets | High Density (HDC, HDI, HPC) | 140 | All | 0.100" (2.54mm) | 4 | - | Through Hole, Right Angle | Solder | - | Mating Guide | Gold | 30.0µin (0.76µm) | Natural |
|
|
MMA25-0141S1CONN PLG RACK&PNL 14P FREE HANG |
4,482 |
|
Datasheet |
MM22 | Bulk | Active | - | Plug, Male Pins | Rack and Panel | 14 | All | - | 3 | - | Free Hanging (In-Line) | Solder Cup | - | Screwlocks | Gold | 50.0µin (1.27µm) | Green |
|
|
MMA25-0341P1CONN PLUG RACK & PNL 34P PNL MT |
4,802 |
|
Datasheet |
MM22 | Bulk | Active | - | Plug, Male Pins | Rack and Panel | 34 | All | - | 4 | - | Panel Mount | Solder Cup | - | Screwlocks | Gold | 50.0µin (1.27µm) | Green |
|
|
MMH25-0091D1CONN RCPT RACK & PANEL 9P PNL MT |
8,562 |
|
Datasheet |
MM22 | Bulk | Active | - | Receptacle, Female Sockets | Rack and Panel | 9 | All | - | 2 | - | Panel Mount, Through Hole | Solder | - | Fixed Guides | Gold | 50.0µin (1.27µm) | Green |
|
519-036-541-312519 SERIES RACK & PANEL CONNECTO |
2,412 |
|
Datasheet |
519 | Bulk | Active | Backplane | Plug, Hermaphroditic Contacts | Rack and Panel | 36 | All | 0.150" (3.81mm) | 5 | 9 | Free Hanging (In-Line) | Wire Wrap | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Gray |
|

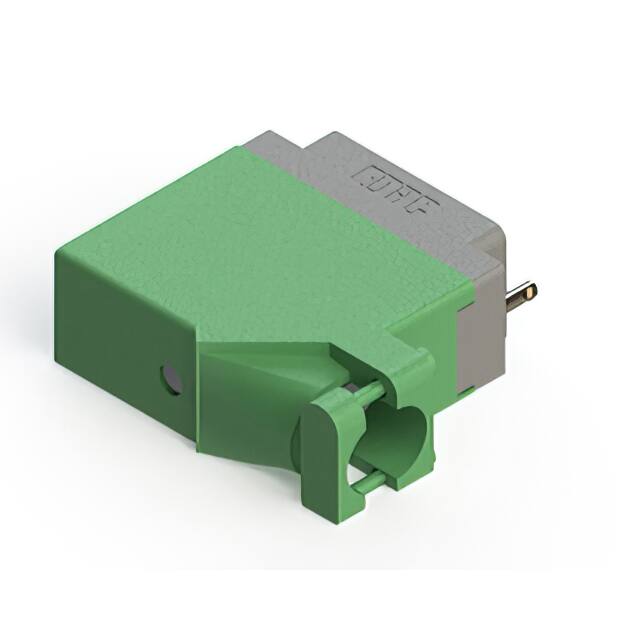

519-036-541-322519 SERIES RACK & PANEL CONNECTO |
8,370 |
|
Datasheet |
519 | Bulk | Active | Backplane | Plug, Hermaphroditic Contacts | Rack and Panel | 36 | All | 0.150" (3.81mm) | 5 | 9 | Free Hanging (In-Line) | Wire Wrap | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Gray |
|
519-036-542-312519 SERIES RACK & PANEL CONNECTO |
8,616 |
|
Datasheet |
519 | Bulk | Active | Backplane | Plug, Hermaphroditic Contacts | Rack and Panel | 36 | All | 0.150" (3.81mm) | 5 | 9 | Free Hanging (In-Line) | Wire Wrap | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Gray |
|
519-036-542-322519 SERIES RACK & PANEL CONNECTO |
7,972 |
|
Datasheet |
519 | Bulk | Active | Backplane | Plug, Hermaphroditic Contacts | Rack and Panel | 36 | All | 0.150" (3.81mm) | 5 | 9 | Free Hanging (In-Line) | Wire Wrap | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Gray |
|
519-036-540-312519 SERIES RACK & PANEL CONNECTO |
4,014 |
|
Datasheet |
519 | Bulk | Active | Backplane | Plug, Hermaphroditic Contacts | Rack and Panel | 36 | All | 0.150" (3.81mm) | 5 | 9 | Free Hanging (In-Line) | Wire Wrap | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Gray |
|
3P02-2002-ESCONN RCPT COMPACT PCI 47POS PCB |
2,154 |
|
- |
3P02 | Tube | Obsolete | Backplane | Receptacle, Female Sockets | CompactPCI® | 47 | All | - | - | - | Through Hole | Solder | 24 Signal, 23 Power | - | Gold | 3.00µin (0.076µm) | - |
