| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Connector Usage | Connector Type | Connector Style | Number of Positions | Number of Positions Loaded | Pitch | Number of Rows | Number of Columns | Mounting Type | Termination | Contact Layout, Typical | Features | Contact Finish | Contact Finish Thickness | Color | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
516-020-501-356516 SERIES RACK & PANEL CONNECTO |
6,840 |
|
Datasheet |
516 | Bulk | Active | Backplane | Plug, Hermaphroditic Contacts | Rack and Panel | 20 | All | 0.150" (3.81mm) | 4 | 10 | Free Hanging (In-Line) | Solder | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Gray |
|
519-014-501-356519 SERIES RACK & PANEL CONNECTO |
4,654 |
|
Datasheet |
519 | Bulk | Active | Backplane | Plug, Hermaphroditic Contacts | Rack and Panel | 14 | All | 0.150" (3.81mm) | 3 | 6 | Free Hanging (In-Line) | Solder | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Gray |
|
519-014-520-366519 SERIES RACK & PANEL CONNECTO |
8,748 |
|
Datasheet |
519 | Bulk | Active | Backplane | Plug, Hermaphroditic Contacts | Rack and Panel | 14 | All | 0.150" (3.81mm) | 3 | 6 | Free Hanging (In-Line) | Solder | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Gray |
|
516-020-501-556516 SERIES RACK & PANEL CONNECTO |
3,780 |
|
Datasheet |
516 | Bulk | Active | Backplane | Plug, Hermaphroditic Contacts | Rack and Panel | 20 | All | 0.150" (3.81mm) | 4 | 10 | Free Hanging (In-Line) | Solder | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Green |
|
516-120-501-100516 SERIES RACK & PANEL CONNECTO |
6,660 |
|
Datasheet |
516 | Bulk | Active | Backplane | Plug, Hermaphroditic Contacts | Rack and Panel | 120 | All | 0.150" (3.81mm) | 17 | 15 | Panel Mount | Solder | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Green |
|
516-120-501-300516 SERIES RACK & PANEL CONNECTO |
3,960 |
|
Datasheet |
516 | Bulk | Active | Backplane | Plug, Hermaphroditic Contacts | Rack and Panel | 120 | All | 0.150" (3.81mm) | 17 | 15 | Panel Mount | Solder | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Gray |
|
MMB23-0441R1CONN PLG RACK&PNL 44P FREE HANG |
5,822 |
|
Datasheet |
MM22 | Bulk | Active | - | Plug, Male Pins | Rack and Panel | 44 | All | - | 4 | - | Free Hanging (In-Line) | Solder | - | Screwlocks | Gold | 30.0µin (0.76µm) | Green |
|
|
MMA25-0341D1CONN PLUG RACK & PNL 34P PNL MT |
7,230 |
|
Datasheet |
MM22 | Bulk | Active | - | Plug, Male Pins | Rack and Panel | 34 | All | - | 4 | - | Panel Mount | Solder Cup | - | Fixed Guides | Gold | 50.0µin (1.27µm) | Green |
|
|
2187462-1CONN RCPT 144POS EDGE MNT |
8,688 |
|
Datasheet |
STRADA Whisper | Tube | Active | - | Receptacle, Female Sockets | - | 144 | - | - | 12 | 6 | Board Edge, Through Hole, Right Angle | Press-Fit | - | - | - | - | Black |
|
519-036-501-325519 SERIES RACK & PANEL CONNECTO |
3,750 |
|
Datasheet |
519 | Bulk | Active | Backplane | Plug, Hermaphroditic Contacts | Rack and Panel | 36 | All | 0.150" (3.81mm) | 5 | 9 | Free Hanging (In-Line) | Solder | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Gray |
|
516-038-501-325516 SERIES RACK & PANEL CONNECTO |
6,686 |
|
Datasheet |
516 | Bulk | Active | Backplane | Plug, Hermaphroditic Contacts | Rack and Panel | 38 | All | 0.150" (3.81mm) | 9 | 10 | Free Hanging (In-Line) | Solder | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Gray |
|
519-036-500-315519 SERIES RACK & PANEL CONNECTO |
4,186 |
|
Datasheet |
519 | Bulk | Active | Backplane | Plug, Hermaphroditic Contacts | Rack and Panel | 36 | All | 0.150" (3.81mm) | 5 | 9 | Free Hanging (In-Line) | Solder Eyelet(s) | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Gray |
|

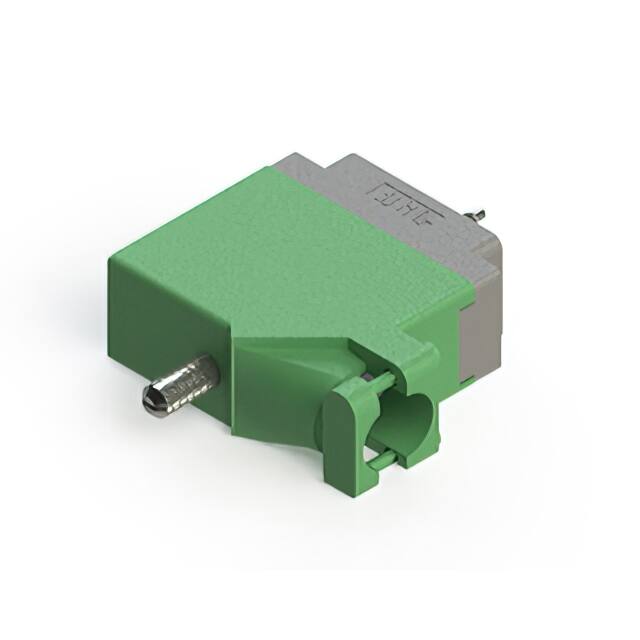

519-036-500-325519 SERIES RACK & PANEL CONNECTO |
6,866 |
|
Datasheet |
519 | Bulk | Active | Backplane | Plug, Hermaphroditic Contacts | Rack and Panel | 36 | All | 0.150" (3.81mm) | 5 | 9 | Free Hanging (In-Line) | Solder Eyelet(s) | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Gray |
|
516-038-501-515516 SERIES RACK & PANEL CONNECTO |
3,778 |
|
Datasheet |
516 | Bulk | Active | Backplane | Plug, Hermaphroditic Contacts | Rack and Panel | 38 | All | 0.150" (3.81mm) | 9 | 10 | Free Hanging (In-Line) | Solder | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Green |
|
519-036-520-325519 SERIES RACK & PANEL CONNECTO |
4,290 |
|
Datasheet |
519 | Bulk | Active | Backplane | Plug, Hermaphroditic Contacts | Rack and Panel | 36 | All | 0.150" (3.81mm) | 5 | 9 | Free Hanging (In-Line) | Solder | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Gray |
|
516-038-501-525516 SERIES RACK & PANEL CONNECTO |
8,120 |
|
Datasheet |
516 | Bulk | Active | Backplane | Plug, Hermaphroditic Contacts | Rack and Panel | 38 | All | 0.150" (3.81mm) | 9 | 10 | Free Hanging (In-Line) | Solder | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Green |
|
|
10122708-061001LFAIRMAX |
9,728 |
|
- |
- | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MMH25-0091H1CONN RCPT RACK & PANEL 9P PNL MT |
6,278 |
|
Datasheet |
MM22 | Bulk | Active | - | Receptacle, Female Sockets | Rack and Panel | 9 | All | - | 2 | - | Panel Mount, Through Hole | Solder | - | Screwlocks | Gold | 50.0µin (1.27µm) | Green |
|
516-056-501-415516 SERIES RACK & PANEL CONNECTO |
8,208 |
|
Datasheet |
516 | Bulk | Active | Backplane | Receptacle, Hermaphroditic Contacts | Rack and Panel | 56 | All | 0.150" (3.81mm) | 9 | 14 | Free Hanging (In-Line) | Solder | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Gray |
|
516-056-501-225516 SERIES RACK & PANEL CONNECTO |
4,212 |
|
Datasheet |
516 | Bulk | Active | Backplane | Receptacle, Hermaphroditic Contacts | Rack and Panel | 56 | All | 0.150" (3.81mm) | 9 | 14 | Free Hanging (In-Line) | Solder | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Green |
