Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

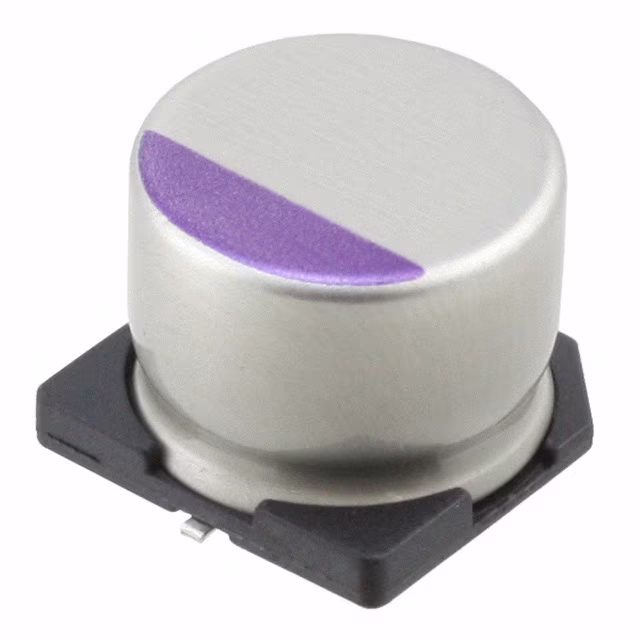

94SVPD476X0035F12CAP ALUM POLY 47UF 20% 35V SMD |
4,524 |
|
Datasheet |
94SVPD | Tape & Reel (TR) | Last Time Buy | Polymer | 47 µF | ±20% | 35 V | 30mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 57.5 mA @ 120 Hz | 1.15 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
A765EB106M1VLAE085CAP ALUM POLY 10UF 20% 35V SMD |
6,868 |
|
Datasheet |
A765 | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 35 V | 85mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 40 mA @ 120 Hz | 800 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
APSA100ELL101MFA5GCAP ALUM POLY 100UF 20% 10V TH |
6,820 |
|
Datasheet |
NPCAP™-PSA | Bulk | Obsolete | Polymer | 100 µF | ±20% | 10 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.82 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.413" (10.50mm) | - | Through Hole |
|
ECG-C0JB220RCAP ALUM POLY 22UF 20% 6.3V SMD |
2,770 |
|
Datasheet |
SP-Cap CB | Tape & Reel (TR) | Obsolete | Polymer | 22 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 1.3 A @ 100 kHz | 90 mOhms | - | 0.311" L x 0.209" W (7.90mm x 5.30mm) | 0.130" (3.30mm) | 0.311" L x 0.209" W (7.90mm x 5.30mm) | Surface Mount |
|
|
ECG-C0JB100RCAP ALUM POLY 10UF 20% 6.3V SMD |
7,244 |
|
Datasheet |
SP-Cap CB | Tape & Reel (TR) | Obsolete | Polymer | 10 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 1 A @ 100 kHz | 130 mOhms | - | 0.311" L x 0.209" W (7.90mm x 5.30mm) | 0.130" (3.30mm) | 0.311" L x 0.209" W (7.90mm x 5.30mm) | Surface Mount |
|
|
ECG-C0JB330RCAP ALUM POLY 33UF 20% 6.3V SMD |
9,916 |
|
Datasheet |
SP-Cap CB | Tape & Reel (TR) | Obsolete | Polymer | 33 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 1.6 A @ 100 kHz | 60 mOhms | - | 0.311" L x 0.209" W (7.90mm x 5.30mm) | 0.130" (3.30mm) | 0.311" L x 0.209" W (7.90mm x 5.30mm) | Surface Mount |
|
|
ECG-C0KB8R2RCAP ALUM POLY 8.2UF 20% 8V SMD |
9,844 |
|
Datasheet |
SP-Cap CB | Tape & Reel (TR) | Obsolete | Polymer | 8.2 µF | ±20% | 8 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 1 A @ 100 kHz | 140 mOhms | - | 0.311" L x 0.209" W (7.90mm x 5.30mm) | 0.130" (3.30mm) | 0.311" L x 0.209" W (7.90mm x 5.30mm) | Surface Mount |
|
|
ECG-C0KB150RCAP ALUM POLY 15UF 20% 8V SMD |
9,472 |
|
Datasheet |
SP-Cap CB | Tape & Reel (TR) | Obsolete | Polymer | 15 µF | ±20% | 8 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 1.3 A @ 100 kHz | 110 mOhms | - | 0.311" L x 0.209" W (7.90mm x 5.30mm) | 0.130" (3.30mm) | 0.311" L x 0.209" W (7.90mm x 5.30mm) | Surface Mount |
|
|
ECG-C1CB4R7RCAP ALUM POLY 4.7UF 20% 16V SMD |
7,834 |
|
Datasheet |
SP-Cap CB | Tape & Reel (TR) | Obsolete | Polymer | 4.7 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 1 A @ 100 kHz | 180 mOhms | - | 0.311" L x 0.209" W (7.90mm x 5.30mm) | 0.130" (3.30mm) | 0.311" L x 0.209" W (7.90mm x 5.30mm) | Surface Mount |
|
|
ECG-C1CB6R8RCAP ALUM POLY 6.8UF 20% 16V SMD |
8,754 |
|
Datasheet |
SP-Cap CB | Tape & Reel (TR) | Obsolete | Polymer | 6.8 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 1 A @ 100 kHz | 150 mOhms | - | 0.311" L x 0.209" W (7.90mm x 5.30mm) | 0.130" (3.30mm) | 0.311" L x 0.209" W (7.90mm x 5.30mm) | Surface Mount |
|
EEF-CD0J100RCAP ALUM POLY 10UF 20% 6.3V SMD |
2,264 |
|
Datasheet |
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 10 µF | ±20% | 6.3 V | 55mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-CD0J220RCAP ALUM POLY 22UF 20% 6.3V SMD |
7,062 |
|
Datasheet |
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 22 µF | ±20% | 6.3 V | 40mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-CD0J330RCAP ALUM POLY 33UF 20% 6.3V SMD |
2,520 |
|
Datasheet |
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 33 µF | ±20% | 6.3 V | 28mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-CD0J470RCAP ALUM POLY 47UF 20% 6.3V SMD |
5,412 |
|
Datasheet |
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 47 µF | ±20% | 6.3 V | 18mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-CD0K8R2RCAP ALUM POLY 8.2UF 20% 8V SMD |
9,506 |
|
Datasheet |
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 8.2 µF | ±20% | 8 V | 55mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-CD0K150RCAP ALUM POLY 15UF 20% 8V SMD |
5,296 |
|
Datasheet |
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 15 µF | ±20% | 8 V | 40mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-CD0K220RCAP ALUM POLY 22UF 20% 8V SMD |
3,956 |
|
Datasheet |
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 22 µF | ±20% | 8 V | 28mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-CD0K330RCAP ALUM POLY 33UF 20% 8V SMD |
9,898 |
|
Datasheet |
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 33 µF | ±20% | 8 V | 18mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-CD1B4R7RCAP ALUM POLY 4.7UF 20% 12.5V |
3,622 |
|
Datasheet |
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 4.7 µF | ±20% | 12.5 V | 80mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-CD1B100RCAP ALUM POLY 10UF 20% 12.5V SMD |
2,420 |
|
Datasheet |
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 10 µF | ±20% | 12.5 V | 60mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
