Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PLV2A100MDL1TDCAP ALUM POLY 10UF 20% 100V TH |
7,938 |
|
Datasheet |
PLV | Cut Tape (CT) | Obsolete | Polymer | 10 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.8 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
94SVP686X0020F8CAP ALUM POLY 68UF 20% 20V SMD |
3,622 |
|
Datasheet |
94SVP | Tape & Reel (TR) | Last Time Buy | Polymer | 68 µF | ±20% | 20 V | 45mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
MAL218197603E3CAP ALUM POLY 270UF 20% 25V SMD |
8,302 |
|
Datasheet |
181 CPL | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.7 A @ 100 kHz | 27 mOhms | - | 0.394" Dia (10.00mm) | 0.496" (12.60mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) | Surface Mount |
|

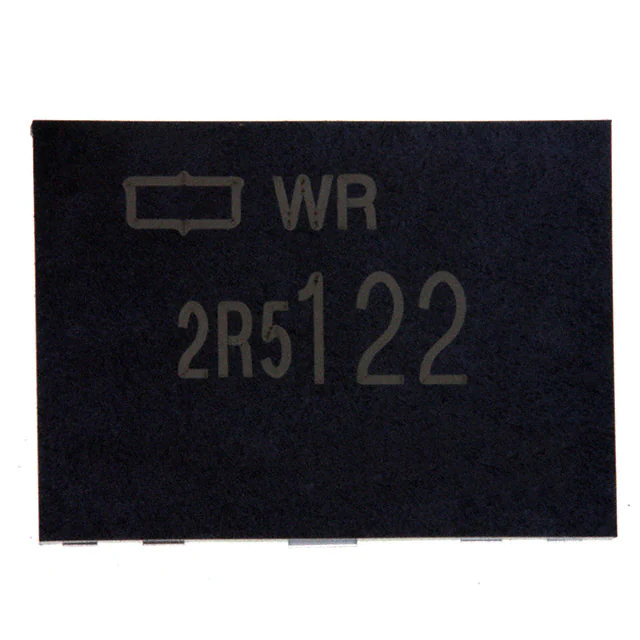

AWR-2R5SRB122MF25SCAP ALUM POLY 1200UF 20% 2.5V |
4,642 |
|
- |
Proadlizer® WR | Tape & Reel (TR) | Obsolete | Polymer | 1200 µF | ±20% | 2.5 V | 2mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.658" L x 0.477" W (16.70mm x 12.10mm) | 0.098" (2.50mm) | 0.657" L x 0.476" W (16.70mm x 12.10mm) | Surface Mount |
|
UPE0J821MP26308CAP ALUM POLY 820UF 20% 6.3V TH |
4,308 |
|
Datasheet |
UPE | Active | Polymer | 820 µF | ±20% | 6.3 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.7 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole | |
|
|
UPC7H501MP25509CAP ALUM POLY 500UF 20% 7.5V TH |
5,616 |
|
Datasheet |
UPC | Active | Polymer | 500 µF | ±20% | 7.5 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.1 A @ 100 kHz | - | 0.098" (2.50mm) | 0.216" Dia (5.50mm) | 0.354" (9.00mm) | - | Through Hole | |
|
A720V226M035APE040CAP ALUM POLY 22UF 20% 35V SMD |
5,158 |
|
Datasheet |
AO-Cap A720 | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 35 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | - | Surface Mount |
|
MAL218297702E3CAP ALUM HYBRID 33UF 20% 80V SMD |
6,946 |
|
Datasheet |
182 CPHZ | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 80 V | 36mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | Automotive | - | - | 1.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | Surface Mount |
|
875075661007CAP ALUM POLY 180UF 20% 35V SMD |
9,252 |
|
Datasheet |
WCAP-PSLC | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 35 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 205 mA @ 120 Hz | 4.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
B40640B8707M001CAP ALUM HYBRID 700UF 20% 63V TH |
7,420 |
|
Datasheet |
B40640 | Tray | Active | Hybrid | 700 µF | ±20% | 63 V | 3.9mOhm | 4000 Hrs @ 125°C | -55°C ~ 150°C | AEC-Q200 | Automotive | High Vibration | - | 14.8 A @ 20 kHz | - | - | 0.709" Dia x 0.984" L (18.00mm x 25.00mm) | - | - | Through Hole |
|
|
B40650A8757M001CAP ALUM HYBRID 750UF 20% 63V TH |
7,348 |
|
Datasheet |
B40650 | Tray | Active | Hybrid | 750 µF | ±20% | 63 V | 4.4mOhm | 10000 Hrs @ 105°C | -55°C ~ 135°C | - | General Purpose | - | - | 18 A @ 100 kHz | 5.9 mOhms | - | 0.709" Dia x 0.984" L (18.00mm x 25.00mm) | - | - | Through Hole |
|
|
MAL218297005E3CAP ALUMHYB 150UF 20% 35V SMD |
4,482 |
|
Datasheet |
182 CPHZ | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 35 V | 27mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | Automotive | - | - | 2.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.425" (10.80mm) | 0.315" L x 0.315" W (8.00mm x 8.00mm) | Surface Mount |
|
|
MAL218297701E3CAP ALUM HYBRID 22UF 20% 80V SMD |
6,366 |
|
Datasheet |
182 CPHZ | Tape & Reel (TR) | Active | Hybrid | 22 µF | ±20% | 80 V | 45mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | Automotive | - | - | 1.55 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.425" (10.80mm) | 0.315" L x 0.315" W (8.00mm x 8.00mm) | Surface Mount |
|
MAL218497806E3CAP ALUM POLY 47UF 20% 63V SMD |
8,386 |
|
Datasheet |
184 CPNS | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 63 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | Automotive | - | - | 2.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | Surface Mount |
|
|
B40640B8727M011CAP ALUM HYBRID 720UF 20% 63V TH |
4,834 |
|
Datasheet |
B40640 | Tray | Active | Hybrid | 720 µF | ±20% | 63 V | 3.9mOhm | 4000 Hrs @ 125°C | -55°C ~ 150°C | AEC-Q200 | Automotive | High Vibration | - | 14.9 A @ 20 kHz | - | - | 0.630" Dia x 1.181" L (16.00mm x 30.00mm) | - | - | Through Hole |
|
|
94SVP567X0004E12CAP ALUM POLY 560UF 20% 4V SMD |
5,014 |
|
Datasheet |
94SVP | Tape & Reel (TR) | Last Time Buy | Polymer | 560 µF | ±20% | 4 V | 16mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.08 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
MAL218297804E3CAP ALUM HYBRID 56UF 20% 63V SMD |
8,570 |
|
Datasheet |
182 CPHZ | Tape & Reel (TR) | Active | Hybrid | 56 µF | ±20% | 63 V | 30mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | Automotive | - | - | 1.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | Surface Mount |
|
|
B40650A8797M001CAP ALUM HYBRID 790UF 20% 63V TH |
9,804 |
|
Datasheet |
B40650 | Tray | Active | Hybrid | 790 µF | ±20% | 63 V | 4mOhm | 10000 Hrs @ 105°C | -55°C ~ 135°C | - | General Purpose | - | - | 19.5 A @ 100 kHz | 4.4 mOhms | - | 0.630" Dia x 1.181" L (16.00mm x 30.00mm) | - | - | Through Hole |
|
|
B40640B8727M003CAP ALUM HYBRID 720UF 20% 63V TH |
5,316 |
|
Datasheet |
B40640 | Tape & Reel (TR) | Active | Hybrid | 720 µF | ±20% | 63 V | 3.9mOhm | 4000 Hrs @ 125°C | -55°C ~ 150°C | AEC-Q200 | Automotive | High Vibration | - | 14.9 A @ 20 kHz | - | - | 0.630" Dia x 1.181" L (16.00mm x 30.00mm) | - | - | Through Hole |
|
PLV2A180MDL1TDCAP ALUM POLY 18UF 20% 100V TH |
3,166 |
|
Datasheet |
PLV | Cut Tape (CT) | Obsolete | Polymer | 18 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.2 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
