Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCR0J272MCL1GSCAP ALUM POLY 2700UF 20% 6.3V |
5,604 |
|
Datasheet |
PCR | Tape & Reel (TR) | Obsolete | Polymer | 2700 µF | ±20% | 6.3 V | 11mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 4.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
UPE0E561MPZ0508CAP ALUM POLY 560UF 20% 2.5V TH |
9,334 |
|
Datasheet |
UPE | Active | Polymer | 560 µF | ±20% | 2.5 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.2 A @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.354" (9.00mm) | - | Through Hole | |
|
MAL218397803E3CAP ALUM HYBRID 33UF 20% 63V SMD |
3,862 |
|
Datasheet |
183 CPHT | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 63 V | 40mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | - | 1.1 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.425" (10.80mm) | 0.315" L x 0.315" W (8.00mm x 8.00mm) | Surface Mount |
|
|
MAL218397806E3CAP ALUM HYBRID 22UF 20% 80V SMD |
5,304 |
|
Datasheet |
183 CPHT | Tape & Reel (TR) | Active | Hybrid | 22 µF | ±20% | 80 V | 45mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | - | 1.05 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.425" (10.80mm) | 0.315" L x 0.315" W (8.00mm x 8.00mm) | Surface Mount |
|
PLX1C391MDL1TDCAP ALUM POLY 390UF 20% 16V TH |
4,942 |
|
Datasheet |
PLX | Cut Tape (CT) | Active | Polymer | 390 µF | ±20% | 16 V | 23mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 2.9 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
MAL218497902E3CAP ALUM POLY 10UF 20% 100V SMD |
6,792 |
|
Datasheet |
184 CPNS | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 100 V | 45mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | Automotive | - | - | 1.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.315" L x 0.315" W (8.00mm x 8.00mm) | Surface Mount |
|
MAL218097309E3CAP ALUM POLY 1500UF 20% 6.3V |
9,140 |
|
Datasheet |
180 CPS | Tape & Reel (TR) | Active | Polymer | 1500 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.56 A @ 100 kHz | 10 mOhms | - | 0.394" Dia (10.00mm) | 0.496" (12.60mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) | Surface Mount |
|
|
MAL218097509E3CAP ALUM POLY 470UF 20% 16V SMD |
7,328 |
|
Datasheet |
180 CPS | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.1 A @ 100 kHz | 10 mOhms | - | 0.394" Dia (10.00mm) | 0.496" (12.60mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) | Surface Mount |
|
|
MAL218097203E3CAP ALUM POLY 560UF 20% 20V SMD |
7,216 |
|
Datasheet |
180 CPS | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 20 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.6 A @ 100 kHz | 12 mOhms | - | 0.394" Dia (10.00mm) | 0.496" (12.60mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) | Surface Mount |
|
|
MAL218097603E3CAP ALUM POLY 330UF 20% 25V SMD |
4,098 |
|
Datasheet |
180 CPS | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5 A @ 100 kHz | 14 mOhms | - | 0.394" Dia (10.00mm) | 0.496" (12.60mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) | Surface Mount |
|
A700X477M002ATE007CAP ALUM POLY 470UF 20% 2V SMD |
4,840 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2 V | 7mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 5.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
94SVP157X0010F8CAP ALUM POLY 150UF 20% 10V SMD |
9,908 |
|
Datasheet |
94SVP | Tape & Reel (TR) | Last Time Buy | Polymer | 150 µF | ±20% | 10 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.67 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

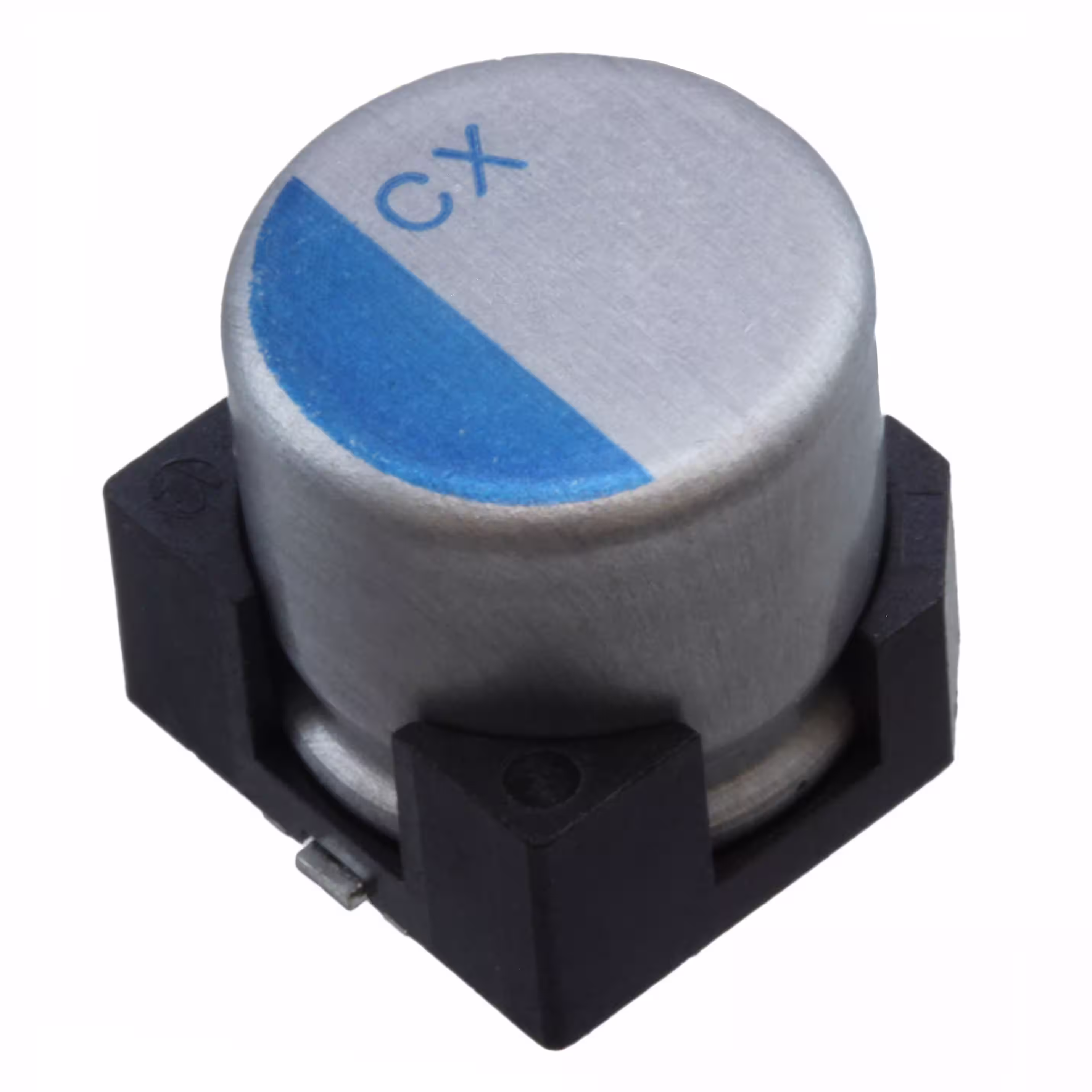

PCX1V680MCS1GSCAP ALUM POLY 68UF 20% 35V SMD |
9,024 |
|
Datasheet |
PCX | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 35 V | 30mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 2.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
94SVP157X0016F8CAP ALUM POLY 150UF 20% 16V SMD |
5,392 |
|
Datasheet |
94SVP | Tape & Reel (TR) | Last Time Buy | Polymer | 150 µF | ±20% | 16 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.67 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
94SVP277X0010F8CAP ALUM POLY 220UF 20% 10V SMD |
5,894 |
|
Datasheet |
94SVP | Tape & Reel (TR) | Last Time Buy | Polymer | 220 µF | ±20% | 10 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.02 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
94SVP337X06R3F8CAP ALUM POLY 330UF 20% 6.3V SMD |
3,296 |
|
Datasheet |
94SVP | Tape & Reel (TR) | Last Time Buy | Polymer | 330 µF | ±20% | 6.3 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PHH225MLP3560QE4CAP ALUM HYB 560UF 10-30% 63V TH |
4,794 |
|
Datasheet |
PHH225 | Bulk | Active | Hybrid | 560 µF | -10%, +30% | 63 V | 92mOhm | 3000 Hrs @ 125°C | -40°C ~ 125°C | - | General Purpose | High Vibration | 8.18 A @ 100 Hz | 40.9 A @ 100 kHz | - | 0.600" (15.24mm) | 0.717" Dia (18.20mm) | 1.445" (36.70mm) | - | Through Hole |
|
|
MAL218397104E3CAP ALUM HYBRID 68UF 20% 50V SMD |
4,088 |
|
Datasheet |
183 CPHT | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 50 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | - | 1.25 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.425" (10.80mm) | 0.315" L x 0.315" W (8.00mm x 8.00mm) | Surface Mount |
|
|
UPE1V101MP30811UCAP ALUM POLY 100UF 20% 35V TH |
4,056 |
|
Datasheet |
UPE | Active | Polymer | 100 µF | ±20% | 35 V | 25mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.89 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
94SVP477X06R3F8CAP ALUM POLY 470UF 20% 6.3V SMD |
6,022 |
|
Datasheet |
94SVP | Tape & Reel (TR) | Last Time Buy | Polymer | 470 µF | ±20% | 6.3 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
