Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PLS0G271MCO8TDCAP ALUM POLY 270UF 20% 4V TH |
8,506 |
|
Datasheet |
PLS | Cut Tape (CT) | Active | Polymer | 270 µF | ±20% | 4 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.8 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole |
|
870055674004CAP ALUM POLY 39UF 20% 35V TH |
7,002 |
|
Datasheet |
WCAP-PTHR | Cut Tape (CT) | Active | Polymer | 39 µF | ±20% | 35 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 125 mA @ 120 Hz | 2.5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
APXG250ARA121MHA0GCAP ALUM POLY 120UF 20% 25V SMD |
7,496 |
|
Datasheet |
NPCAP™-PXG | Tape & Reel (TR) | Obsolete | Polymer | 120 µF | ±20% | 25 V | 22mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.406" (10.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
ECASD41A476M025K00CAP ALUM POLY 47UF 20% 10V SMD |
6,478 |
|
Datasheet |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 47 µF | ±20% | 10 V | 25mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 1.8 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
100SXE18M+TCAP ALUM POLY 18UF 20% 100V TH |
7,896 |
|
Datasheet |
OS-CON™, SXE | Tape & Box (TB) | Active | Polymer | 18 µF | ±20% | 100 V | 30mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 150 mA @ 120 Hz | 3 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
6SW180MXCAP ALUM POLY 180UF 20% 6.3V SMD |
2,046 |
|
Datasheet |
PC-CON, SW | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.114" (2.90mm) | - | Surface Mount |
|
|
P295BJ222M500CL29KCAP ALUM 220UF 20% 16V SMD |
8,548 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
A700D187M2R5AT6070CAP ALUM POLY 180UF 20% 2.5V SMD |
2,602 |
|
- |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 2.5 V | 70mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
A700D157M006ATE018CAP ALUM POLY 150UF 20% 6.3V SMD |
9,366 |
|
- |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 6.3 V | 18mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
A700D566M010AT6070CAP ALUM POLY 56UF 20% 10V SMD |
5,026 |
|
- |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 10 V | 70mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
MPD470M1CD10045RCAP ALUM POLY 47UF 20% 16V SMD |
6,888 |
|
Datasheet |
MPD10 | Case | Active | Polymer | 47 µF | ±20% | 16 V | 45mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 300 mA @ 120 Hz | 3 A @ 100 kHz | 45 mOhms | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.043" (1.10mm) | - | Surface Mount |
|
|
RHA1011820M050BCAP ALUM HYBRID 82UF 20% 50V TH |
3,030 |
|
Datasheet |
RHA | Bulk | Active | Hybrid | 82 µF | ±20% | 50 V | 19mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 260 mA @ 100 Hz | 2.6 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
PCL0G272MCL1GSCAP ALUM POLY 2.7MF 20% 4V SMD |
6,072 |
|
Datasheet |
PCL | Tape & Reel (TR) | Active | Polymer | 2.7 mF | ±20% | 4 V | 11mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 280 mA @ 120 Hz | 5.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.504" (12.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
RCHVK561M1TFK5002BXCAP ALUMHYB 560UF 20% 25V SMD |
3,272 |
|
Datasheet |
HVK | Tape & Reel (TR) | Active | Hybrid | 560 µF | ±20% | 25 V | 18mOhm | 6000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 300 mA @ 120 Hz | 3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) | Surface Mount |
|
|
RAHVK151M1UFK5002EXCAP ALUMHYB 150UF 20% 50V SMD |
4,144 |
|
Datasheet |
HVK | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 50 V | 24mOhm | 6000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 250 mA @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) | Surface Mount |
|
EEF-CD1C8R2RCAP ALUM POLY 8.2UF 20% 16V SMD |
8,910 |
|
Datasheet |
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 8.2 µF | ±20% | 16 V | 45mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 1.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|

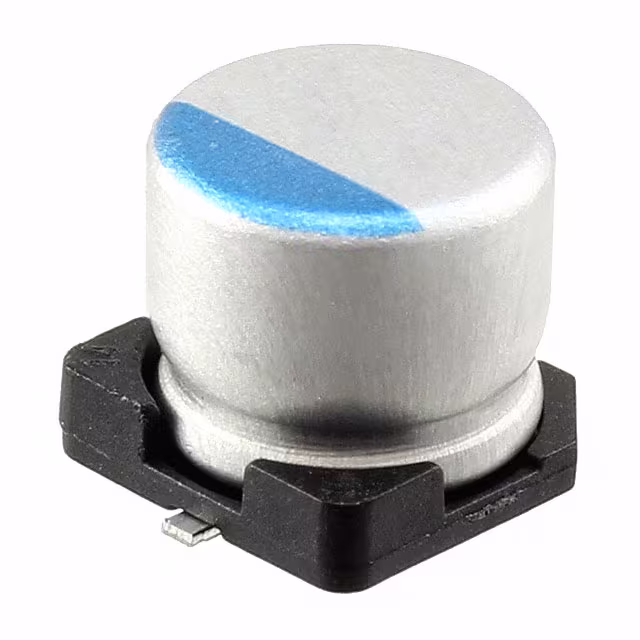

PCR0J331MCL1GSCAP ALUM POLY 330UF 20% 6.3V SMD |
6,116 |
|
Datasheet |
PCR | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | ±20% | 6.3 V | 32mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 1.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
870025374006CAP ALUM POLY 390UF 20% 16V TH |
9,850 |
|
Datasheet |
WCAP-PTG5 | Cut Tape (CT) | Active | Polymer | 390 µF | ±20% | 16 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 250 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
870235174001CAP ALUM POLY 390UF 20% 6.3V TH |
4,906 |
|
Datasheet |
WCAP-PT5H | Cut Tape (CT) | Active | Polymer | 390 µF | ±20% | 6.3 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 305 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
RNL1C182MDS1CAP ALUM POLY 1800UF 20% 16V TH |
8,978 |
|
Datasheet |
FPCAP, RNL | Bulk | Active | Polymer | 1800 µF | ±20% | 16 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 810 mA @ 120 Hz | 8.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole |
