Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL218097404E3CAP ALUM POLY 270UF 20% 10V SMD |
2,536 |
|
Datasheet |
180 CPS | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.22 A @ 100 kHz | 22 mOhms | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount |
|
|
MAL218097505E3CAP ALUM POLY 150UF 20% 16V SMD |
9,356 |
|
Datasheet |
180 CPS | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.22 A @ 100 kHz | 22 mOhms | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount |
|
PCG0E332MCL1GSCAP ALUM POLY 3300UF 20% 2.5V |
5,168 |
|
Datasheet |
PCG | Tape & Reel (TR) | Active | Polymer | 3300 µF | ±20% | 2.5 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 5.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
MAL218497365E3CAP ALUM POLY 1500UF 20% 4V SMD |
3,772 |
|
- |
184 CPNS | Box | Active | Polymer | 1500 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 280 mA @ 120 Hz | 5.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Surface Mount |
|
MAL218397802E3CAP ALUM HYBRID 22UF 20% 63V SMD |
9,362 |
|
Datasheet |
183 CPHT | Box | Active | Hybrid | 22 µF | ±20% | 63 V | 80mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | 90 mA @ 120 Hz | 900 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
PCL1D101MCL1GSCAP ALUM POLY 100UF 20% 20V SMD |
9,488 |
|
Datasheet |
PCL | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 20 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 160 mA @ 120 Hz | 3.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
EEF-SD0E221ERCAP ALUM POLY 220UF 20% 2.5V SMD |
9,362 |
|
- |
SP-Cap SD | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 2.5 V | 7mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
VSG1C271MCB8067F5CAP ALUM POLY 270UF 20% 16V SMD |
8,346 |
|
Datasheet |
VSG | Active | Polymer | 270 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 864 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
2SW470M2.9X7.3CAP ALUM POLY 470UF 20% 2V SMD |
3,648 |
|
Datasheet |
PC-CON, SW | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.114" (2.90mm) | - | Surface Mount |
|
PLE0E102MDO1CAP ALUM POLY 1000UF 20% 2.5V TH |
7,198 |
|
Datasheet |
PLE | Bulk | Not For New Designs | Polymer | 1000 µF | ±20% | 2.5 V | 5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 7.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
PLE0G821MDO1CAP ALUM POLY 820UF 20% 4V TH |
7,046 |
|
Datasheet |
PLE | Bulk | Not For New Designs | Polymer | 820 µF | ±20% | 4 V | 5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
APXA2R5ARA681MHC0GCAP ALUM POLY 680UF 20% 2.5V SMD |
3,638 |
|
Datasheet |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 680 µF | ±20% | 2.5 V | 12mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.77 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
MAL218597609E3CAP ALUM POLY 120UF 20% 25V SMD |
3,052 |
|
- |
185 CPNZ | Box | Active | Polymer | 120 µF | ±20% | 25 V | 25mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 182.5 mA @ 120 Hz | 3.65 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | - | Surface Mount |
|
|
MAL218497417E3CAP ALUM POLY 680UF 20% 10V SMD |
2,346 |
|
- |
184 CPNS | Box | Active | Polymer | 680 µF | ±20% | 10 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 275 mA @ 120 Hz | 5.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Surface Mount |
|
|
RNU1E471MDN1CAP ALUM POLY 220UF 20% 4V SMD |
8,574 |
|
Datasheet |
- | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RHT1V101MDN1CAP ALUM POLY 100UF 20% 35V TH |
9,836 |
|
Datasheet |
FPCAP, RHT | Bulk | Active | Polymer | 100 µF | ±20% | 35 V | 25mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 325 mA @ 120 Hz | 3.25 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|

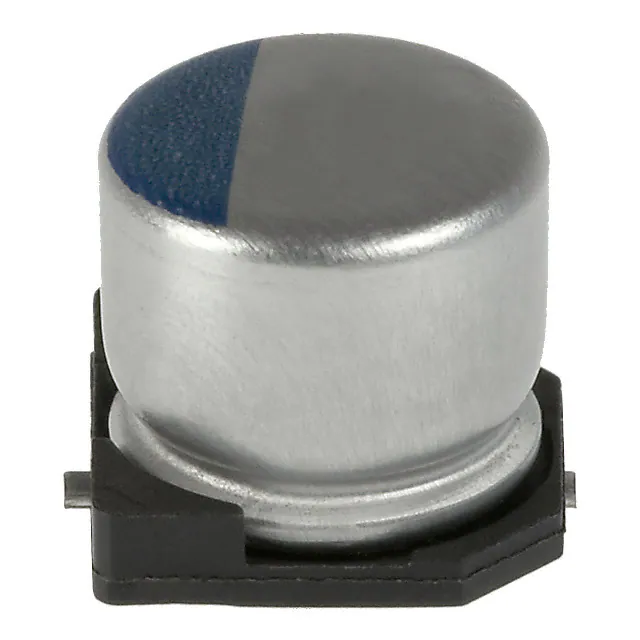

APXC4R0ARA221MF60GCAP ALUM POLY 220UF 20% 4V SMD |
5,456 |
|
Datasheet |
NPCAP™-PXC | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 4 V | 21mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.64 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.224" (5.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
PCR1C121MCL1GSCAP ALUM POLY 120UF 20% 16V SMD |
3,774 |
|
Datasheet |
PCR | Tape & Reel (TR) | Obsolete | Polymer | 120 µF | ±20% | 16 V | 36mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
UPS0J821MH30808CAP ALUM POLY 820UF 20% 6.3V TH |
8,500 |
|
Datasheet |
UPS | Active | Polymer | 820 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole | |
|
227ALG035MGBJCAP ALUM POLY 220UF 20% 35V TH |
5,184 |
|
Datasheet |
ALG | Bulk | Active | Polymer | 220 µF | ±20% | 35 V | 21mOhm | 1500 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | 170 mA @ 120 Hz | 3.4 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.532" (13.50mm) | - | Through Hole |
