Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEF-CD0E151ERCAP ALUM POLY 150UF 20% 2.5V SMD |
9,104 |
|
Datasheet |
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 2.5 V | 18mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
RS80E331MDNASQJTCAP ALUM POLY 330UF 20% 2.5V TH |
3,206 |
|
Datasheet |
FPCAP, RS8 | Cut Tape (CT) | Active | Polymer | 330 µF | ±20% | 2.5 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 560 mA @ 120 Hz | 5.6 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | - | Through Hole |
|

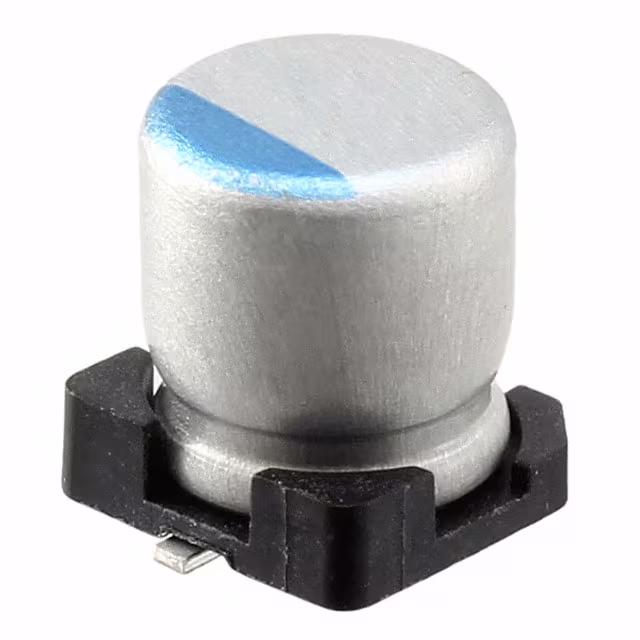

PCR1A121MCL1GSCAP ALUM POLY 120UF 20% 10V SMD |
2,712 |
|
Datasheet |
PCR | Tape & Reel (TR) | Obsolete | Polymer | 120 µF | ±20% | 10 V | 60mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 800 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
PLF0E561MCO8TDCAP ALUM POLY 560UF 20% 2.5V TH |
9,948 |
|
Datasheet |
PLF | Cut Tape (CT) | Active | Polymer | 560 µF | ±20% | 2.5 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.6 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole |
|
2.5SW220M2.9X7.3CAP ALUM POLY 220UF 20% 2.5V SMD |
7,604 |
|
Datasheet |
PC-CON, SW | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.114" (2.90mm) | - | Surface Mount |
|
|
2SW270M2.9X7.3CAP ALUM POLY 270UF 20% 2V SMD |
6,172 |
|
Datasheet |
PC-CON, SW | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 2 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.114" (2.90mm) | - | Surface Mount |
|
PLS1A471MDO1CAP ALUM POLY 470UF 20% 10V TH |
6,056 |
|
Datasheet |
PLS | Bulk | Active | Polymer | 470 µF | ±20% | 10 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
AHA1012561M016RCAP ALUMHYB 560UF 20% 16V SMD |
9,762 |
|
Datasheet |
AHA | Tape & Reel (TR) | Active | Hybrid | 560 µF | ±20% | 16 V | 15mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 300 mA @ 100 Hz | 3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
8SW68M2.7X7.3CAP ALUM POLY 68UF 20% 8V SMD |
4,644 |
|
Datasheet |
PC-CON, SW | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 8 V | 18mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.106" (2.70mm) | - | Surface Mount |
|
|
2.5SWZ270M1.9X7.3CAP ALUM POLY 270UF 20% 2.5V SMD |
7,938 |
|
Datasheet |
PC-CON, SWZ | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | Surface Mount |
|
MAL218497416E3CAP ALUM POLY 680UF 20% 10V SMD |
7,756 |
|
- |
184 CPNS | Box | Active | Polymer | 680 µF | ±20% | 10 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 260 mA @ 120 Hz | 5.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
MAL218497607E3CAP ALUM POLY 100UF 20% 25V SMD |
4,970 |
|
- |
184 CPNS | Box | Active | Polymer | 100 µF | ±20% | 25 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 210.5 mA @ 120 Hz | 4.21 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
MAL218697304E3CAP ALUM POLY 820UF 20% 6.3V SMD |
7,578 |
|
- |
186 CPNT | Box | Active | Polymer | 820 µF | ±20% | 6.3 V | 15mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | 235 mA @ 120 Hz | 4.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
MAL218597004E3CAP ALUM POLY 56UF 20% 35V SMD |
4,988 |
|
- |
185 CPNZ | Box | Active | Polymer | 56 µF | ±20% | 35 V | 35mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 115 mA @ 120 Hz | 2.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
APXH2R5ARA102MJ80GCAP ALUM POLY 1000UF 20% 2.5V |
8,200 |
|
Datasheet |
NPCAP™-PXH | Tape & Reel (TR) | Active | Polymer | 1000 µF | ±20% | 2.5 V | 25mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 3.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.303" (7.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
A700V226M12RATE028CAP ALUM POLY 22UF 20% 12.5V SMD |
8,040 |
|
- |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 12.5 V | 28mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
APZ1012471M035RCAP ALUM POLY 470UF 20% 35V SMD |
5,602 |
|
Datasheet |
APZ | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 35 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 150 mA @ 120 Hz | 3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
157AVG035MFBJCAP ALUM POLY 150UF 20% 35V TH |
9,890 |
|
Datasheet |
AVG | Bulk | Active | Polymer | 150 µF | ±20% | 35 V | 26mOhm | 1500 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 147.5 mA @ 120 Hz | 2.95 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.532" (13.50mm) | - | Through Hole |
|
|
APZ1012101M063RCAP ALUM POLY 100UF 20% 63V SMD |
6,646 |
|
Datasheet |
APZ | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 63 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 80 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCL1E330MCL1GSCAP ALUM POLY 33UF 20% 25V SMD |
9,562 |
|
Datasheet |
PCL | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 25 V | 50mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 100 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
