Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL218097402E3CAP ALUM POLY 120UF 20% 10V SMD |
5,484 |
|
Datasheet |
180 CPS | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.6 A @ 100 kHz | 22 mOhms | - | 0.248" Dia (6.30mm) | 0.232" (5.90mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
MAL218097502E3CAP ALUM POLY 39UF 20% 16V SMD |
9,960 |
|
Datasheet |
180 CPS | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.46 A @ 100 kHz | 24 mOhms | - | 0.248" Dia (6.30mm) | 0.232" (5.90mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
MAL218097503E3CAP ALUM POLY 68UF 20% 16V SMD |
7,348 |
|
Datasheet |
180 CPS | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.44 A @ 100 kHz | 25 mOhms | - | 0.248" Dia (6.30mm) | 0.232" (5.90mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
MAL218097601E3CAP ALUM POLY 56UF 20% 25V SMD |
4,860 |
|
Datasheet |
180 CPS | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.8 A @ 100 kHz | 30 mOhms | - | 0.248" Dia (6.30mm) | 0.232" (5.90mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
MAL218097702E3CAP ALUM POLY 270UF 20% 4V SMD |
8,258 |
|
Datasheet |
180 CPS | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 4 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.16 A @ 100 kHz | 15 mOhms | - | 0.248" Dia (6.30mm) | 0.232" (5.90mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
MAL218497314E3CAP ALUM POLY 1000UF 20% 6.3V |
8,710 |
|
- |
184 CPNS | Box | Active | Polymer | 1000 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 260 mA @ 120 Hz | 5.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
APXE160ARA221MJ801CAP ALUM POLY 220UF 20% 16V SMD |
8,774 |
|
Datasheet |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 16 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.45 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCL1C271MCL1GSCAP ALUM POLY 270UF 20% 16V SMD |
7,748 |
|
Datasheet |
PCL | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 16 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | 180 mA @ 120 Hz | 3.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.398" (10.10mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
MAL218597606E3CAP ALUM POLY 82UF 20% 25V SMD |
2,414 |
|
- |
185 CPNZ | Box | Active | Polymer | 82 µF | ±20% | 25 V | 33mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 145 mA @ 120 Hz | 2.9 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.354" (9.00mm) | - | Surface Mount |
|
A700D127M006ATCAP ALUM POLY 120UF 20% 6.3V SMD |
2,828 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 6.3 V | - | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 4.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|

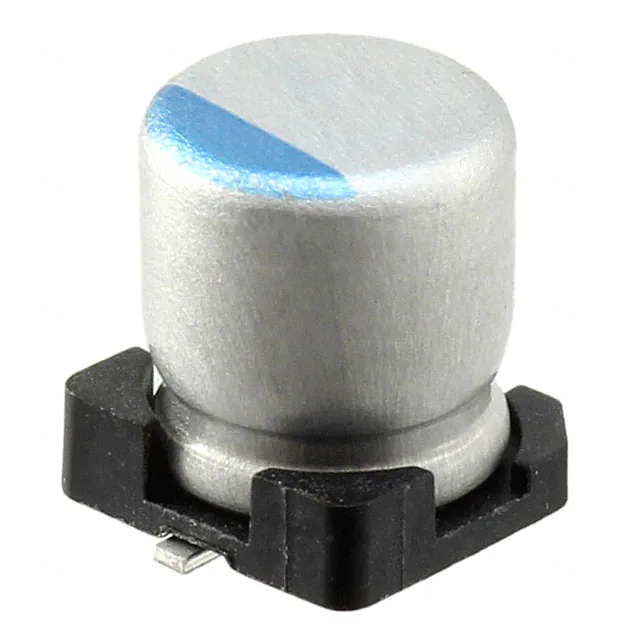

PCR0J181MCL1GSCAP ALUM POLY 180UF 20% 6.3V SMD |
4,902 |
|
Datasheet |
PCR | Tape & Reel (TR) | Obsolete | Polymer | 180 µF | ±20% | 6.3 V | 55mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 900 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
20SEP56M+TCAP ALUM POLY 56UF 20% 20V TH |
6,024 |
|
Datasheet |
OS-CON™, SEP | Tape & Box (TB) | Active | Polymer | 56 µF | ±20% | 20 V | 40mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 120 mA @ 120 Hz | 2.4 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | - | Through Hole |
|
MAL218697508E3CAP ALUM POLY 220UF 20% 16V SMD |
5,416 |
|
- |
186 CPNT | Box | Active | Polymer | 220 µF | ±20% | 16 V | 20mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | 190 mA @ 120 Hz | 3.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
PCL0G122MCL1GSCAP ALUM POLY 1200UF 20% 4V SMD |
7,008 |
|
Datasheet |
PCL | Tape & Reel (TR) | Active | Polymer | 1200 µF | ±20% | 4 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 270 mA @ 120 Hz | 5.4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.398" (10.10mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
A700V336M008ATE0257280CAP ALUM POLY 33UF 20% 8V SMD |
8,794 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 8 V | 25mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
UGP1E101MNN1012CAP ALUM POLY 100UF 20% 25V TH |
4,950 |
|
Datasheet |
UGP | Active | Polymer | 100 µF | ±20% | 25 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.32 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
|
A700V227M002ATE018CAP ALUM POLY 220UF 20% 2V SMD |
4,366 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 2 V | 18mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
A700V127M002ATE018CAP ALUM POLY 120UF 20% 2V SMD |
4,982 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 2 V | 18mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
RNU1V151MDN1CAP ALUM POLY 150UF 20% 35V TH |
9,810 |
|
Datasheet |
FPCAP, RNU | Bulk | Active | Polymer | 150 µF | ±20% | 35 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 380 mA @ 120 Hz | 3.8 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
EEF-CD0D181ERCAP ALUM POLY 180UF 20% 2V SMD |
8,106 |
|
Datasheet |
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 180 µF | ±20% | 2 V | 18mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
