Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A768KE276M1JLAE054CAP ALUM POLY 27UF 20% 63V SMD |
2,222 |
|
Datasheet |
A768 | Tape & Reel (TR) | Active | Polymer | 27 µF | ±20% | 63 V | 54mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 58.75 mA @ 120 Hz | 1.175 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
APD0609101M035RCAP ALUM POLY 100UF 20% 35V SMD |
27,844 |
|
Datasheet |
APD | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 35 V | 36mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 110 mA @ 120 Hz | 2.2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.386" (9.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
A768KE686M1GLAS038CAP ALUM POLY 68UF 20% 40V SMD |
18,654 |
|
Datasheet |
A768 | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 40 V | 38mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 67.5 mA @ 120 Hz | 1.35 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
A759BQ226M1VAAE080CAP ALUM POLY 22UF 20% 35V TH |
15,610 |
|
Datasheet |
A759 | Bulk | Active | Polymer | 22 µF | ±20% | 35 V | 80mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 30 mA @ 120 Hz | 600 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
|
A768KE227M1DLAE029CAP ALUM POLY 220UF 20% 20V SMD |
13,402 |
|
Datasheet |
A768 | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 20 V | 29mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 80 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
A768KE396M1HLAE042CAP ALUM POLY 39UF 20% 50V SMD |
7,294 |
|
Datasheet |
A768 | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 50 V | 42mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 65 mA @ 120 Hz | 1.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
875115644009CAP ALUM POLY 10UF 20% 35V SMD |
3,910 |
|
Datasheet |
WCAP-PSHP | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 35 V | 75mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 49 mA @ 120 Hz | 980 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
A768KE187M1ELAS029CAP ALUM POLY 180UF 20% 25V SMD |
9,762 |
|
Datasheet |
A768 | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 25 V | 29mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 80 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
HHXD630ARA100MF61GCAP ALUM HYBRID 10UF 20% 63V SMD |
4,996 |
|
Datasheet |
HXD | Tape & Reel (TR) | Active | Hybrid | 10 µF | ±20% | 63 V | 120mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 30 mA @ 120 Hz | 1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
RS80J561MDNASQJTCAP ALUM POLY 560UF 20% 6.3V TH |
45,610 |
|
Datasheet |
FPCAP, RS8 | Cut Tape (CT) | Active | Polymer | 560 µF | ±20% | 6.3 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | - | Through Hole |
|
A765EG337M0JLAE017CAP ALUM POLY 330UF 20% 6.3V SMD |
23,374 |
|
Datasheet |
A765 | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 6.3 V | 17mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 128.5 mA @ 120 Hz | 2.57 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.287" (7.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
A768KE107M1VLAS036CAP ALUM POLY 100UF 20% 35V SMD |
22,612 |
|
Datasheet |
A768 | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 35 V | 36mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 70 mA @ 120 Hz | 1.4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
4SVPC330MVCAP ALUM POLY 330UF 20% 4V SMD |
16,186 |
|
Datasheet |
OS-CON™, SVPC | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 4 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 158 mA @ 120 Hz | 3.16 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
A768KE826M1GLAS038CAP ALUM POLY 82UF 20% 40V SMD |
13,566 |
|
Datasheet |
A768 | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 40 V | 38mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 67.5 mA @ 120 Hz | 1.35 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

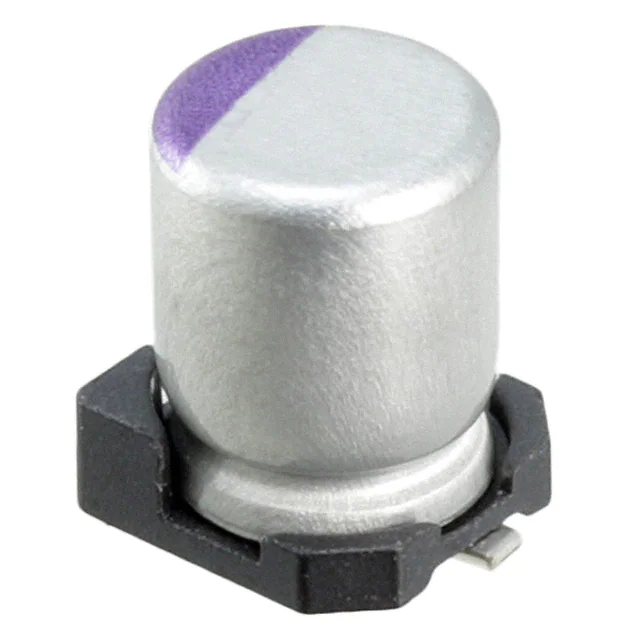

6SVP22MCAP ALUM POLY 22UF 20% 6.3V SMD |
8,446 |
|
Datasheet |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 6.3 V | 200mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 37 mA @ 120 Hz | 740 mA @ 100 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount |
|
APSG250ELL560MF05SCAP ALUM POLY 56UF 20% 25V TH |
4,088 |
|
Datasheet |
NPCAP™-PSG | Bulk | Active | Polymer | 56 µF | ±20% | 25 V | 30mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.6 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | - | Through Hole |
|
6SEPC560MW+TSSCAP ALUM POLY 560UF 20% 6.3V TH |
21,432 |
|
Datasheet |
OS-CON™, SEPC | Cut Tape (CT) | Active | Polymer | 560 µF | ±20% | 6.3 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 280 mA @ 120 Hz | 5.6 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole |
|
RL81C271MDN1KXCAP ALUM POLY 270UF 20% 16V TH |
7,844 |
|
Datasheet |
FPCAP, RL8 | Cut Tape (CT) | Active | Polymer | 270 µF | ±20% | 16 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | - | Through Hole |
|

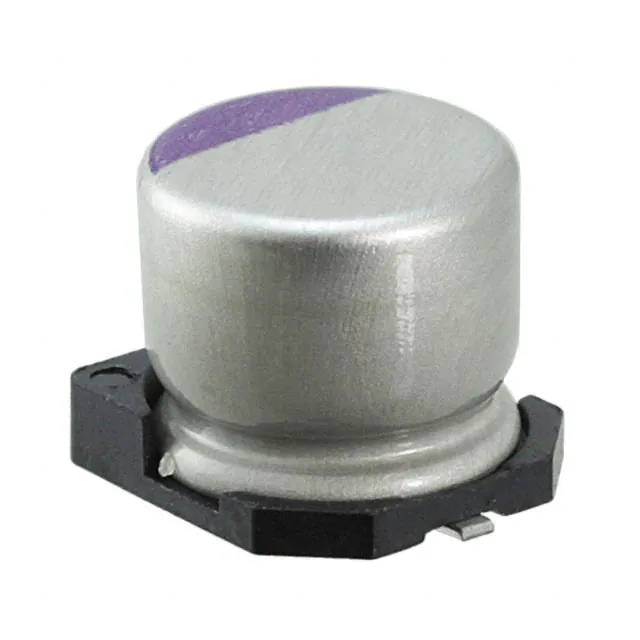

20SVP10MCAP ALUM POLY 10UF 20% 20V SMD |
3,994 |
|
Datasheet |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 20 V | 120mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 51 mA @ 120 Hz | 1.02 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
|
A768KE227M1DLAS029CAP ALUM POLY 220UF 20% 20V SMD |
3,834 |
|
Datasheet |
A768 | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 20 V | 29mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 80 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
