Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A750EM277M1CAAE015CAP ALUM POLY 270UF 20% 16V TH |
14,994 |
|
Datasheet |
A750 | Bulk | Active | Polymer | 270 µF | ±20% | 16 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 180 mA @ 120 Hz | 3.6 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.394" (10.00mm) | - | Through Hole |
|
A768EB396M1GLAE045CAP ALUM POLY 39UF 20% 40V SMD |
12,508 |
|
Datasheet |
A768 | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 40 V | 45mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 57.5 mA @ 120 Hz | 1.15 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
A750EM337M1CAAE015CAP ALUM POLY 330UF 20% 16V TH |
6,798 |
|
Datasheet |
A750 | Bulk | Active | Polymer | 330 µF | ±20% | 16 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 180 mA @ 120 Hz | 3.6 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.394" (10.00mm) | - | Through Hole |
|
APSE6R3ELL471MF08SCAP ALUM POLY 470UF 20% 6.3V TH |
4,174 |
|
Datasheet |
NPCAP™-PSE | Bulk | Active | Polymer | 470 µF | ±20% | 6.3 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.7 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | - | Through Hole |
|
|
A750EM827M0JAAE008CAP ALUM POLY 820UF 20% 6.3V TH |
44,456 |
|
Datasheet |
A750 | Bulk | Active | Polymer | 820 µF | ±20% | 6.3 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 250 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.394" (10.00mm) | - | Through Hole |
|
|
A768EB566M1VLAE042CAP ALUM POLY 56UF 20% 35V SMD |
25,140 |
|
Datasheet |
A768 | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 35 V | 42mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 58.75 mA @ 120 Hz | 1.175 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
APSG160ELL271MF08SCAP ALUM POLY 270UF 20% 16V TH |
10,500 |
|
Datasheet |
NPCAP™-PSG | Bulk | Active | Polymer | 270 µF | ±20% | 16 V | 15mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.8 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | - | Through Hole |
|
|
A768EB476M1VLAS042CAP ALUM POLY 47UF 20% 35V SMD |
9,112 |
|
Datasheet |
A768 | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 35 V | 42mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 58.75 mA @ 120 Hz | 1.175 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
A750KK107M1EAAE040CAP ALUM POLY 100UF 20% 25V TH |
2,112 |
|
Datasheet |
A750 | Bulk | Active | Polymer | 100 µF | ±20% | 25 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 225 mA @ 120 Hz | 4.5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
|
A768EB127M1DLAS034CAP ALUM POLY 120UF 20% 20V SMD |
2,088 |
|
Datasheet |
A768 | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 20 V | 34mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 65 mA @ 120 Hz | 1.3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
A758EK226M1EAAE050CAP ALUM POLY 22UF 20% 25V TH |
15,574 |
|
Datasheet |
A758 | Bulk | Active | Polymer | 22 µF | ±20% | 25 V | 50mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 100 mA @ 120 Hz | 2 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole |
|

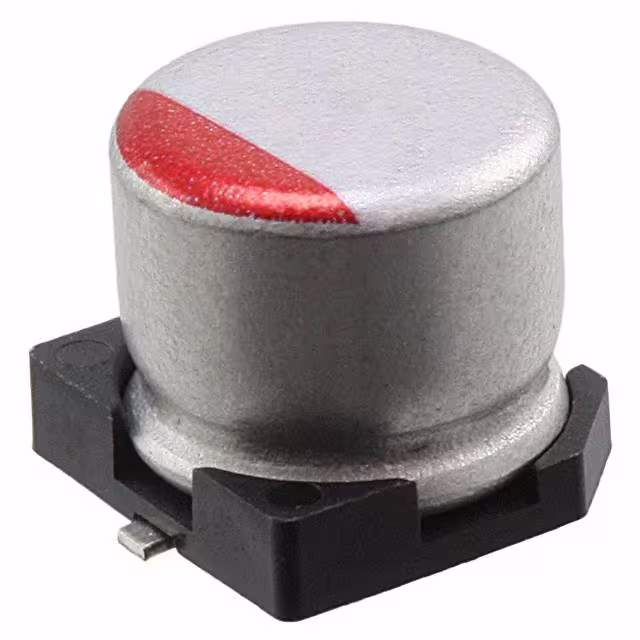

RSB0J221MCN1GSCAP ALUM POLY 220UF 20% 6.3V SMD |
10,070 |
|
Datasheet |
FPCAP, RSB | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 6.3 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 350 mA @ 120 Hz | 3.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount |
|
|
A750EQ567M1AAAE012CAP ALUM POLY 560UF 20% 10V TH |
7,910 |
|
Datasheet |
A750 | Bulk | Active | Polymer | 560 µF | ±20% | 10 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 205 mA @ 120 Hz | 4.1 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.472" (12.00mm) | - | Through Hole |
|
A759BQ106M1VAAE090CAP ALUM POLY 10UF 20% 35V TH |
14,238 |
|
Datasheet |
A759 | Bulk | Active | Polymer | 10 µF | ±20% | 35 V | 90mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 17 mA @ 120 Hz | 340 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
APXF6R3ARA151ME61GCAP ALUM POLY 150UF 20% 6.3V SMD |
13,708 |
|
Datasheet |
NPCAP™-PXF | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 6.3 V | 12mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|

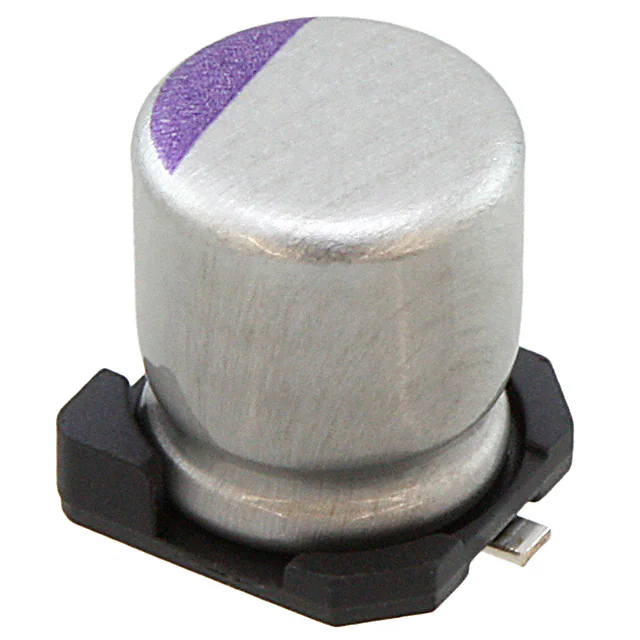

10SVP33MCAP ALUM POLY 33UF 20% 10V SMD |
5,836 |
|
Datasheet |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 10 V | 70mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 55 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
APA0609330M050RCAP ALUM POLY 33UF 20% 50V SMD |
16,036 |
|
Datasheet |
APA | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 50 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 85 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.386" (9.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
25SVPF56MCAP ALUM POLY 56UF 20% 25V SMD |
23,868 |
|
Datasheet |
OS-CON™, SVPF | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 25 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 140 mA @ 120 Hz | 2.8 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
A765BC107M0JLAE025CAP ALUM POLY 100UF 20% 6.3V SMD |
19,978 |
|
Datasheet |
A765 | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 6.3 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 85 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.248" (6.30mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
A758KR477M1AAAE011CAP ALUM POLY 470UF 20% 10V TH |
15,232 |
|
Datasheet |
A758 | Bulk | Active | Polymer | 470 µF | ±20% | 10 V | 11mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 255 mA @ 120 Hz | 5.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
