Single Zener Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Zener (Nom) (Vz) | Tolerance | Power - Max | Impedance (Max) (Zzt) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SZMMSZ5266BT1GDIODE ZENER 68V 500MW SOD123 |
27,944 |
|
Datasheet |
SZMMSZ52xxxT1G | SOD-123 | Tape & Reel (TR) | Active | 68 V | ±5% | 500 mW | 230 Ohms | 100 nA @ 52 V | 900 mV @ 10 mA | -55°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | SOD-123 |
|

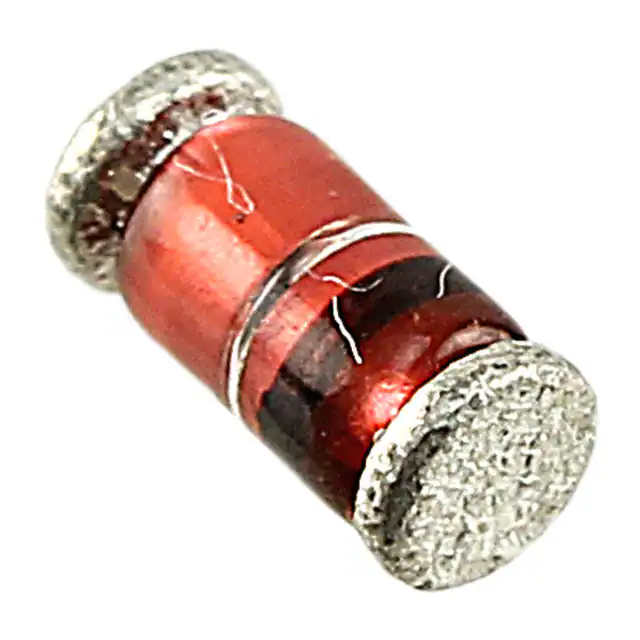

ZM4744A-GS08DIODE ZENER 15V 1W DO213AB |
26,554 |
|
Datasheet |
- | DO-213AB, MELF (Glass) | Tape & Reel (TR) | Active | 15 V | ±5% | 1 W | 14 Ohms | 5 µA @ 11.4 V | - | 175°C | Automotive | AEC-Q101 | Surface Mount | DO-213AB |
|
EDZVFHT2R3.6BDIODE ZENER 3.6V 150MW EMD2 |
18,328 |
|
Datasheet |
- | SC-79, SOD-523 | Tape & Reel (TR) | Active | 3.6 V | ±3.4% | 150 mW | 100 Ohms | 10 µA @ 1 V | - | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | EMD2 |
|
1N5377BRLGDIODE ZENER 91V 5W AXIAL |
18,126 |
|
Datasheet |
- | T-18, Axial | Tape & Reel (TR) | Active | 91 V | ±5% | 5 W | 75 Ohms | 500 nA @ 69.2 V | 1.2 V @ 1 A | -65°C ~ 200°C | - | - | Through Hole | Axial |
|
PZ1AL5V6B_R1_00001DIODE ZENER 5.6V 1W SOD123FL |
14,094 |
|
Datasheet |
- | SOD-123F | Tape & Reel (TR) | Active | 5.6 V | ±5% | 1 W | 4 Ohms | 10 µA @ 2 V | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
2EZ15D5-TPDIODE ZENER 15V 2W DO41 |
9,618 |
|
Datasheet |
- | DO-204AL, DO-41, Axial | Tape & Reel (TR) | Active | 15 V | ±5% | 2 W | 7 Ohms | 500 nA @ 11.4 V | 1.2 V @ 200 mA | -55°C ~ 150°C | - | - | Through Hole | DO-41 |
|
|
PZ1AL5V1B_R1_00001DIODE ZENER 5.1V 1W SOD123FL |
4,970 |
|
Datasheet |
- | SOD-123F | Tape & Reel (TR) | Active | 5.1 V | ±5% | 1 W | 6 Ohms | 5 µA @ 1 V | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
3SMAJ5947B-TPDIODE ZENER 82V 3W DO214AC |
287,858 |
|
Datasheet |
- | DO-214AC, SMA | Tape & Reel (TR) | Active | 82 V | ±5% | 3 W | 160 Ohms | 1 µA @ 62.2 V | 1.5 V @ 200 mA | -55°C ~ 150°C | - | - | Surface Mount | DO-214AC (SMA) |
|
SZMM3Z12VST1GDIODE ZENER 12V 300MW SOD323 |
100,486 |
|
Datasheet |
- | SC-76, SOD-323 | Tape & Reel (TR) | Active | 12 V | ±2% | 300 mW | 25 Ohms | 100 nA @ 8 V | 900 mV @ 10 mA | -65°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
BZD27C5V6P-E3-08DIODE ZENER 5.6V 800MW DO219AB |
95,072 |
|
Datasheet |
BZD27C | DO-219AB | Tape & Reel (TR) | Active | 5.6 V | - | 800 mW | 4 Ohms | 10 µA @ 2 V | 1.2 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | DO-219AB (SMF) |
|
|
SZMM3Z5V1ST1GDIODE ZENER 5.1V 300MW SOD323 |
78,128 |
|
Datasheet |
- | SC-76, SOD-323 | Tape & Reel (TR) | Active | 5.1 V | ±2% | 300 mW | 60 Ohms | 2 µA @ 2 V | 900 mV @ 10 mA | -65°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
|
BZD27C130P-E3-08DIODE ZENER 130V 800MW DO219AB |
70,348 |
|
Datasheet |
BZD27C | DO-219AB | Tape & Reel (TR) | Active | 130 V | - | 800 mW | 300 Ohms | 1 µA @ 100 V | 1.2 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | DO-219AB (SMF) |
|
SMAZ6V8-13-FDIODE ZENER 6.8V 1W SMA |
65,716 |
|
Datasheet |
- | DO-214AC, SMA | Tape & Reel (TR) | Active | 6.8 V | ±5% | 1 W | 2 Ohms | 5 µA @ 4 V | 1.2 V @ 200 mA | -65°C ~ 150°C | - | - | Surface Mount | SMA |
|
1N4742A-T50ADIODE ZENER 12V 1W DO41 |
61,598 |
|
Datasheet |
- | DO-204AL, DO-41, Axial | Cut Tape (CT) | Active | 12 V | ±5% | 1 W | 9 Ohms | 5 µA @ 9.1 V | - | -65°C ~ 200°C | - | - | Through Hole | DO-41 |
|
|
SZMMSZ5235BT1GDIODE ZENER 6.8V 500MW SOD123 |
57,852 |
|
Datasheet |
SZMMSZ52xxxT1G | SOD-123 | Tape & Reel (TR) | Active | 6.8 V | ±5% | 500 mW | 5 Ohms | 3 µA @ 5 V | 900 mV @ 10 mA | -55°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | SOD-123 |
|
|
SZMM3Z5V6ST1GDIODE ZENER 5.6V 300MW SOD323 |
49,132 |
|
Datasheet |
- | SC-76, SOD-323 | Tape & Reel (TR) | Active | 5.6 V | ±2% | 300 mW | 40 Ohms | 1 µA @ 2 V | 900 mV @ 10 mA | -65°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
|
BZD27C12P-E3-08DIODE ZENER 12V 800MW DO219AB |
48,660 |
|
Datasheet |
BZD27C | DO-219AB | Tape & Reel (TR) | Active | 12 V | - | 800 mW | 7 Ohms | 3 µA @ 9.1 V | 1.2 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | DO-219AB (SMF) |
|
|
BZD27C36P-E3-08DIODE ZENER 36V 800MW DO219AB |
47,582 |
|
Datasheet |
BZD27C | DO-219AB | Tape & Reel (TR) | Active | 36 V | - | 800 mW | 40 Ohms | 1 µA @ 27 V | 1.2 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | DO-219AB (SMF) |
|
SZMM5Z3V3T1GDIODE ZENER 3.3V 500MW SOD523 |
47,240 |
|
Datasheet |
- | SC-79, SOD-523 | Tape & Reel (TR) | Active | 3.3 V | ±6.1% | 500 mW | 95 Ohms | 5 µA @ 1 V | 900 mV @ 100 mA | -65°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
|
3SMAJ5935B-TPDIODE ZENER 27V 3W DO214AC |
35,510 |
|
Datasheet |
- | DO-214AC, SMA | Tape & Reel (TR) | Active | 27 V | ±5% | 3 W | 23 Ohms | 1 µA @ 20.6 V | 1.5 V @ 200 mA | -55°C ~ 150°C | - | - | Surface Mount | DO-214AC (SMA) |
