Single Zener Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Zener (Nom) (Vz) | Tolerance | Power - Max | Impedance (Max) (Zzt) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N829ADIODE ZENER 6.2V 500MW DO204AH |
2,834 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Active | 6.2 V | ±5% | 500 mW | 10 Ohms | 2 µA @ 3 V | - | -65°C ~ 175°C | - | - | Through Hole | DO-204AH (DO-35) |
|

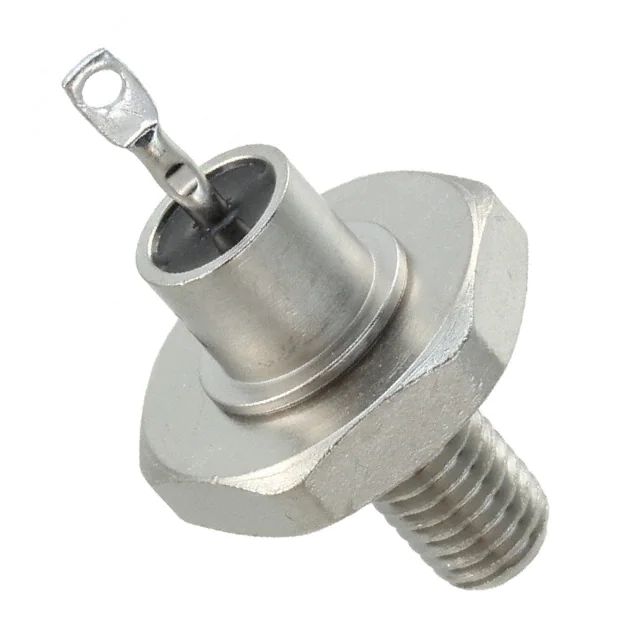

1N3311BDIODE ZENER 12V 50W DO5 |
4,454 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | 12 V | ±5% | 50 W | 1 Ohms | 10 µA @ 9.1 V | 1.5 V @ 10 A | -65°C ~ 175°C | - | - | Chassis, Stud Mount | DO-5 |
|
1N4996USDIODE ZENER 390V 5W D5B |
4,444 |
|
Datasheet |
- | SQ-MELF, E | Bulk | Active | 390 V | ±5% | 5 W | 1800 Ohms | 2 µA @ 297 V | 1.5 V @ 1 A | -65°C ~ 175°C | - | - | Surface Mount | D-5B |
|
BZT52C5V6DIODE ZENER 5.6V 500MW SOD123F |
1,852 |
|
Datasheet |
- | SOD-123F | Tape & Reel (TR) | Active | 5.6 V | ±5% | 500 mW | 80 Ohms | 1 µA @ 2.5 V | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
BZX84-C22,215DIODE ZENER 22V 250MW TO236AB |
1,818 |
|
Datasheet |
BZX84 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 22 V | ±5% | 250 mW | 55 Ohms | 50 nA @ 15.4 V | 900 mV @ 10 mA | -65°C ~ 150°C | - | - | Surface Mount | TO-236AB |
|
MMSZ5232BDIODE ZENER 5.6V 500MW SOD123F |
1,614 |
|
Datasheet |
- | SOD-123F | Tape & Reel (TR) | Active | 5.6 V | ±5% | 500 mW | 11 Ohms | 5 µA @ 3 V | 900 mV @ 10 mA | -50°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
BZX84C15DIODE ZENER 15V 300MW SOT23 |
1,250 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 15 V | ±5% | 300 mW | 30 Ohms | 50 nA @ 10.5 V | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 (TO-236) |
|
BZX84C4V7DIODE ZENER 4.7V 300MW SOT23 |
708 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 4.7 V | ±5% | 300 mW | 80 Ohms | 3 µA @ 2 V | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 (TO-236) |
|
BZX384-C10,115DIODE ZENER 10V 300MW SOD323 |
1,642 |
|
Datasheet |
BZX384 | SC-76, SOD-323 | Tape & Reel (TR) | Active | 10 V | ±5% | 300 mW | 20 Ohms | 200 nA @ 7 V | 1.1 V @ 100 mA | -65°C ~ 150°C | - | - | Surface Mount | SOD-323 |
|
BZV55-C18,115DIODE ZENER 18V 500MW LLDS |
1,520 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Active | 18 V | ±5% | 500 mW | 45 Ohms | 50 nA @ 12.6 V | 900 mV @ 10 mA | -65°C ~ 200°C | - | - | Surface Mount | LLDS; MiniMelf |
.jpg)
|
BZV55-C5V6,115DIODE ZENER 5.6V 500MW LLDS |
1,196 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Active | 5.6 V | ±5% | 500 mW | 40 Ohms | 1 µA @ 2 V | 900 mV @ 10 mA | -65°C ~ 200°C | - | - | Surface Mount | LLDS; MiniMelf |
|
|
BZV55-C4V7,135DIODE ZENER 4.7V 500MW LLDS |
644 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Active | 4.7 V | ±5% | 500 mW | 80 Ohms | 3 µA @ 2 V | 900 mV @ 10 mA | -65°C ~ 200°C | - | - | Surface Mount | LLDS; MiniMelf |
|
|
BZV55-C39,115DIODE ZENER 39V 500MW LLDS |
446 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Active | 39 V | ±5% | 500 mW | 130 Ohms | 50 nA @ 27.3 V | 900 mV @ 10 mA | -65°C ~ 200°C | - | - | Surface Mount | LLDS; MiniMelf |
|
BZT52C3V3-TPDIODE ZENER 3.3V 500MW SOD123 |
2,952 |
|
Datasheet |
- | SOD-123 | Tape & Reel (TR) | Active | 3.3 V | ±6% | 500 mW | 95 Ohms | 5 µA @ 1 V | 900 mV @ 10 mA | -65°C ~ 150°C | - | - | Surface Mount | SOD-123 |
|
|
PDZ12BGWXDIODE ZENER 12V 365MW SOD123 |
1,330 |
|
Datasheet |
PDZ-GW | SOD-123 | Tape & Reel (TR) | Active | 12 V | ±2.08% | 365 mW | 10 Ohms | 100 nA @ 9 V | 1.1 V @ 100 mA | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123 |
|
BZT52H-C10,115DIODE ZENER 10V 375MW SOD123F |
538 |
|
Datasheet |
BZT52H | SOD-123F | Tape & Reel (TR) | Active | 10 V | ±5% | 375 mW | 10 Ohms | 200 nA @ 7 V | 900 mV @ 10 mA | -65°C ~ 150°C (TA) | - | - | Surface Mount | SOD-123F |
|
|
BZX384-B15,115DIODE ZENER 15V 300MW SOD323 |
1,826 |
|
Datasheet |
BZX384 | SC-76, SOD-323 | Tape & Reel (TR) | Active | 15 V | ±2% | 300 mW | 30 Ohms | 50 nA @ 10.5 V | 1.1 V @ 100 mA | -65°C ~ 150°C | - | - | Surface Mount | SOD-323 |
|
|
BZT52H-B18,115DIODE ZENER 18V 375MW SOD123F |
1,662 |
|
Datasheet |
BZT52H | SOD-123F | Tape & Reel (TR) | Active | 18 V | ±2% | 375 mW | 20 Ohms | 50 nA @ 12.6 V | 900 mV @ 10 mA | -65°C ~ 150°C (TA) | - | - | Surface Mount | SOD-123F |
|
|
BZT52H-B3V6,115DIODE ZENER 3.6V 375MW SOD123F |
1,616 |
|
Datasheet |
BZT52H | SOD-123F | Tape & Reel (TR) | Active | 3.6 V | ±2% | 375 mW | 95 Ohms | 5 µA @ 1 V | 900 mV @ 10 mA | -65°C ~ 150°C (TA) | - | - | Surface Mount | SOD-123F |
|
ZMM3.3DIODE ZENER 3.3V 500MW SOD80C |
1,496 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Active | 3.3 V | ±5% | 500 mW | 85 Ohms | 2 µA @ 1 V | - | -50°C ~ 175°C (TJ) | - | - | Surface Mount | SOD-80C |
