Single Zener Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Zener (Nom) (Vz) | Tolerance | Power - Max | Impedance (Max) (Zzt) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDLL5245BDIODE ZENER 15V DO-213AB |
954 |
|
Datasheet |
- | DO-213AB, MELF | Bulk | Active | 15 V | ±5% | - | 16 Ohms | 100 nA @ 11 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | DO-213AB |
|
1N4733AP/TR8DIODE ZENER 5.1V 1W DO204AL |
996 |
|
Datasheet |
- | DO-204AL, DO-41, Axial | Tape & Reel (TR) | Active | 5.1 V | ±5% | 1 W | 7 Ohms | 10 µA @ 1 V | 1.2 V @ 200 mA | -65°C ~ 150°C | - | - | Through Hole | DO-204AL (DO-41) |
|
1N5231BDIODE ZENER 5.1V 500MW DO204AH |
866 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Active | 5.1 V | ±5% | 500 mW | 17 Ohms | 5 µA @ 2 V | 1.5 V @ 200 mA | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AH (DO-35) |
|
CDLL965BDIODE ZENER 15V 500MW DO213AB |
746 |
|
Datasheet |
- | DO-213AB, MELF | Bulk | Active | 15 V | ±5% | 500 mW | 16 Ohms | 500 nA @ 11 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | DO-213AB |
|
|
CDLL4620DIODE ZENER 3.3V 500MW DO213AA |
1,370 |
|
Datasheet |
- | DO-213AA | Bulk | Active | 3.3 V | ±5% | 500 mW | 1650 Ohms | 3.5 µA @ 1.5 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | DO-213AA |
|
|
CDLL4742ADIODE ZENER 12V DO213AB |
406 |
|
Datasheet |
- | DO-213AB, MELF | Bulk | Active | 12 V | ±5% | - | 9 Ohms | 1 µA @ 9.1 V | 1.2 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | DO-213AB |
|
|
1N957BDIODE ZENER 6.8V 500MW DO7 |
332 |
|
Datasheet |
- | DO-204AA, DO-7, Axial | Bulk | Active | 6.8 V | ±5% | 500 mW | 4.5 Ohms | 150 µA @ 5.2 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Through Hole | DO-7 |
|
1N4742AGE3DIODE ZENER 12V 1W DO41 |
466 |
|
Datasheet |
- | DO-204AL, DO-41, Axial | Bulk | Active | 12 V | ±5% | 1 W | 9 Ohms | 5 µA @ 9.1 V | 1.2 V @ 200 mA | -65°C ~ 175°C | - | - | Through Hole | DO-41 |
|
|
1N5938BUR-1DIODE ZENER 36V 1.25W DO213AB |
464 |
|
Datasheet |
- | DO-213AB, MELF | Bulk | Active | 36 V | ±5% | 1.25 W | 38 Ohms | 1 µA @ 27.4 V | 1.2 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | DO-213AB |
|
|
CDLL4099DIODE ZENER 6.8V 500MW DO213AB |
682 |
|
Datasheet |
- | DO-213AB, MELF | Bulk | Active | 6.8 V | ±5% | 500 mW | 200 Ohms | 1 µA @ 5.2 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | DO-213AB |
|
|
CDLL4624DIODE ZENER 4.7V 500MW DO213AA |
458 |
|
Datasheet |
- | DO-213AA | Bulk | Active | 4.7 V | ±5% | 500 mW | 1550 Ohms | 5 µA @ 3 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | DO-213AA |
|

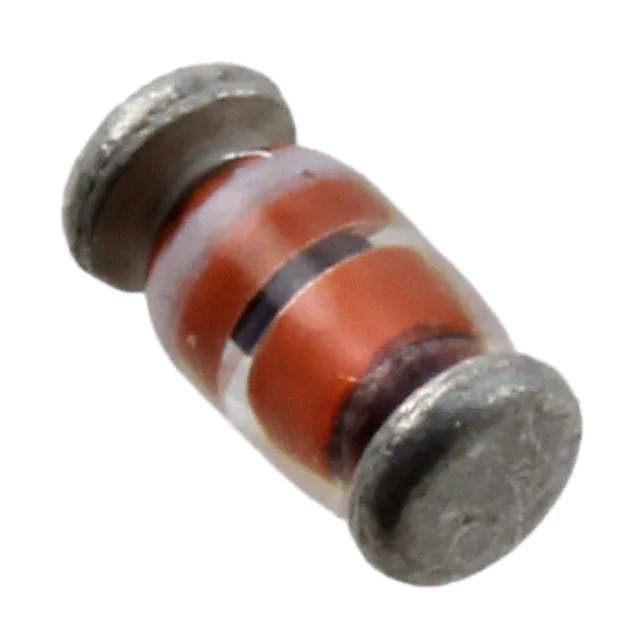

1N5231BUR-1DIODE ZENER 5.1V 500MW DO213AA |
322 |
|
Datasheet |
- | DO-213AA | Bulk | Active | 5.1 V | ±5% | 500 mW | 17 Ohms | 5 µA @ 2 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | DO-213AA |
|
1N821-1DIODE ZENER 6.2V 500MW DO204AH |
570 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Active | 6.2 V | ±5% | 500 mW | 15 Ohms | 2 µA @ 3 V | - | -55°C ~ 175°C | - | - | Through Hole | DO-204AH (DO-35) |
|
|
1N4582A-1DIODE ZENER 6.4V 500MW DO204AH |
326 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Active | 6.4 V | ±5% | 500 mW | 25 Ohms | 2 µA @ 3 V | - | -65°C ~ 175°C | - | - | Through Hole | DO-204AH (DO-35) |
|
BZV55C12 L0GDIODE ZENER 12V 500MW MINI MELF |
20,000 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Active | 12 V | ±5% | 500 mW | 20 Ohms | 100 nA @ 9.1 V | 1 V @ 10 mA | -65°C ~ 175°C (TJ) | - | - | Surface Mount | Mini MELF |
|
MM5Z18VT1GDIODE ZENER 18V 500MW SOD523 |
6,000 |
|
Datasheet |
- | SC-79, SOD-523 | Tape & Reel (TR) | Active | 18 V | ±6.4% | 500 mW | 45 Ohms | 50 nA @ 12.6 V | 900 mV @ 10 mA | -65°C ~ 150°C | - | - | Surface Mount | SOD-523 |
|
|
MM5Z20VT1GDIODE ZENER 20V 500MW SOD523 |
6,000 |
|
Datasheet |
- | SC-79, SOD-523 | Tape & Reel (TR) | Active | 20 V | ±6% | 500 mW | 55 Ohms | 50 nA @ 14 V | 900 mV @ 10 mA | -65°C ~ 150°C | - | - | Surface Mount | SOD-523 |
|
SZBZX84C5V6LT3GDIODE ZENER 5.6V 250MW SOT23-3 |
77,542 |
|
Datasheet |
SZBZX84CxxxLT1G | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 5.6 V | ±7% | 250 mW | 40 Ohms | 1 µA @ 2 V | 900 mV @ 10 mA | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 (TO-236) |
|
BZX55B3V9-TRDIODE ZENER 3.9V 500MW DO204AH |
59,830 |
|
Datasheet |
BZX55 | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | 3.9 V | ±2% | 500 mW | 90 Ohms | 2 µA @ 1 V | 1.5 V @ 200 mA | -65°C ~ 175°C | Automotive | AEC-Q101 | Through Hole | DO-204AH (DO-35) |
|
PDZ15B,135DIODE ZENER 15V 400MW SOD323 |
54,810 |
|
Datasheet |
PDZ-B | SC-76, SOD-323 | Tape & Reel (TR) | Active | 15 V | ±2% | 400 mW | 15 Ohms | 50 nA @ 11 V | 1.1 V @ 100 mA | 150°C (TJ) | - | - | Surface Mount | SOD-323 |
