TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F4TVS22ATVS, UNI-DIR, 400W, 22V, ESGA (S |
12,000 |
|
Datasheet |
SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 22V | 24.4V | 35.5V | 11.3A | 400W | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Surface Mount | eSGA (SOD-123FL) |
|
|
GSEDC3U004TVS, ESD, UNI-DIR, ULTRA-LOW CAP |
11,910 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | 4.2V | 15V | 4A (8/20µs) | 60W | No | DVI, HDMI | 0.4pF @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | SOD-323 |
|
P4SMAJ26A_R1_00001SMA, TVS |
10,760 |
|
Datasheet |
DO-214AC, SMA | P4SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 26V | 28.9V | 42.1V | 9.5A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
NSB13ANT3GTVS DIODE 13VWM 21.5VC SMB |
16,360 |
|
- |
DO-214AA, SMB | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 13V | 14.4V | 21.5V | 27.9A (8/20µs) | 600W | No | General Purpose | 1160pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
SMAJ14A-AT/TR13SMAJ, DO-214AC, 14V, 23.2V, AUTO |
10,000 |
|
Datasheet |
DO-214AC, SMA | SMAJ-AT | Tape & Reel (TR) | Active | Zener | 1 | - | 14V | 15.6V | 23.2V | 17.2A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
PJSD05W-AU_R1_000A1SINGLE LINE TVS DIODE FOR ESD PR |
9,900 |
|
Datasheet |
SC-90, SOD-323F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6V | 9.8V | 1A (8/20µs) | 350W | No | - | 300pF @ 1MHz | -50°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
P6KE24ARLTVS DIODE 20.5VWM 42.8VC DO15 |
8,000 |
|
Datasheet |
DO-204AC, DO-15, Axial | P6KE, TRANSIL™ | Bulk | Obsolete | Zener | 1 | - | 20.5V | 22.8V | 42.8V | 93A (8/20µs) | 600W | No | General Purpose | 1250pF @ 1MHz | - | - | - | Through Hole | DO-15 |
|
P6KE47CTVS, BI-DIR, 600W, 47V, DO-204AC |
7,980 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Cut Tape (CT) | Active | Zener | - | 1 | 38.1V | 42.3V | 67.8V | 8.8A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
P6KE68CTVS, BI-DIR, 600W, 68V, DO-204AC |
7,760 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Cut Tape (CT) | Active | Zener | - | 1 | 55.1V | 61.2V | 98V | 6.1A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
IP4060CX16/LF,135TVS DIODE 10VWM 16CSP |
17,602 |
|
Datasheet |
16-WFBGA, WLCSP | - | Tape & Reel (TR) | Obsolete | Zener | - | 6 | 10V | 7V | - | - | - | No | General Purpose | 18pF @ 1MHz | -30°C ~ 85°C (TA) | - | - | Surface Mount | 16-CSP (1.96x1.97) |
|
P6KE91CATVS, BI-DIR, 600W, 91V, DO-204AC |
6,614 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Cut Tape (CT) | Active | Zener | - | 1 | 77.8V | 86.5V | 125V | 125A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
P6SMB12AT3GTVS DIODE 10.2V 16.7V 425TEPBGA |
6,572 |
|
Datasheet |
DO-214AA, SMB | - | Bulk | Active | Zener | 1 | - | 10.2V | 11.4V | 16.7V | 36A | 600W | No | General Purpose | 1435pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
;;2.jpg)
|
SMCJ58ATVS DIODE 58VWM 93.6VC SMC |
5,996 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Bulk | Active | Zener | 1 | - | 58V | 64.4V | 93.6V | 16.1A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|

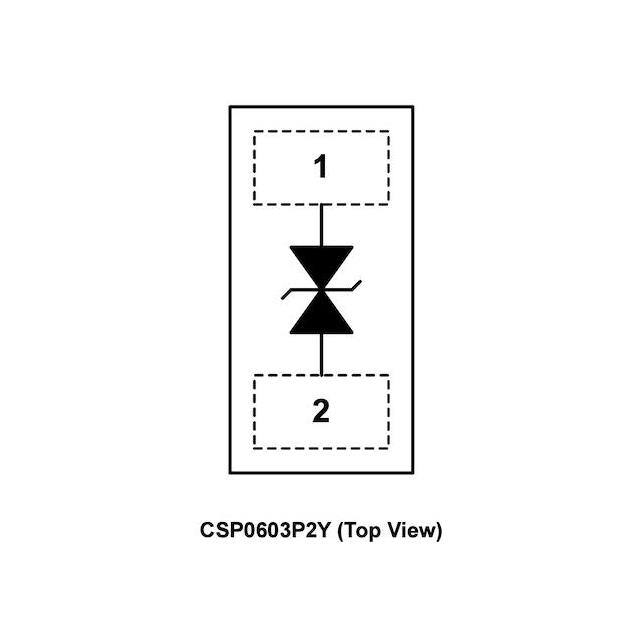

AZ5B85-01BTVS DEVICE 1-CHANNEL 5V |
5,900 |
|
Datasheet |
2-XFBGA, CSPBGA | - | Strip | Active | Zener | - | 1 | 5V (Max) | 6V | - | - | - | No | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | CSP0603P2Y |
|
SD32324TVS DIODE 24VWM 43VC SOD323 |
5,890 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 24V (Max) | 26.7V | 43V | 1A | 300W | No | General Purpose | 90pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|
PE1805C4C6N_R1_00001ULTRA LOW CAPACITANCE ESD PROTEC |
5,788 |
|
Datasheet |
6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6.5V | 20V | 5A (8/20µs) | - | Yes | General Purpose | 0.8pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-363 |
|
P6SMB160AT3TVS ZENER UNIDIR 600W 160V SMB |
18,932 |
|
Datasheet |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1SMB100AT3TVS DIODE 100VWM 162VC SMB |
5,852 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 100V | 111V | 162V | 3.7A | 600W | No | General Purpose | 190pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
1SMB43AT3TVS DIODE 43VWM 69.4VC SMB |
16,464 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 43V | 47.8V | 69.4V | 8.6A | 600W | No | General Purpose | 400pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
MMBZ24VALFHT116TVS DIODE 20VWM 32VC SSD3 |
4,556 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 20V (Max) | 22.8V | 32V | 1.25A | 40W | No | - | 46pF @ 1MHz | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SSD3 |
