TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BZW04-15TVS DO15 175DEG 15.3V 400W |
7,500 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Cut Tape (CT) | Active | Zener | 1 | - | 15.3V | 17.1V | 25.2V | 16A | 400W | No | General Purpose | - | -50°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
P4KE18ATVS DO15 175DEG 15.3V 400W |
7,500 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Cut Tape (CT) | Active | Zener | 1 | - | 15.3V | 17.1V | 25.2V | 16.5A | 400W | No | General Purpose | - | -50°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
TPSMA11AHE3_B/HTVS DIODE 9.4VWM 15.6VC DO214AC |
7,130 |
|
Datasheet |
DO-214AC, SMA | PAR® | Tape & Reel (TR) | Active | Zener | 1 | - | 9.4V | 10.5V | 15.6V | 25.6A | 400W | No | - | - | -65°C ~ 185°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
BZW06-23TVS DO15 175DEG 23.1V 600W |
6,976 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Cut Tape (CT) | Active | Zener | 1 | - | 23.1V | 25.7V | 37.5V | 16A | 600W | No | General Purpose | - | -50°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
TPSMA10AHE3_B/HTVS DIODE 8.65VWM 14.5VC DO214AC |
6,690 |
|
Datasheet |
DO-214AC, SMA | PAR® | Tape & Reel (TR) | Active | Zener | 1 | - | 8.65V | 9.5V | 14.5V | 27.6A | 400W | No | - | - | -65°C ~ 185°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
TPSMA18AHE3_B/HTVS DIODE 15.3VWM 25.5VC DO214AC |
6,210 |
|
Datasheet |
DO-214AC, SMA | PAR® | Tape & Reel (TR) | Active | Zener | 1 | - | 15.3V | 17.1V | 25.5V | 15.9A | 400W | No | - | - | -65°C ~ 185°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMA5J26A-E3/61TVS DIODE 26VWM 42.1VC DO214AC |
6,056 |
|
Datasheet |
DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 26V | 28.9V | 42.1V | 11.9A | 500W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|

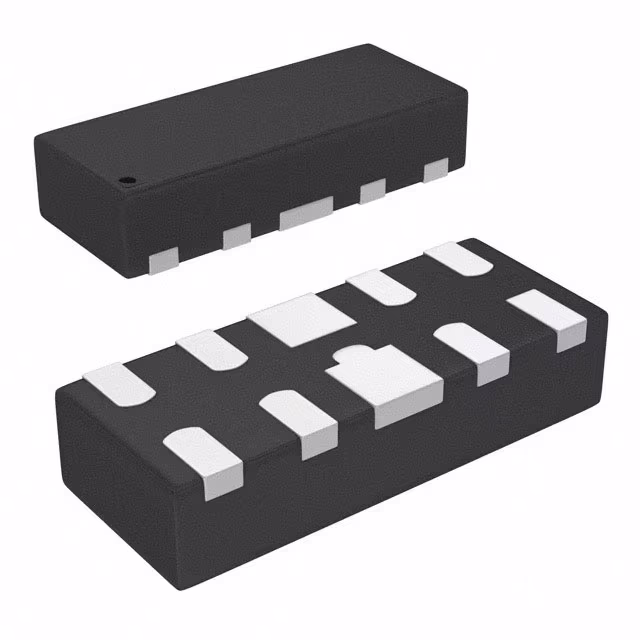

UBQ10A03L04TVS ESD, QFN-10, 3.3V, 15V, REEL |
6,000 |
|
Datasheet |
10-UFDFN | UBQ10A03L04 | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 3.3V (Max) | 4.5V | 15V | 4A (8/20µs) | - | Yes | DVI, HDMI | 0.6pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 10-QFN (2.5x1) |
|
ESDSBHC4V5P6B-TPESD,4.5V,DFN1610-2 |
5,980 |
|
- |
0603 (1610 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 4.5V (Max) | 4.8V | 18V | 195A (8/20µs) | 3510W (3.51kW) | No | General Purpose | 400pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DFN1610-2 |
|
|
BZW06-15TVS DO15 175DEG 15.3V 600W |
5,910 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Cut Tape (CT) | Active | Zener | 1 | - | 15.3V | 17.1V | 25.2V | 24A | 600W | No | General Purpose | - | -50°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
SMFA1905CATVS SOD-123FL ASYM 1905 Bi 7 |
5,900 |
|
Datasheet |
SOD-123F | SMFA | Tape & Reel (TR) | Active | Zener | - | 1 | 5.5V | 6.82V | 10.5V | 33A | - | No | General Purpose | 485pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
|
SMFA2005CATVS SOD-123FL ASYM 2005 Bi 7 |
5,880 |
|
Datasheet |
SOD-123F | SMFA | Tape & Reel (TR) | Active | Zener | - | 1 | 5.5V | 6.82V | 10.5V | 33A | - | No | General Purpose | 440pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
|
SMFA1805CATVS SOD-123FL ASYM 1805 Bi 7 |
5,880 |
|
Datasheet |
SOD-123F | SMFA | Tape & Reel (TR) | Active | Zener | - | 1 | 5.5V | 6.82V | 10.5V | 33A | - | No | General Purpose | 515pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
|
AQW05C-01FTG5V 30A 30KV SOD323 BI-DIR TVS |
5,850 |
|
Datasheet |
SC-76, SOD-323 | AQW05, SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6V | 15V (Typ) | 30A (8/20µs) | - | No | - | 115pF @ 1MHz | -40°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
SMBJP6KE220CA-TPTVS DIODE 185VWM 328VC DO214AA |
5,690 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 185V | 209V | 328V | 1.9A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
BZW06-10TVS DO15 175DEG 10.2V 600W |
5,600 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Cut Tape (CT) | Active | Zener | 1 | - | 10.2V | 11.4V | 16.7V | 36A | 600W | No | General Purpose | - | -50°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
BZW04-17TVS DO15 175DEG 17.1V 400W |
5,400 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Cut Tape (CT) | Active | Zener | 1 | - | 17.1V | 19V | 27.7V | 14.5A | 400W | No | General Purpose | - | -50°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
SMFA1505CATVS SOD-123FL ASYM 1505 Bi 7 |
5,380 |
|
Datasheet |
SOD-123F | SMFA | Tape & Reel (TR) | Active | Zener | - | 1 | 5.5V | 6.82V | 10.5V | 33A | - | No | General Purpose | 565pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
PTVS14VP1UTP,115TVS DIODE 14VWM 23.2VC SOD128 |
5,238 |
|
Datasheet |
SOD-128 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 14V | 15.6V | 23.2V | 25.9A | 600W | No | - | - | -55°C ~ 185°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-128/CFP5 |
|
SMAJ12AHTVS DIODE 12VWM 19.9VC DO214AC |
4,864 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 20.1A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
